LG 24BK55WD Manuel utilisateur

www.lg.com

OWNER’S MANUAL

LED LCD Monitor

22BK55WD

24BK55WD

22BK55WY

24BK55WY

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand Base

6 - Detaching the stand base

7 - Detaching the stand body

7 - Using the cable holder

7 - Mounting on a table

8 - Adjusting the angle

9 - Adjusting the stand height

9 - Using the Kensington locking device

10 - Swivel stand

10 - Using the Pivot function

11 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting to a PC

12 - D-SUB connection

12 - DVI-D connection

14 - Peripheral device connection

15 CUSTOMIZING SETTINGS

16 Customizing Settings

16 - Menu Settings

17 -Picture

18 -Color

19 -Display

19 -Audio

20 -Others

21 -READER Setting

22 -SMART ENERGY SAVING Setting

23 TROUBLESHOOTING

25 SPECIFICATIONS

25 22BK55WY

26 22BK55WD

27 24BK55WY

28 24BK55WD

29 Preset Modes (Resolution)

30 Indicator

31 PROPER POSTURE

31 Proper posture for using the Monitor set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Base

CD / Card

D-SUB Cable

(This cable is not included in all

countries.)

DisplayPort Cable

(This cable is not

included in all countries.)

DVI to HDMI Cable

(This cable is not

included in all countries.)

( Depending on the

country )

( Depending on the

country )

Power Cord

DVI-D Cable

(This cable is not included in all

countries.)

One Screw Cable Holder

USB Cable

Audio Cable

22BK55WY 24BK55WY 22BK55WY 24BK55WY 24BK55WY

ENG

ENGLISH

ASSEMBLING AND PREPARING

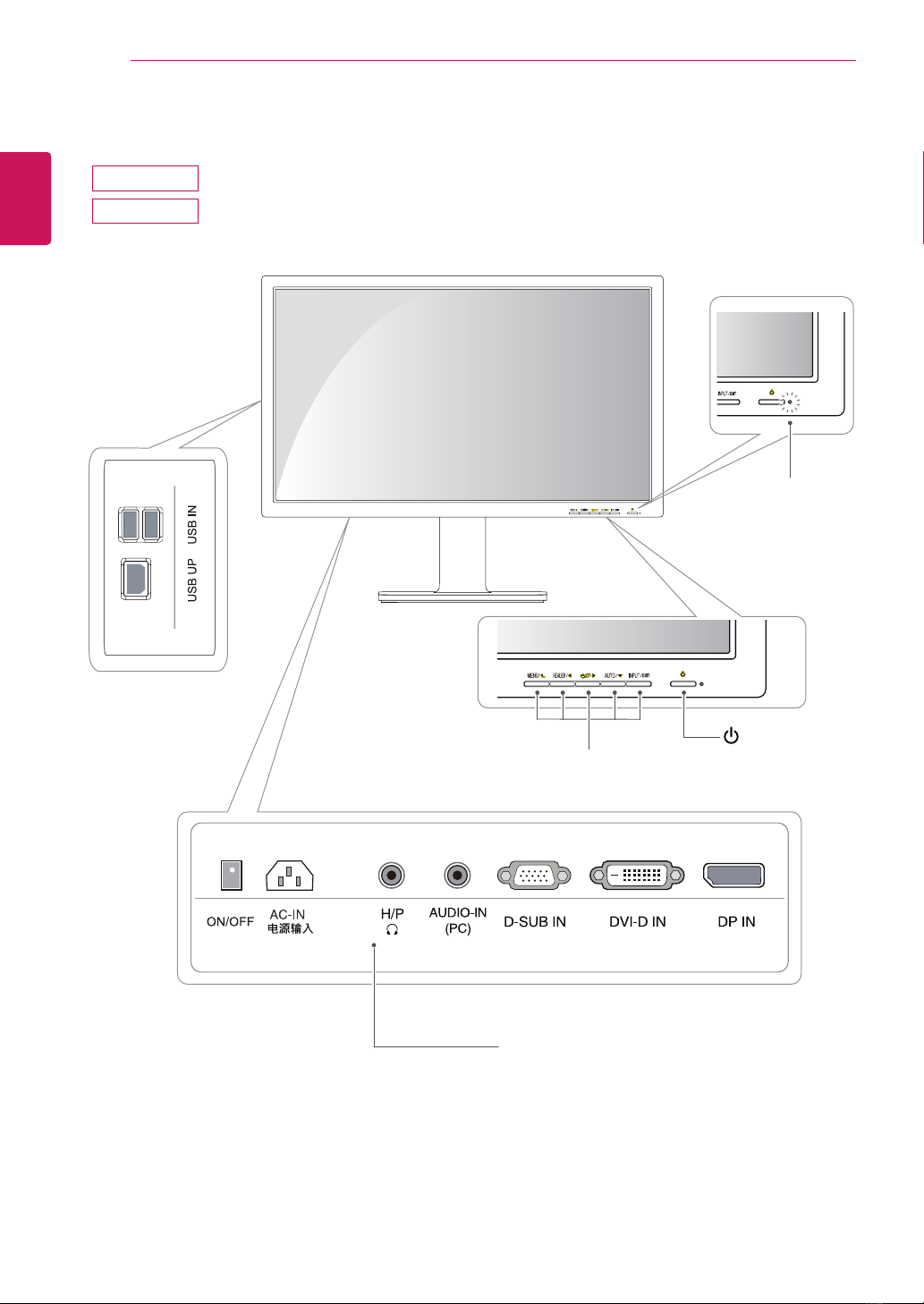

Parts and buttons

(Power Button)

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

Input Connectors (See p.12 to 14)See p.12 to 14)to 14)14))

22BK55WY

24BK55WY

ENG

ENGLISH

ASSEMBLING AND PREPARING

Input Connectors (See p.12 to 14)See p.12 to 14)to 14)14))

(Power Button)

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

22BK55WD

24BK55WD

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Base

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

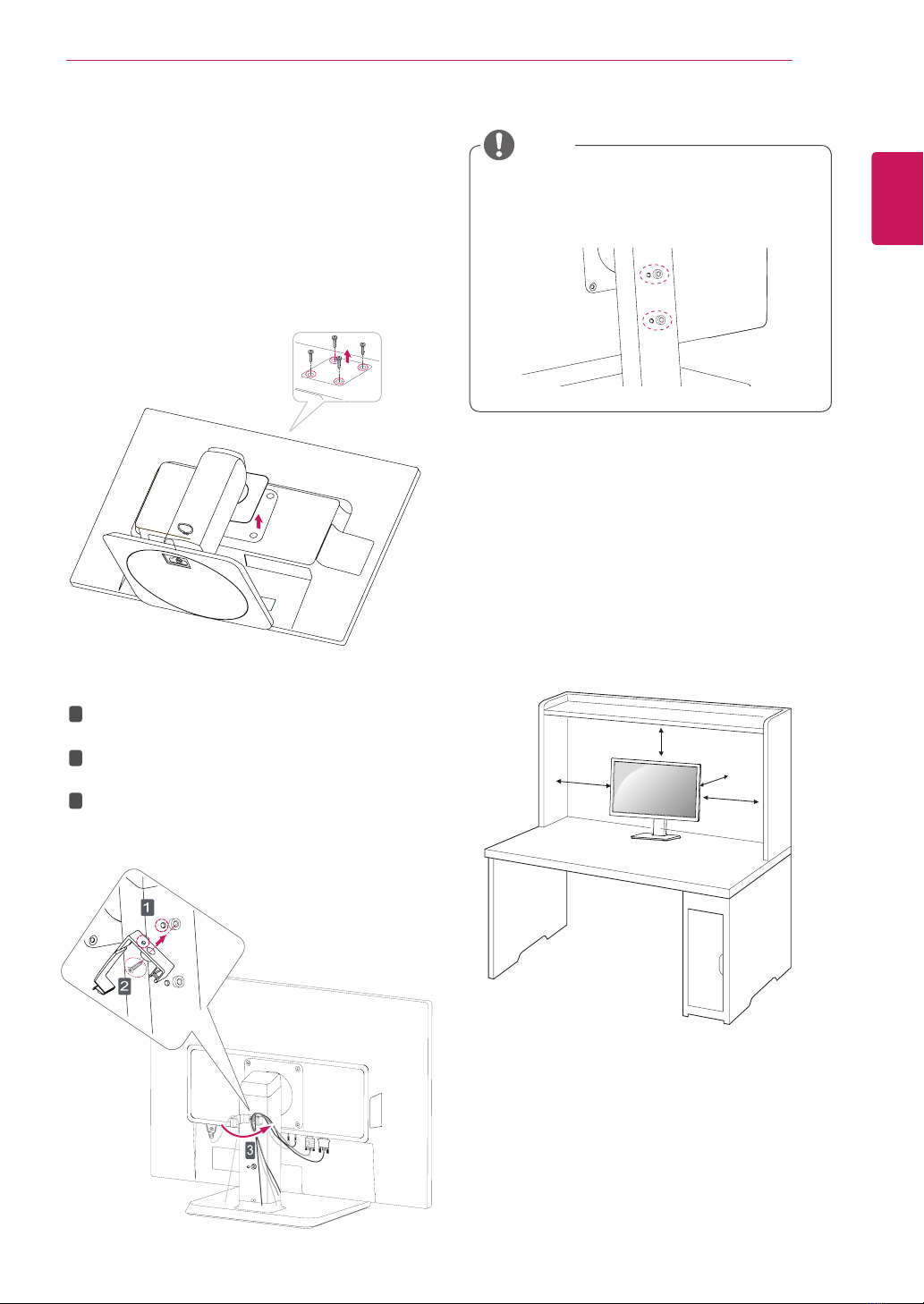

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 100 mm away from the wall to

ensure sufficient ventilation.

100 mm

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

Using the cable holder

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

NOTE

yThe holes are used for wall mount bracket.

yVaries depending upon your country or

model.

ENG

ENGLISH

ASSEMBLING AND PREPARING

3Press the (Power) button on the front of the

monitor to turn on the monitor.

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

(Before connect please check the “ON/OFF”

knob in “O” state).

Press the “ON/OFF” knob in “ ” state

(Open the power).



Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 35° backwards for a comfortable viewing

experience.

Front SideRear Side

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

CAUTION

WARNING

3The height can be adjusted up to 130 mm.

130.0mm

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

Tape

Locking Pin

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.
