LG 23MP55H Manuel utilisateur

www.lg.com

OWNER’S MANUAL

IPS LED MONITOR

Please read this manual carefully before operating

your set and retain it for future reference.

IPS LED MONITOR MODEL

ENGLISH

22MP55HQ 23MP55H

23MP55HQ

24MP55HQ

27MP55HQ

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3 ASSEMBLINGANDPREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Moving and Lifting the Monitor

6 Setting up the Monitor set

6 - Attaching the Stand Base

7 - Detaching the Stand Base

8 - Mounting on a table

8 - Using the cable holder

10 - Mounting on a wall

11 USINGTHEMONITORSET

11 Connecting to a PC

11 - D-SUB connection

11 - HDMI connection

12 Connecting to AV Devices

12 - HDMI connection

12 Connecting to External Devices

12 - Peripheral device connection

13 CUSTOMIZINGSETTINGS

14 Customizing Settings

14 - Menu Settings

15 - Picture

16 - Color

17 - Display

17 - Audio

18 - Others

19 READER Setting

20 FUNC. Setting

20 - SUPER ENERGY SAVING

21 - Picture Mode

22 - SUPER RESOLUTION +

23 - DUAL DISPLAY

23 - DUAL WEB

24 TROUBLESHOOTING

26 SPECIFICATIONS 

26 22MP55HQ

27 23MP55HQ/23MP55H

28 24MP55HQ

29 27MP55HQ

30 Preset Modes (Resolution)

30 Indicator

31 PROPERPOSTURE

31 Proper posture for using the Monitor set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

ASSEMBLINGANDPREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any unapproved accessories to ensure the safety and product life span.

 Any damages or injuries by using unapproved accessories are not covered by the warranty.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

StandBody

(22MP55HQ/23MP55HQ/

23MP55H/24MP55HQ)

StandBase

CD(Owner'sManual)/

Card

D-SUBCable

(This cable is not included in all

countries.)

( Depending on the country ) ( Depending on the country )

PowerCord AC-DCAdapter AC-DCAdapter

or

StandBody TwoScrews

HDMICable

(This cable is not included in all

countries.)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Partsandbuttons

READER

PowerIndicator

 LightingOn:Turnedon

 LightingOff:Turnedoff

Connection panel (See p.11)

Button (See p.13)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

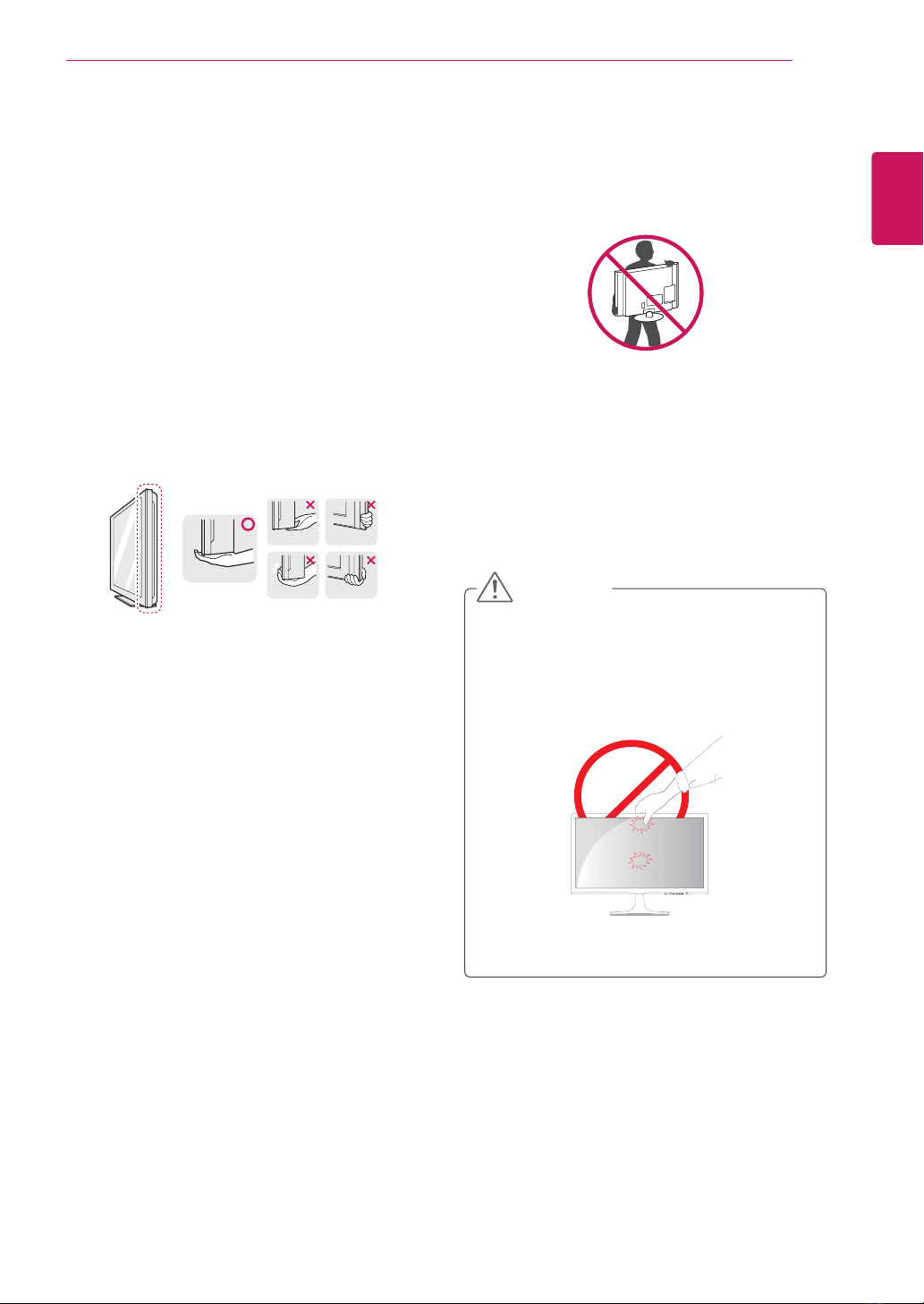

MovingandLiftingtheMonitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

 As far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

 It is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

 Before moving or lifting the monitor, discon-

nect the power cord and all cables.

 Hold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

 When holding the monitor, the screen should

face away from you to prevent it being

scratched.

 When moving the monitor, avoid any strong

shock or vibrations to the product.

 When moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Attach the StandBody to the monitor set.

Attach the StandBase.

Tighten the screw to the right.

SettinguptheMonitorset

AttachingtheStandBase

1 Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

StandBase

StandBody

22MP55HQ/ 23MP55HQ /24MP55HQ

27MP55HQ

Attach the StandBody to the monitor set.

Use two screws to fix the StandBody and

monitor set.

Attach the StandBase.

Tighten the screw to the right .

StandBody

StandBase

23MP55H

ENG

ENGLISH

ASSEMBLING AND PREPARING

DetachingtheStandBase

1 Place the Monitor set with the screen side

down on a flat and cushioned surface.

StandBase

StandBody

Pull out the StandBody and StandBase

from the monitor set.

Turn the screw to the left.

Pull out the StandBase.

 This illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

 Do not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

22MP55HQ/ 23MP55HQ /24MP55HQ

27MP55HQ

Turn the screw to the left.

Pull out the StandBase from the StandBody.

Remove two screws and pull out the Stand

Body from the monitor set.

StandBody

StandBase

23MP55H

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mountingonatable

1 Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2 Connect the AC-DC Adapter and Power Cord

to a wall outlet.

3 Press (Power) button on the bottom switch

panel to turn the power on.

10 cm

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

or

Usingthecableholder

Cableholder

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Tilt from +20 to -3 degrees up or down to adjust

the angle of the Monitor set to suit your view.

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front

Rear

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

22MP55HQ/23MP55HQ/24MP55HQ

27MP55HQ

23MP55H
