OWNER’S MANUAL

LED MONITOR

(LED TOUCH MONITOR)

23ET83V

Please read this manual carefully before operating

your set and retain it for future reference.

LED MONITOR(LED TOUCH MONITOR) MODEL LIST

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

6 Moving and Lifting the Monitor

6 Setting up the Monitor

6 - Mounting on a table

8 - Tidying cables

9USING THE MONITOR

9 Connecting to a PC

9 - D-SUB connection

9 - HDMI connection

11 - USB cable-PC connection

11 - Headphone port connection

12 CUSTOMIZING SETTINGS

13 Customizing Settings

13 - Menu Settings

14 -PICTURE

15 -COLOR

16 -DISPLAY

16 -VOLUME

17 -OTHERS

18 SUPER ENERGY SAVING

19 Picture Mode

20 TROUBLESHOOTING

23 SPECIFICATIONS

24 Preset Modes (Resolution)

24 HDMI TIMING

24 Indicator

25 PROPER POSTURE

25 Proper Posture for Using the Monitor

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Power Cord

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not included in

all countries.)

( Depending on the country )

AC-DC Adapter

( Depending on the country )

A-B Type USB 2.0 Cable

Cable Tie

ENG

ENGLISH

ASSEMBLING AND PREPARING

D-SUB IN

HDMI 2

HDMI 1

DC-IN (19 V )

H/P

USB UP

SES MODE

Parts and buttons

Power Indicator

yLighting On: Turned on (Red)

yLighting Off: Turned off

Connection panel

Button

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs much as possible, avoid touching the

monitor screen. This may result in damage

to the screen or some of the pixels used to

create images.

CAUTION

yIt is advisable to place the monitor in the

original box or packing material before

attempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

10 cm

DC-IN (19 V )

ENG

ENGLISH

ASSEMBLING AND PREPARING

3Press the (Power) button on the front panel

to turn the power on.

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING

NOTE

To avoid injury to the fingers when adjusting

the screen, do not hold the upper part of the

stand as shown below.

Front Rear

yTilt from +25 to -5 degrees up or down to

adjust the angle of the Monitor set to suit

your view.

yAvoid using the product in a high

temperature and high humidity area. Moving

the monitor from a environment like this to

an air conditioned area may cause moisture

formation inside the glass. This moisture

will be dissipate over time, which may vary

depending on the operating environment.

ENG

ENGLISH

USING THE MONITOR

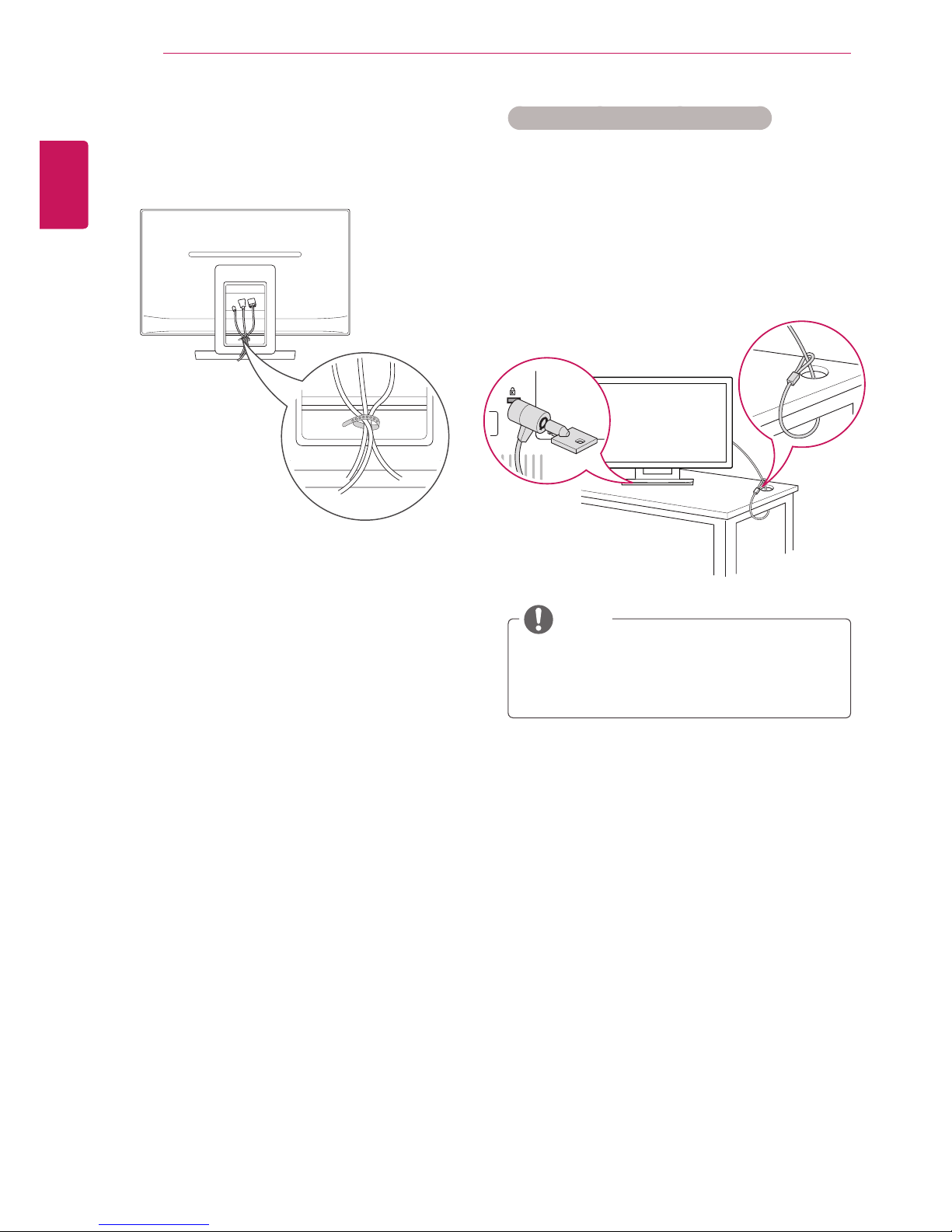

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

Tidying cables

Gather and bind the cables with the supplied cable

tie.

ENG

ENGLISH

USING THE MONITOR

Connecting to a PC

Your Monitor supports Plug & Play. When

connected to a PC and turned on, the device will

connect automatically without configuration or

user intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor with

the supplied D-sub 15 pin signal cable as shown in

the following illustrations.

yThis monitor support PC input via HDMI,

but you may experience some compatibility

issues.

NOTE

HDMI connection

Transmits the digital video and audio signals from

your PC or A/V to the Monitor. Connect the PC or

A/V and the Monitor with the HDMI cable as shown

in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

NOTE

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB OUT

HDMI OUT HDMI OUT

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB IN

HDMI 2

HDMI 1

H/P

USB UP

D-SUB OUT

HDMI OUT HDMI OUT

(sold separately)

ENG

ENGLISH

USING THE MONITOR

y"Self Image Setting" Function.

This function provides the user with optimal

display settings.When the user connects

the monitor for the first time, this function

automatically adjusts the display to optimal

settings for individual input signals.(Only

supported in Analog Mode)

y‘AUTO’ Function.

When you encounter problems such as

blurry screen, blurred letters, screen flicker

or tilted screen while using the device or

after changing screen resolution, press the

AUTO function button to improve resolution.

(Only supported in Analog Mode)

NOTE

yConnect the signal

input cable and tighten

it by turning the screws

clockwise.

yDo not press the screen with your finger for

a long time as this may result in temporary

distortion on the screen.

yAvoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION Self Image Setting Function

Press the power button to turn on the monitor.

When monitor power is turned on, the "Self Image

Setting" Function is executed automatically. (Only

supported in Analog Mode)

yWhen connecting the power cord to the out-

let, use a grounded (3-hole) multi-socket or a

grounded power outlet.

yThe monitor may flicker when turned on in an

area of low temperature. This is normal.

ySometimes red, green, or blue spots may ap-

pear on the screen. This is normal.

yUsing a DVI to HDMI cable may cause com-

patibility issues.

NOTE

AUTO INPUT EXITMODE
