LG 22MP67VQ Manuel utilisateur

www.lg.com

LED LCD MONITOR MODEL

ENGLISH

OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating

your set and retain it for future reference.

22MP67D

22MP67HQ

22MP67VQ

23MP67D

23MP67HQ

23MP67VQ

24MP67HQ

24MP67VQ

27MP67HQ

27MP67VQ

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

7 - How to Use the Joystick Button

8 Moving and Lifting the Monitor

9 Setting up the Monitor set

9 - Attaching the Stand Base

10 - Detaching the Stand Base

11 - Mounting on a table

11 - Using the cable holder

13 - Mounting on a wall

14 USING THE MONITOR SET

14 Connecting to a PC

14 - D-SUB connection

14 - DVI-D connection

14 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

16 Connecting to External Devices

16 - Peripheral device connection

17 INSTALLING THE LG MONI-

TOR SOFTWARE

17 Installing The Screen Split

19 Installing The LG Color Cloning

21 CUSTOMIZING SETTINGS

22 Customizing settings

22 - Menu Settings

22 - -Quick Settings

24 - -Picture

26 - -General

27 - -Auto Configuration

28 - -Reset

29 - -Picture mode

30 TROUBLESHOOTING

32 SPECIFICATIONS

40 Preset Modes (Resolution)

40 Indicator

41 PROPER POSTURE

41 Proper posture for using the Monitor set.

42 CUD ( COLOR UNIVERSAL

DESIGN) CERTIFICATION

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ22MP67VQ 23MP67VQ 24MP67VQ 27MP67VQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

22MP67D 23MP67D 24MP67VQ

22MP67VQ 23MP67VQ 27MP67VQ

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

Stand Body Stand Base Cable Holder Two Screws

HDMI Cable

( This cable is not included in all

countries. )

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Connection panel (See p.14~16)

(Joystick Button)

Power Indicator

yOn: power is on

yOff: power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

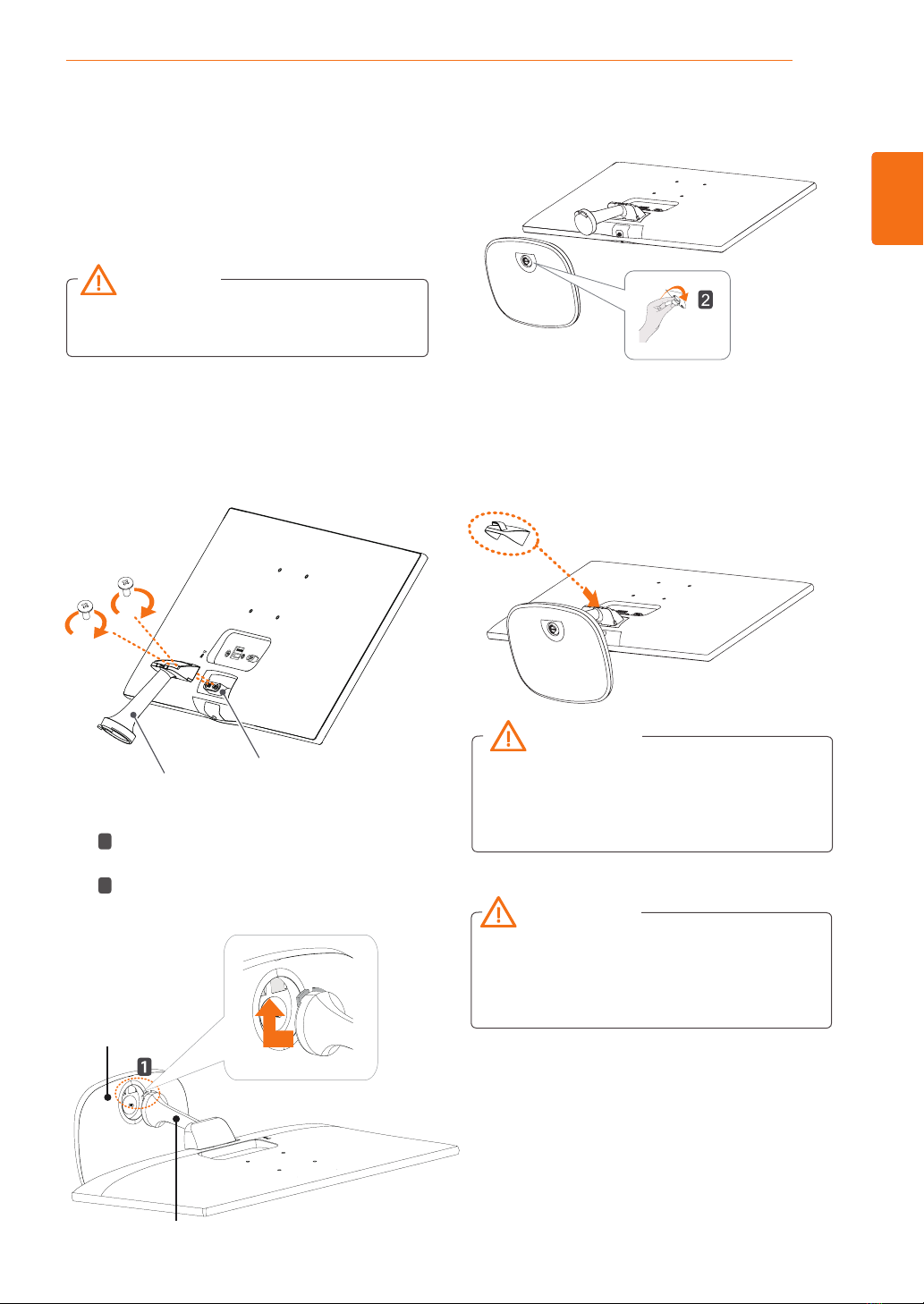

Setting up the Monitor set

Attaching the Stand Base

Stand Body

Stand Hinge

Stand Body

Stand Base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Tighten two screws into the back of the stand

body .

1Place the screen face down.

Screws

3Insert the stand base into the hook of the

stand body.

Tighten the screw to the right.

4Attach the Cable holder.

Applying excessive force when tightening

the screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

CAUTION

It may hurt your foot off the stand, so be

careful.

CAUTION

Cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

1Place the screen face down.

Turn the screw to the left.

Pull out the Stand Base.

Stand Base

Stand Body

Cable holder

3As shown in the illustration,put your hand on

the right groove of cable holder, pull cable

holder out to separate it from the set.

4Remove the two screws on the back of stand

body.

As shown in the illustration, disconnect the

stand body from the stand hinge.

Stand Body

Stand Hinge

Screws

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result

in personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

yIf you use the monitor panel without the

stand base, its joystick button may cause

the moni-tor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

CAUTION
