Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

7 - How to Use the Joystick Button

8 Moving and Lifting the Monitor

9 Setting up the Monitor set

9 - Attaching the Stand Base

9 - Detaching the Stand Base

10 - Mounting on a table

11 - Using the cable holder

13 - Mounting on a wall

14 USING THE MONITOR SET

14 Connecting to a PC

14 - D-SUB connection

14 - DVI-D connection

14 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

16 Connecting to External Devices

16 - Peripheral device connection

17 INSTALLING THE LG MONI-

TOR SOFTWARE

17 Installing The Screen Split

19 Installing The LG Color Cloning

21 CUSTOMIZING SETTINGS

22 Customizing settings

22 - Menu Settings

22 - -Quick Settings

24 - -Picture

26 - -General

27 - -Auto Configuration

28 - -Reset

29 - -Picture mode

30 TROUBLESHOOTING

32 SPECIFICATIONS

40 Preset Modes (Resolution)

40 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

22MP57HQ 22MP57VQ 23MP57HQ 23MP57VQ 24MP57VQ

27MP57VQ

23MP57H 24MP57HQ

27MP57HQ 27MP57HT

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

Stand Body Stand Base

HDMI Cable

( This cable is not included in all

countries. )

Cable Holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

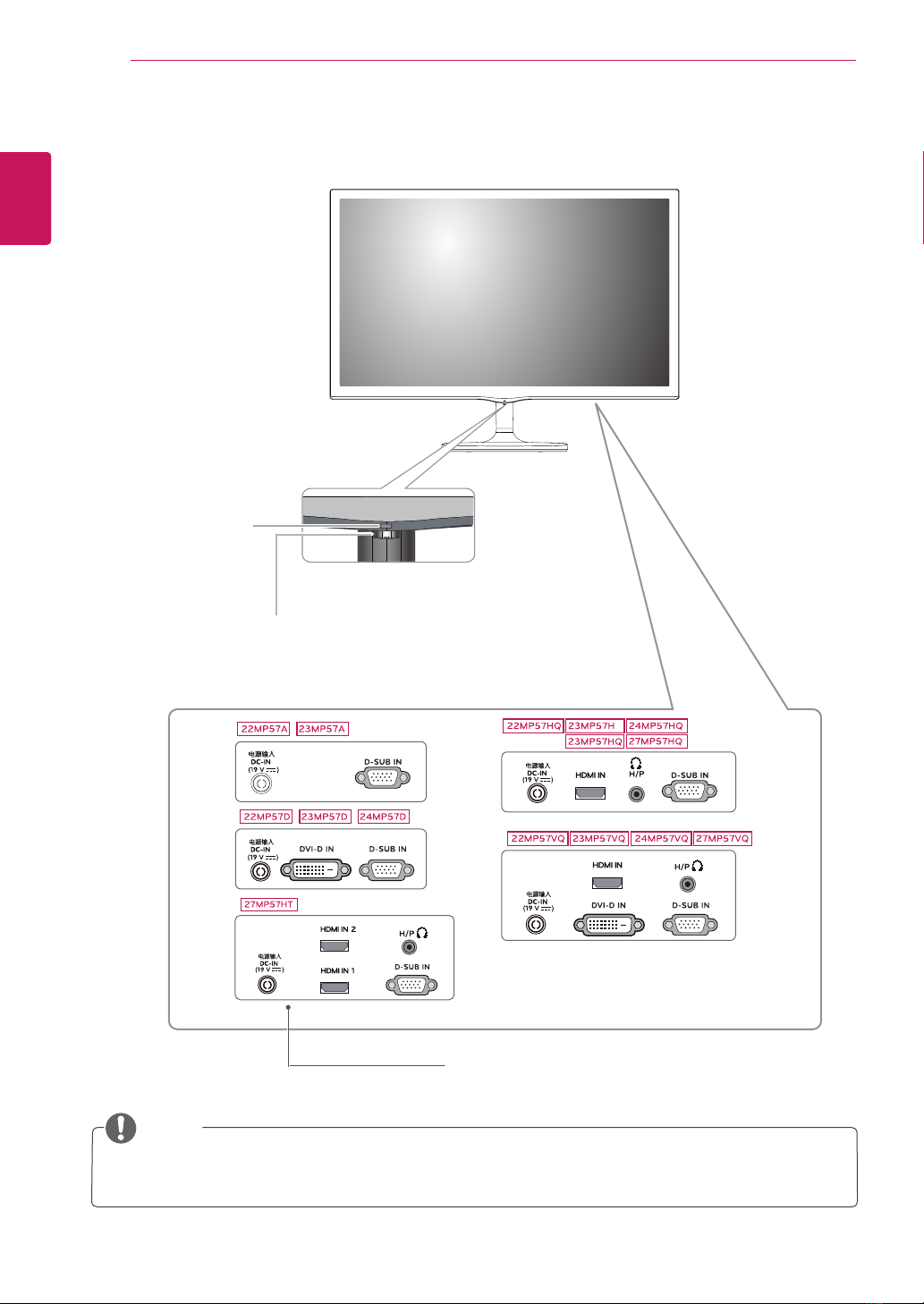

Parts and buttons

Connection panel (See p.14~16)

(Joystick Button)

Power Indicator

yOn: power is on

yOff: power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Insert the Cable Holder.

Attach the Stand Body to the monitor set.

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Turn the screw to the left.

Pull out the Stand Base.

Pull out the Stand Body from the monitor

set.

Separate the Cable Holder.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm (minimum) space from the

wall for proper ventilation.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

100 mm

yIllustrations in this document represent typical pro-

cedures, so they may look different from the actual

product.

yDo not carry the monitor upside down by just hold-

ing the stand base. This may cause the monitor to

fall off the stand and could result in personal injury.

yWhen lifting or moving the monitor, do not touch

the monitor screen. The force applied to the moni-

tor screen may cause damage to it.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-tor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

CAUTION

(19 V )
