LG 16M38A Manuel utilisateur

www.lg.com

IPS LED(LED LCD) MONITOR MODEL

Please read this manual carefully before operating

your set and retain it for future reference.

*LG LED Monitors are LCD Monitors with LED Backlighting.

Owner's Manual

IPS LED MONITOR

LED LCD MONITOR

(LED MONITOR*)

19M38A

19M38D

20M38A

20M38D

20M38H

22M38A

22M38D

22M38H

24M38A

24M38D

24M38H

27MP38VQ

27MP38HQ

16M38A

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

7 Moving and Lifting the Monitor

8 Setting up the Monitor set

8 - Attaching the Stand Base

9 - Detaching the Stand Base

11 - Mounting on a table

11 - Using the cable holder

13 - Mounting on a wall

14 USING THE MONITOR SET

14 Connecting to a PC

14 - D-SUB connection

14 - DVI-D connection

15 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

16 Connecting to External Devices

16 - Peripheral device connection

17 CUSTOMIZING SETTINGS

18 Customizing Settings

18 - Menu Settings

20 -Picture

21 -Color

22 -Display

22 -Audio

23 -Others

24 READER Setting

25 FUNC. Setting

25 -SMART ENERGY SAVING

26 -Picture Mode

27 -Color Weakness

28 TROUBLESHOOTING

30 SPECIFICATIONS

42 Preset Modes (Resolution)

43 Indicator

44 PROPER POSTURE

44 Proper posture for using the Monitor set.

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjust-

ment to display.

*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

20M38H 22M38H 24M38H 27MP38VQ 27MP38HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

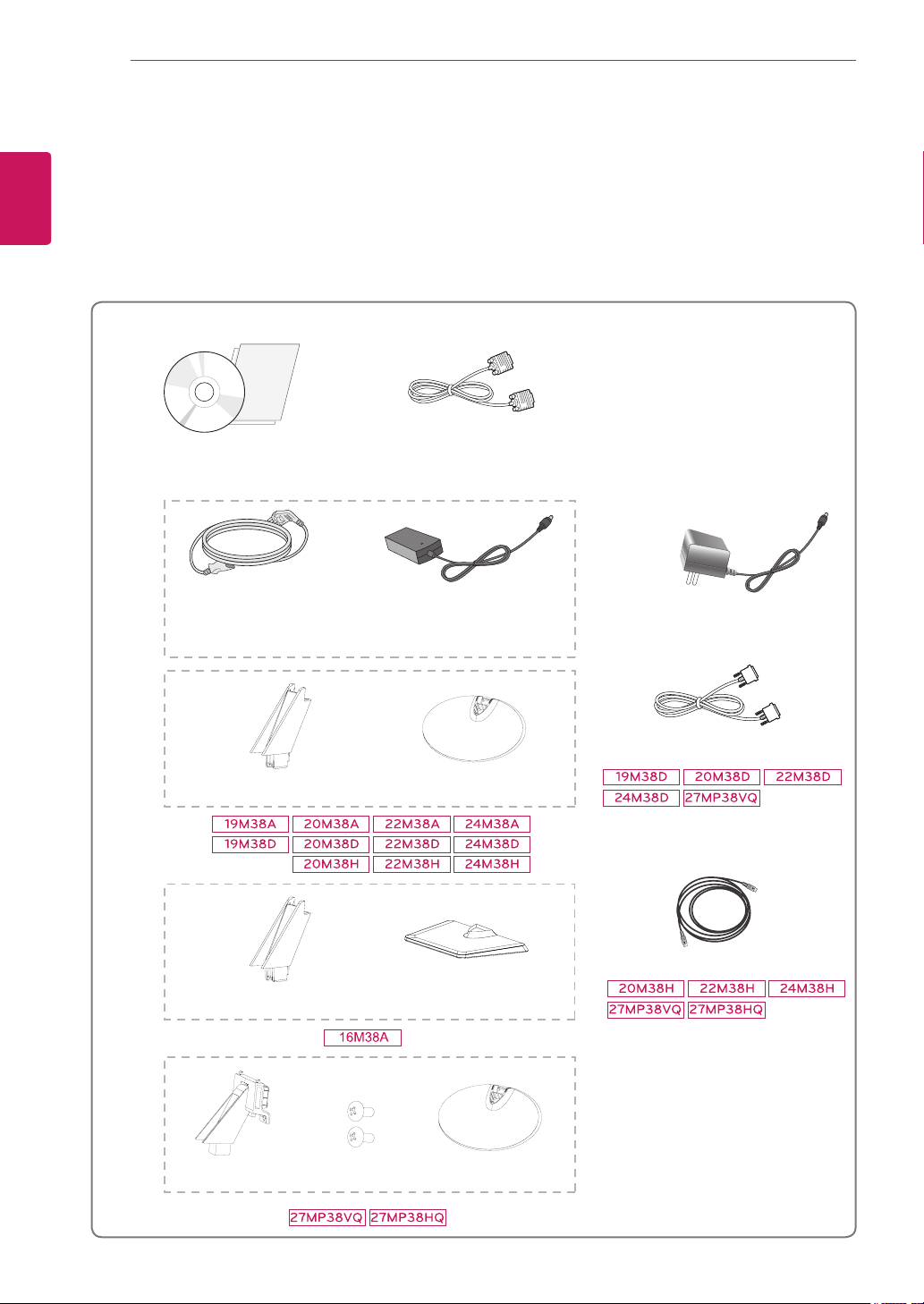

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

HDMI Cable

Stand Body Stand Base

Stand Base

DVI-D Cable

( This cable is not included in all

countries. )

( This cable is not included in all

countries. )

Stand Body Two Screws

Stand Body Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.14~16)

Button (See p.17)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

Stand Base

19M38A 20M38A 22M38A 24M38A

19M38D 20M38D 22M38D 24M38D

20M38H 22M38H 24M38H

27MP38VQ 27MP38HQ

Attach the Stand Body to the monitor set.

Use two screws to fix the Stand Body and

monitor set.

Attach the Stand Base.

Tighten the screw to the right with a coin.

Stand Body

16M38A

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right with a coin.

Stand Base

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

19M38A 20M38A 22M38A 24M38A

19M38D 20M38D 22M38D 24M38D

20M38H 22M38H 24M38H

Pull out the Stand Body and Stand Base

from the monitor set.

Turn the screw to the left with a coin.

Pull out the Stand Base.

Stand Base

Stand Body

16M38A

ENG

ENGLISH

ASSEMBLING AND PREPARING

yThis illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

yDo not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

Stand Body

Stand Base

27MP38VQ 27MP38HQ

Turn the screw to the left with a coin.

Pull out the Stand Base from the Stand Body.

Remove two screws and pull out the Stand

Body from the monitor set.
