OWNER’S MANUAL

MICROWAVE OVEN

PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.

MFL67692002

MS564

(optional, please check model speciﬁcation)

***

MS204***

You cannot operate your oven with the door open due to the safety interlocks

built into the door mechanism. These safety interlocks automatically switch off

any cooking activity when the door is opened; which in the case of a

microwave oven could result in harmful exposure to microwave energy.

It is important not to tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow

food or cleaner residue to accumulate on sealing surfaces.

Do not operate your oven if it is damaged. It is particularly important that the

oven door closes properly and that there is no damage to the: (1) door(bent),

(2) hinges and latches (broken or loosened), (3) door seals and sealing

surfaces.

Your oven should not be adjusted or repaired by anyone except qualified

service personnel.

Warning

Precautions to avoid possible exposure to excessive microwave energy.

When heating liquids, e.g. soups, sauces and beverages in your microwave

oven, overheating the liquid beyond boiling point can occur without

evidence of bubbling. This could result in a sudden boil over of the hot

liquid. To prevent this possibility the following steps should be taken:

1 Avoid using straight sided containers with narrow necks.

2 Do not overheat.

3 Stir the liquid before placing the container in the oven and again halfway

through the heating time.

4 After heating, allow to stand in the oven for a short time, stir or shake

them again carefully and check the temperature of them before

consumption to avoid burns (especially, contents of feeding bottles and

baby food jars).

Be careful when handling the container.

Warning

Always allow food to stand after being cooked by

microwaves and check the temperature of them

before consumption. Especially contents of feeding

bottles and baby food jars.

Please ensure cooking times are correctly set as

over cooking may result in the FOOD catching fire

and subsequent damage to your oven.

Precautions

How the Microwave Oven Works

Microwaves are a form of energy similar to radio and television waves and

ordinary daylight. Normally, microwaves spread outwards as they travel

through the atmosphere and disappear without effect. Microwave ovens,

however, have a magnetron which is designed to make use of the energy in

microwaves. Electricity, supplied to the magnetron tube, is used to created

microwave energy.

These microwaves enter the cooking area through openings inside the oven. A

turntable or tray is located at the bottom of the oven. Microwaves cannot pass

through metal walls of the oven, but they can penetrate such materials as

glass, porcelain and paper, the materials out of which microwave-safe

cooking dishes are constructed.

Microwaves do not heat cookware, though cooking vessels will eventually get

hot from the heat generated by the food.

A very safe appliance

Contents

Your microwave oven is one of the safest of all home

appliances. When the door is opened, the oven

automatically stops producing microwaves. Microwave

energy is converted completely to heat when it enters

food, leaving no “left over” energy to harm you when

you eat your food.

Precautions 2

Contents 3

Unpacking & Installing 4 ~ 5

Setting the Clock 6

Child Lock 7

Micro Power Cooking 8

Micro Power Level 9

Two Stage Cooking 10

Quick Start 11

Continental Menu 12 ~

Auto Defrost

~26

Quick Defrost

~28 29

Arabic Menu 16 ~ 18

European Menu 19 ~ 21

Oriental Menu 22 ~ 25

37 ~ 38

Energy Saving

Microwave - safe Utensils

Food characteristics & Microwave cooking

Questions & Answers

Plug Wiring Information/Technical Specifications

31 ~ 35

Important Safety Instructions

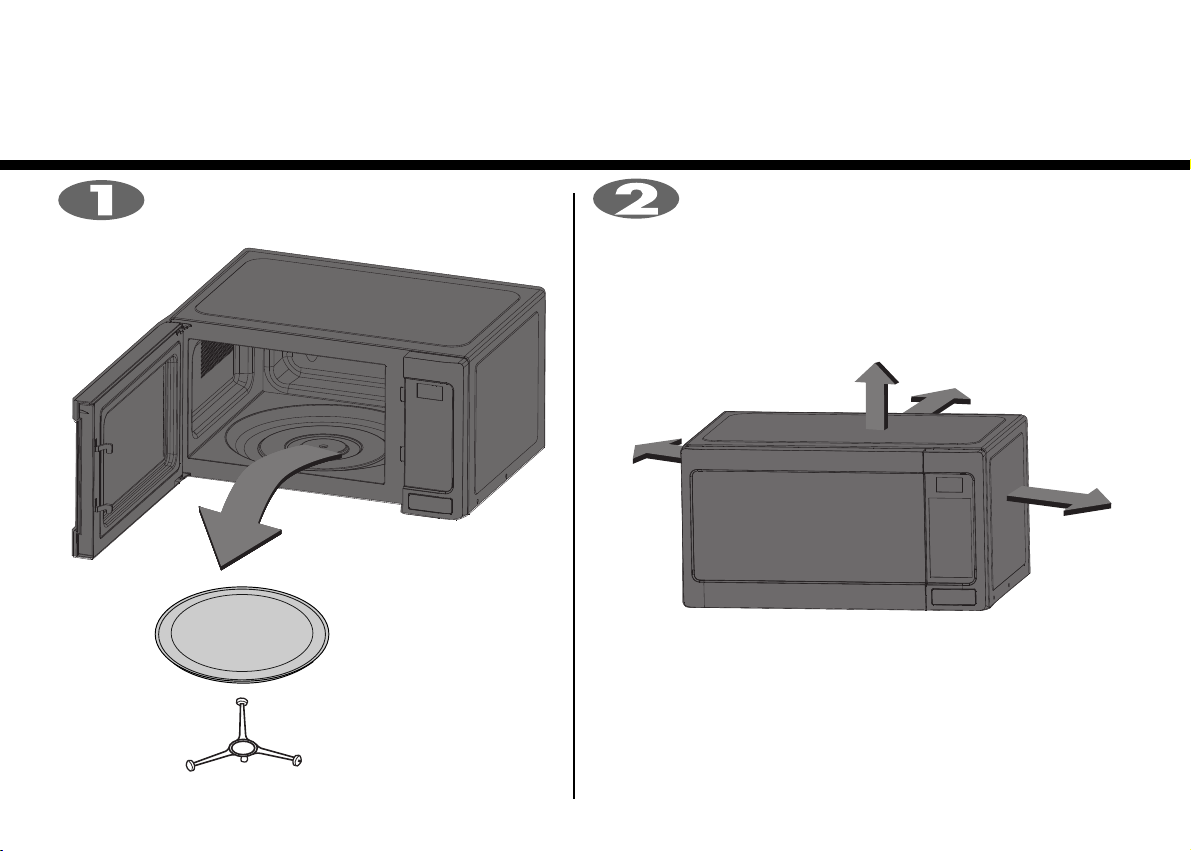

Place the oven in the level location of your choice

with more than 85cm height but make sure there is at

least 20cm of space on the top and 10cm at the rear for proper

ventilation. The front of the oven should be at least 8cm from the

edge of the surface to prevent tipping.

An exhaust outlet is located on top or side of the oven. Blocking

the outlet can damage the oven.

Unpack your oven and place it on a flat level

surface.

By following the basic steps on these two pages you will be able to quickly check that your oven is operating

correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your

oven make sure you remove all accessories and packing. Check to make sure that your oven has not been

damaged during delivery.

THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING

PURPOSES

PLATAFORMA

SOPORTE DE GIRO

Unpacking &

Installing

GLASS TRAY

ROTATING RING

The DISPLAY

When it reaches 0 it will sound BEEPS. Open

the oven door and test the temperature of the water. If

your oven is operating the water should be warm. Be

careful when removing the container it may be hot.

YOUR OVEN IS NOW INSTALLED

Fill a microwave safe container with

300 ml (1/2 pint) of water. Place on

the GLASS TRAY and close the oven door. If you

have any doubts about what type of container to

use please refer to page 36.

Press the

START button

once to set

30 seconds of

cooking time.

You will hear

a BEEP when

you press the button.

Your oven will start

after you have finished

the press.

Open your oven door by

pushing the Release ButtonRelease Button.

Place the ROTATING RING inside the oven and place

the GLASS TRAY on top.

Plug your oven into a standard household socket.

Make sure your oven is the only appliance

connected to the socket. If your oven does not operate

properly, unplug it from the electrical socket and then plug it

back in.

automatically.

You can set either12 hour clock or 24 hour clock.

In the following example I will show you how to set the time for 14:35 when using the 24 clock.

Make sure that you have removed all packaging from your oven.

When your oven is plugged in for the

first time or when power resumes after a

power cut, a ‘0’ will be shown in the

display; you will have to reset the clock.

If the clock (or display) shows any

strange looking symbols, unplug your

oven from the electrical socket and plug

it back in and reset the clock.

During clock setting the colon will flash.

After setting, the colon will stop flashing.

Make sure that you have correctly installed your oven as described earlier

in this book.

Press STOP/CLEAR.

Press CLOCKCLOCK once.

Press CLOCKCLOCK once more.

Press CLOCKCLOCK to set the time.

(If you want to use a 12 hour clock,

If you want to change different option after setting clock,

you have to unplug and plug it back in.)

Press 10 MIN fifteen times.

Press 1 MIN three times.

Press 10 SEC five times.

If the key (10 MIN / 1 MIN / 10 SEC) is pressed and held, the time will

increase rapidly.

The clock starts counting.

Setting the

Clock

Child

Lock

Press and hold STOP/CLEAR until “L” appears on the display and

BEEP sounds.

The CHILD LOCK is now set.

The time will disappear on the display if you have set the clock.

“L” remains on the display to let you know that CHILD LOCK is set.

To cancel CHILD LOCK press and hold STOP/CLEAR until “L” disappears.

You will hear BEEP when it’s released.

Your oven has a safety feature that

prevents accidental running of the oven.

Once the child lock is set, you will be

unable to use any functions and no

cooking can take place.

However your child can still open the

oven door.

Press STOP/CLEAR.

POWER

HIGH

MAX

MEDIUM

HIGH

MEDIUM

DEFROST

MEDIUM LOW

LOW

Press

MICRO

100%

80%

60%

40%

20%

time

times

Power

Output

Micro Power

Cooking

Make sure that you have correctly installed your oven as described earlier

in this book.

Press STOP/CLEAR.

Press MICRO twice to select 80% power.

Press 1 MIN five times.

Press 10 SEC three times.

Press START.

Your oven has five microwave Power

settings. High power is automatically

selected but repeated presses of the

MICRO button will select a different

power level.

In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds.

(

1000W)

(800W)

(600W)

(400W)

(200W)

Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking.

The table below shows the examples of food and their recommended cooking power levels for use with this

microwave oven.

POWER LEVEL POWER LEVEL

(%)

HIGH

MAX

* Boil Water

* Brown minced lamb

* Cook poultry pieces, fish, vegetables

* Cook tender cuts of meat

MEDIUM HIGH * All reheating

* Roast meat and poultry

* Cook mushrooms and shellfish

* Cook foods containing cheese and eggs

MEDIUM * Bake cakes and scones

* Prepare eggs

* Cook custard

* Prepare rice, soup

DEFROST/ * All thawing

MEDIUM LOW * Melt butter and chocolate

* Cook less tender cuts of meat

LOW * Soften butter & cheese

* Soften ice cream

* Raise yeast dough

USE POWER OUTPUT

100%

80%

60%

40%

20%

Micro Power

Level

1000W

800W

600W

400W

200W

Press STOP/CLEAR.

Set the power and the cooking time for stage1.

Press MICRO once to select HIGH power.

Press 10 MIN once.

Press 1 MIN once.

Set the power and the cooking time for stage2.

Press MICRO four times to select 40% power.

Press 10 MIN three times.

Press 1 MIN five times.

Press START.

During two stage cooking the oven door

can be opened and food checked. Close

the oven door and press START and the

cooking stage will continue.

At the end of stage1, BEEP sounds and

stage 2 commences.

Should you wish to clear the programme

press STOP/CLEAR twice.

In the following example I will show you how to cook some food in two stages. The first stage will cook your food

for 11 minutes on HIGH; the second will cook for 35 minutes on 40%.

Two stage

Cooking

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LG Four à micro-ondes

LG MS-2327BL Manuel utilisateur

LG LMC1575BDLG Manuel utilisateur

LG MJ396 Series Manuel utilisateur

LG MS-1918H Manuel utilisateur

LG MJEN326PKW Manuel utilisateur

LG MC-9287BR Manuel utilisateur

LG LCD3018 Series Manuel utilisateur

LG MG7247BZ Manuel utilisateur

LG MC-9283JLR Manuel utilisateur

LG MQ1724FSDL Manuel d'utilisation et d'entretien

LG MS363 Series Manuel utilisateur

LG MS-192W Manuel utilisateur

LG MG1043GARS Manuel utilisateur

LG MB-4352T Manuel utilisateur

LG MS-71GMU Manuel d'utilisation et d'entretien

LG MS-2083ALB Manuel utilisateur

LG LMH1017CVST Manuel d'utilisation et d'entretien

LG LMV1600SB Manuel utilisateur

LG LMV1683SB Manuel utilisateur

LG MS404 Series Manuel utilisateur

LG MVH1615WW Manuel d'utilisation et d'entretien

LG MH6344W Manuel utilisateur

LG MS2049F Manuel utilisateur

LG MS1987KIT Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur

Impecca

Impecca CM07M2 Manuel utilisateur
