LG LB63 Series Manuel utilisateur

www.lg.com

LED TV*

Please read this manual carefully before operating your set and retain

it for future reference.

* LG LED TV applies LCD

screen with LED backlights.

LB63** LB69** LB87**

LB65** LB72**

LB67** LB73**

LB68** LB86**

OWNER S MANUAL

Click! User Guide

P/NO : MFL68027011(1403-REV00)

Printed in Korea

*MFL68027011*

A-2 TABLE OF CONTENTS

COMMON

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-8 Attaching the Sound Bar Supporter

A-9 Tidying cables

A-11 MAKING CONNECTIONS

A-11 Antenna connection

A-14 Satellite dish connection

A-15 HDMI connection

A-20 - ARC (Audio Return Channel)

A-22 DVI to HDMI connection

A-26 Component connection

A-29 Composite connection

A-31 MHL connection

A-35 Audio connection

A-35 - Digital optical audio connection

A-39 USB connection

A-42 CI module connection

A-45 Headphone connection

A-48 Euro Scart connection

LANGUAGE

LANGUAGE LIST

English

Magyar

Polski

!"#$%

&'()"*+,*-

.(/0*1

23456789:

Eesti

;,"<=),> $?

Latviešu

Srpski

Hrvatski

Shqip

Bosanski

@69ABCD89:

EF889:G

COMMON

B-1 SPECIFICATIONS

A-3

SETTING UP THE TV

H/-I" #J(K* /-% L,MM"N MN(/ %(=N OP?

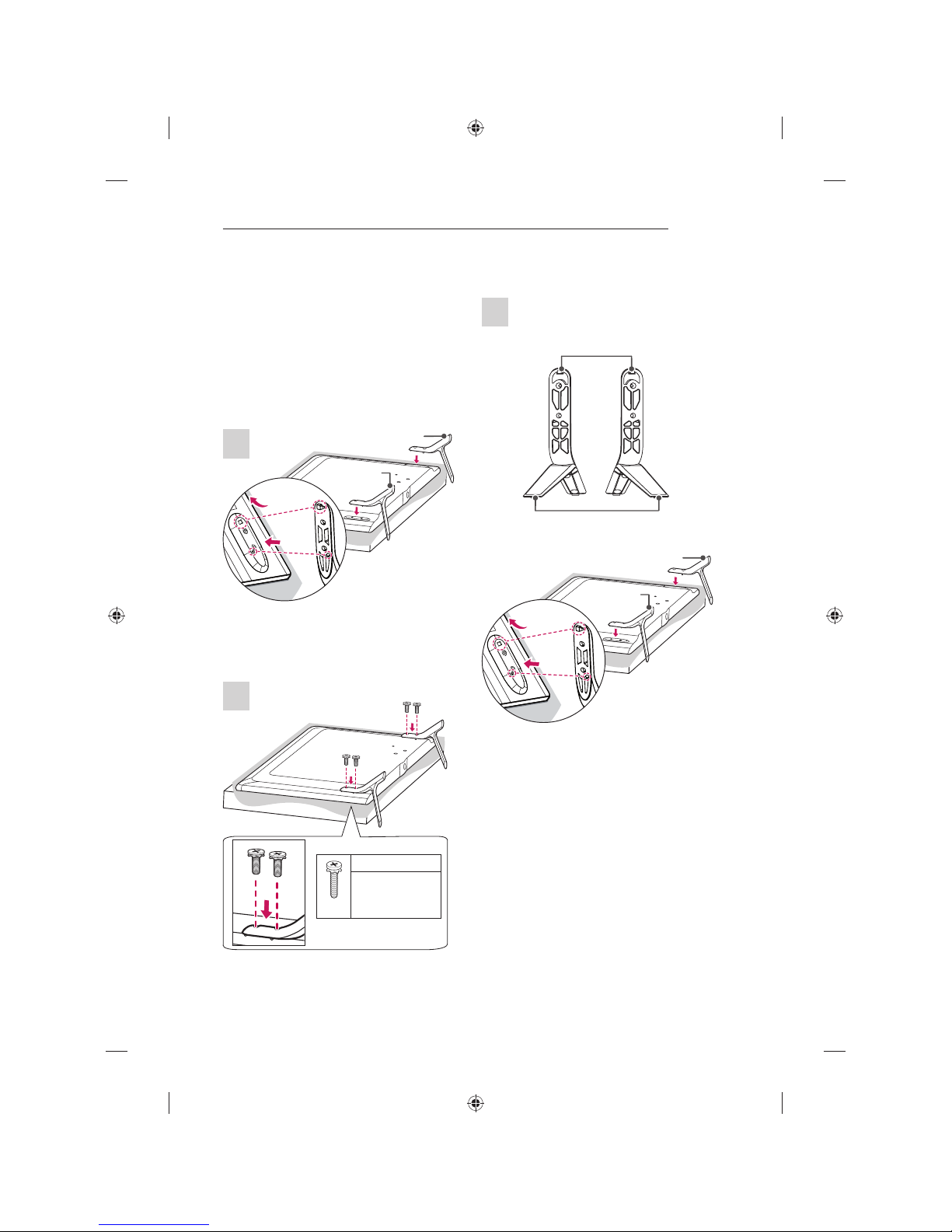

Attaching the stand

LB63**-ZA, 32/39/42/47/50/55LB65**-ZA

B stand base

A stand base

1 Attach the stand to the TV using the upper

/(=*<,*I J('" (* <J" Q-R$ (M <J" OP?

2 Attach the stand to the TV using the lower

R(**"R<,(* (* <J" Q-R$ (M <J" OP?

4EA

M4 x L14

M4 x L20

(Only 32LB65**-

ZA)

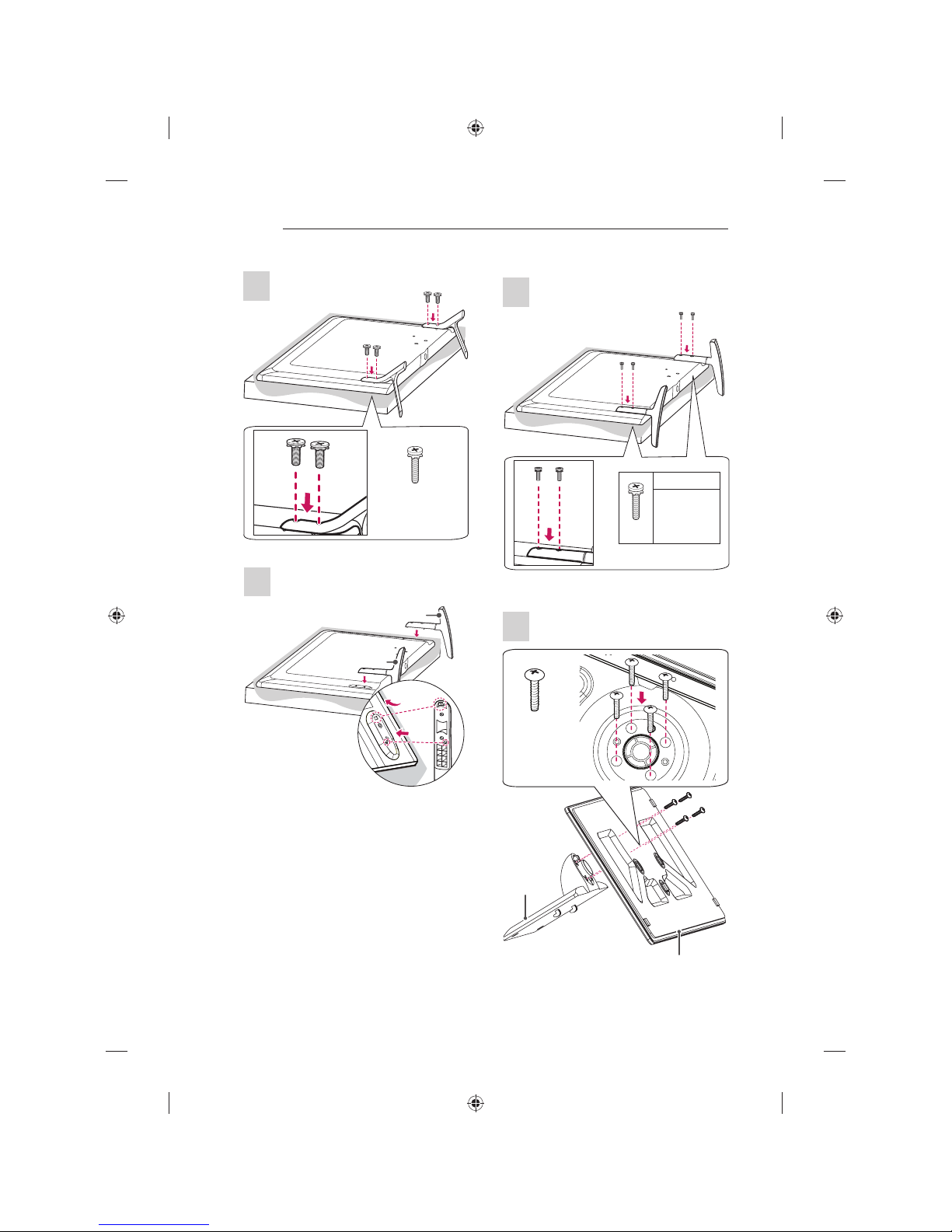

70LB65**-ZA, LB67**, LB68**, LB69**, LB72**,

LB73**-ZA

B stand Assy

A stand Assy

Stand Body

Stand Base

1 Attach the stand to the TV using the upper

/(=*<,*I J('" (* <J" Q-R$ (M <J" OP?

2 Attach the stand to the TV using the lower

R(**"R<,(* (* <J" Q-R$ (M <J" OP?

A-4 SETTING UP THE TV

4EA

M4 x L14

LB63**-ZL, LB65**-ZK

A stand base

B stand base

1 Attach the stand to the TV using the upper

/(=*<,*I J('" (* <J" Q-R$ (M <J" OP?

2 Attach the stand to the TV using the lower

R(**"R<,(* (* <J" Q-R$ (M <J" OP?

4EA

M4 x L14

M4 x L20

(Only

32LB65**-

ZK)

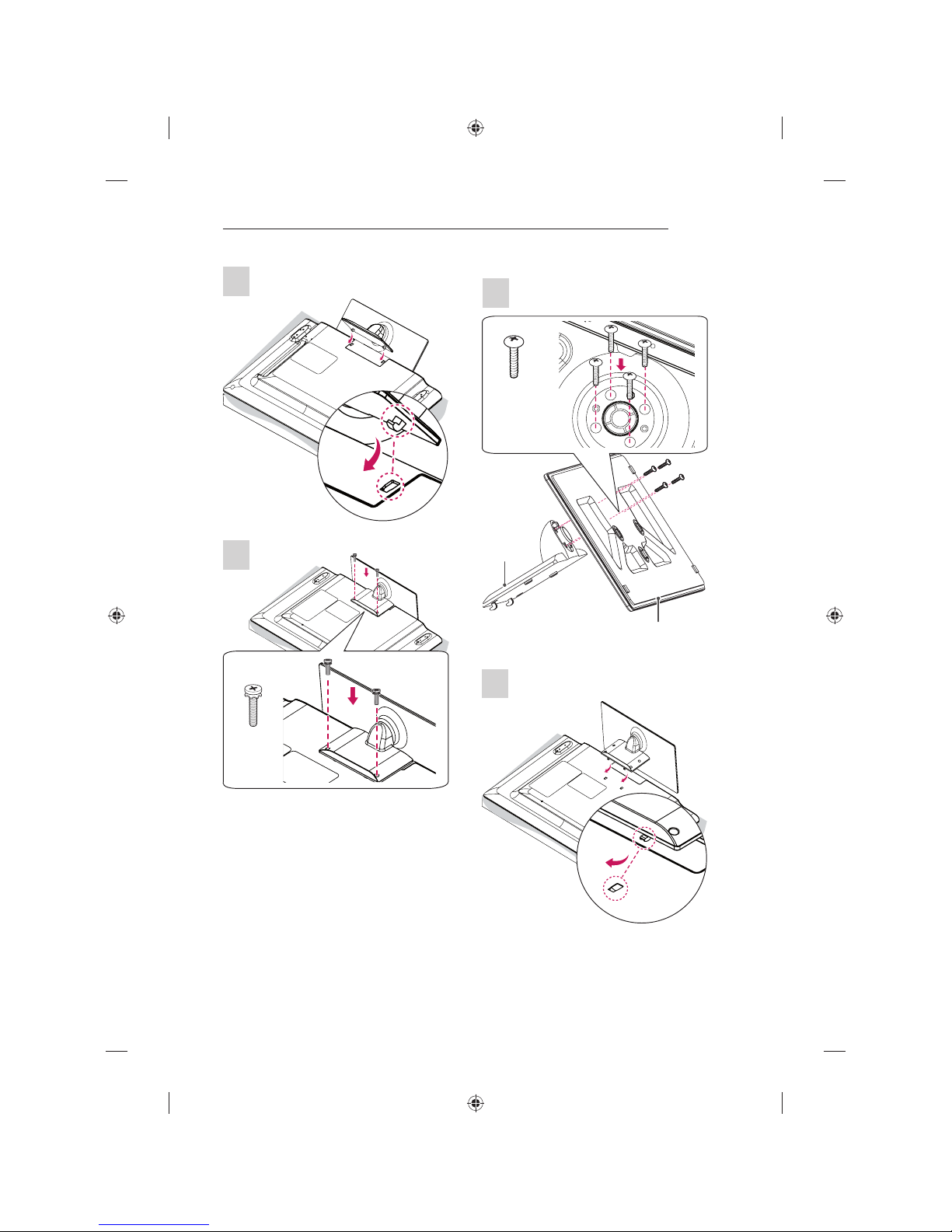

32/39LB65**-ZE/ZN

Stand Body

Stand Base

4EA

M4 x L20

A-5

SETTING UP THE TV

2EA

M4 x L20

42/47/50/55/60LB65**-ZE/ZN

Stand Body

Stand Base

4EA

M4 x L20

A-6 SETTING UP THE TV

4EA

M4 x L14

LB73**-ZD/ZE

A Stand

Supporter

B Stand

Supporter

Stand Front

4EA

M4 x L10

1 Attach the stand to the TV using the upper

/(=*<,*I J('" (* <J" Q-R$ (M <J" OP?

2 Attach the stand to the TV using the lower

R(**"R<,(* (* <J" Q-R$ (M <J" OP?

4EA

M4 x L14

A-7

SETTING UP THE TV

LB86**, LB87**

Sound Bar

4EA

M4 x L14

Stand Assy Right

Stand Assy Left

4EA

M4 x L14

Screw Cover

A-8 SETTING UP THE TV

CAUTION

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they

are not fastened securely enough, the TV

may tilt forward after being installed.)

Do not use too much force and over

tighten the screws; otherwise screw may

be damaged and not tighten correctly.

NOTE

Remove the stand before installing the

TV on a wall mount by performing the

stand attachment in reverse.

The Screw Cover will protect the opening

from accumulating dust and dirty.

The Rubber will protect the opening from

accumulating dust and dirt. When

installing the wall mounting bracket, use

the Rubber. (Only LB65**-ZE/ZN)

Rubber

Attaching the Sound Bar

Supporter

(In case of mounting on a wall)

LB86**, LB87**

Sound Bar

4EA

M4 x L14

Sound Bar Supporter Right

Sound Bar Supporter Left

A-9

SETTING UP THE TV

4EA

M4 x L14

Screw Cover

CAUTION

When attaching the sound bar supporter

to the TV set, place the screen facing

down on a cushioned table or flat surface

to protect the screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they

are not fastened securely enough, the TV

may tilt forward after being installed.)

Do not use too much force and over

tighten the screws; otherwise screw may

be damaged and not tighten correctly.

The sound bar supporter only uses for

wall mounting.

NOTE

Remove the sound bar supporter before

installing the stand by performing the

stand attachment in reverse.

The Screw Cover will protect the opening

from accumulating dust and dirty.

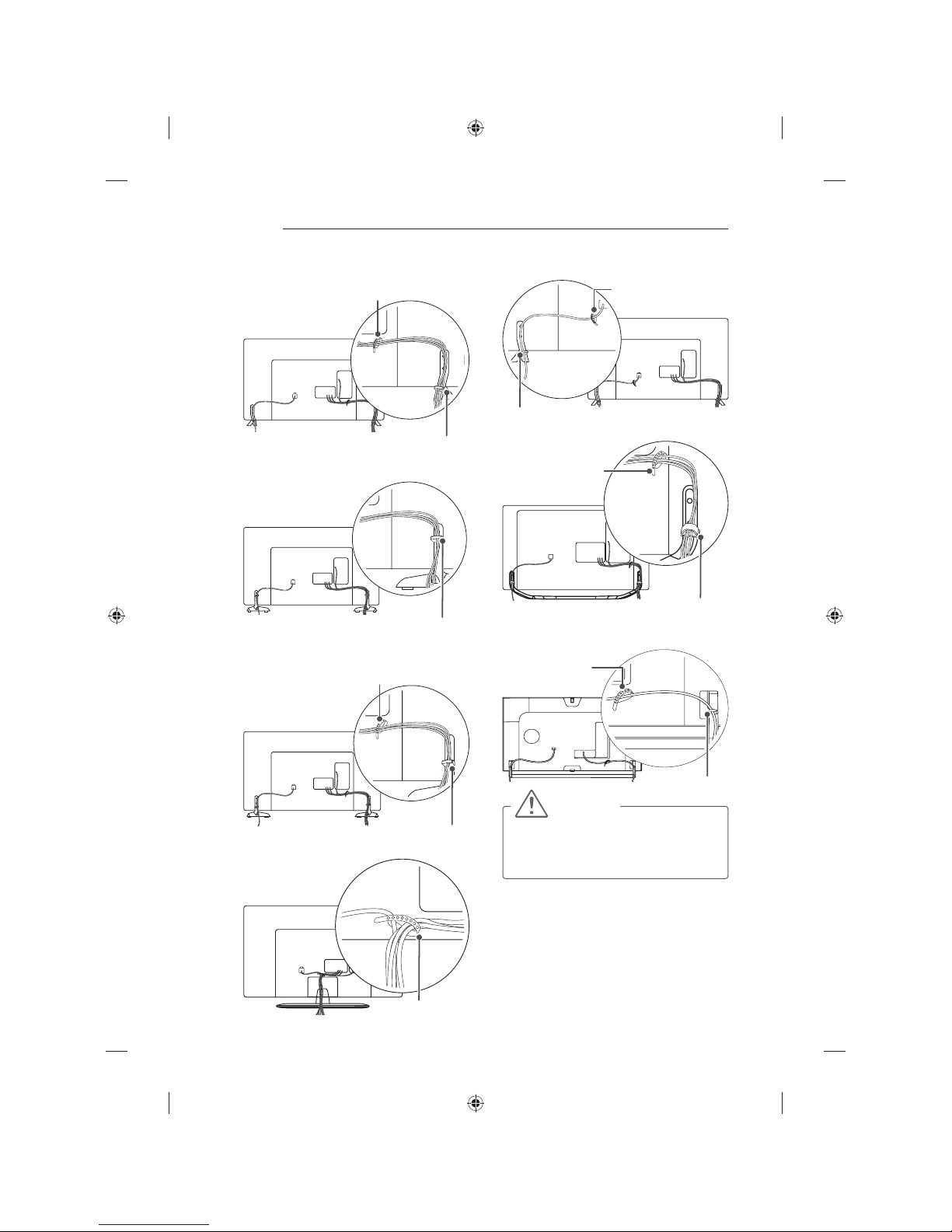

Tidying cables

Image shown may differ from your TV.

1 Gather and bind the cables with the Cable

Holder. (Depending on model)

2 Fix the Cable Management !"#$% &' &() *+,

(Only 32LB65**-ZA)

Cable Management

A-10 SETTING UP THE TV

(Only LB63**-ZA, 39/42/47/50/55/60LB65**-ZA,

LB67**, LB68**, LB69**, LB72**, LB73**-ZA)

Cable Holder

Cable Management

(Only 32LB65**-ZK)

Cable Management

(Only LB63**-ZL, 39/42/47/50/55/60/70LB65**-

ZK/ZL)

Cable Holder

Cable Management

(Only LB65**-ZE/ZN)

Cable Holder

(Only 70LB65**)

Cable Holder

Cable Management

(Only LB73**-ZD/ZE)

Cable Holder

Cable Management

(Only LB86**, LB87**)

Cable Holder

Cable Management

CAUTION

Do not move the TV by holding the cable

holders, as the cable holders may break,

and injuries and damage to the TV may

occur.
