LG ES96 Series Manuel utilisateur

INSTALLATION MANUAL

LED TV*

OLED TV

US66*

US76*

WS96*

ES96*

UR76*

www.lg.com

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it

for future reference.

*MFL71684521*

(2210-REV00)

ENGLISH

Table of contents

4 Location and Function of Controls

4 Parts and Button

4 Basic functions

4 LED Clock Connection

5 First Use Wizard

6 Basic Settings

6 - Language & Location

7 - Network Settings

8 - Portal Settings

9 - Voice Service Coverage

10 Data Cloning

10 Solution Settings

10 - Language & Location selection

11 - TV Configuration Options

14 - Configure Pro:Centric Server

15 - Standard Pro:Centric Server Settings

20 - LG Pro:Centric Cloud Settings

21 Installation Menu Settings

22 Installation Menu

22 Introduction

23 LG Hotel Mode Setup

23 - Power On Status

24 - Volume

24 - Key Management

25 - Limited Mode

25 - DTV Programme Update

26 - Power On Default

26 - Aux Source Setting

26 - Power Management

26 - Radio Video Blank

26 - Factory Reset

27 Network

27 - MAC Address

27 - Network Settings

28 - LG Connect

28 - IP Stream Control

28 - Wake On LAN

28 - VLAN ID

28 - Ping Test

29 Pro:Centric

29 - Server Type

29 - Installation Code

29 - Mode

29 - WORF

29 - Room Number Setting

30 - Media Type

30 - Receive Data

30 - Native EPG

31 General

31 - Configuration Setup

36 - External Speaker

36 - Audio Line Out

36 - Set ID Setup

37 - Power Saving

37 - HCEC Setup

38 - Clock Setup

39 - Crestron

39 - Welcome Video Mode

39 - Developer Mode

39 - Security

40 Portal Settings

41 - Portal Mode

41 - Auto Start

41 - PreLoaded App

41 - Website Shortcut

41 - Input Shortcut

42 - Hotel Directory

42 - Portal Editor

43 - Portal Manager

45 Media Share

45 - Smart Share

45 - Screen Share

45 - Media Renderer

45 - DIAL

45 - TV Name

46 - SoftAP

47 - Beacon

48 TV Manager

48 - Diagnostics

53 - USB Download Menu

ENGLISH

58 IR Codes

59 External control device Setup

59 RS-232C Setup

59 Type of Connector : D-Sub 9-Pin Male

60 RS-232C Configurations

60 Communication Parameters

60 IR OUT Using Guide

60 - Suitable / Not Recommend remote-controller data

format

60 - IR Receiver specifications

61 Command Reference List

62 Transmission / Receiving Protocol

ENGLISH

Location and Function of Controls

Parts and Button

Basic functions

Power On (Press)

Power O1(Press and Hold)

Menu Control (Press2)

Menu Selection (Press and Hold3)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

LED Clock Connection

(Depending on model)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

ENGLISH

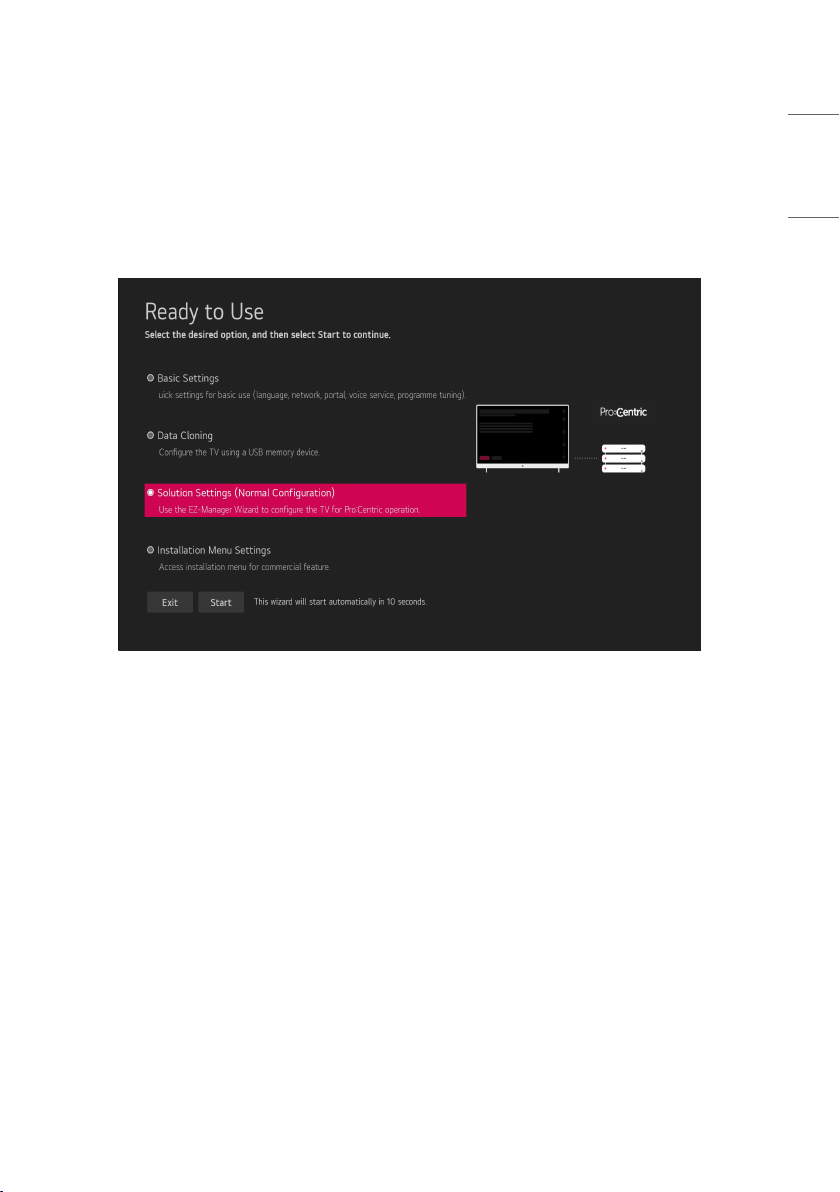

First Use Wizard

* Images shown may differ from your TV.

(Depending on model)

•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by Start

button. (Normal Configuration is the default focus item.)

ENGLISH

Basic Settings

(Depending on model)

This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.

There are four steps for it.

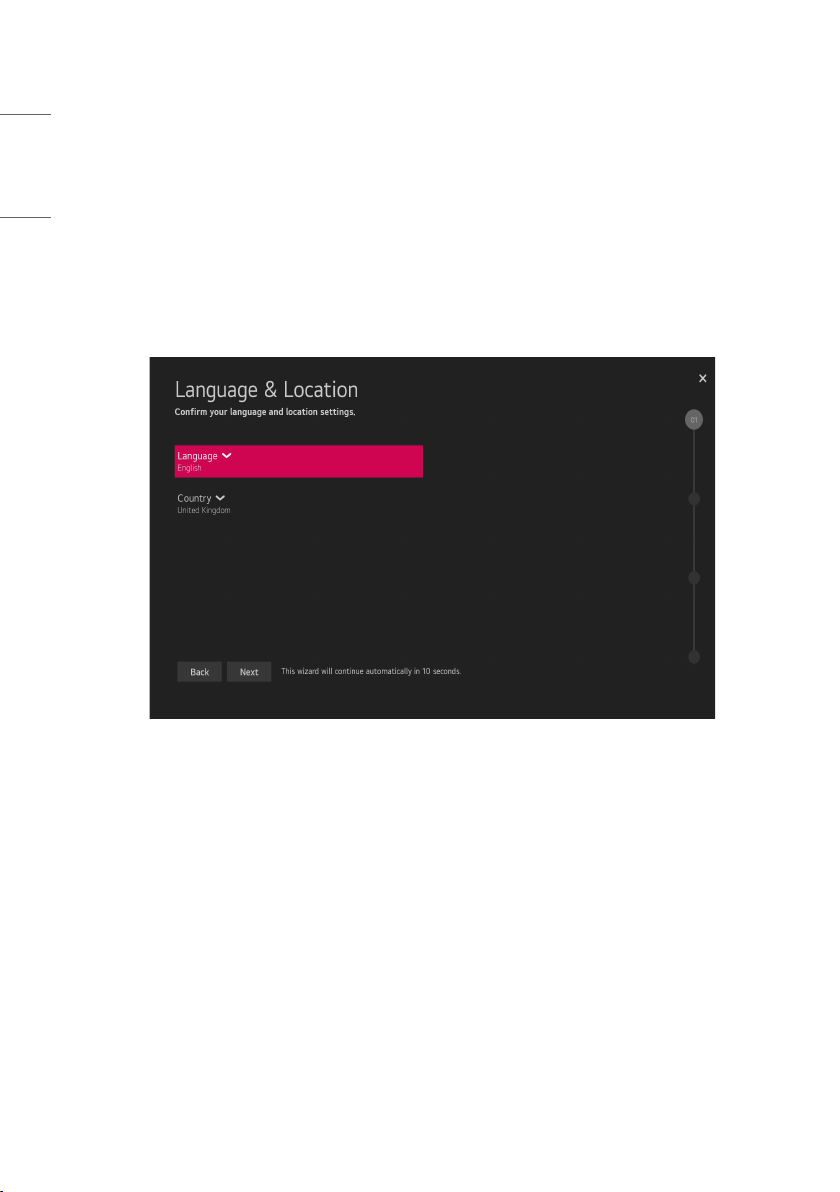

Language & Location

(Depending on model)

•Select the Language and Country. Some countries need to select the Time Zone.

ENGLISH

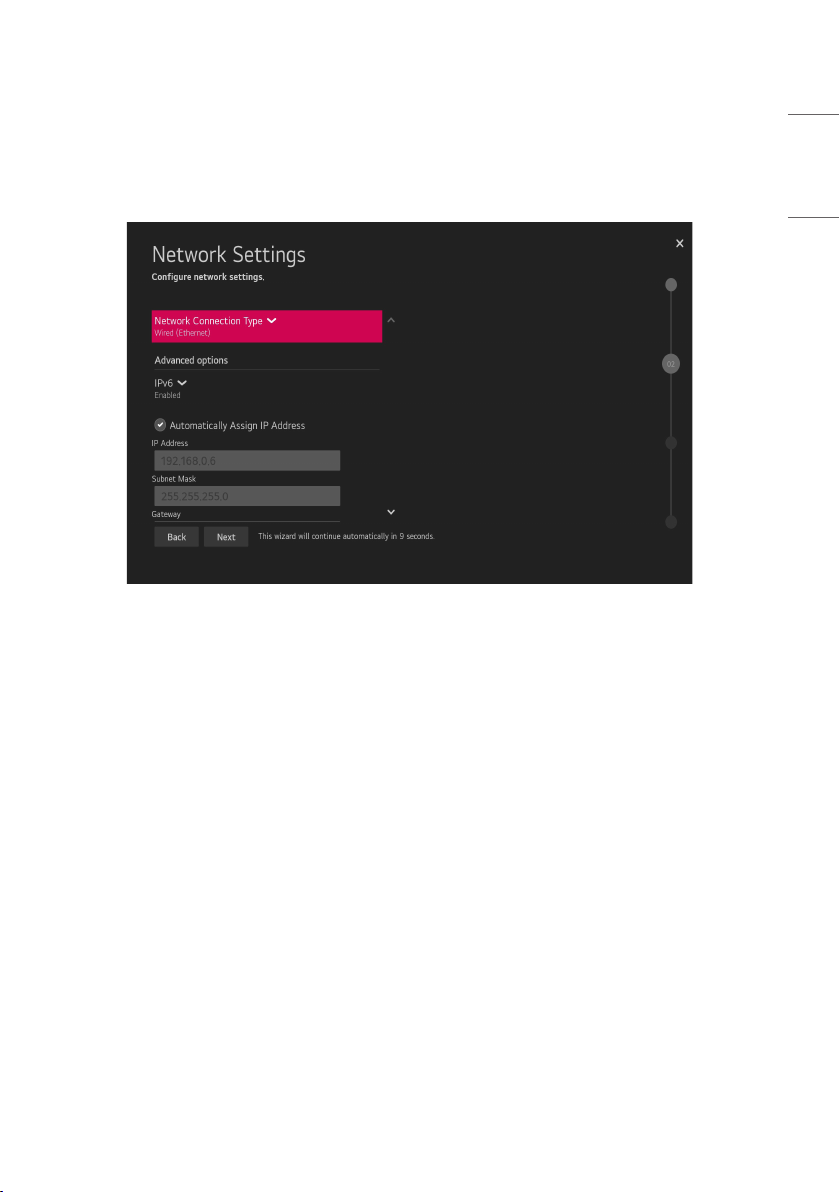

Network Settings

(Depending on model)

•Set Network connection. You can connect easily to wired/wireless network. (“Network Settings”on page 27)

Wireless (AutoWi-Fi) : Connect a default hidden SSID/PW. (SSID : lgwebostv, PW : procentric, Security : WPA/WPA2 PSK)

ENGLISH

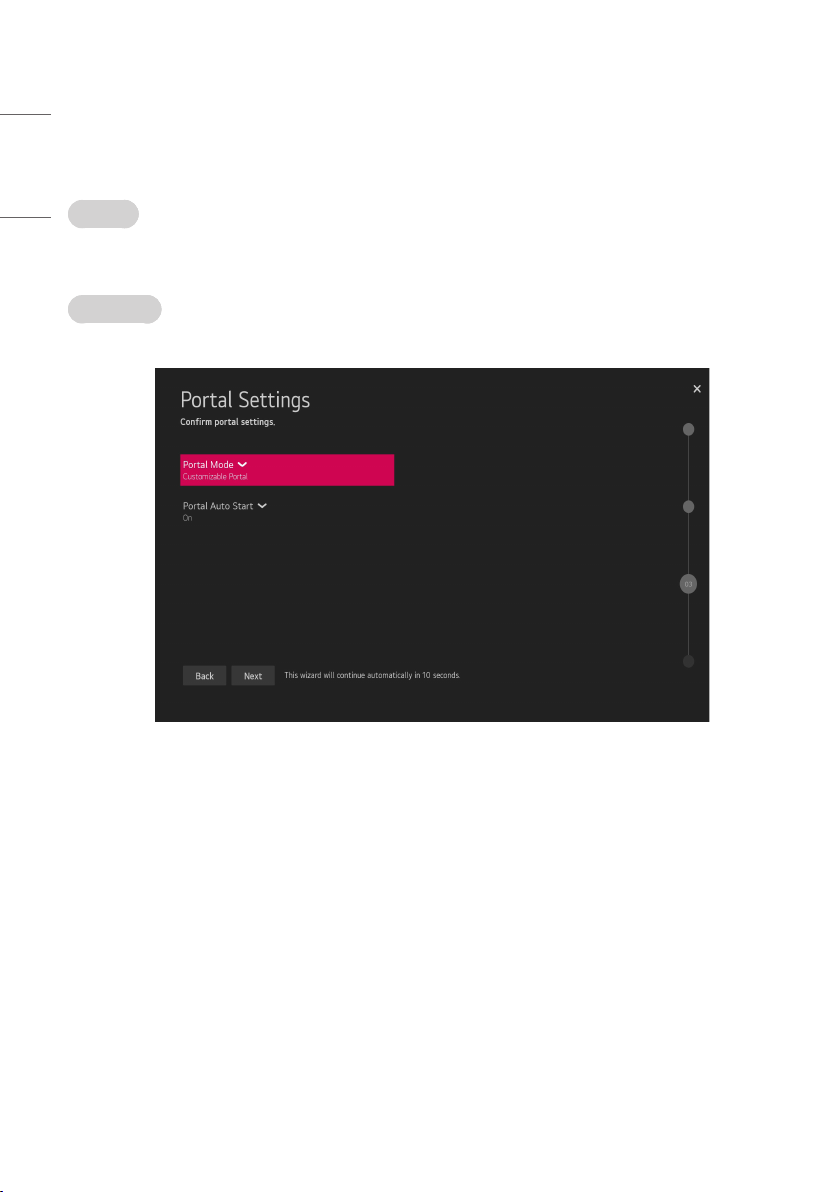

Portal Settings

(Depending on model)

•Set the Portal Mode and Portal Auto Start.

Portal Mode

(Depending on model)

•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or‘None’(Do not use portal).

Portal Auto Start

•You can select‘On’or ‘Off’. If you select ‘On’, Portal (Home Launcher) will be execute automatically after TV on.

ENGLISH

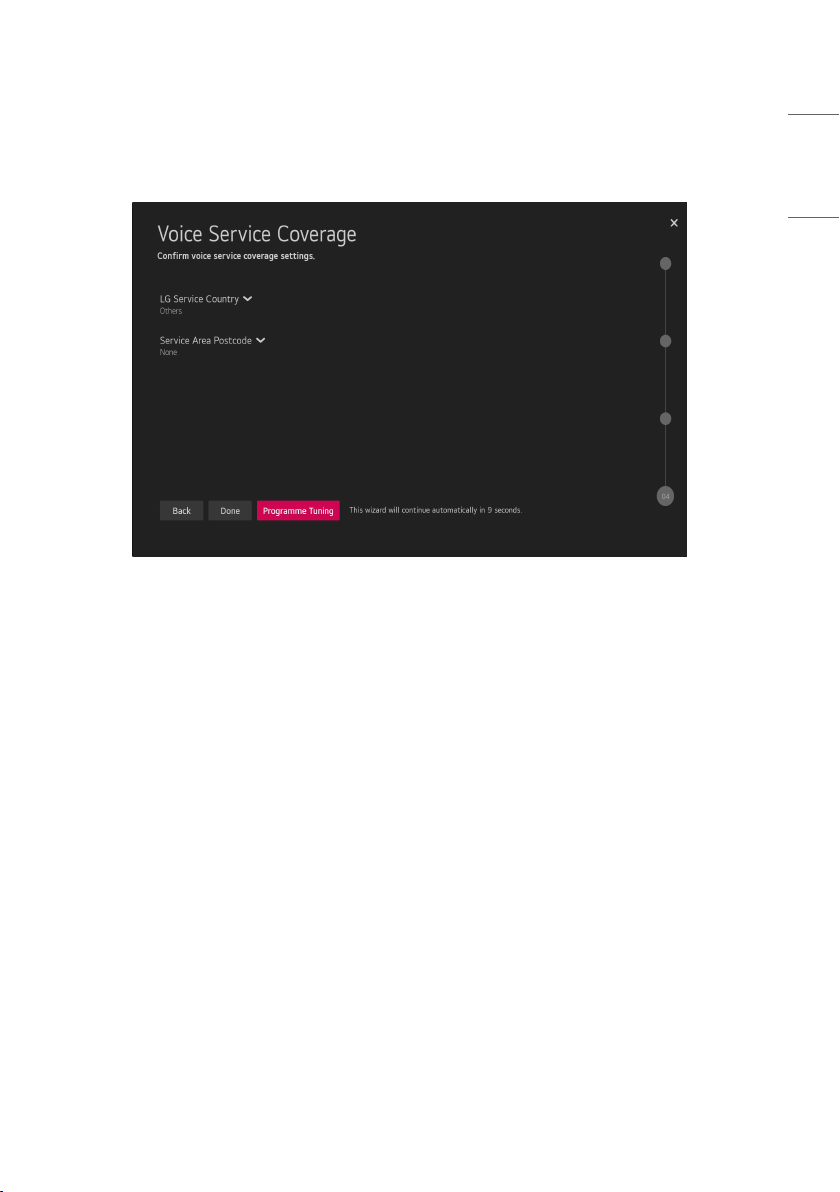

Voice Service Coverage

(Depending on model)

•Set the voice service coverage. You can set LG Service Country and Service Area Postcode(Depending on model) for voice service.

ENGLISH

Data Cloning

(Depending on model)

Access Data cloning menu ofTV Manager application for applying cloning le.

Solution Settings

(Depending on model)

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The default Domain“procentric.local”and IP Server

Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. IfTV

doesn’t contact the Server, TV will search the pre-dened programme earlier than all programmes. (Only DVB-C)

The frequencies of pre-dened programmes are below.

•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 KHz’.

•Philippines 6 MHz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 KHz’.

•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 KHz’.

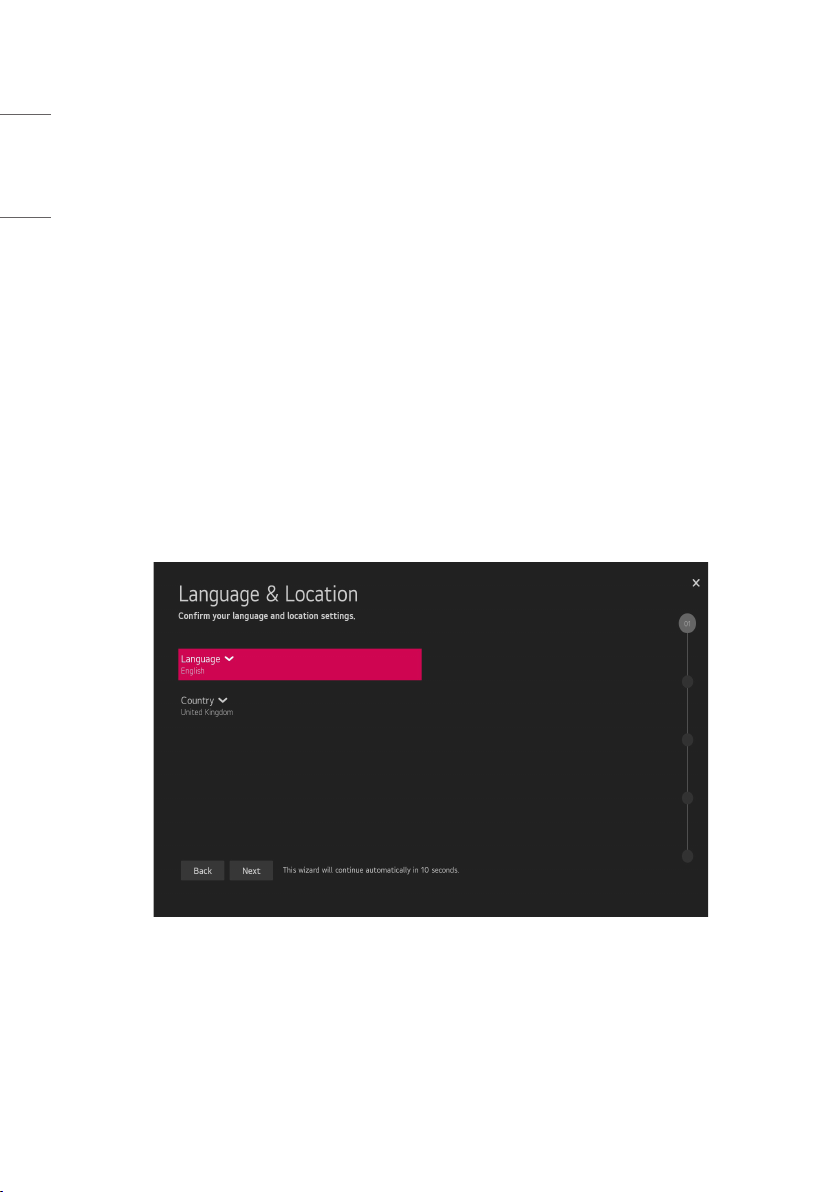

Language & Location selection

(Depending on model)

•Please select the Language and Country. Some countries need to select the Time Zone.
