OWNER’S MANUAL
LED LCD TV
22LS5400
27LS5400
22LS540T
27LS540T
Please read this manual carefully before operating the your TV
and retain it for future reference.
LED LCD TV MODEL
P/NO. MFL67605605 (1207-REV00)
Printed in Korea
A-2 TABLE OF CONTENTS
LANGUAGE
COMMON
COMMON
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-5 Tidying cables
A-6 Detaching the Stand
LANGUAGE LIST
English
Turkish
B-1 MAKING CONNECTIONS
B-1 Connecting an antenna
B-1 Adapter connection
B-2 Connecting to a HD receiver, DVD, VCR player or Gaming device
B-2 - HDMI connection
B-3 - HDMI to DVI connection
B-3 - Component connection
B-4 - Composite connection
B-4 - Euro Scart connection
B-5 Connecting to an audio system
B-5 - Headphone connection
B-6 Connecting to a USB
B-6 Connecting to a CI Module
B-7 Connecting to a wired network
B-8 Connecting to a PC
B-9 - HDMI connection
B-10 - HDMI to DVI connection
B-10 - RGB connection
B-11 SPECIFICATIONS
A-3

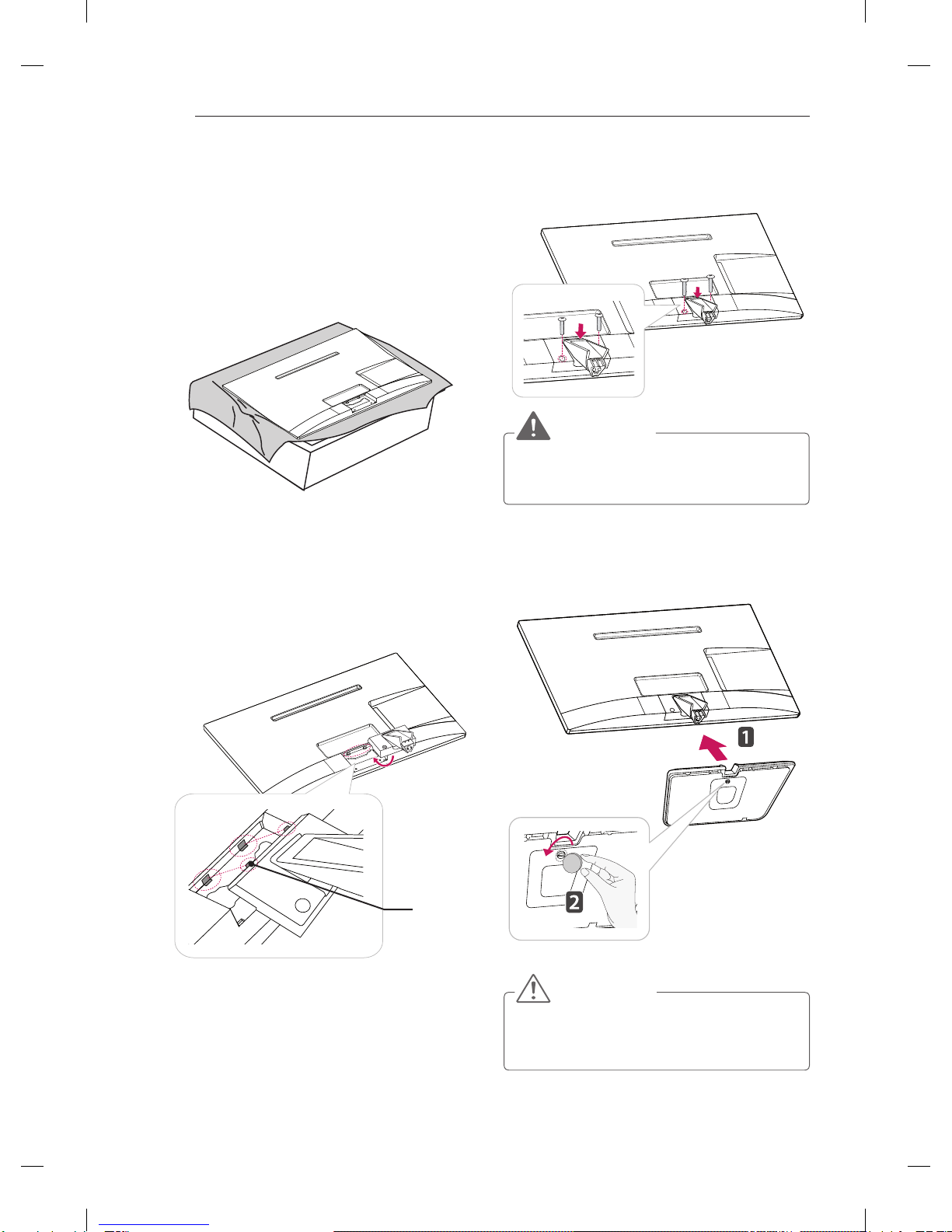

SETTING UP THE TV
3 Attach the Stand Base from the Stand Body by
turning the screw to the right with a Coin.
Setting up the TV
Attaching the Stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
1 Place the TV with the screen side down on a
flat and cushioned surface.
2 Attach the Stand Body from the TV.
22LS5400 22LS540T
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When attaching the stand to the TV, place
the screen facing down on a cushioned
table or flat surface to protect the screen
from scratches.
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
A-4 SETTING UP THE TV
4 Attach the Stand Base from the Stand Body
by turning the screw to the right with a Coin.
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
1 Place the TV with the screen side down on a
flat and cushioned surface.
2 Attach the Stand Body from the TV.
Insert the two Lockers of the Stand Body
right into the groove of the TV head and secure
them by pressing the left and right bottom
sides.
3 Secure the TV and the Stand Body with the
2 screws.
Locker
27LS5400 27LS540T
WARNING
If you don`t fasten the screw tightly, TV will
fall down and get damaged.
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
A-5
SETTING UP THE TV

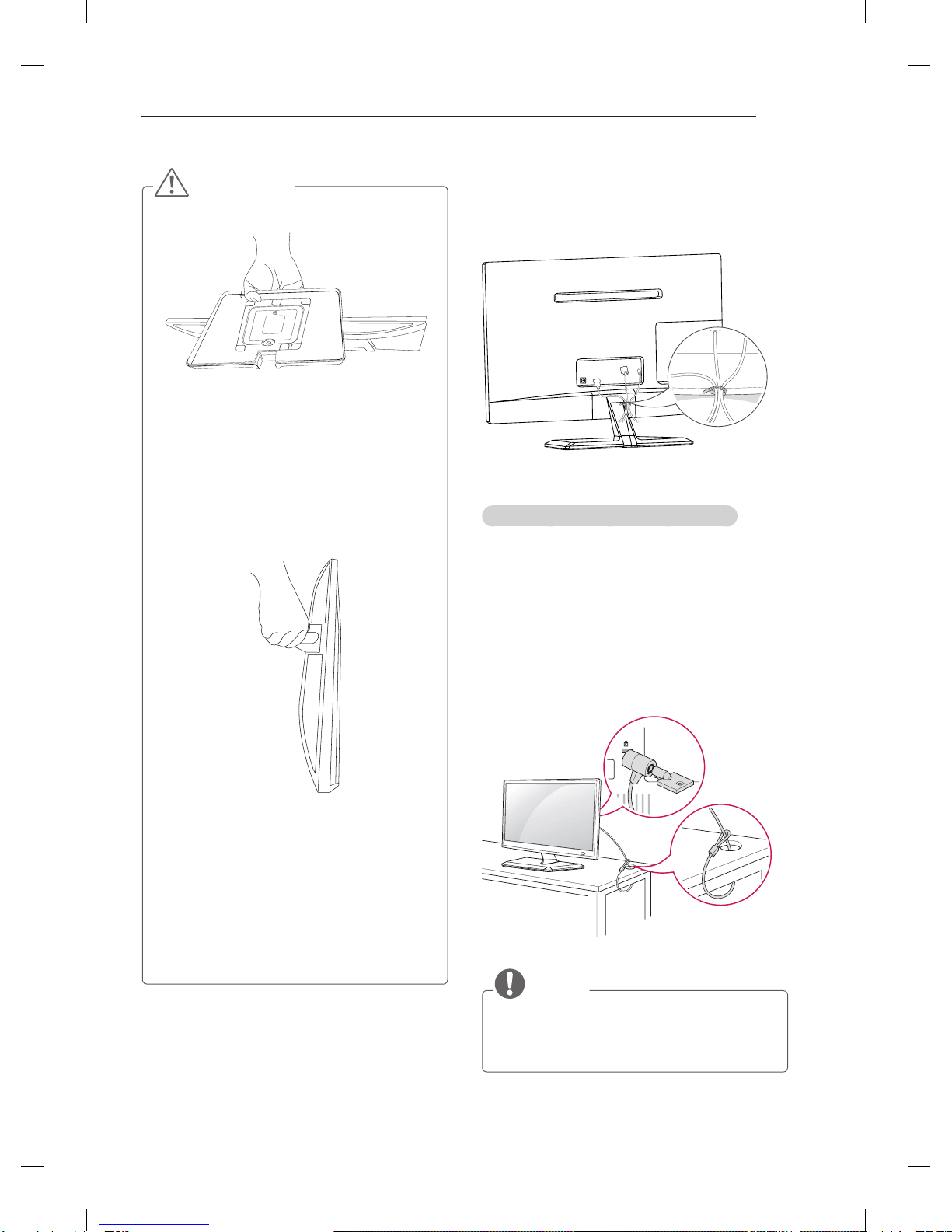

Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
CAUTION
Do not carry the TV upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Do not carry the TV upside-down by holding
the stand body as this may cause it to fall off,
resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Tidying cables
Gather and bind the cables with the supplied
cable tie.
NOTE
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.

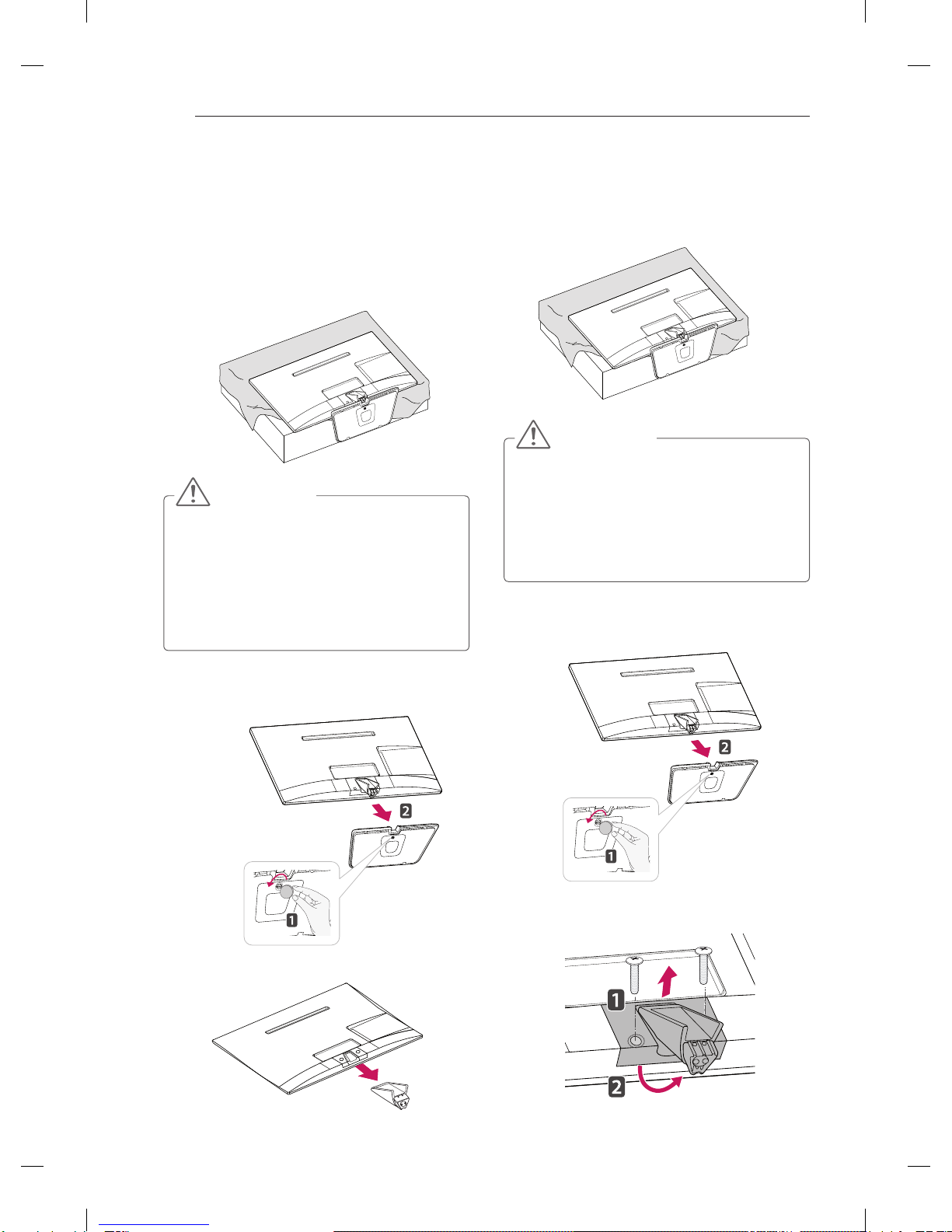

A-6 SETTING UP THE TV
3 Pull out the Stand Body from the TV.
Detaching the Stand
1 Place the TV with the screen side down on a
flat and cushioned surface.
2 Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
22LS5400 22LS540T
3 Remove 2 screws and pull out the Stand Body
from the TV.
1 Place the TV with the screen side down on a
flat and cushioned surface.
2 Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
27LS5400 27LS540T
CAUTION
Lay a foam mat or soft protective cloth on the
surface to protect the screen from damage.
When detaching the stand to the TV, place
the screen facing down on a cushioned table
or flat surface to protect the screen from
scratches.
CAUTION
Lay a foam mat or soft protective cloth on the
surface to protect the screen from damage.
When detaching the stand to the TV, place
the screen facing down on a cushioned table
or flat surface to protect the screen from
scratches.
www.lg.com
OWNER’S MANUAL
LED LCD TV
Please read this manual carefully before operating the your TV
and retain it for future reference.
ENGLISH
2TABLE OF CONTENTS
WARNING
yIf you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
yIf you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
yThe note helps you understand and use
the product safely. Please read the note
carefully before using the product.
2 TABLEOFCONTENTS
3 LICENSES
3 OPENSOURCESOFTWARENOTICE
4 SAFETYINSTRUCTIONS
10 INSTALLATIONPROCEDURE
10 ASSEMBLINGANDPREPARING
10 Unpacking
13 Parts and buttons
14 Lifting and moving the TV
15 - Mounting on a table
16 - Mounting on a wall
17 WATCHINGTV
17 Turning the TV on for the first time
19 REMOTECONTROL
21 CUSTOMIZINGSETTINGS
21 Accessing main menus
22 USINGTHEUSERGUIDE
22 Accessing User Guide menu.
22 - Using the TV menu
22 - Using the Remote Control
23 MAINTENANCE
23 Cleaning Your TV
23 Screen and frame
23 Cabinet and stand
23 Power cord
24 Preventing “Image burn” or “Burn-in” on
your TV screen
24 TROUBLESHOOTING
24 General
TABLEOFCONTENTS
