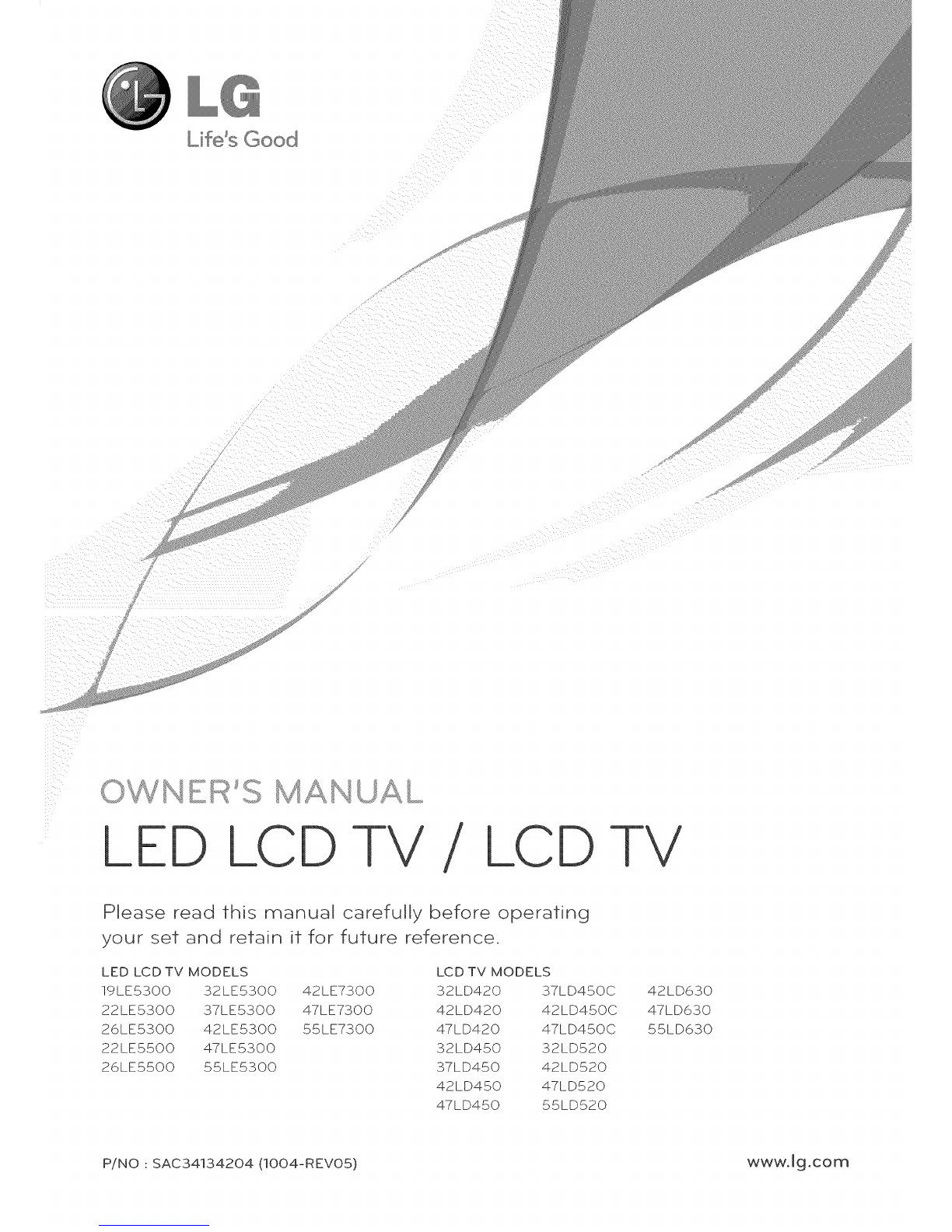

iiil kiill _i_

LCD TV /LCD -FV

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD TV MODELS LCD TV MODELS

19LE5300 32LE5300 42LE7300 32LD420

22LE5300 37LE5300 47LE7300 42LD420

26LE5300 42LE5300 55LE7300 47LD420

22LE5500 47LE5300 32LD450

26LE5500 55LE5300 37LD450

42LD450

47LD450

37LD450C

42LD450C

47LD450C

32LD520

42LD520

47LD520

55LD520

42LD630

47LD630

55LD630

P/NO :SAC34134204 (IO04-REV05) www.lg.com

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

You can select a different aspect ratio depending on input source (analog broadcasting, digital broad-

casting, aux).

-o

-t

Select PICTURE.

Select Aspect Ratio.

Select the desired picture format.

_ You can also adjust Aspect Ratio in

the Q.MENU.

_ Press the RATIO button repeatedly to

select the desired picture format.

Return to the previous menu.

Return to TV viewing.

When adjusting Zoom or Cinema Zoom in Q.MENU

Select Aspect Ratio.

Select Zoom or Cinema

Zoom.

Adjust proportion of Zoom or

Cinema Zoom. The Cinema

Zoom adjustment range is

1-16. : Move _ _ Zoom ® Enter Move _ _Zoom ® Enter

Move the image on the screen.

IO0

16:9

Adjust the picture horizontally, in a

proportion to fill the entire screen.

linear

Jusf Scan

Normally the edges of video signals are

cropped 1-2%. Just Scan turns off this

cropping and shows the complete video.

Notes: If there is noise on the edges of the

original signal, it will be visible when Just Scan

is activated.

Just Scan operates only in DTV/Cable DTV/

Component/H DMI- DTV/DVI-DTV

(720p/lOSOi/lOSOp) input source.

Set By Program

Selects the proper picture

match the source's image.

(4:3 "_ 4:3)

proportion to

(16:9 -_ 16:9)

4:3

Choose 4:3 when you want to view a picture

with an original 4:3 aspect ratio.

Zoom

Choose Zoom when you want to view the

picture without any alteration. However, the

top and bottom portions of the picture will

be cropped.

Cinema Zoom

Choose Cinema Zoom when you want to

enlarge the picture in correct proportion.

This enlarges an image with cinemascope

aspect ratio (2.35:1) without distortion.

Note: When enlarging or reducing the pic-

ture, the image may become distorted.

-u

101

PICTURE CONTROL

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen

quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily follow-

ing each step. When you adjust the image to Low, Recommended or High, you can see the example of

the changes you made.

-o

-t

iml

-t

Select PICTURE.

Select Picture

Wizard.

Adjust Picture Wizard.

Adjust Standard/

Preferred.

_ If you select Preferred, OSD (On Screen

Display) differ from that shown in this manual.

Adjust Black Level.

Adjust White Level.

Adjust Tint.

102

Adjust Color.

Adjust Horizontal

Sharpness.

Adjust Vertical

Sharpness.

i.e)

Adjust Backlight.

Select input source to

apply the settings.

Save.

Finish the Picture Wizard.

_ If you stop the Picture Wizard before the

final step, the changes will not be saved to

the TV.

_ Once the Picture Wizard sets the picture

quality, Energy Saving is changed to Off

automatically.

To reset changes made by Picture Wizard,

operate Picture Reset when Picture Mode

is on Expert1.

=13

103

PICTURE CONTROL

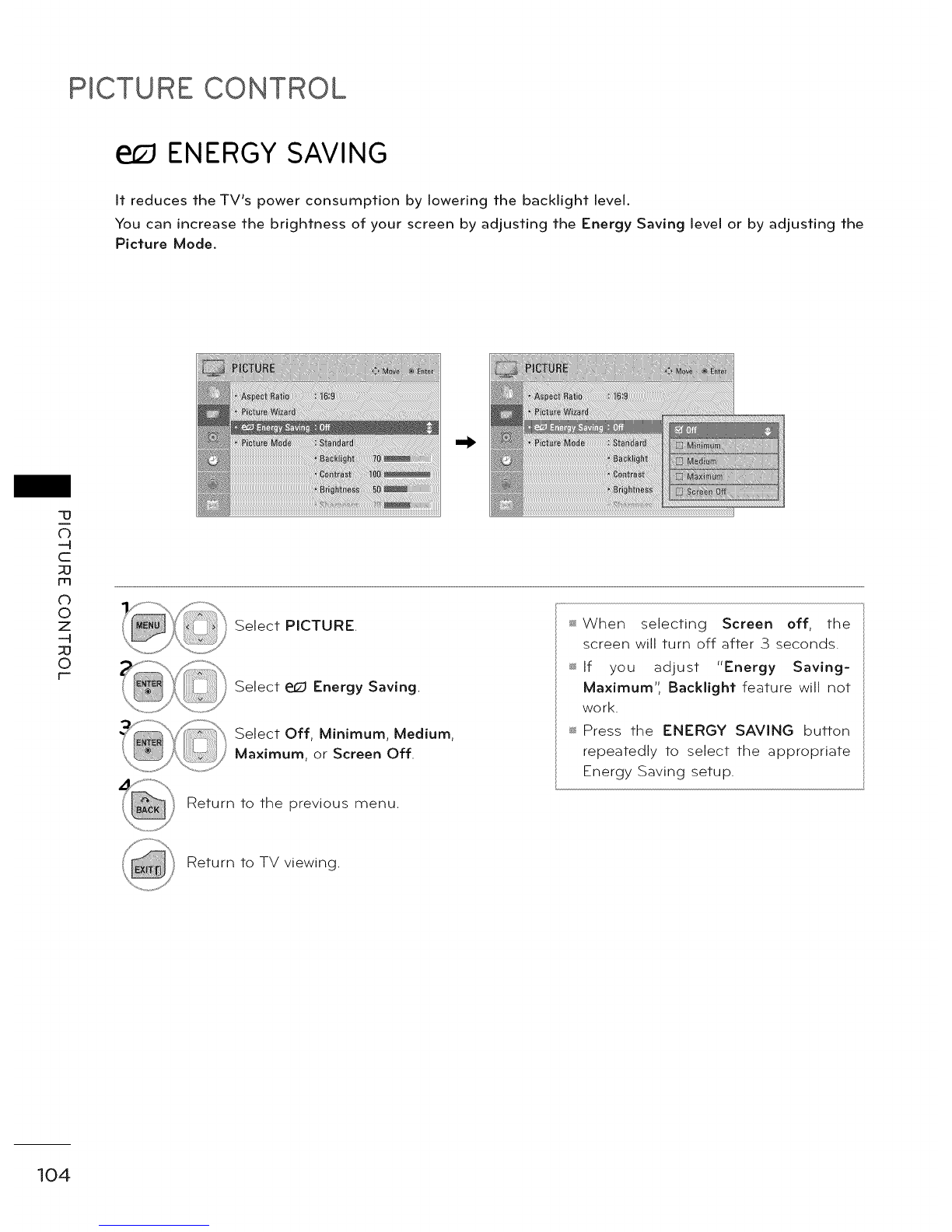

ENERGY SAVING

It reduces the TV's power consumption by lowering the backlight level.

You can increase the brightness of your screen by adjusting the Energy Saving level or by adjusting the

Picture Mode.

-o

-1

iml

-1

Select PICTURE.

Select e_ Energy Saving.

Select Off, Minimum, Medium,

Maximum, or Screen Off.

Return to the previous menu.

_ When selecting Screen off, the

screen will turn off after 3 seconds.

_ If you adjust "Energy Saving-

Maximum", Backlight feature will not

work.

_ Press the ENERGY SAVING button

repeatedly to select the appropriate

Energy Saving setup.

Return to TV viewing.

104

PRESET PICTURE SETTINGS (PICTURE MODE)

There are factory presets for picture settings available in the user menus. You can use a preset, change

each setting manually.

Depending on

models

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport,

or Game.

Return to the previous menu.

Return to TV viewing.

Vivid, Standard, Cinema, Sport, and

Game Settings are preset for the opti-

mum picture quality at the factory

Vivid: This is the mode to maximize

the effect of the video in the retail

store. Strengthen the contrast, bright-

ness, color and sharpness for vivid

picture.

Standard: This is the mode to realize

optimum viewing condition for the

general user.

Cinema: This mode optimizes video

for watching movies.

Sport: This is the video mode to

emphasize dynamic video and pri-

mary color (e.g, white, uniform, grass,

sky blue etc.) by realizing the optimal

screen for sports.

Game: This is the mode to realize fast

response speed in a fast gaming

screen.

@Expert: This is the mode to adjust

the video in detail for video quality

expert and general user.

@You can also adjust Picture Mode in

the Q.MENU.

@When selecting Intelligent Sensor,

Energy Saving is changed to Auto auto-

matically.

@When selecting Intelligent Sensor, it

changes Backlight, contrast, bright-

ness, sharpness, color and tint auto-

matically.

@Intelligent Sensor: The most suitable

picture is automatically adjusted

according to the surrounding condi-

tions.

"13

-4

105

PICTURE CONTROL

MANUAL PICTURE ADJUSTMENT - USER MODE

Adjust the picture appearance to suit your preference and viewing situations.

-u

-t

iml

-t

Select PICTURE.

Select Picture MOdel

Select Vivid, Standard, Cinema,

Sport, or Game.

Select Backlight, Contrast, Brightness,

Sharpness, Color, Tint, Color Temp., or

Advanced Control.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

_ Backlight: This function adjusts the

brightness of the backlight behind

the LCD screen. Adjusting the back-

light is recommended when setting

the brightness of the TV. When

decreasing the backlight, the bright-

ness of the black becomes darker

without any loss in video signal and

the power consumption is reduced.

_Contrast: Increase or decrease the

gradient of the video signal. You may

use Contrast when the bright part of

the picture is saturated.

_ Brightness: Adjusts the base level of

the signal in the picture. You may use

Brightness when the dark part of the

picture is saturated.

_ Sharpness: Adjusts the level of crisp-

ness in the edges between the light

and dark areas of the picture. The

lower the level, the softer the image.

_ Color: Adjusts intensity of all colors.

_ Tint: Adjusts the balance between

red and green levels.

_ Color Temp.: Set to warm to enhance

hotter colors such as red, or set to

cool to enhance cooler colors such

as blue.

106

PICTURE IMPROVEMENT TECHNOLOGY

(ADVANCED CONTROL)

Advanced Control allows you to adjust some of the advanced features of your LG display.

To reset to the factory default after making adjustments to each input source, execute the Picture

Reset function for each Picture Mode.

Select PICTURE.

-13

--4

rr3

Select Advanced Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

107

PICTURE CONTROL

EXPERT PICTURE CONTROL

_ Expert1 and _ Expert2 provide even more advanced picture settings for users. Typical used by

professionals for calibrating the TV.

-1

iml

-1

Select PICTURE.

Select Picture MOdel

Select _ Expert1 or _ Expert2.

Select Expert Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the arevious menu.

Return to TV viewing.

108
