Heat Pump
R410A(60Hz)
0CIM0-04A (Replaces 0CIM0-03A)
P/No. : MFL67502710
General information
MULTI
Outdoor Unit
1.Model Line Up
2.Nomenclature
3.External Appearance
4.Indoor Unit and Outdoor Unit Capacity Index
2
MULTI Outdoor Unit General information

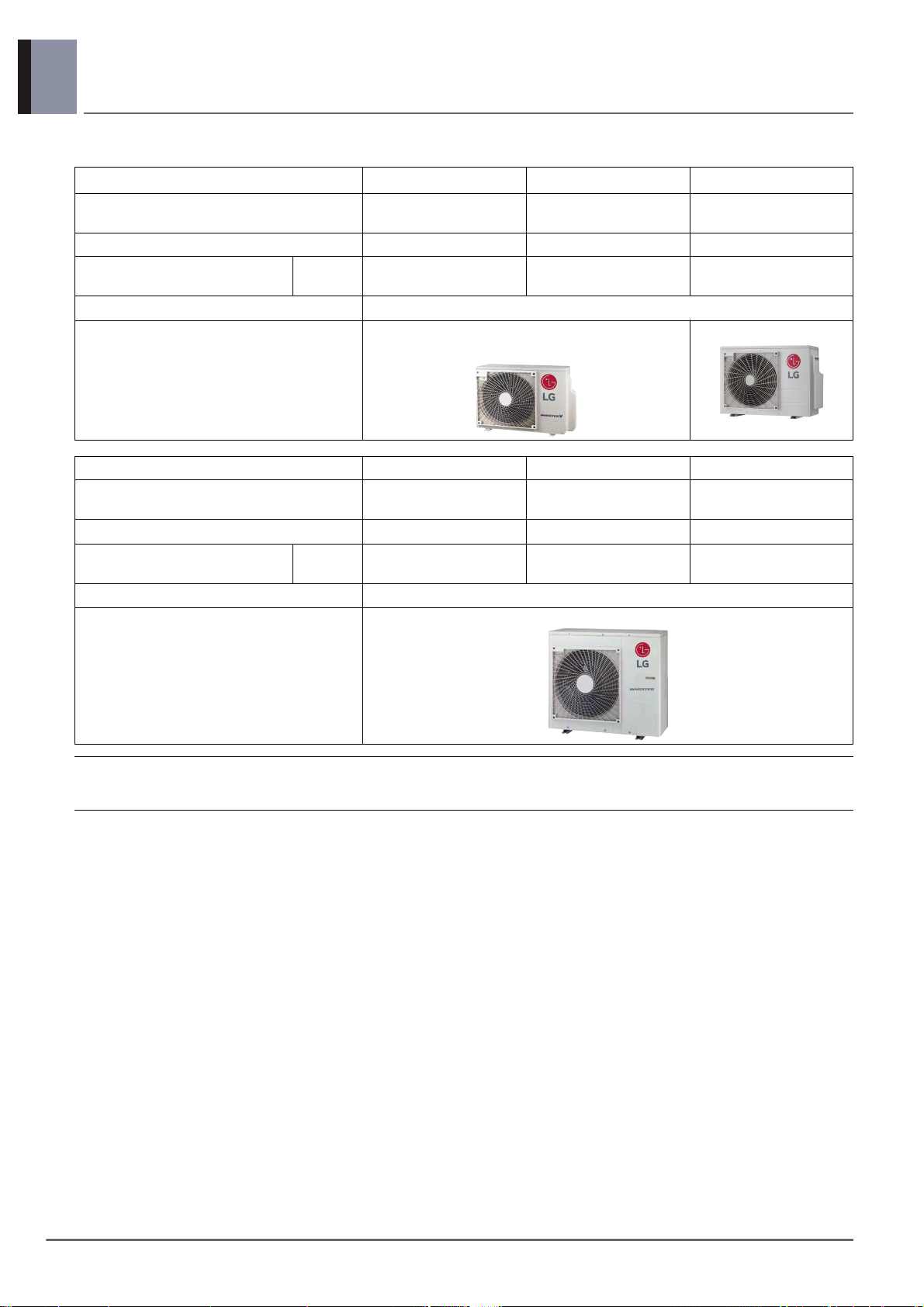

1. Model line up
■Multiple piping type (1 phase)
Note
All product data are based on buyer model name.
Nominal Capacity(kW) 4.7 6.2 7.0
Model Name A2UW18GFAC
[A2UW18GFAC]
A3UW21GFAC
[A3UW21GFAC]
A3UW24GFA3
[A3UW24GFA3]
No.of connectable indoor units Max.2 Max.3 Max.3
Total capacity index of
connectable indoor units kBtu/h 24 30 36
Power supply 220V, 1Ø, 60Hz
Chassis
Nominal Capacity(kW) 7.9 10.3 14.0
Model Name A4UW30GFA2
[A4UW30GFA2]
A5UW36GFA2
[A5UW36GFA2]
A5UW48GFA1
[A5UW48GFA1]
No.of connectable indoor units Max.4 Max.5 Max.5
Total capacity index of
connectable indoor units kBtu/h 51 54 72
Power supply 220V, 1Ø, 60Hz
Chassis
3
MULTI Outdoor Unit General information
2. Nomenclature
Outdoor Units
Model Name A5U W 36 G F A 2
No. 1234567
No. Signification
1
Indicates that this is multi system outdoor unit using R410A
Ex) A5U : Connectable max. 5 indoor units
A9U : Connectable max. 9 indoor units
2Model type
W : DC inverter heat pump
3
Cooling/heating capacity
Ex) 24,000 Btu/h Class → '24', 36,000 Btu/h Class → '36'
4Electrical rating
G : 220V, 1Ø, 60Hz
5Multi type
F : Free joint multi type
6Function
A : Basic
7Serial number
4
MULTI Outdoor Unit General information
3. External Appearance
LG multi system provides various indoor units such as wall mounted, ceiling cassette, ceiling concealed duct, etc.
■MULTI F
Outdoor unit Indoor unit
※According to line up of each region,
external appearance could be dierent.
5
MULTI Outdoor Unit General information
4. Indoor Unit and Outdoor Unit Capacity Index
4.1 Selection procedure
■Outdoor units selection
In general, outdoor unit may be selected as follows, though the location of the unit, and usage of the room, etc.
should be considered.
The combination of indoor and outdoor unit was to be decided that the sum of indoor unit capacity index should
be smaller than the max. combination capacity of outdoor unit. Up to Max.9 indoor units can be connected to one
outdoor unit. It is recommended to choose a large capacity outdoor unit if the installation space is large enough.
MULTI Inverter (1 phase)
■Indoor units selection
Look up the table on combination of indoor and outdoor unit, and determine the appropriate indoor unit capacity
which satisfies the given thermal load.
For proper system operation, refer to the following:
1. At least 2 indoor units should be connected to outdoor unit.
2. Total capacity of indoor units connected should be minimum 40% of outdoor unit rated capacity.
3. Calculation method for the connectable total capacity of indoor unit sum up the capacity of indoor unit, but high
static duct type indoor unit capacity weights 1.3 times.
Note
All product data are based on buyer model name.
Nominal Capacity(kW) 4.7 6.2 7.0
Global model name A2UW18GFAC
[A2UW18GFAC]
A3UW21GFAC
[A3UW21GFAC]
A3UW24GFA3
[A3UW24GFA3]
Rated capacity
(kW)
Cooling 4.69 6.15 7.03
Heating 5.28 6.15 7.91
Connectable
indoor units
Number of indoor units Max. 2 Units Max. 3 Units Max. 3 Units
Maximum Total Capacity Index (kBtu/h) 24 30 36
Nominal Capacity(kW) 7.9 10.3 14.0
Global model name A4UW30GFA2
[A4UW30GFA2]
A5UW36GFA2
[A5UW36GFA2]
A5UW48GFA1
[A5UW48GFA1]
Rated capacity
(kW)
Cooling 7.91 10.26 14.01
Heating 9.09 10.55 14.65
Connectable
indoor units
Number of indoor units Max. 4 Units Max. 5 Units Max. 5 Units
Maximum Total Capacity Index (kBtu/h) 51 54 72
Indoor Unit
Model Name -07G- -09G- -12G- -18G- -24G-
Capacity Index
(kBtu/h) 7 9 12 18 24
MULTI Outdoor Unit
4. Indoor Unit and Outdoor Unit Capacity Index
6
General information
4.2 Combination of indoor and outdoor unit
The total capacity index of indoor units is the sum of capacity index of each units and should be within the capacity
index of the outdoor unit.
Nominal Capacity of Outdoor Unit
MULTI F
4.7 kW 6.2 kW 7.0 kW / 7.9 kW / 10.3 kW /
14.0 kW
Indoor Unit Type Indoor Unit Capacity
Index (kBtu/h) Connectable Indoor Units
Wall mounted
7O O O
9O O O
12 O O O
18 - O O
24 - - O
ART COOL Mirror
7O O O
9O O O
12 O O O
18 - O O
24 - - O
Ceiling Cassette (1-way)
9O O O
12 O O O
18 - O O
Ceiling Concealed Duct
(Low Static Pressure)
9O O O
12 O O O
18 - O O
24 - - O
Multiple piping type
MULTI
Outdoor Unit
1.List of Functions
2.Specifications
3.Dimensions
4.Combination Table
5.Capacity Tables
6.Capacity Correction Factor
7.Electrical Characteristics
8.Operation Range
9.Piping Diagrams
10.Wiring Diagrams
11.Sound Levels
2
MULTI Outdoor Unit Multiple piping type
1. List of functions
Basic functions of Outdoor Unit
Accessory Compatibility List
Category Functions A2UW18GFAC
A3UW21GFAC
Reliability
Defrost / Deicing O
High pressure switch X
Phase protection X
Restart delay (3-minutes) O
Self diagnosis O
Soft start O
Convenience
Night Low Noise Operation O
Wiring Error Check O
Peak Control O
Mode Lock O
Forced Cooling Operation (Outdoor Unit) O
SLC (Smart Load Control) X
Note
1. O : Applied, X : Not applied
Accessory : Ordered and purchased separately the accessory package referring to the model name provided and install at field.
Accessory line-ups varies by region, so check your local catalogue or local sales material.
Category Product Etc A2UW18GFAC
A3UW21GFAC
Central Controller
Simple PQCSZ250S0 AC EZ X
AC Ez Touch PACEZA000 AC Ez Touch X
AC Smart PACS5A000 AC Smart 5 X
ACP PACP5A000 ACP 5 X
AC Manager2) PACM5A000 AC Manager 5 X
Gateway
ODU PI485 PMNFP14A1 PI 485 Gateway X
BACnet PQNFB17C0 ACP BACnet X
Lonworks PLNWKB000 ACP Lonworks X
ETC PDI PPWRDB000 PDI Standard X
PQNUD1S40 PDI Premium X
Note
1. O: Possible, X: Impossible, - : Not applicable
2. * : Some advanced functions controlled by individual controller cannot be operated.
3. 2) : ACP or AC Smart is needed.
4. Compatibility of individual controller(wireless/wired remote controller) could be found with function list on Indoor Unit’s PDB.
5. If you need more detail, please refer to the BECON PDB or the manual of product.
(http://partner.lge.com/global : Home> Doc.Library> Product > Control(BECON))
