LG TD-C70070E Manuel utilisateur

100

CONDENSING DRYER

SERVICE MANUAL

READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE

CORRECTLY BEFORE OFFERING SERVICE.

MODEL : TD-C70070E

CAUTION

101

SET. 2006 PRINTED IN KOREA

P/No.:3828EL

To avoid personal injury, disconnect power before servicing this product. If electrical power is required

for diagnosis or test purposes, disconnect the power immediately after performing the necessary checks.

WARNING !

IMPORTANT SAFETY NOTICE

The information in this service guide is intended for use by individuals possessing adequate backgrounds

of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in

personal injury and property damage. The manufacturer or seller cannot be responsible for the

interpretation of this information, nor can it assume any liability in connection with its use.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to complete a path to ground are

removed for service, they must be returned to their original position and properly fastened.

IMPORTANT

Electrostatic Discharge (ESD)

Sensitive Electronics

ESD problems are present everywhere. ESD may damage or weaken the electronic

control assembly. The new control assembly may appear to work well after repair is

finished, but failure may occur at a later date due to ESD stress.

■Use an anti-static wrist strap. Connect wrist strap to green ground connection point or unpainted

metal in the appliance.

- OR -

Touch your finger repeatedly to a green ground connection point or unpainted metal

in the appliance.

■Before removing the part from its package, touch the anti-static bag to a green ground connection

point or unpainted metal in the appliance.

■

Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.

■When repackaging failed electronic control assembly in anti-static bag, observe above instructions.

1. SPECIFICATIONS ..................................................................................................................4

2. FEATURES AND LOOK ..........................................................................................................5

3. PART IDENTIFICATION...........................................................................................................6

4. PROGRAM CYCLE.................................................................................................................7

5. INSTALLATION INSTRUCTIONS ...........................................................................................10

6. MAINTENANCE INSTRUCTIONS .........................................................................................12

7. COMPONENT TESTING TIPS ...............................................................................................15

8. CONTROL LAY-OUT ............................................................................................................17

9. WIRING DIAGRAM.............................................................................................................18

10. TROUBLESHOOTING GUIDELINES.....................................................................................19

11. DIAGOSTIC TEST ..............................................................................................................23

12. DIASSEMBLE INSTRUCTIONS ...........................................................................................30

13. EXPLODED VIEW ..............................................................................................................40

CONTENTS

SPECIFICATIONS

ITEMS

MATERIAL & FINISHES

DRYING TYPE

WEIGHT

DIMENSION

STANDARD DRYING CAPACITY

CONTROL TYPE

POWER SUPPLY

MOTOR

HEATER

LAMP

DOOR SWITCH

THERMOSTAT

CONTROL TYPE

DRUM CAPACITY

SAFETY DEVICES

SENSING TYPE

FILTER

DRUM SPEED

REVERSIBLE DOOR

DRUM

DRYER RACK

CHILD LOCK

TEMPERTURE CONTROL

BUZZER OFF

ANTI-CREASE COURSE

TIME DELAY

DRUM INTERIOR LIGHT

LED DISPLAY

TD-C70070E

Condenstation

45 kg (Gross : 50 kg)

595(W) x 850(H) x 600(D)

4.1 cu.ft

Electronic Control

AC 220~240V, 60Hz (16A)

250W

2350W

20W(125mA)

250V(5A)

240V(25A)

Electronic

116 Liter

Thermal Fuse (Motor)

Over current protect (Motor)

Thermostat

Micom electronic Control

1. Temperature : 2 thermistors

2. Humidity : Electrode Sensor

Removable (Double screen)

54~58 rpm

Available

Stainless steel

Available

TIME DISPLAY

RUNNING STATUS INDICATOR

EMPTY WATER

CLEAN FILTER

CHILD LOCK

TIME LEFT

START/PAUSE

REMARK

LGEUK:13A, LGEAP:10A

LGEUK:2350W, LGEAP:1900W

High/Low Temp buttons

Default : On

Dafault : OFF

3~19 hours

FEATURES AND LOOK

Ultra Big Capacity Drum

The LG Dryer has a large capacity.

Reduced drying time

Drying time is shortened by efficient air flow mechanism and

optimized heater.

Innovative Noise Reduction

Noise is reduced by optimized design of air flow system and vibration

reduction technology.

Ease of Use

Large LED display and electronic control.

Your dryer provides sensor drying and manual drying programs.

Sensor Dry Dryer electronically senses laundry moisture level and it automatically determines operation time

based on the dryness of the load and the selected program. At times,you can see sudden increase or

decrease of operation time. It happens because a sensor will detect laundry humidity with a certain period.

Sudden change of operation time is not a malfunction.

Manual Dry Manual Dry allows you to set operation time manually to complete drying. Or use Manual Dry if

clothes are still damp after sensor dry cycle is finished. Manual Dry is more effective for heavyweight and bulky

items such as king-size bed sheets and thick work clothes.

What are Sensor Dry and Manual Dry?

Control Panel

Additional function buttons

• High Temp. / Low Temp.

• Buzzer off

• Wrinkle care

• Favourite

• Time Delay

LED Display

• Time Display

• Indicator lamps

Start/PauseProgram selector

TD-C70070E/75E

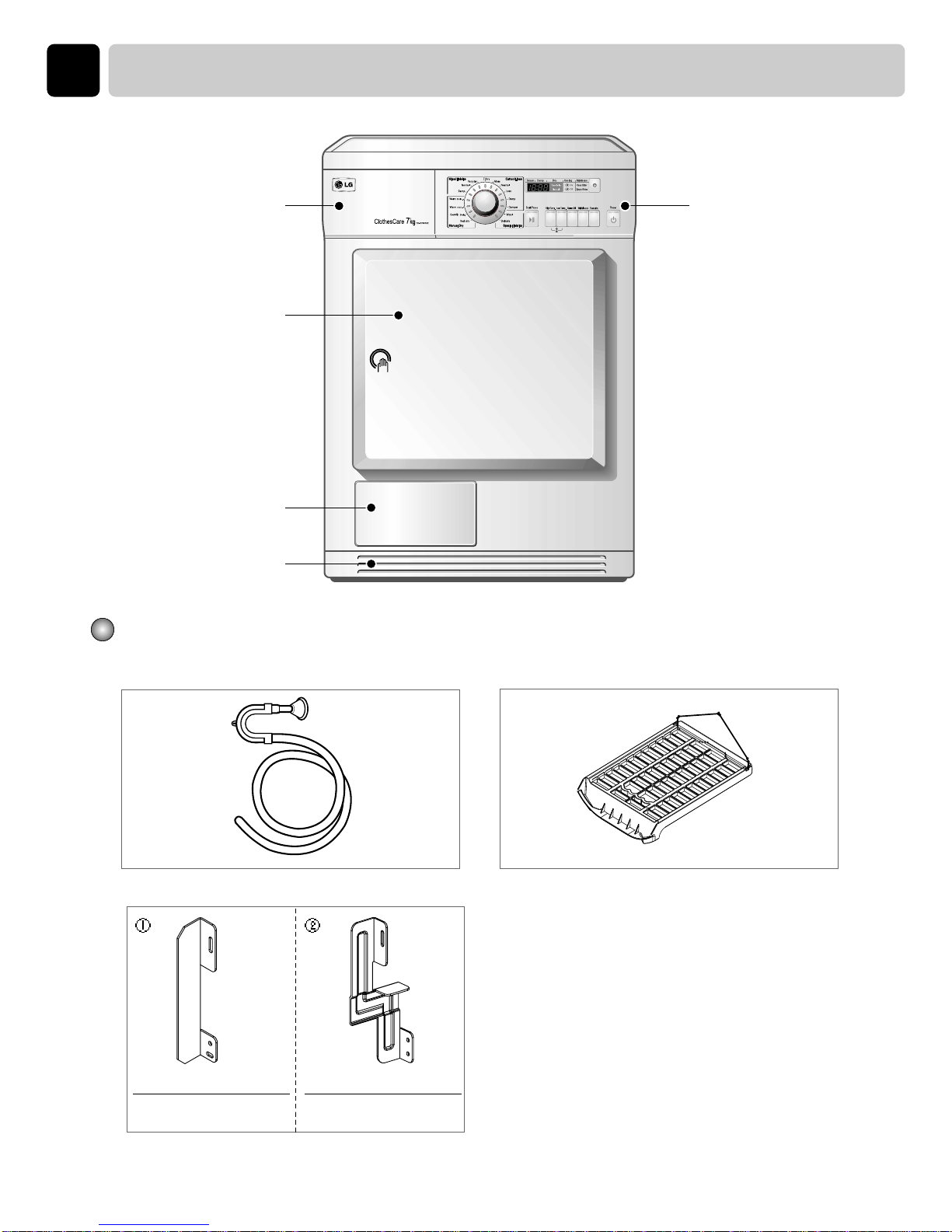

PART IDENTIFICATION

1. Drain Hose Assembly

P/No. : 5001EL2001A P/No. : 3751EL1002B

2. Dryer Rac Assembly(Purchased Seperately)

3. Stac ing it Assembly

Holder : 2EA, Screw : 4EA Holder : 2EA, Screw : 4EA

Purchased Separately

Accessory parts

Control panelWater container

Door

Condenser Cover

Air ventilation grill

4PROGRAM CYCLE

High Temp. / Low Temp.

These are functioning to shorten or lengthen

the cycle time by increasing or decreasing

temperature.

Buzzer off

This is about buzzer sound on/off.

After power is on and you select cycle, buzzer

will sound when you press a certain button on

the panel.

If you don’t like to hear that sound, just press

button. The Buzzer is then turned -off.

Wrinkle care

Wrinkle care is functioning to prevent creases

and rumples that are formed when the

laundry is not unloaded promptly at the end

of drying cycle. In this function, the dryer

repeatedly runs and pauses to the cycle end.

If the door is open during Wrinkle care

process, this function is cancelled. But in

case of door open during normal operation

without selecting Wrinkle care, this function

will be remembered and processed.

Favourite

If there is some cycle you would like to make

based on your own drying habit, use “Favourite”.

Once favourite cycle is stored, you can repeatedly

use next time before changing the stored setting.

For instance, you turn power on and select Extra

Dry in Cotton Cycle and Low temp and Anti-

Crease in series and then lastly press “Favourite”

until the dryer beeps. It’s about 3 seconds. That’s

all you have to do.

The next time, when turning the dryer on and

pressing “Favourite” you can see the above

options you select displays on the panel.

Time Delay

You can use the Time Delay function to delay

the finishing time of drying cycle.

Maximum Time Delay is 19 hours.

1. Turn the dryer on

2. Select cycle

3. Set time delay hour

4. Press Start/Pause button

Child Lock

For the safety of your children, press High Temp.

and Low Temp. buttons at the same time for

about 3 seconds. You can check this function by

seeing the dryer display “ ” on LED window.

PROGRAM CYCLE

CAUTION

If the load is less than 1kg, please use “Manual Drying course”

Your wool should be used in Wool program and heat-sensitive fabrics including silk, underwears,

lingerie should be used in delicates courses.

Otherwise, these clothes can cause undesirable drying results.

Cycle Selection Table

Electronic Auto Dry Cycles Standard

Program

Mixed-Fabric cycles

(Note) press the "Low Temp." button for heat-sensitive items

Bed linen and table linen, tracksuits, For thick and quilted fabrics which do not need to be ironed. Very

anorak, blankets

shirts, blouses and sportswear For fabrics which do not need to be ironed. Normal

Trousers, dressers, skirts, blouses For fabrics which do need to be ironed. Damp

Cotton/Linen (Whites and coloreds)

(Note) press the "Low Temp." button for heat-sensitive items

Towelling, dressing gowns For thick and quilted fabrics. Very

and bed linen

Terry towelling, tea towels, towel, For thick and quilted fabrics which do not need to be ironed. More

bed linen

Bath towels, tea towels, For fabrics which do not need to be ironed. Normal

underwear, cotton socks

T-shirts, trousers, underwear, For fabrics which do need to be ironed lightly, not completely. Less

work clothes

Bed linen, table linen, towels, T-shirts For fabrics which do need to be ironed. Damp

Polo shirts and work clothes

Bed linen, table linen, towels For fabrics which do need to be pressed. Damper

Manual Dry Cycles for selected length of time

Bath towels, bath robes, dishclothes, Small clothes & pre-dried laundry Normal Warm (20min.)

Quilted fabrics made of acrylic Normal fabrics using hot temperature for 20minutes

Small clothes & pre-dried laundry

Normal fabrics using hot temperature 40minutes Warm (40min.)

All fabrics needing freshing, tumbles without heat Cool Air (20min.)

sweater, delicate, fabrics, sportshoes For the fabrics you do not want tumble dry. Rack dry

Special Fabrics

Wool For wool fabrics. Wool

Silk, Women's thin clothes, lingerie For fabrics which are heat-sensitive like synthetic fabrics. Delicates

PROGRAM CYCLE

Very

Normal

Less

Damp

Damper

Very

Normal

Damp

Warm(20)

Warm(40)

Cool-Air(20)

Rack Dry(40)

Wool

Delicate

125

120

115

103

Cotton

Mixed

Fabric

Timed

Drying

Special

Fabric

Course

Course detail

HighTemp Buzzer off Wrinkle care

Left Time

LowTemp
