LG DLE2301W Manuel utilisateur

U.S.A. Website: http://us.lgservice.com

Canadian Website: http://lg.ca

ELECTRIC & GAS DRYER

SERVICE MANUAL

CAUTION

READ THIS MANUAL CAREFULLY IN ORDER TO

PROPERLY DIAGNOSE PROBLEMS AND TO SAFELY

PROVIDE QUALITY SERVICE ON THESE DRYERS.

MODEL : DLE2301W / DLG2302W

DLE2301R / DLG2302R

MAR. 2007 PRINTED IN KOREA

P/No.:3828EL3005L

To avoid personal injury, disconnect power before servicing this product. If electrical power is required

for diagnosis or test purposes, disconnect the power immediately after performing the necessary checks.

WARNING !

WHAT TO DO IF YOU SMELL GAS:

IMPORTANT SAFETY NOTICE

The information in this service guide is intended for use by individuals possessing skill and experience in

electrical, electronic, and mechanical appliance repair. Any attempt to repair a major appliance may result

in personal injury and property damage. The manufacturer or seller cannot be responsible for the

interpretation of this information, nor can it assume any liability in connection with its use.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to complete a path to ground are

removed for service, they must be returned to their original position and properly fastened.

IMPORTANT

Electrostatic Discharge (ESD)

Sensitive Electronics

ESD problems are present everywhere. ESD may damage or weaken the electronic

control assembly. The new control assembly may appear to work well after repair is

finished, but failure may occur at a later date due to ESD stress.

■Use an anti-static wrist strap. Connect wrist strap to green ground connection point or unpainted

metal in the appliance.

- OR -

Touch your finger repeatedly to a green ground connection point or unpainted metal

in the appliance.

■Before removing the part from its package, touch the anti-static bag to a green ground connection

point or unpainted metal in the appliance.

■

Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.

■When repackaging failed electronic control assembly in anti-static bag, observe above instructions.

■Do not try to light a match, or cigarette, or turn on

any gas or electrical appliance.

■Do not touch any electrical switches. Do not use any

phone in your building.

■Clear the room, building or area of all occupants.

■Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions

carefully.

■If you cannot reach your gas supplier, call the fire

department.

1. SPECIFICATIONS ..................................................................................................................4

2. FEATURES AND BENEFITS .................................................................................................... 6

3. INSTALLATION INSTRUCTIONS ........................................................................................... 6

4. DRYER CYCLE PROCESS..................................................................................................... 13

5. COMPONENT TESTING INFORMATION ..............................................................................14

6. MOTOR DIAGRAM AND SCHEMATIC..................................................................................17

7. CONTROL LAYOUT ............................................................................................................18

8. WIRING DIAGRAM ............................................................................................................19

9. DIAGNOSTIC TEST .............................................................................................................20

9-1. TEST 1 120V AC ELECTRICAL SUPPLY ........................................................................21

9-2. TEST 2 THERMISTOR TEST .........................................................................................22

9-3. TEST 3 MOTOR TEST ................................................................................................24

9-4. TEST 4 MOISTURE SENSOR ....................................................................................25

9-5. TEST 5 DOOR SWITCH TEST ...................................................................................26

9-6. TEST 6 HEATER SWITCH TEST - ELECTRIC MODEL.......................................................27

9-7. TEST 7 GAS VALVE TEST - GAS MODEL.....................................................................28

9-8 TEST 8 SEMI-CONDUCTOR..........................................................................................29

10. CHANGE GAS SETTING (NATURAL GAS, PROPANE GAS) ...............................................30

11. DISASSEMBLY INSTRUCTIONS .........................................................................................32

12. EXPLODED VIEW ..............................................................................................................39

12-1. CONTROL PANEL & PLATE ASSEMBLY .......................................................................39

12-2. CABINET & DOOR ASSEMBLY...................................................................................40

12-3-1. DRUM & MOTOR ASSEMBLY: ELECTRIC MODEL......................................................41

12-3-2. DRUM & MOTOR ASSEMBLY: GAS MODEL ............................................................42

13. REPLACEMENT PARTS LIST.................................................................................................43

CONTENTS

SPECIFICATIONS

■Name: Electric and Gas Dryer

■Power supply: Please refer to the rating label regarding detailed

information.

■Size: 27 X 29.9 X 38.7 (inch)

■Dryer capacity: IEC 7.3 cu.ft.

■Weight: 126(Ibs)

Specifications are subject to change by manufacturer.

■ ACCESSORIES

Dryer rack (1 each) Stacking kit (1 each)

Purchased Separately

Pedestal (1 each)

Purchased Separately

See page 6 See page 7 See page 8

Temperature

Moisture

On/Off

Sensor

124/144

Door Trim

Top Plate

Color

Chromate

Porcelain

Blue Whit

120V/240V 60Hz (26A)

POWER SUPPLY

LAMP

HEATER

MOTOR

7.3 cu.ft.

Electronic

GAS VALVE

5400W (22.5A)

250W (4.5A)

15 W (125mA)

13 W (110mA) x 2

ELECTRICITY

CONSUMPTION

Material &

Finish

DLE2301R

DLG2302R

DLE2301W

DLG2302W

ITEM

Child Lock

Reversible Door

Interior Light

Product (WxHxD)

Packing (WxHxD)

Sound levels

Dryer Rack

Drum

No. of Dry Levels

No. of Dry Options

No. of Programs

DRUM CAPACITY

CONTROL TYPE

No. of Temperature Controls

Weight (lbs) - Net/Gross

AC 120V

(GAS MODEL)

AC 240V

(ELECTRIC MODEL)

Electrode sensor

Thermistor

AC 120V

REMARK

Available

Avaiable

27" x 42 3/4" x 28 1/3"

29 1/2" x 44 3/4" x 30 3/4"

Stainless Steel

CANDY APPLY RED

FEATURES AND BENEFITS

INSTALLATION INSTRUCTIONS

Open the door.

Hold the dryer rack

with both hands.

Put the dryer rack into

the drum

Check and be sure that the

front of the rack is properly

seated behind the lint filter.

123

Dryer Rack Installation Instructions

To ensure safe and secure installation, please observe the instructions below.

Place the washer firmly on a stable, even

and solid floor as product installation

instructions describe in the owner’s

manual.

Peel the protective paper from the tape on

the side bracket.

Fit the side bracket firmly to the side of the

top plate by attaching the double-faced tape

to the top plate as picture shown.

Secure the side bracket to the washer with

a screw on the back of the bracket. Repeat

Steps 2, 3, & 4 for the other side.

Place the dryer on top of the washer by

placing the legs as shown. Be careful not to

pinch fingers between the washer and dryer.

Slide the dryer back against the stop on the

side rail.

Insert the front rail of the stacking kit. Push

the front rail back against the stops on the

side brackets.

• Do not use a stacking kit with a gas dryer in

potentially unstable conditions like a mobile

home.

Stacking kit

Do not attempt this alone!

At least two people are required to lift and

position the dryer on top of a washing

machine!

Failure to heed this warning can result in

serious physical injury and damage to the

appliance.

WARNING

Stacking Kit Installation Instructions

Screw both sides of the front rail to the side

brackets.

※※For washer, dryer, and combo L 27”

25 3/8

(64.5cm)

2.86?

(7cm)

18 3/4

(47.5 cm)

27?

(68.6cm)

7 1/4

(18.4cm)

Pedestal Installation Instructions

4Attach the double-faced tape of the bracket to the

dryer as shown so the bent parts of the brackets

align with the edge and can be attached to the

pedestal with screws.

NOTE :

Attach the lower side first.

5Be sure to press the adhesive parts of the brackets

firmly to the appliance.

6Install the eight (8) screws(supplied) to attach the

brackets to the pedestal.

7Move the dryer to the desired place.

NOTE :

The appliance and pedestal assembly

must be placed on a solid and level floor

for proper operation. Adjust the legs of the

appliance and pedestal by turning with a

wrench. Then, adjust the lock unt toward

the pedestal while holding the pedestal leg

using a wrench.

1Remove pedestal, installation hardware, and

instructions from the shipping carton.

2Position the dryer on top of the pedestal.

3Remove the paper from the

bracket.

for washer/

combo

for washer/

combo

for dryer

NOTE: That the Pedestal

hardware packet may in-

clude 2 sets of side

brackets. Be sure to use

the brackets marked for

the dryer.

After removing the protective covering from the

adhesive surface, align the screw holes in the

brackets with the matching holes in the pedestal

base and press and press the brackets against

the base and the dryer.

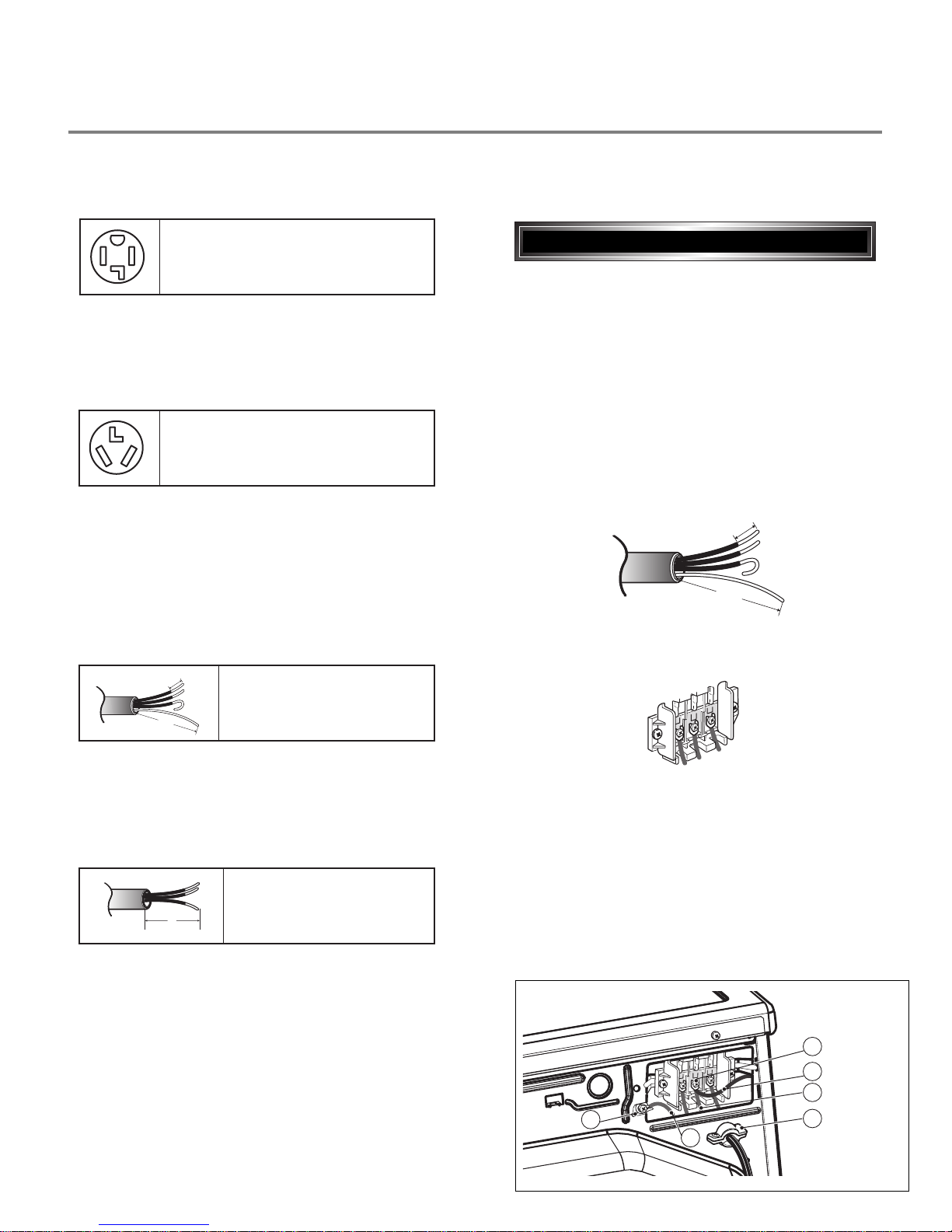

Use the instructions under option 2 or 3 if your

home has a 3-wire receptacle (NEMA type 10-30R).

Use option 2 if local codes and ordinances permit

the connection of a chassis ground to the neutral

connector. If this is not permitted, use option 3.

Review the following options to determine the appropriate electrical connection for your home:

Electric Dryer Only

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

Important : Grounding through the neutral conductor

is prohibited for (1) new branch-circuit installations,

(2) mobile homes, and (3) recreational vehicles, and

(4) areas where local codes prohibit grounding through

the neutral conductor.

Prepare minimum 5ft(1.52m) of length in order for

dryer to be replaced.

First, peel 5 inch (12.7cm) of covering material from

end. Make a 5 inch of ground wire bared. After cutting

/2inch (3.8cm) from 3 other wires. peel insulation

back 1inch (2.5cm). Make ends of 3 wires a hook

shape.

Then, put the hooked shape end of the wire under the

screw of the terminal block(hooked end facing rightward)

and pinch the hook together and screw tightly.

Use the instructions under option 1 if your home

homehas a 4-wire receptacle (NEMA type 14-30R).

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

1. Connect neutral wire(white) of power cord to center

terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to external

ground screw and move neutral ground wire of

appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on tight and

power cord is in right position.

(12.7 cm)

31/2"

(8.6 cm)

(2.5 cm)(2.5 cm)

(12.7 cm)(12.7 cm)

(2.5 cm)

3V2"

(8.9 cm)

3-wire direct

4-wire receptacle

(NEMA type14-30R)

3-wire receptacle

(NEMA type10-30R)

4-wire direct

5"5"

(12.7 cm)(12.7 cm)

31/2"

(8.6 cm)

(2.5 cm)

(12.7 cm)

(2.5 cm)

3V2"

(8.9 cm)

4-wire connection : Direct wire

(12.7 cm)

31/2"

(8.6 cm)

1"1"

(2.5 cm)(2.5 cm)

(12.7 cm)(12.7 cm)

(2.5 cm)

(8.9 cm)

Autres manuels pour DLE2301W

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LG Séchoir

LG TD-C700E Manuel utilisateur

LG STYLER S3 NF Series Manuel utilisateur

LG DLE1310W Manuel utilisateur

LG ELECTRIC AND GAS DRYER DLE 5977W Manuel utilisateur

LG DT25WTG Manuel utilisateur

LG DLEX3570 series Manuel utilisateur

LG DLE8377WM Manuel utilisateur

LG WF-DT90PW Manuel utilisateur

LG RC8011A Manuel utilisateur

LG DLEX7710 E Series Manuel utilisateur

LG DT22BSSG Manuel utilisateur

LG DLE5977 Manuel utilisateur

LG TD-H9055E Manuel utilisateur

LG D5988S Manuel utilisateur

LG WT1201CW Manuel utilisateur

LG DLE7400 E Series Manuel utilisateur

LG DLEX4270 /01 Series Manuel utilisateur

LG DLEX3370V Manuel utilisateur

LG DLGY1902 E Series Manuel utilisateur

LG DLE9577 Guide d'installation

LG DLHX4072 series Manuel utilisateur

LG RC9055 P F Series Manuel utilisateur

LG DLE2150W Mode d’emploi

LG DLE7101 Series Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
