LG LDF6810 Manuel utilisateur

Please read this manual carefully.

Retain for future reference.

If you have questions, call 1-800-243-0000

or visit our website at: http://www.lgservice.com

or http://us.lgservice.com

MODEL : LDF7810WW / LDF7810BB / LDF7810ST

LDF7811WW / LDF7811BB / LDF7811ST

LDS5811WW / LDS5811BB / LDS5811ST

LDF6810WW / LDF6810BB / LDF6810ST

SSAAFFEETTYYAANNDDCCAAUUTTIIOONN

CCOONNTTEENNTTSS

PART 1. SAFETY AND CAUTION ............................................................................................... 2

PART 2. DISHWASHER SPECIFICATIONS ................................................................................. 3

PART 3.TOOLS AND MATERIALS NEEDED ............................................................................. 4

PART 4. INSTALLATION INSTRUCTIONS ............................................................................ 5~11

SAFETY AND CAUTIONS

• Disconnect electrical power before you start !

• All electrical wiring and grounding should be done in accordance with national and local

codes.

• If electrical supply is damaged, it must only be replaced by the manufacturer or its service

agent or a similar qualified person in order to avoid a hazard.

• This dishwasher must be connected to a hot water supply between 120℉(49℃)~149℉(65℃).

This temperature range provides the best washing results and shortest cycle time.

Temperature should not exceed 149℉(65℃) to prevent damage to dishes.

•This appliance must be positioned close to an electrical power supply.

•The appliance is to be connected to the water supply using new hoses. Old hoses should not

be reused.

GROUNDING INSTRUCTIONS

•For a permanently connected dishwasher:

This appliance must be connected to a grounded metal, permanent wiring system, or an

equipment-grounding conductor must be run with the circuit conductors and connected to the

equipment-grounding terminal or lead on the appliance.

WARNING!

When installing and using your dishwasher, follow basic precautions, including the

following:

IMPORTANT SAFETY INSTRUCTIONS

DDIISSHHWWAASSHHEERRSSPPEECCIIFFIICCAATTIIOONNSS

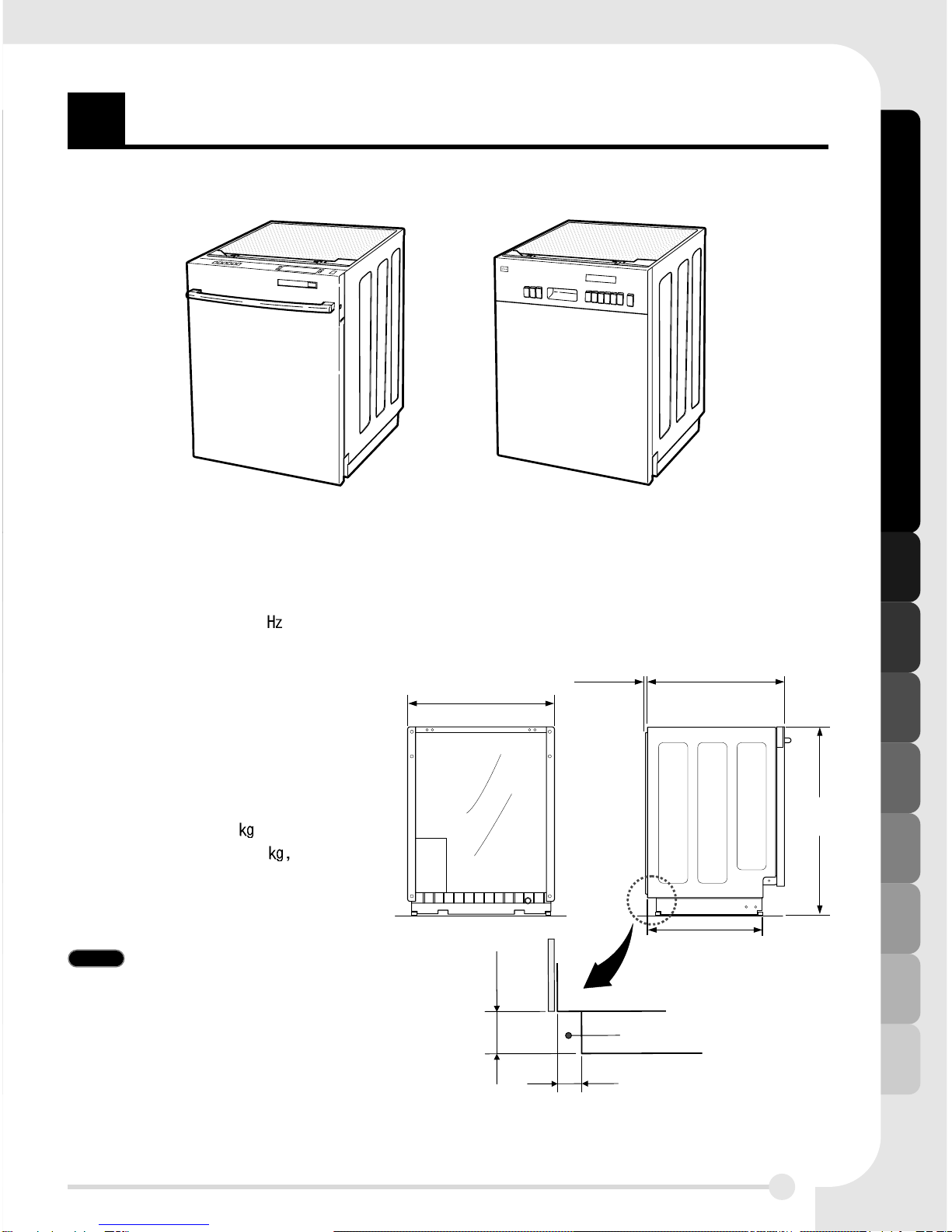

DISHWASHER SPECIFICATIONS

Product Dimension

■Power supply: 120V, 60 AC only

■Water Pressure: 20 - 120 psi

(140 - 830 kPa)

■Size: Fully / Semi (WXDXH):

23 7/8″″

X24 5/8″″

X33 7/8″″

(606mm X625mm X860mm)

■Inlet Water Temperature:

120

°F (49℃)

■Weight: 115 Ibs. (52 , Fully-

Integrated), 110 Ibs. (50 Semi-

Integrated)

Specifications are subject to change

to improve performance.

Water supply hose, Drain hose

and Electric Cable

Should be passed through by this area

Felt

(insulating

material)

may be

compressed

33-7/8″

(860mm)

20-3/8″(518mm)

6-3/4″

(171mm)

3″(76mm)

23-7/8″(606mm)

24-5/8″(625mm)1/5″(5mm)

Fully Integrated

LDF7810WW/BB/ST

LDF7811WW/BB/ST

LDF6810WW/BB/ST

Semi Integrated

LDS5811WW/BB/ST

NOTE The features on your dishwasher

may vary from the figure shown.

TTOOOOLLSSAANNDDMMAATTEERRIIAALLSSNNEEEEDDEEDD

TOOLS AND MATERIALS NEEDED

INSTALL BRACKET WOOD SCREW

OOTT

TTHH

HHEE

EERR

NNEE

EEEE

EEDD

DDEE

EEDD

IITT

TTEE

EEMM

MMSS

(Not provided)

(See page 8 for installation detail)

ELECTRICAL CABLE

WATER SUPPLY TUBE ELBOW FITTINGS

FOR TUBE RUBBER

CONNECTOR PLUMBERS'

TAPE

AIR GAP HOSE CLAMP

STRAIN RELIEF

ELECTRICAL TAPE

TWIST-ON WIRE

CONNECTOR

TTOO

OOOO

OOLL

LLSS

FFOO

OORR

IINN

NNSS

SSTT

TTAA

AALL

LLLL

LLAA

AATT

TTII

IIOO

OONN

STANDARD

SCREWDRIVER

ADJUSTABLE

WRENCH

PHILLIPS

SCREWDRIVER HOLE CUTTER

TAPE MEASURE CUTTING KNIFE LEVEL TUBING CUTTER

ELECTRIC DRILL GLOVES SAFETY GLASSES

NIPPER PLIERS WIRE STRIPPER

PPAA

AARR

RRTT

TTSS

SSUU

UUPP

PPPP

PPLL

LLII

IIEE

EEDD

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

INSTALLATION INSTRUCTIONS

PREPARE CUPBOARD OPENINGStep 1

1. This dishwasher is designed to fit a standard dishwasher opening as shown below.

2. Select a location as close to sink as possible for easy connections to water and drain lines.

3. The dishwasher should not be installed more than 10 ft. (3m) from the sink for proper

drainage.

4. If dishwasher is to be installed in a corner, a minimum of 2 in. (50mm) is required between

the dishwasher and an adjacent a wall.

5. To allow for proper clearance of plumbing and electrical measure a 4″x7″target area (figure

#1) on the side of the cabinet where the cabinet meets the back wall. Using a 2 1/2″

diameter hole saw drill a hole (in the target area) within 6 3/4″from the floor, and no more

than an 3″from the back wall. If there is a floor in the cabinet under the sink, it will also be

necessary to drill or cut through the floor to connect the water and drain under the sink.

NOTE Failure to cut this opening will result in the drain hose interfering with the rear wall not allowing

for flush mount installation.

Must have this opening (on either

side) to route plumbing and

electrical.

For FLUSH INSTALL, you may

remove the Cabinet brace inside of

the cabinet carefully.

■Ensure the floor under the dishwasher is at the same level as the rest of the room to

allow for any service requirements.

These installation instructions are intended for use by Qualified lnstallers.

figure #1 figure #2

INSTALLATION INSTRUCTIONS

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

Step 2 PREPARE THE ELECTRICAL WIRING

WARNING!

For personal safety, remove house fuse or open circuit breaker before

installation. Do not use an extension cord or adapter plug with this dishwasher.

Electrical and grounding connections must comply with the national electrical

code/provincial and municipal code and/or other local codes.

1. This appliance must be operated with correct voltage as shown in this manual and on the

rating plate, and connected to an individual, properly grounded branch circuit, protected by

time delay fuse. Wiring must be 3 wires including ground.

2. The wiring or cord should be in an accessible location adjacent to, and not behind the

dishwasher and within 4 ft. (1.2m) of the dishwasher side.

3. The wiring or cord must be grounded properly, if in doubt, have it checked by a qualified

electrician. No other appliance shall be connected to the same outlet by a double adapter

or similar plug.

4. The wiring or cord must be oriented as shown in Figure below.

5. Check the dishwasher for any damage before trying to install it.

6. Make sure Electrical line are oriented in the bottom channels as shown in the figure below.

If you find any damage to the dishwasher, Please contact your dealer or builder

immediately.

Electrical Cable

4 1/2″- 6″(115 - 152mm)

These installation instructions are intended for use by Qualified lnstallers.

INSTALLATION INSTRUCTIONS

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

Step 3

Step 4

PREPARE THE WATER SUPPLY CONNECTION

PREPARE DISHWASHER

WARNING!

1. This dishwasher must be connected to a hot water supply between 120℉(49℃)~149℉(65℃).

This temperature range provides the best washing results and shortest cycle time.

Temperature should not exceed 149℉(65℃) to prevent damage to dishes.

2. When connecting the dishwasher water line, sealing tape or compound should be used to

avoid leaks.

3. When connecting the dishwasher water line, the house supply should be shut off.

4. The Water Supply Tube must be oriented in the bottom channels as shown in the figure below.

Open door and grab body frame and top

front opening of tub.

Don’t pull handle.

Doing so can result in door distortion.

Electrical Cable

Water Supply

Tube

6 1/2″- 7 3/4″(165 - 197mm)

These installation instructions are intended for use by Qualified lnstallers.

INSTALLATION INSTRUCTIONS

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

Step 5

Step 6

REMOVE LOWER COVER

FITTING 90。。

ELBOW

Step 7

SLIDE DISHWASHER INTO CABINET

Drain Hose

Water Supply Tube

Electrical

Cable

Remove two screws attaching lower cover

to dishwasher.

Remove lower cover from base.

Slide the dishwasher into the cabinet opening

carefully.

Make sure the drain hose inside the cabinet

is not kinked.

When fitting elbow into the inlet valve,

sealing tape or sealing compound should

be used to avoid water leaks.

Install a 90。elbow onto the water valve.

These installation instructions are intended for use by Qualified lnstallers.

INSTALLATION INSTRUCTIONS

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

Step 8

Step 9

LEVEL DISHWASHER

SECURE DISHWASHER TO THE COUNTERTOP

Secure dishwasher to the countertop or the cabinet.

When the countertop is made of wood or will not be damaged by drilling, use Step 9-1.

When the countertop is made of granite, marble or others which could be damaged by

drilling, Use Step 9-2.

Check that the dishwasher is level. (Fig. A)



Attach level on top front opening of tub from side to side

Check that the dishwasher is plumb. (Fig. B)



Attach level on front side of cabinet

Check that gap between door and tub is equal on both side’s

(L, R) (Fig. C)

If the dishwasher is not level or both side gap is not equal,

adjust four leveling feet up or down until dishwasher is level

and both side gap is equal. (Fig. D)

1. Remove the Plastic Bushing

2. Drive Wood Screw through the hole

(Install Bracket is located between tub

and side cabinet by manufacturer)

3. Reinstall Plastic Bushings.

STEP 9-1

Fig. D

STEP 9-2

Important Tip

1) Cover the Filter Hole by towels to prevent screws from falling down to pump.

2) Use a Magnetic Drive to prevent screws from falling down into the gap in step9-2.

Plastic Bushing

Wood Screw

1. Locate the installation brackets in the slot

2. Bend the brackets to secure them to the

dishwasher tub

3. Secure the dishwasher to the countertop

with the screws provided through the

holes in the bracket

These installation instructions are intended for use by Qualified lnstallers.

Fig. C

Fig. B

Fig. A

INSTALLATION INSTRUCTIONS

IINNSSTTAALLLLAATTIIOONNIINNSSTTRRUUCCTTIIOONNSS

Step 10 DRAIN LINE CONNECTION

1. If the end of the drain hose does not fit to the drain line, use an adapter (not supplied) that

must be resistant to heat and detergent and may be obtained from a plumbing shop.

2. There are 2 typical connections as shown in Fig. E & F.

①There may be other options than shown here for connection of the drain hose. The drain

connection must meet local plumbing regulations.

②The S trap spigot must be drilled out cleanly and free of obstruction to its maximum

internal diameter, if used for drainage.

③To prevent syphoning, one of the following instruction methods must be followed:

Fig. E:

Connection to Disposer or Waste Tee.

Dishwasher

Drain Hose

Sink

Min. 20″(508mm)

Min. 30″(770mm)

Max. 40″(1000mm)

Fig. F:

Connection to Air Gap.

Dishwasher

Drain Hose

Rubber

Connector

Sink

Min. 20″(508mm)

Min. 30″(770mm)

Max. 40″(1000mm)

Air Gap

�Follow local codes and

ordinances.

�Do not exceed 10 ft. (3m)

distance to drain.

�Do not connect drain lines from

other devices to the dishwasher

drain hose.

Drain Requirements

These installation instructions are intended for use by Qualified lnstallers.

Autres manuels pour LDF6810

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels LG Lave-vaisselle

LG Studio LSDF995ST Manuel utilisateur

LG D1420WB Manuel utilisateur

LG LDF8812WW Manuel utilisateur

LG LDF8812 Manuel utilisateur

LG LDF7920 Manuel utilisateur

LG LDS5040BB Manuel utilisateur

LG LDFC2423W.ABWEEUS Manuel utilisateur

LG LD-1204W1 Manuel utilisateur

LG LDT779# series Manuel utilisateur

LG LDF5545SS/00 Manuel utilisateur

LG LDF9810ST - Fully Integrated 6 Wash Cycles... Guide d'installation

LG LD-4204T1 Manuel utilisateur

LG DF325 Series Manuel utilisateur

LG LSDF9969BD Manuel utilisateur

LG LD-14AT 3 Manuel utilisateur

LG LD-1403W1 Manuel utilisateur

LG LUDP8997SN Manuel utilisateur

LG LSDTS988 Series Manuel utilisateur

LG LDS6040ST Manuel utilisateur

LG LDS4821 Manuel utilisateur

LG DF425 Series Manuel utilisateur

LG D1451 Series Manuel utilisateur

LG LDF9810ST - Fully Integrated 6 Wash Cycles... Guide de configuration

LG D1422W Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
