OWNER’S MANUAL

MONITOR SIGNAGE

84WT70PS

Please read this manual carefully before operating the your set and

retain it for future reference.

MONITOR SIGNAGE MODELS

ENG

ENGLISH

TABLE OF CONTENTS

4LICENSES

5ASSEMBLING AND

PREPARING

5Accessories

6Optional Accessories

7 Parts and Buttons

9 Using the Mounting Cable Tie

9 Connecting the Eye-Bolt Bracket

10 Connecting the Pentray Assembly

11 Connecting the Media Player

12 Mounting on a Wall

14 REMOTE CONTROL

16 Change Device Name

16 SimpLink Setting

17 USING THE MONITOR

17 Connecting to a PC

18 - RGB Connection

18 - DVI-D Connection

19 - HDMI Connection

19 - DisplayPort Connection

20 - TOUCH USB Cable Connection

21 - Using the Input List

22 ENTERTAINMENT

22 - Connecting to a Wired Network

23 - Network Status

24 - Connecting USB Storage Devices

26 - Using My Media

28 - Playing Video

31 - Viewing Photos

32 - Listening to Music

33 CUSTOMIZING SETTINGS

33 - PICTURE Settings

37 Using the Additional Options

37 - Adjusting Aspect Ratio

39 - SOUND Settings

40 - TIME Settings

41 - OPTION Settings

43 - NETWORK Settings

43 - SUPPORT Settings

44 MAKING CONNECTIONS

45 External Device Connection

45 - HDMI Connection

46 - AV (CVBS) Connection

47 Connecting to a USB

47 Connecting to the LAN

48 Daisy Chain Monitors

49 USING THE TOUCH SCREEN

49 To Use the Touch Screen on Windows 7 /

8.x

50 Gestures and Settings on Windows 7 / 8.x

50 Precaution When Using the Touch Screen

50 Precaution When Using the Stylus

51 LG Touch Screen Software

51 - Specifications

51 - Precaution When Using LG Touch

Screen Software

ENG

ENGLISH

TABLE OF CONTENTS

52 TROUBLESHOOTING

57 SPECIFICATIONS

62 IR CODES

63 CONTROLLING THE MULTIPLE

PRODUCT

63 Connecting the Cable

63 RS-232C Configurations

63 Communication Parameter

64 Command Reference List

66 Transmission/ Receiving protocol

ENGLISH

4LICENSES

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

 The warranty will not cover any damages caused by using the product in an excessively dusty

environment.

 Avoid using the product in a high temperature and high humidity area. Moving the monitor from a

environment like this to an air conditioned area may cause moisture formation inside the glass. This

moisture will be dissipate over time, which may vary depending on the operating environment.

NOTE

For DTS patents, see http://patents.dts.com. Manufactured under license

from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks, and DTS 2.0 Channel is a trademark of

This DivX Certified®device has passed rigorous testing to ensure it plays

DivX®video.

To play purchased DivX movies, first register your device at vod.divx.com.

Find your registration code in the DivX VOD section of your device setup

menu.

DivX Certified®to play DivX®video up to HD 1080p, including premium

content.

DivX®, DivX Certified®and associated logos are trademarks of DivX, LLC and

are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

ENG

ENGLISH

ASSEMBLING AND PREPARING

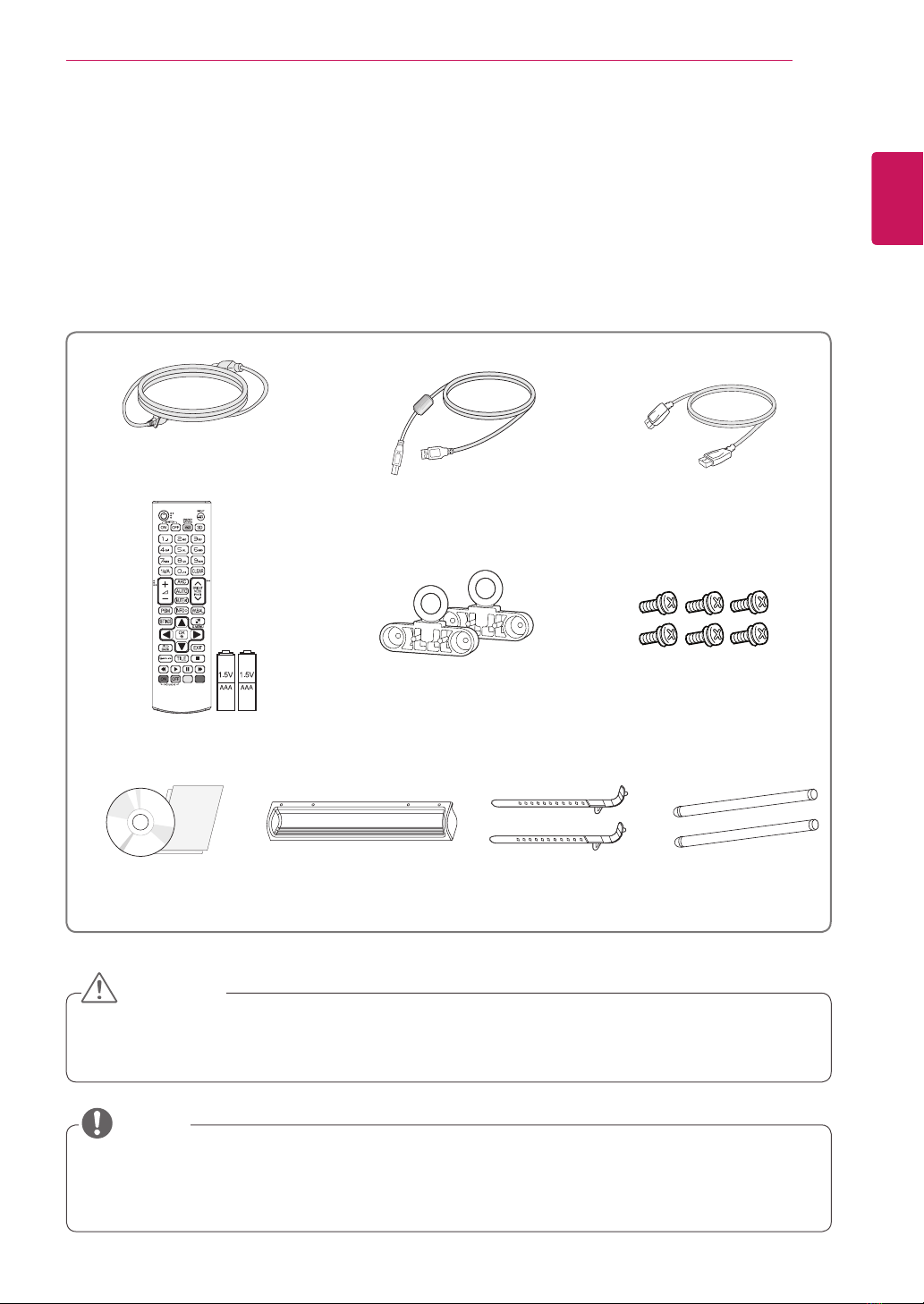

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any pirated items to ensure the safety and product life span.

 Any damages or injuries by using pirated items are not covered by the warranty.

CAUTION

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

NOTE

Power Cord

CD (Owner's Manual/ LG

Touch Screen SW) / Cards

M4 x L12 Screw (6 EA)

Eye-Bolt Bracket (2 EA)

Pen Tray Mounting Cable Tie (2 EA)

Remote control and

Batteries

USB Cable

Stylus (2 EA)

DP Cable

ENG

ENGLISH

ASSEMBLING AND PREPARING

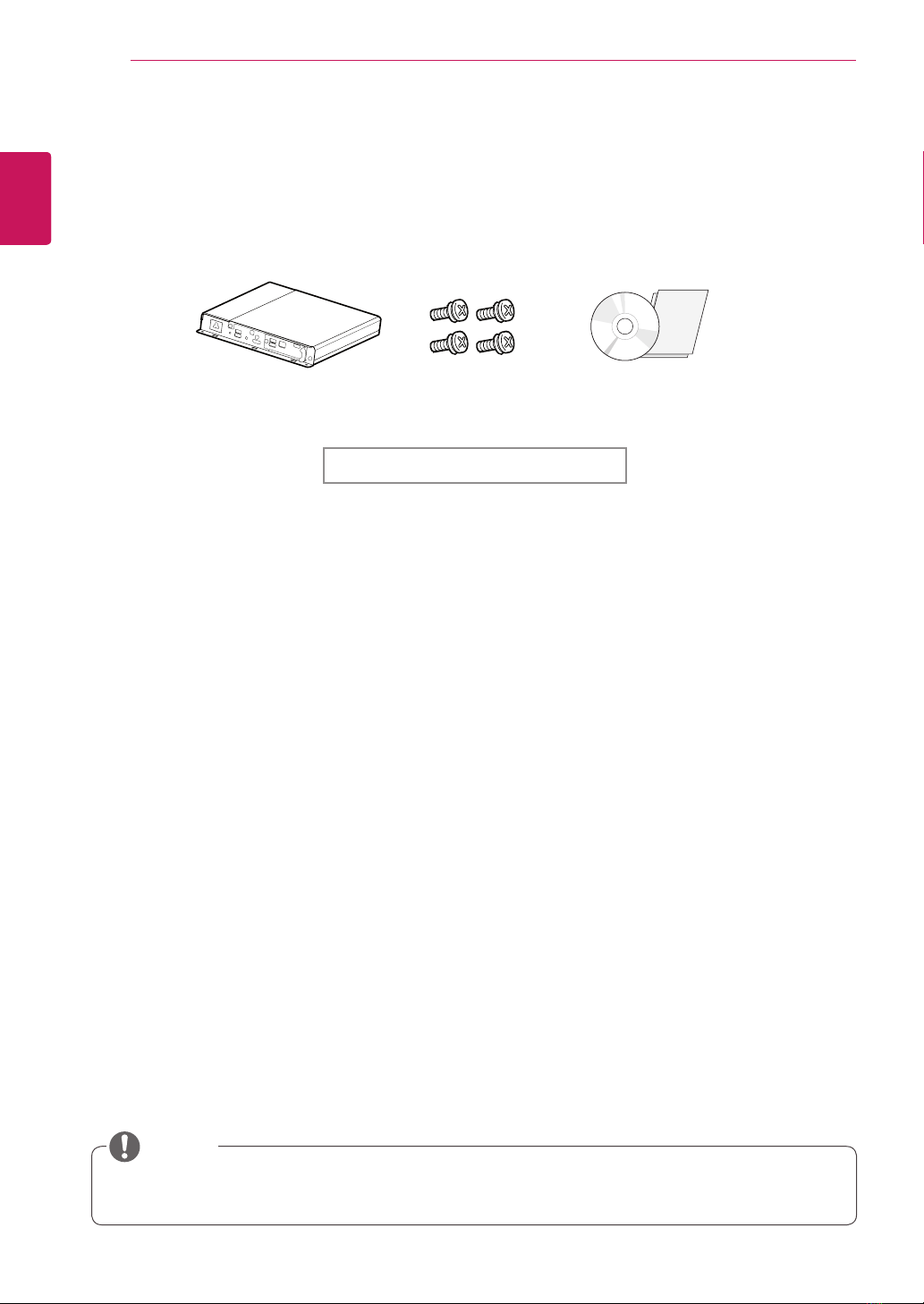

Media Player Kit

Media Player Screws CD (Owner's Manual) / Card

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product,

and new accessories may be added. The illustrations in this manual may differ from the actual product and

accessories.

 Optional accessories are not included for all models.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

 You can set the power indicator to on or off by selecting OPTION in the main menu.

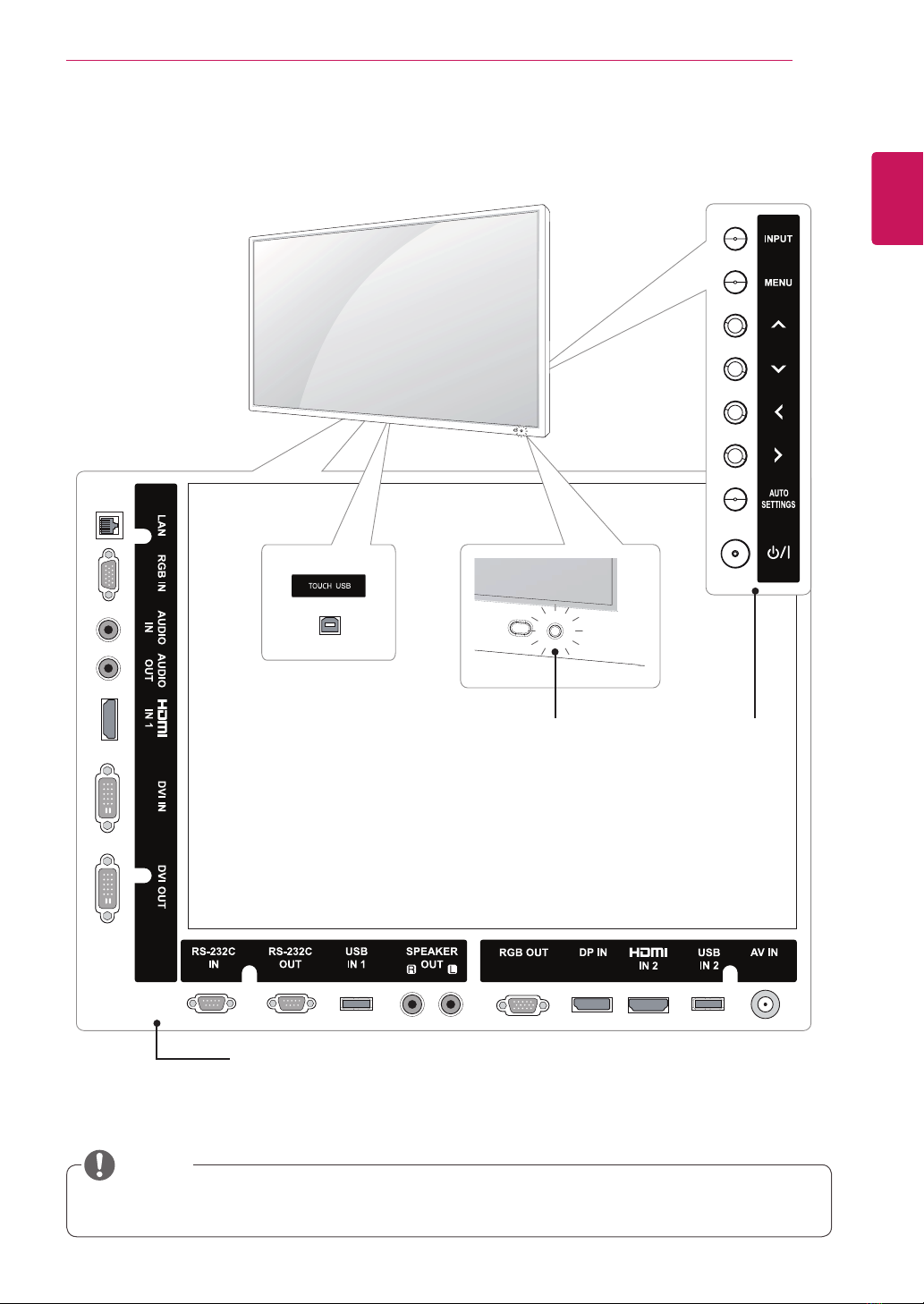

Parts and Buttons

NOTE

Connection panel

IR Receiver/

Power Indicator

Lighting On: Turned on

Lighting Off: Turned off

Buttons /

Marks

ENG

ENGLISH

ASSEMBLING AND PREPARING

Screen Marks Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Moves the selection up and down.

Adjusts the volume level.

AUTO/SET Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

/ITurns the power on or off.

IR Receiver This is where the unit receives signals from the remote control.

Power Indicator This indicator lights up red when the display operates normally (on mode). If the display

In sleep mode (In Power Saving mode), this indicator color changes to amber.

ENG

ENGLISH

ASSEMBLING AND PREPARING

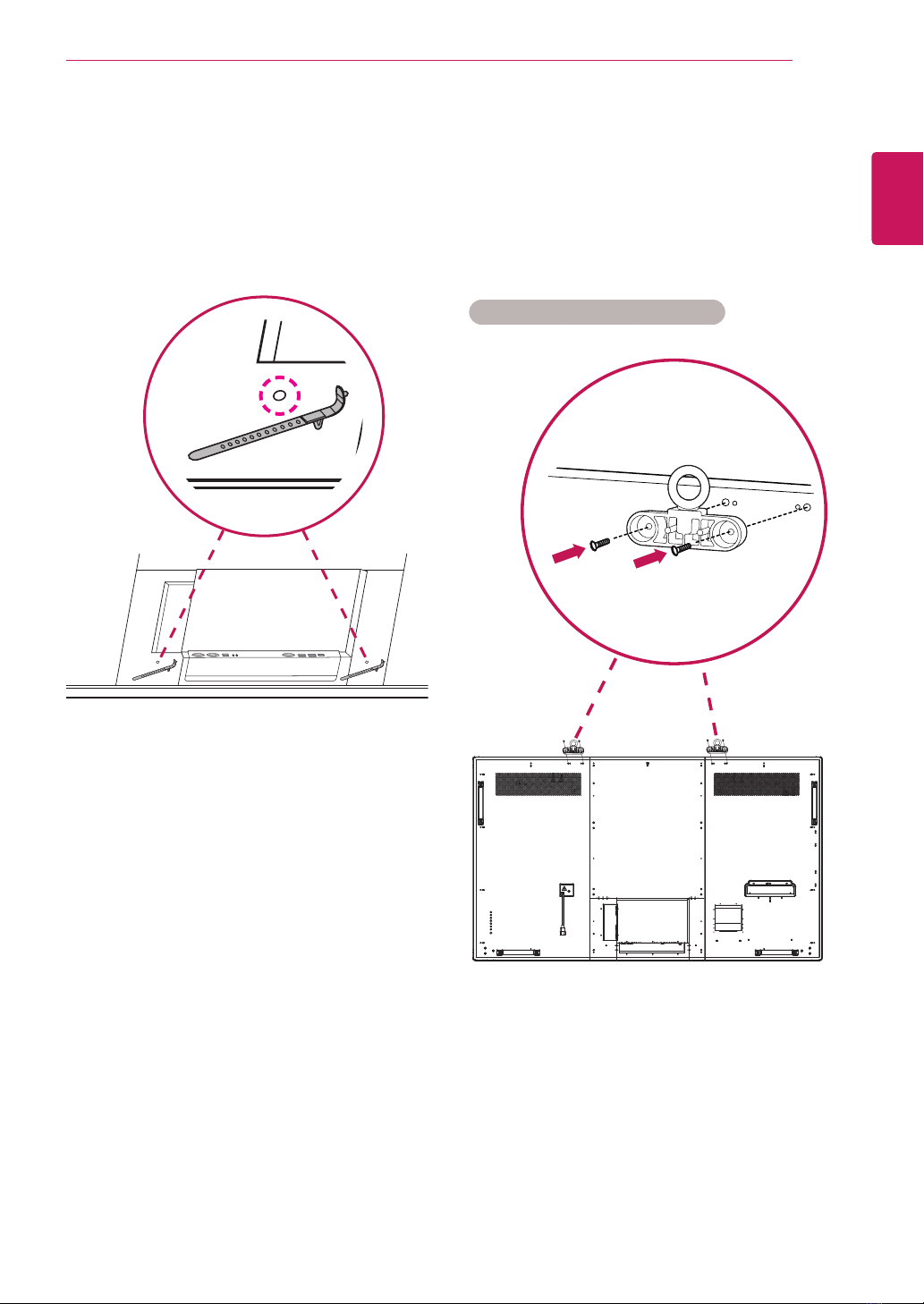

Connecting the Eye-Bolt

Bracket

The eye-bolt bracket is designed to be used to lift

the set up.

Attach the bracket to the product using the two

screws provided.

Using the Mounting Cable

Tie

Insert the two cable ties into the bottom hole on the

back of the set as shown in the figure to organize

cables.

Installing in Landscape Position

ENG

ENGLISH

ASSEMBLING AND PREPARING

Pentray Assembly

Connecting the Pentray

Assembly

Use the screws provided to attach the Pentray

assembly.
