LG 55LV75A-7B.AUS Guide de démarrage rapide

*MFL68606109*

Easy Setup Guide

LG Digital

Signage

(MONITOR SIGNAGE)

www.lg.com

P/NO : MFL68606109 (1806-REV01)

Printed in Korea

Please read this manual carefully before operating your set and retain it for

future reference.

55LV75A

55LV77A

ASSEMBLING AND PREPARING

ENG

ENGLISH

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any pirated items to ensure the safety and product life span.

 Any damages or injuries by using pirated items are not covered by the warranty.

CAUTION

Power Cord

M6 x L10

Screws (4 ea)

CD (Owner's Manual) /

Cards

M4 x L6

Screws (8 ea)

IR Receiver

Mounting Cable Tie (2 ea)

(For Cable Arrangement)

Tiling Guide(4 ea)

Remote Control

and Batteries

DP Cable

RS-232C Cable

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

 SuperSign SW & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your

model.

NOTE

ASSEMBLING AND PREPARING

ENG

ENGLISH

Dimensions (Width x Height x Depth) / Weight

To View the Owner’s Manual

Insert CD-ROM in Computer.

CD-ROM will open automatically.(for Windows only)

If it does not run automatically, it is available to see the below sequence.

My computer ➙Digital_LG(CD-ROM) ➙Index.htm Open

My computer ➙Digital_LG(CD-ROM) ➙Manual ➙Owner's Manual Open

1213.4 mm x 684.2 mm x 88.5 mm / 23 kg

(47.7 inches x 26.9 inches x 3.4 inches / 50.7 lbs)

ASSEMBLING AND PREPARING

ENG

ENGLISH

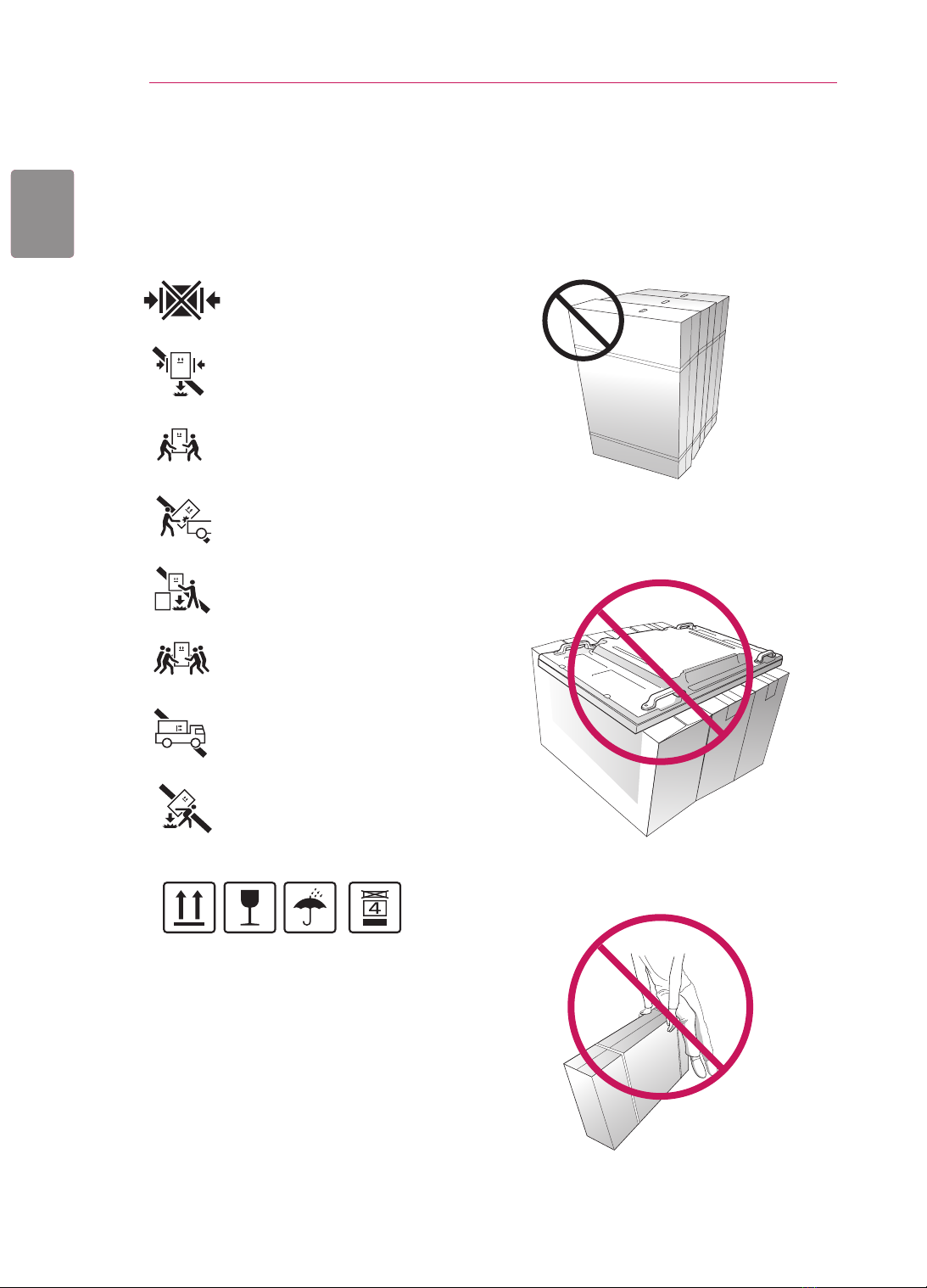

Do not Clamp

Do not drop from clamping.

2 Persons needed for transport

Load with care.

PRECAUTION IN MOVEMENT

Adhere to the warning signs printed on the Box.

Do not drop from stacking.

4 Persons needed for transport

Do not transport horizontally.

Do not drop from carrying.

This way up/ Fragile/ Keep away from rain/ Stacking limit 4.

Do not tumble the Set box sideward down.

Do not place the product on the top of a box.

Do not lean on the product.

- The illustration may look different from the actual product.

ASSEMBLING AND PREPARING

ENG

ENGLISH

Move the Set as a team of 2 persons. When you move

the bare Set, please use one hand on grabbing the

handle and the other support under the Set.

PRECAUTION IN HANDLING Precaution

10 cm

10 cm10 cm

20 cm

1Remove the L-bracket on the corner of the Set be-

fore installation. When moving the Set, re-assemble

the L-bracket.

2Be careful not to collide the sets with the floor or with

each other. Install in the space with enough airflow.

ASSEMBLING AND PREPARING

ENG

ENGLISH

Causes & Phenomena of the

Line Defect

The line defect would occur on your Set if you strike on

the edge of the Set.

LOG (LINE ON GLASS) DEFECT

COF (CHIP ON FILM) DEFECT

COF Cable

Source PCB

COF Cable

Source PCB

1 Shock on Module Top Side ➙Top COF Crack ➙

Vertical Line Defect

2Shock on Module Left Side ➙Left COF Crack ➙

Horizontal Line Defect

1Shock on Module Left/Top Corner ➙Left/Top LOG

Crack ➙Horizontal Line Defect

ASSEMBLING AND PREPARING

ENG

ENGLISH

Installing the Product

1 Cut Packing Strap of the Box.

3Open the Box and remove the top packing.

5Open the Poly Bag.

4Remove the Upper Box.

6Undress the Poly Bag.

2Cut Tape on the Box.

- The illustration may look different from the actual product.

ASSEMBLING AND PREPARING

ENG

ENGLISH

7Lift up the Set using the SIDE/BACK Handle.

9With one hand under the set and the other hand grabbing the set, move the set.

10 Lay the back of the Set down on the table.

8Remove Bottom packing when lifting up the Set.

ASSEMBLING AND PREPARING

ENG

ENGLISH

11 Use the cushion or Pad when you lay the face of the Set downward.

12 Connect IR receiver to use remocon. And then, connect power cord.

ASSEMBLING AND PREPARING

ENG

ENGLISH

How to Mount the Set

Tiling Displays

Example of 2 x 2 tiling

How to Join Sets

 The load applied to each set should be

supported by the wall mount plate or the wall

using a VESA wall mount (600 x 400).

 The load applied to each set should be

supported by the wall mount plate using a

VESA wall mount. (Each set must be firmly

mounted to the wall mount plate or the wall.)

 You may mount the set without using

the tiling guide; this does not affect the

performance of the device.

 Loosen the screws on the set to install the

tiling guides. (The screws are enclosed with

the other components in the box, including

the tiling guides.)

NOTE

Set 4 joined to the rest of the sets

(2 x 2 tiling)

1Join other sets using screws for fixing the

VESA wall mount in the same way as above.

2After joining the sets, use the tiling guide to

adjust the gap between the sets.

3Now the 2 x 2 tiling is complete. You can tile in

various combinations, such as 3 x 3.

 When you connect Monitor sets for

multivision, you may find that the screen

color is not the same across all the Monitor

sets. If you want to adjust the screen color

manually, please refer to the Installation

Manual.

 When you install multiple Monitor sets onto a

wall, attach the IR Receiver to all the sets, or

use an RS-232C cable to connect them and

then attach the IR Receiver to the first set.

CAUTION

Screws for attaching the

VESA wall mount (M6)

600

400

≤ 6 mm

Screws (15-M4)
