OWNER’S MANUAL

MONITOR SIGNAGE

32LS33A

42LS33A

47LS33A

55LS33A

65LS33A

42LS35A

47LS35A

55LS35A

Please read this manual carefully before operating the your set and

retain it for future reference.

MONITOR SIGNAGE MODELS

ENG

ENGLISH

TABLE OF CONTENTS

3LICENSES

4ASSEMBLING AND

PREPARING

4 Accessories

5 Optional Accessories

6 Parts and Buttons

7 Connecting the Stand

8 Connecting the Speaker

9 Using the IR Receiver

9 Portrait Layout

10 Mounting on a Wall

12 REMOTE CONTROL

14 MAKING CONNECTIONS

15 RGB Connection

16 HDMI Connection

16 IR Receiver Connection

17 USB Connection

17 LAN Connection

18 USING THE MONITOR

18 Using the Input List

18 Adjusting Aspect Ratio

20 ENTERTAINMENT

20 Using the Network

20 - Connecting to a Wired Network

21 - Network Status

22 Using the My Media

22 - Connecting USB storage devices

24 - Browsing Files

27 - Viewing Movies

30 - Viewing Photos

32 - Listening to Music

35 - Viewing the Contents List

36 CUSTOMIZING SETTINGS

36 Accessing Main Menus

37 - PICTURE Settings

40 - AUDIO Settings

41 - TIME Settings

42 - OPTION Settings

43 - NETWORK Settings

44 TROUBLESHOOTING

46 SPECIFICATIONS

62 IR CODES

63 CONTROLLING THE MULTIPLE

PRODUCT

63 Connecting the Cable

63 RS-232C Configurations

63 Communication Parameter

64 Command Reference List

66 Transmission / Receiving Protocol

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

has passed rigorous testing to verify that it plays DivX video. Visit divx.com for

more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies

To obtain your registration code, locate the DivX VOD section in your device

setup menu.

Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668;

7,515,710; 7,519,274

ENG

ENGLISH

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Remote Control and

Batteries

Power Cord

CD (Owner's Manual,

SuperSign Program/ Manual)/

Cards

D-sub 15-pin Signal Cable

IR Receiver

ENG

ENGLISH

ASSEMBLING AND PREPARING

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product,

and new accessories may be added. The illustrations in this manual may differ from the actual product and

accessories.

yCable holder/cable tie may not be available in some areas or for some models.

yOptional accessories are not included for all models.

NOTE

Cable holder/

Cable Tie

Screws

Diameter 4.0 mm x Pitch 0.7 mm

x Length 14 mm (Included Spring

Washer)

Speaker

SP-2100

Stand kit Speaker kit

Screws CD(Owner's Manual)/

Cards

Media Player

MP500/ MP700

Media Player kit

Screws

Diameter 4.0 mm x Pitch

0.7 mm x Length 8 mm

(Included Spring Washer)

Screws

Diameter 4.0 mm x

Pitch 1.6 mm x Length

10 mm

Stand

ST-321T 32LS33A

ST-421T 42LS33A/ 42LS35A

ST-471T 47LS33A/ 47LS35A

55LS33A/ 55LS35A

ST-651T 65LS33A

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and Buttons

Connection Panel

Screen Buttons

No. Description

1Moves the selection up and down.

2Adjusts the volume level.

3Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

4Accesses the main menus, or saves your input and exits the menus.

5Changes the input source.

6Turns the power on or off.

ENG

ENGLISH

ASSEMBLING AND PREPARING

2Use the screws to secure the stand on the rear

side of the product as shown in the diagram.

Connecting the Stand

- Only on some models.

1Place a soft cloth on the table and put the

product with the screen facing downward.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Connecting the Speaker

- Only on some models.

3Then connect the speaker cable. After installing

your speakers, use holders and cable ties to

organize the speaker cables.

3Then connect the speaker cable. After installing

your speakers, use holders and cable ties to

organize the speaker cables.

2Mount the speaker by using a screw as shown

in the following. Make sure the power cable is

disconnected.

2Mount the speaker by using a screw as shown

in the following. Make sure the power cable is

disconnected.

32LS33A

1Connect the input signal cable to the monitor

before installing the speakers. Use a cable tie

to organize the cables.

1Connect the input signal cable to the monitor

before installing the speakers. Use a cable tie

to organize the cables.

42LS33A

42LS35A

47LS33A

47LS35A

55LS33A

55LS35A

65LS33A

ENG

ENGLISH

ASSEMBLING AND PREPARING

Portrait Layout

To install in portrait mode, rotate the set

counterclockwise 90 degrees when looking at from

the front.

Using the Kensington security system

The Kensington security system connector is

located at the back of the monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the monitor set and a table.

yThe Kensington security system is optional.

You can obtain additional accessories from

most electronics stores.

NOTE

Using the IR Receiver

This allows a remote control sensor to be placed

in a custom location. The IR receiver is made with

a magnet. You can attach it to the monitor edge.

ENG

ENGLISH

ASSEMBLING AND PREPARING

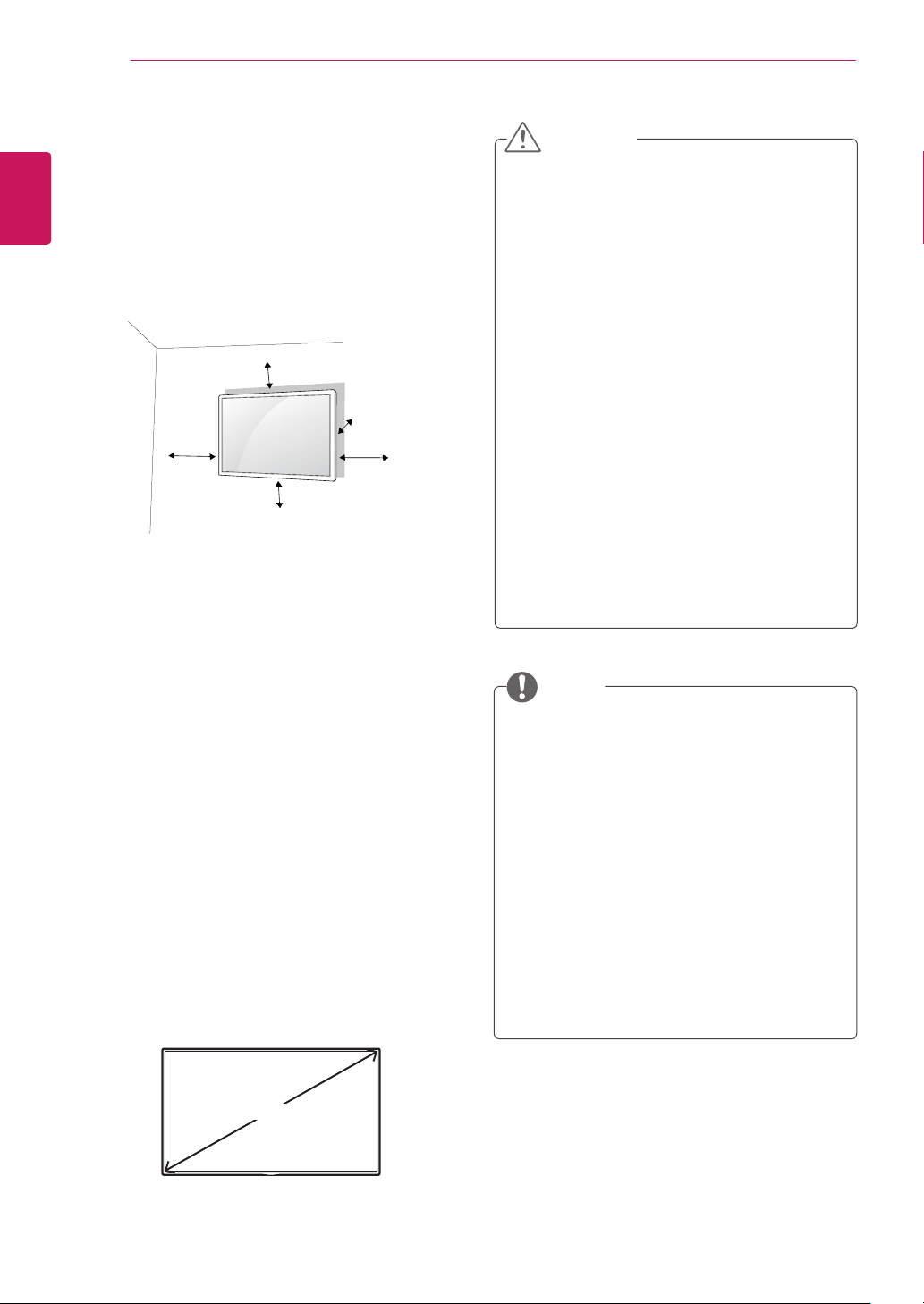

Mounting on a Wall

For proper ventilation, allow a clearance of 10

cm on each side and from the wall. Detailed

installation instructions are available from your

dealer, see the optional Tilt Wall Mounting Bracket

Installation and Setup Guide.

If you intend to mount the monitor to a wall, attach

a Wall mounting interface (optional parts) to the

back of the set.

When you install the monitor using a wall mounting

interface (optional parts), attach it carefully so it

will not fall.

1Please, use a wall mount and screws in

accordance with VESA Standards.

2If you use screws longer than standard, the

monitor might be damaged internally.

3If you use improper screws, the product might

be damaged and drop from mounted position.

In this case, LG Electronics is not responsible

for damage.

4Please use VESA standard as below.

y785 mm or greater

* Fastening screw: Diameter 6.0 mm x Pitch 1.0

mm x Length 12 mm

yDisconnect the power cord first, and then

move or install the monitor set. Otherwise

electric shock may occur.

yIf you install the monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

yUse an authorized LG wall mount and

contact the local dealer or qualified

personnel.

yDo not over tighten the screws as this may

cause damage to the monitor set and void

your warranty.

yUse the screws and wall mounts that meet

the VESA standard. Any damages or injuries

by misuse or using an improper accessory

are not covered by the warranty.

yTo prevent injury, this apparatus must be

securely attached to the wall in accordance

with the instrallation instructions. (This only

pertains to Australia and New Zealand.)

yThe wall mount kit includes an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the instructions

supplied with the wall mount.

yThe warranty will not cover any damages

caused by using the product in an

excessively dusty environment.

CAUTION

NOTE

785 mm

10 cm

10 cm 10 cm
