LG Optimus L9 Instructions d'installation

•

http://www.fixez.com/ Page 1 of 7

TTT-9007 Small Phillips Screwdriver

TTT-9010 Plastic Opening Tools

TTT-9013 Spudger

Heat Gun / Blow Dryer

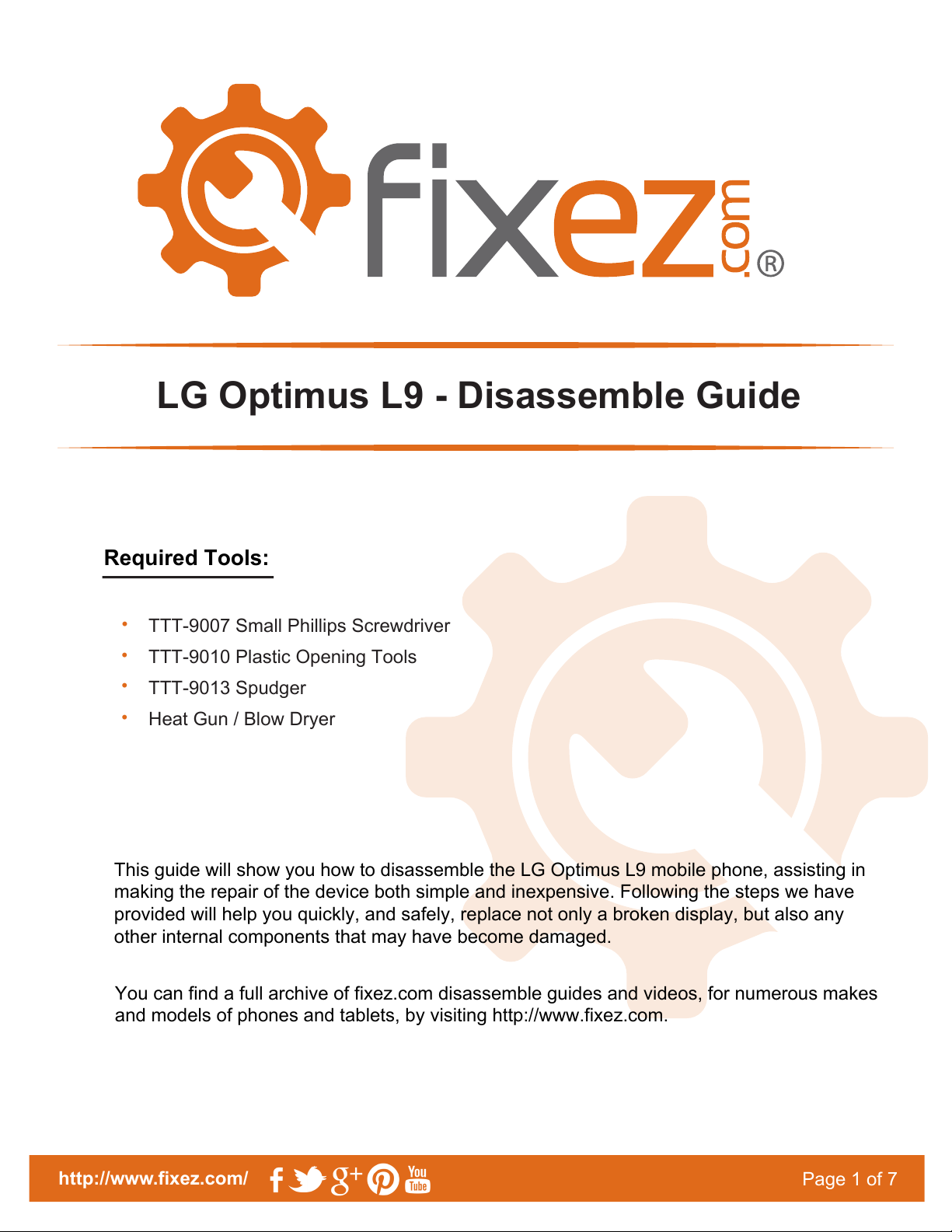

LG Optimus L9 - Disassemble Guide



This guide will show you how to disassemble the LG Optimus L9 mobile phone, assisting in

making the repair of the device both simple and inexpensive. Following the steps we have

provided will help you quickly, and safely, replace not only a broken display, but also any

other internal components that may have become damaged.

You can find a full archive of fixez.com disassemble guides and videos, for numerous makes

and models of phones and tablets, by visiting http://www.fixez.com.

•Begin to disassemble the LG Optimus L9 by

removing the back cover.

•With the back cover off, the battery is easily

accessible. Use the plastic opening tool to lift and

remove the battery from the LG Optimus L9.

Step 3 – Speaker Assembly

•

Step 1 – Battery

Step 2

http://www.fixez.com/ Page 2 of 7

LG Optimus L9–Disassemble Guide

With the back cover removed, the SIM and

MicroSD cards are also easily accessible.

Remove both cards from the L9.

•The rear section of the case is secured by ten

small Phillips screws (#00), locate and remove

these screws with the appropriate screwdriver.

•Insert the plastic opening tool into the notch in

the front cover of the phone. Pry at this point to

release the clips holding the back cover to the LG

phone.

Step 4

•With the bottom three screws removed from the

rear case, pry up and remove the speaker

assembly from its secured location.

•

Step 5

Step 6 – Rear-Facing Camera

http://www.fixez.com/ Page 3 of 7

LG Optimus L9–Disassemble Guide

•To remove the rear portion of the case, insert the

plastic opening tool in the seam that goes around

the perimeter of the phone.

Using the spudger, slightly pry up the rear

facing camera’s connector from its connection

in the motherboard.

•You can now remove the rear-facing camera

from the LG Optimus L9.

•After beginning separation at the seam, the

plastic clips are easily separated with a slight

twist of the plastic opening tool while it is still in

the seam. Work your way around the entire

perimeter of the phone until the rear portion of

the case is removed.

•Now, carefully remove the power and volume

buttons from the LG phone. Make sure you do

not loose these two buttons because they will be

needed for reassembly.

•Five connections secure the motherboard into the

phone. Use the spudger to lift and pry the four

plugged connections and the one antenna

connection up from the board.

Step 9 - Earpiece Speaker

•The earpiece speaker is held in place with a small

amount of adhesive. Using the spudger, peel up

the earpiece speaker from its housing in the

phone.

Step 7

Step 8

http://www.fixez.com/ Page 4 of 7

LG Optimus L9–Disassemble Guide

Do not try to remove the earpiece speaker from

the LG Optimus L9; it is soldered to the

motherboard.

•With all of the connections removed and the

earpiece speaker pried up from its housing, the

motherboard is free to be lifted and removed from

the LG Optimus.

Step 12 – Dock Port Assembly

Step 10

Step 11 – Headphone Jack

http://www.fixez.com/ Page 5 of 7

•Using the spudger, lightly pry up and remove the

headphone jack assembly from its housing in the

LG phone.

•Locate and remove the three Phillips screws

(#00) that secure the dock port into the body of

the phone with the appropriate screwdriver.

LG Optimus L9–Disassemble Guide

•The dock port assembly is held in place with a

small amount of adhesive. Using the flat end of

the spudger carefully peel up the entire dock port

assembly and remove it from the L9.

Step 15

Step 13

Step 14 – Display Assembly

http://www.fixez.com/ Page 6 of 7

•Use the heat gun/blow drier to heat the adhesive

securing the LCD and touch screen assembly to

the phone’s frame. This will loosen the connection

between the two and help prepare the screen

assembly for removal from the plastic trim.

•The display assembly needs to be separated from

the plastic frame. Insert the spudger or a

screwdriver through the opening for the front

facing camera, from the back begin to push the

display assembly away from the frame.

LG Optimus L9–Disassemble Guide

•

Step 16

http://www.fixez.com/ Page 7 of 7

When the separation has started, insert the plastic

opening tool in the gap and continue the

separation around the perimeter of the phone.

•You can now remove the display assembly from

the LG Optimus L9.

LG Optimus L9–Disassemble Guide

Final Layout

Notice/Warning:

FIXEZ.COM DOES NOT ACCEPT ANY LIABILITY FOR DAMAGE, OR INJURY CAUSED, WHILE YOU ARE

FOLLOWING OUR DISASSEMBLE GUIDES. WE MAKE NO REPRESENTATIONS, WARRANTIES, OR

CONDITIONS OF ANY KIND, EXPRESS OR IMPLIED. UTILIZING THESE GUIDES TO HELP ASSIST YOU IN

REPAIRING YOUR MOBILE DEVICES WILL VOID YOUR WARRANTY. FIXEZ.COM STRICTLY PROHIBITS

ALTERING OR MODIFYING OUR DISASSEMBLE GUIDES FOR COMMERCIAL USE, REPRODUCTION, OR

PUBLICATION.

To reassemble your device, follow these instructions in reverse order.
