LG Nexus 4 E960

DISASSEMBLE GUIDE

Page 1 of 8

Recommended Tools

hp://www.ﬁxez.com/

This guide will show you how to disassemble the LG Nexus 4 E960 smartphone, assisting in making the repair

of the device both simple and inexpensive. Following the steps we have provided will help you quickly, and

safely, replace not only a broken display, but also any other internal components that may have become

damaged.

You can ﬁnd a full archive of ﬁxez.com disassemble guides and repair videos, for numerous makes and models

of smartphones and tablets, by vising hp://www.ﬁxez.com.

LG Nexus 4 E960 – Disassemble Guide

Page 2 of 8

hp://www.ﬁxez.com/

Baery

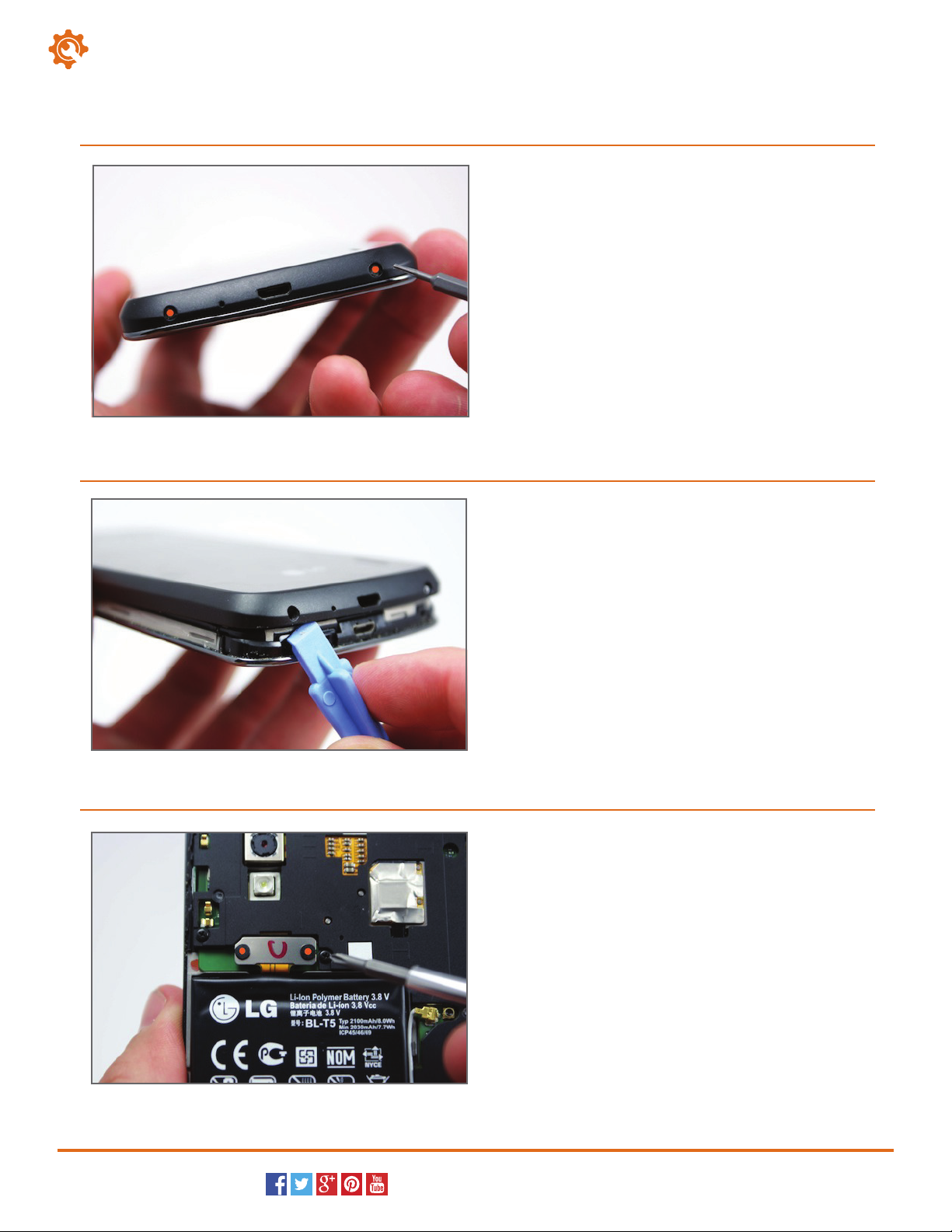

Begin to disassemble the LG Nexus 4 by removing the

back cover.

Locate the two T5 torx screws that are located on

either side of the micro USB dock port. Remove the

two screws with the appropriate screwdriver.

Next, insert the plastic opening tool in the notch in the

back cover of the Nexus 4. Pry at this point to release

the clips holding the cover to the smartphone. You can

now remove the back cover from the LG E960.

With the back cover off, the battery is visible. The

battery has two Phillips screws (#00) securing its

terminal to the LG phone. Remove the two screws

to release the battery from the Nexus 4.

LG Nexus 4 E960 – Disassemble Guide

Page 3 of 8

hp://www.ﬁxez.com/

Loudspeaker Assembly

With the terminal screws removed, the battery can

easily be removed. It is secured down with a small

amount of adhesive. Use the spudger to separate the

battery from the adhesive securing it to the LG E960.

Locate and remove the two Phillips screws (#00)

holding the loudspeaker to the smartphone with the

appropriate screwdriver.

Use the spudger to maneuver and remove the

loudspeaker assembly out of its housing in the

Nexus 4.

LG Nexus 4 E960 – Disassemble Guide

Page 4 of 8

hp://www.ﬁxez.com/

Headphone Jack

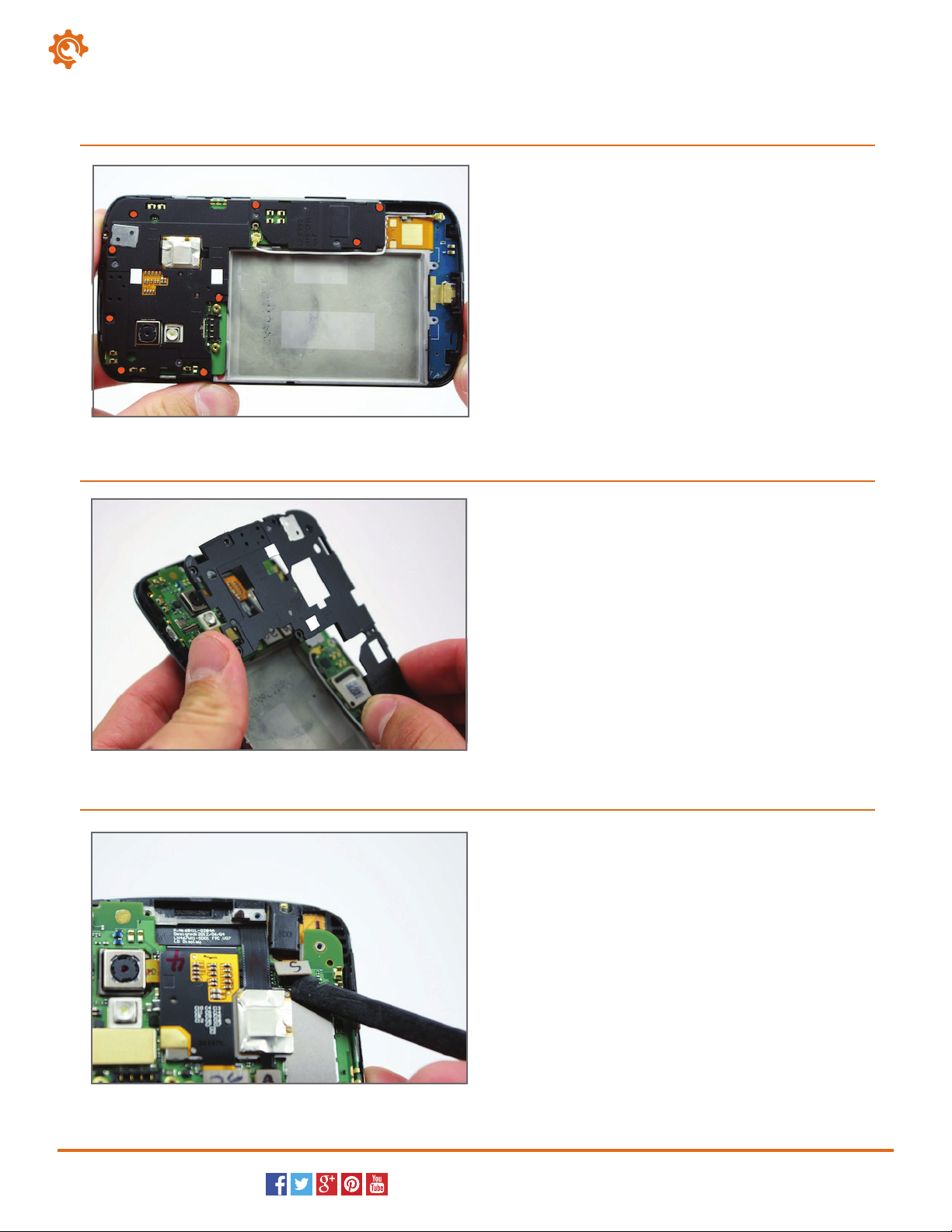

Locate and remove the nine Phillips screws (#00)

that secure the internal plastic cover/housing to the

LG smartphone.

With the securing screws removed, the plastic cover

can be removed from the LG Nexus 4.

Use the spudger to pry the headphone jack

connection from its location. This will allow you to lift

and remove the headphone jack out of the Nexus 4.

LG Nexus 4 E960 – Disassemble Guide

Page 5 of 8

hp://www.ﬁxez.com/

Rear-Facing Camera

SIM Card Tray

Use the spudger to release the large display assembly

connection, and then peel it up from the motherboard.

Continuing with the spudger, pry and release the

connection for the rear-facing camera from the LG

E960.

You can now remove the rear-facing camera from the

Nexus 4.

Use the SIM card ejection tool, or a paperclip, to

remove the SIM card holder from the side of the LG

Nexus 4.

LG Nexus 4 E960 – Disassemble Guide

Page 6 of 8

hp://www.ﬁxez.com/

Front-Facing Camera

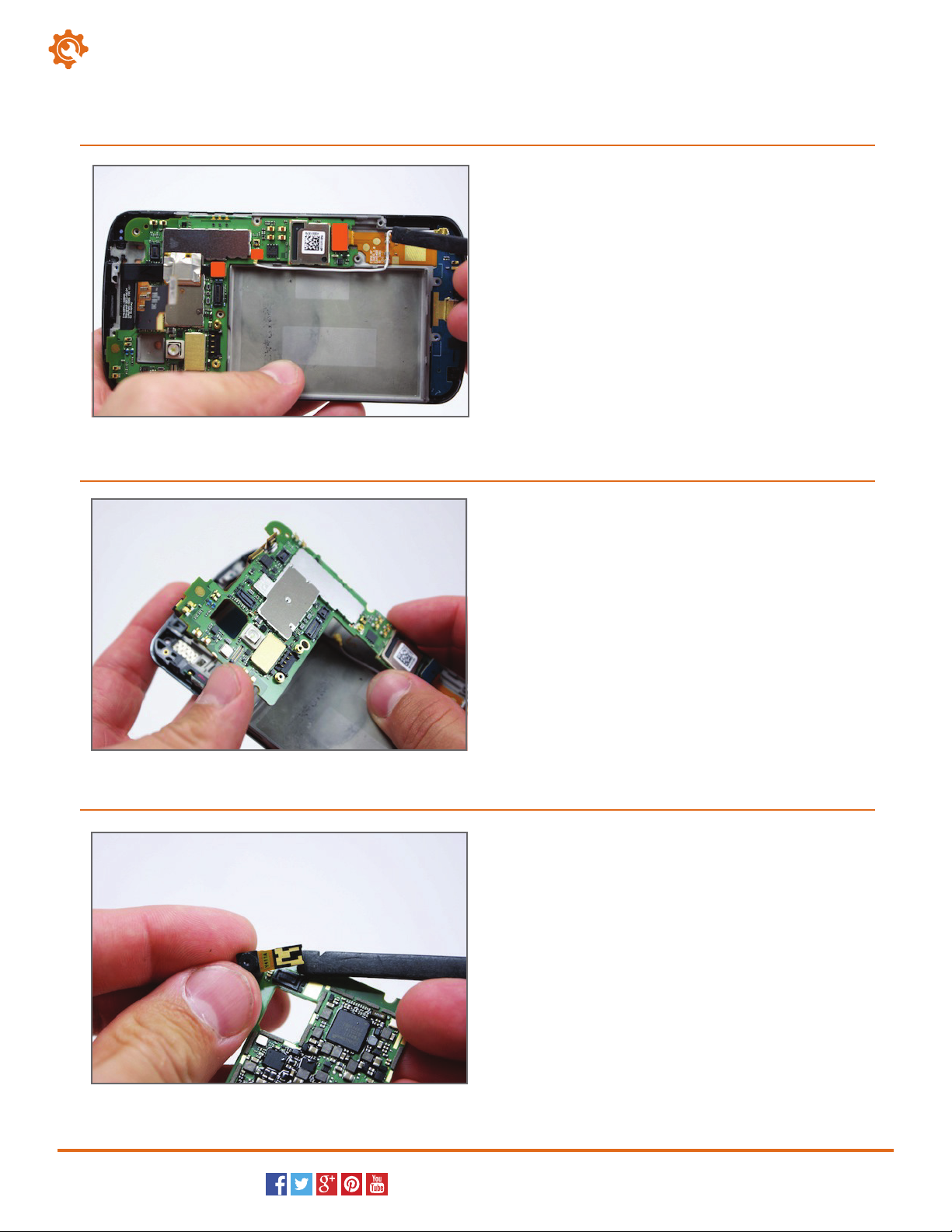

Two ribbon cable plugs and one antenna

connector secure the motherboard to the LG

smartphone.

Use the spudger to gently pry up, release, and then

remove these three connections.

With all of the connections released from the

motherboard, the motherboard is now free to lift and

remove from the body of the LG Nexus 4.

The front-facing camera is still secured to the bottom

side of the motherboard. Use the spudger to swipe at

and release its connection.

You can now remove the front-facing camera from the

Nexus 4.

LG Nexus 4 E960 – Disassemble Guide

Page 7 of 8

hp://www.ﬁxez.com/

Dock Port Assembly

Display Assembly

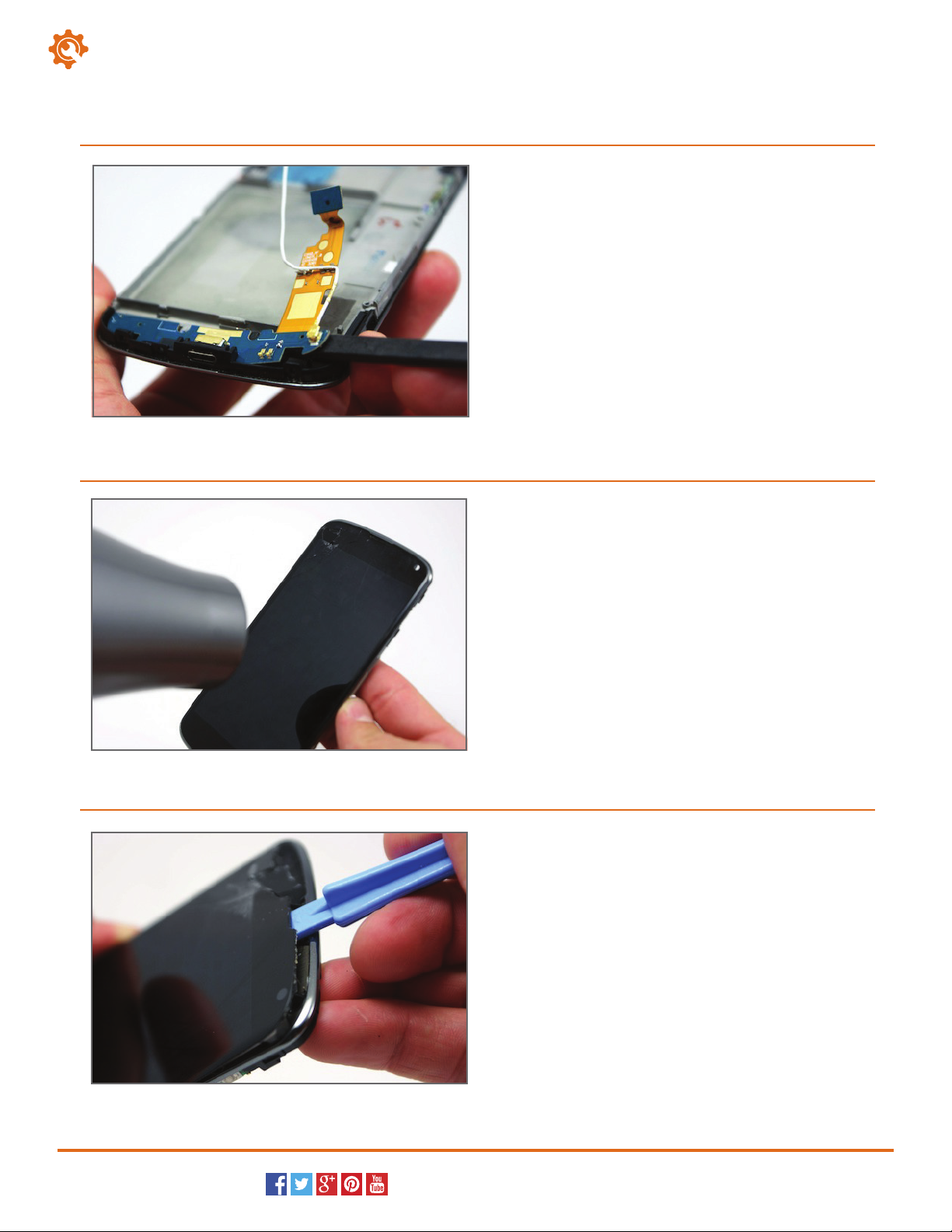

The dock port assembly is secured with a small amount

of adhesive. Use the spudger to peel up and remove

this assembly from the LG Nexus 4.

Use the heat gun or blow drier to heat the

adhesive securing the LCD and touch screen

assembly to the smartphone’s frame.

To begin the separation of the display assembly from the

plastic frame, insert the plastic opening tool in the

earpiece speaker’s opening to begin prying the display

assembly from the plastic frame.

Continue to work the plastic opening tool around

the perimeter of the display assembly until it is

completely seperated from the frame.

LG Nexus 4 E960 – Disassemble Guide

Page 8 of 8

hp://www.ﬁxez.com/

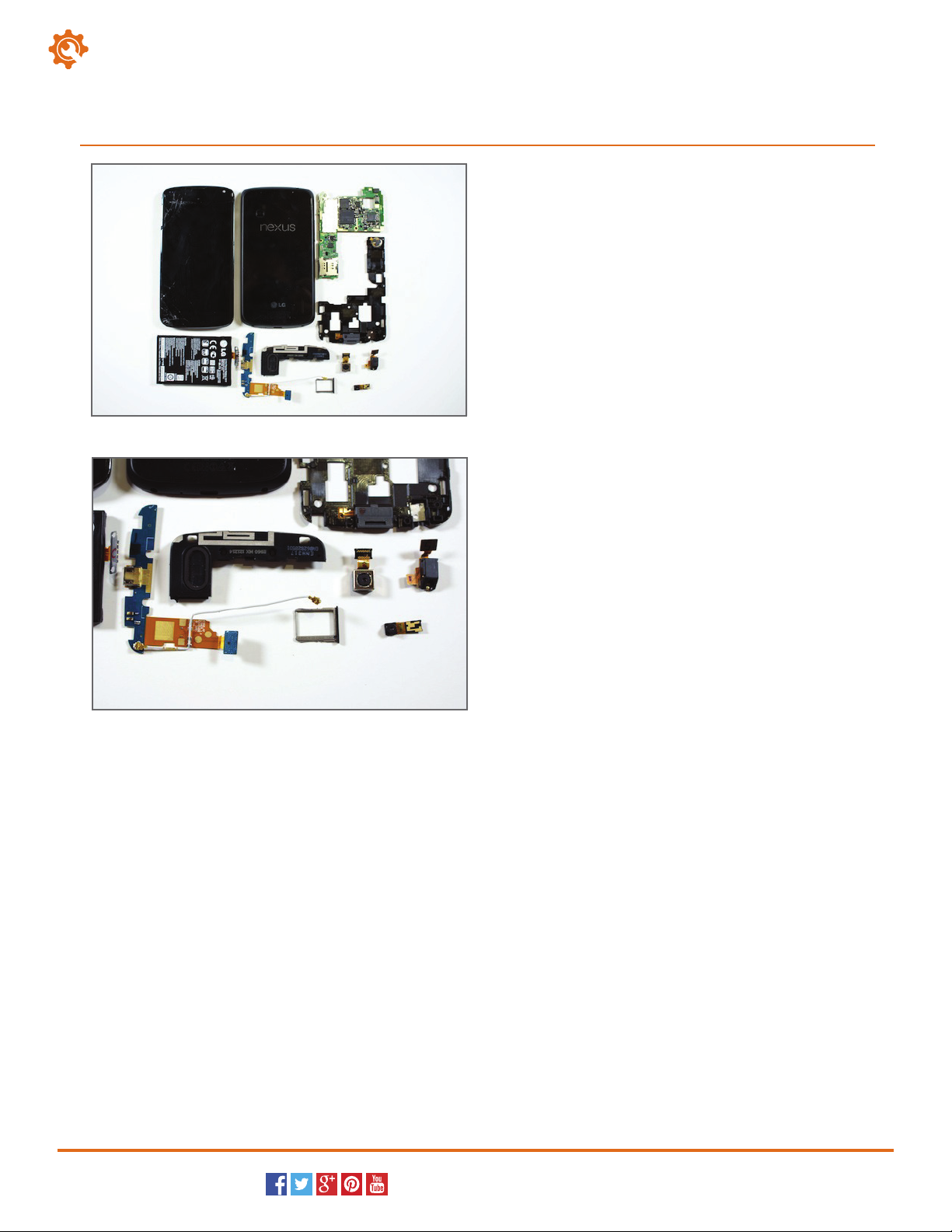

Breakdown

1. LG Nexus 4 E960 Display Assembly (LCD & Touch Screen)

1. with Frame

2. LG Nexus 4 E960 Back Battery Cover with Glass Lens

3. LG Nexus 4 E960 Motherboard

4. LG Nexus 4 E960 Rear Housing with Vibrator

5. LG Nexus 4 E960 Battery

6. LG Nexus 4 E960 Dock Connector

7. LG Nexus 4 E960 Loudspeaker

8. LG Nexus 4 E960 SIM Card Tray

9. LG Nexus 4 E960 Rear-Facing Camera

10. LG Nexus 4 E960 Headphone Jack & Proximity Sensor

11. LG Nexus 4 E960 Front-Facing Camera

1 2

89 10

Noce/Warning:

FIXEZ.COM DOES NOT ACCEPT ANY LIABILITY FOR DAMAGE, OR INJURY CAUSED, WHILE YOU ARE

FOLLOWING OUR DISASSEMBLE GUIDES. WE MAKE NO REPRESENTATIONS, WARRANTIES, OR

CONDITIONS OF ANY KIND, EXPRESS OR IMPLIED. UTILIZING THESE GUIDES TO HELP ASSIST YOU IN

REPAIRING YOUR MOBILE DEVICES WILL VOID YOUR WARRANTY. FIXEZ.COM STRICTLY PROHIBITS

ALTERING OR MODIFYING OUR DISASSEMBLE GUIDES FOR COMMERCIAL USE, REPRODUCTION, OR

PUBLICATION.
