LG V-NET PDRYCB400 Manuel utilisateur

P/NO : MFL67708305

www.lg.com

TYPE : 2 Points Dry Contact (For Setback)

MODEL : PDRYCB400

INSTALLATION MANUAL

• Please read this usage/installation manual completely before installing the product.

• Usage/Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

• Please retain this installation manual for future reference after reading it

thoroughly.

ENGLISH ITALIANO ESPAÑOL

FRANÇAIS

DEUTSCH

PORTUGUÊS

РУССКИЙ ЯЗЫК

2Dry Contact for setback

Dry Contact for setback Unit Installation Manual

TABLE OF CONTENTS

nSafety Precautions.............................................................3~5

nPart Description......................................................................6

Installation................................................................................................7

nSetting and using method................................................9~16

1. Power supply and indoor unit connection...........................................9

2. Setting of Contact Signal Input..........................................................10

3. Setting the desired temperature........................................................11

4. Control mode setting .........................................................................12

5. Indoor unit monitoring........................................................................16

Safety Precautions

Installation Manual 3

ENGLISH

nInstallation

Service

Center

Service

Center

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

nMeanings of symbols used in this manual are as shown below.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage.

Be sure not to do.

Be sure to follow the instruction.

WARNING

Don’t touch with the hands

while the power is on.

• Cause fire, electric shock, ex-

plosion or injury.

Product installation must

be referred to a service

center or installation shop.

• Cause fire, electric shock, ex-

plosion or injury.

Request installation from

installation shop or service

center when reinstalling

the product.

• Cause fire, electric shock, ex-

plosion or injury.

Safety Precautions

Standardized

product

Safety Precautions

4Dry Contact for setback

Do not install the product

in the place where rain can

get to the product.

• Cause product failure

Do not install the unit in

humid locations.

• Cause product failure

Do not put the product

closer to fire.

• Cause fire

Do not install in a place

that cannot withstand the

weight of the product.

• The product may get dam-

aged or may break.

Do not install the product

to a place that generates

oil, steam, salt, sulfuric

gas, etc.

• Cause the product’s deforma-

tion or failure.

Use standardized Product.

• Cause product failure

Do not change or extend

power lines arbitrarily.

• Cause fire or electric shock.

Do not give a shock to the

product.

• If you give a shock to the prod-

uct, it may cause the product’s

failure.

Do not use a heater near

the power line.

• Cause fire or electric shock.

nOperation

Service

Center

STOP

Safety Precautions

Installation Manual 5

ENGLISH

Do notspill water inside of

the product.

• Cause electric shock or

breakdown.

If the product has been in-

undated, you must refer to a

service center or installation

shop.

• It can cause a fire.

Children and elderly use the

product under the

guardian’s supervision.

• Cause accidents and product

failures.

Do not use for special pur-

pose / place such as con-

serving flora and fauna,

precision instruments, art.

• Otherwise, it can cause property

damage.

Remove the power plug

when cleaning.

• Cause fire or electric shock.

Do not place heavy objects

on the power line.

• Cause fire or electric shock.

Do not disassemble, repair,

or modify the product.

• Cause fire or electric shock.

Do not touch with wet

hands.

• Cause fire or electric shock.

6Dry Contact for setback

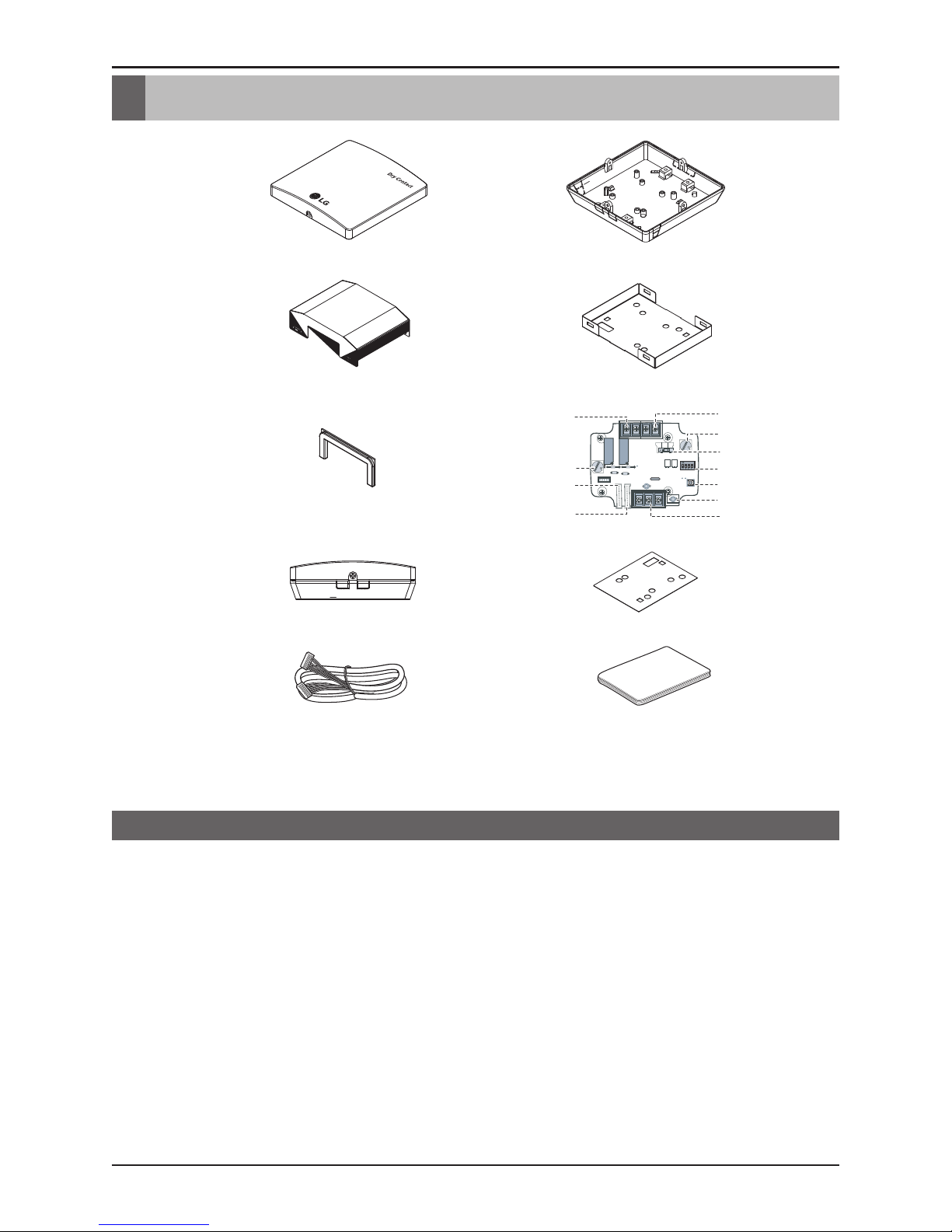

Part Description

NOT

USB

CN_OUT

CHANGE

OVER_SW

VOLT NON

VOLT

TEMP

SETTING

Front Case Rear Case

Metal Case (Front) Metal Case (Rear)

Rubber PCBA

Side Isolation Sheet

Cable 1EA

(for connecting with indoor unit)

*Other : Screw (For installation, 4EA)

*Other : Clamp (For installation, 4EA)

User/Installation

Manual

Part Description

1. CN_INDOOR : Connect communication wire between indoor unit and Dry Contact For Setback and

supply power to Dry Contact For Setback

2. CN_PI485 : PI485 connector

3. CHANGE_OVER_SW : Switch to select voltage (5V-12V) of contact point

4. CN_CONTROL : Contact point signal input

5. CONTROL_MODE_SW : Switch to select the control mode

6. SETTING_SW : Switch to select whether to use set function of Dry contact for setback

7. TEMP_SETTING : Switch to set the desired temperature of the indoor unit

8. CN_OUT (O1, O2) : Connector to show whether the indoor unit is operating

9. CN_OUT (E3, E4) : Connector to show whether there is an error with the indoor unit

10. DISPLAY_LED : LED to display the status of the Dry Contact For Setback

11. RESET_SW : Reset switch

DRY CONTACT FOR SETBACK

Part Description

Installation Manual 7

ENGLISH

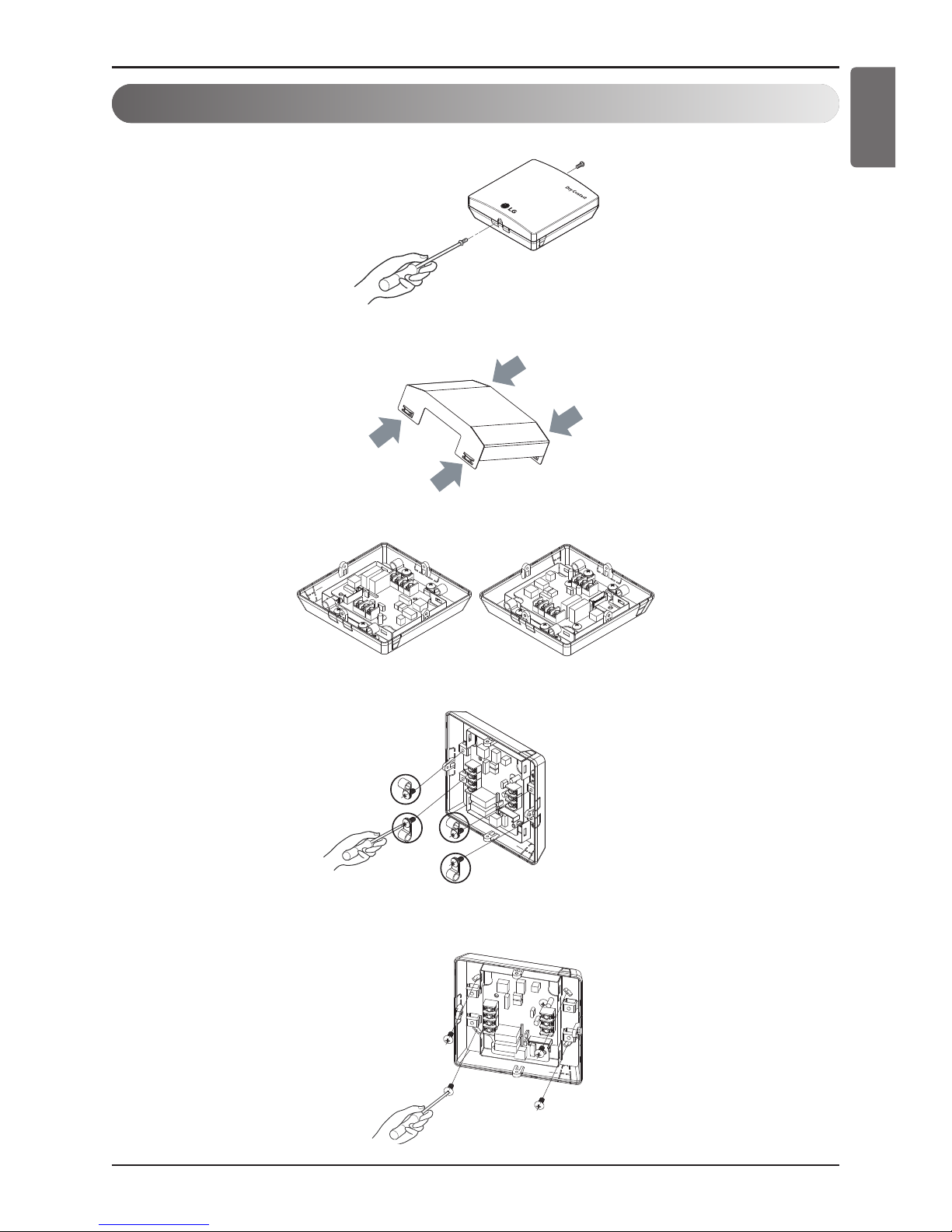

Installation

1) Loosen and remove two screws that secures the product.

2) Remove the front metal case by pressing the marked points.

3) Position the rear case to the direction towards to the connector for convenient cable arrangement.

4) Remove 4 screws, for strapping wires.

5) Secure the rear case on the installation place using the supplied fixing screws.

Part Description

8Dry Contact for setback

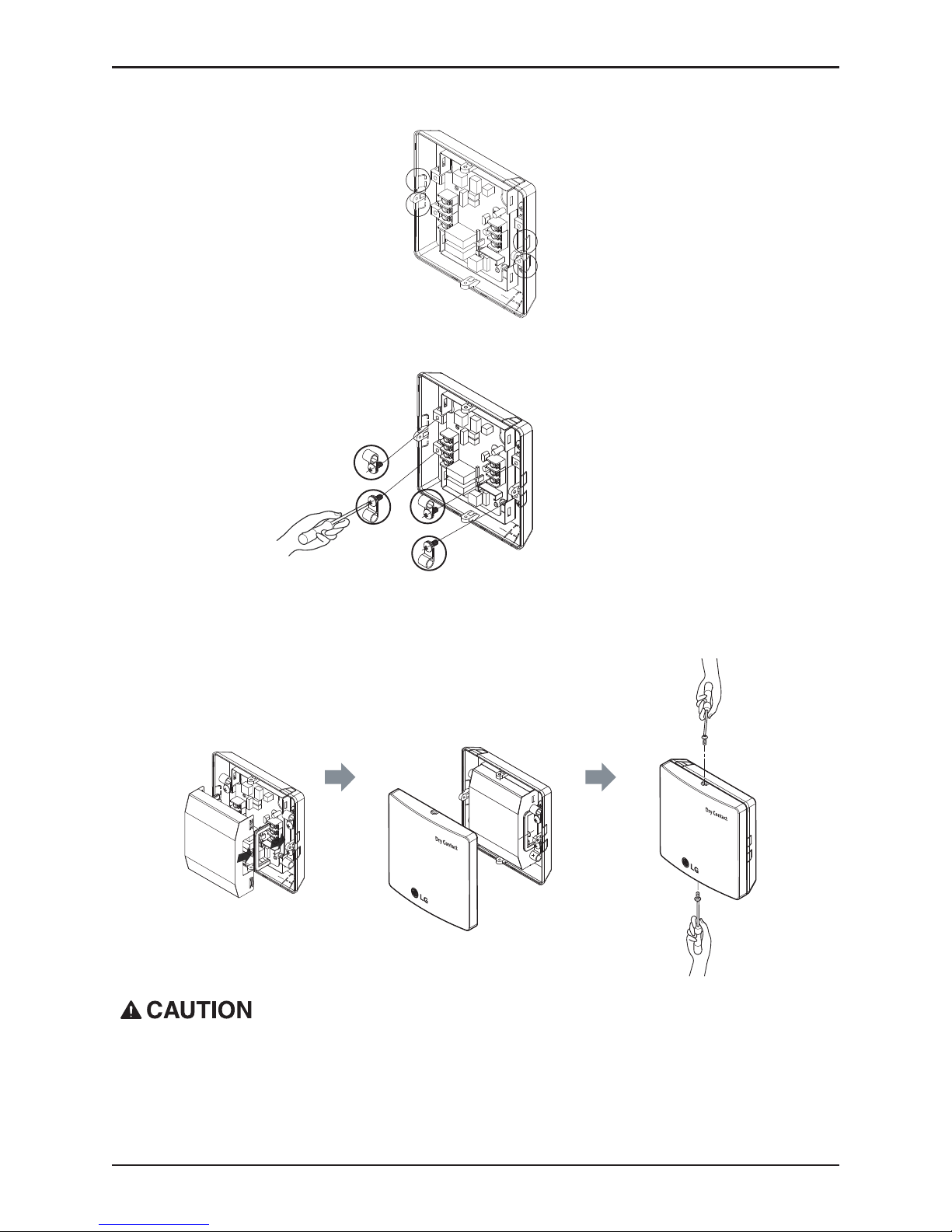

6) Remove knock out shapes on the rear case (2-sided) according to the connector’s size and direc-

tion.

7) Connect the connection wires properly according to the connection method. (Refer to the instruction

and set-up description)

8) Set the switch according to the setting method. (Refer to the instruction and set-up description)

9) Hang the front of the case to the rear case hook and tighten the fixing screws on the bottom part.

1. Install the product on flat surface and install anchoring screws at more than 2 places. Otherwise

the central controller may not be anchored properly.

2. Do not tighten anchoring screws too tightly. It may cause deformation of the case.

3. Do not deform the case at random. It may cause malfunction of the controller.

Setting and using method

Installation Manual 9

ENGLISH

Setting and using method

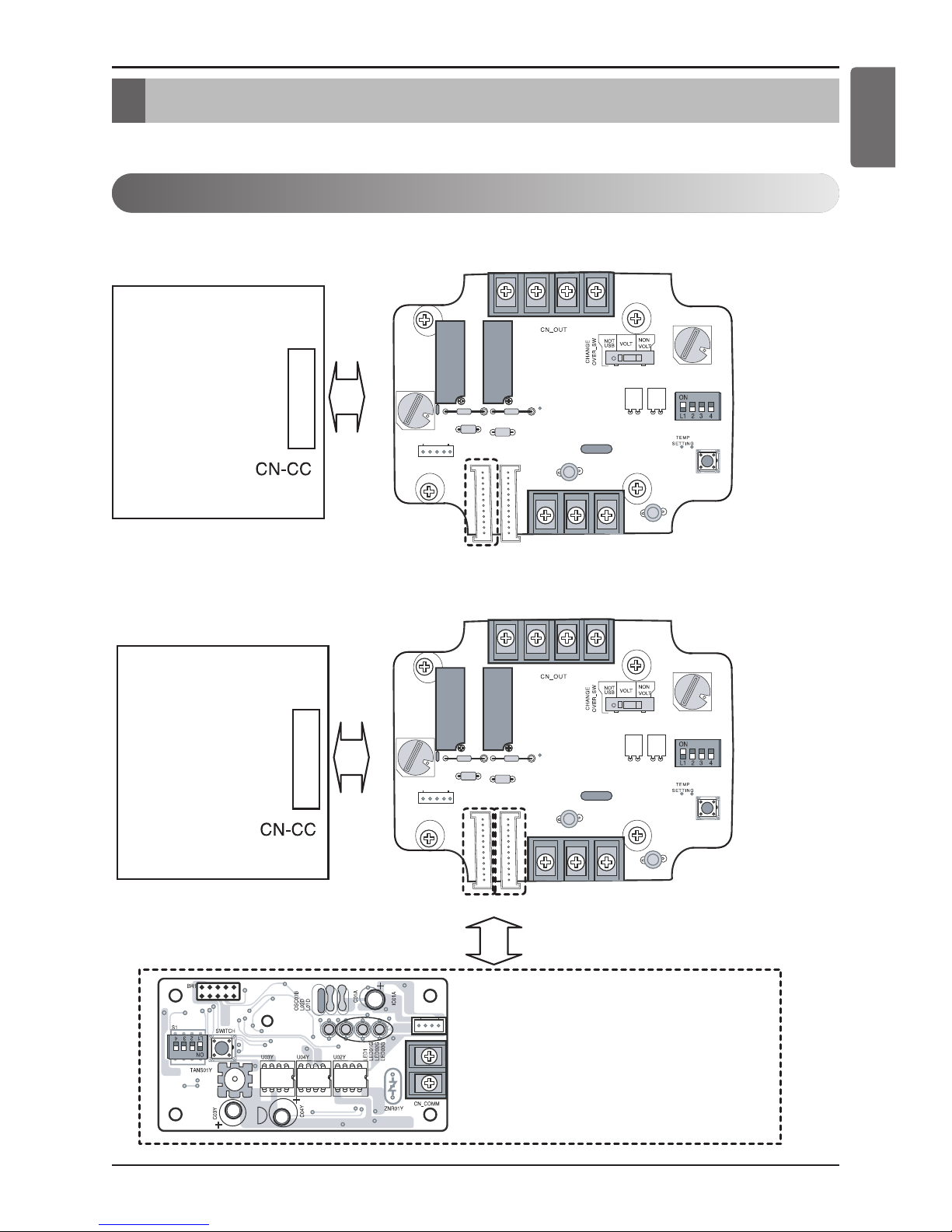

1. Power supply and indoor unit connection

You must press the RESET switch when you are completed with all the settings to reflect the set-

tings.

When using the Dry Contact For Setback independently

nWhen using with the central controller (Only when the indoor

unit PCB is a non-communication model)

Indoor unit

PCB

Indoor unit

PCB

PI485: Connect to central controller

CN_PI485

CN_INDOOR

Setting and using method

10 Dry Contact for setback

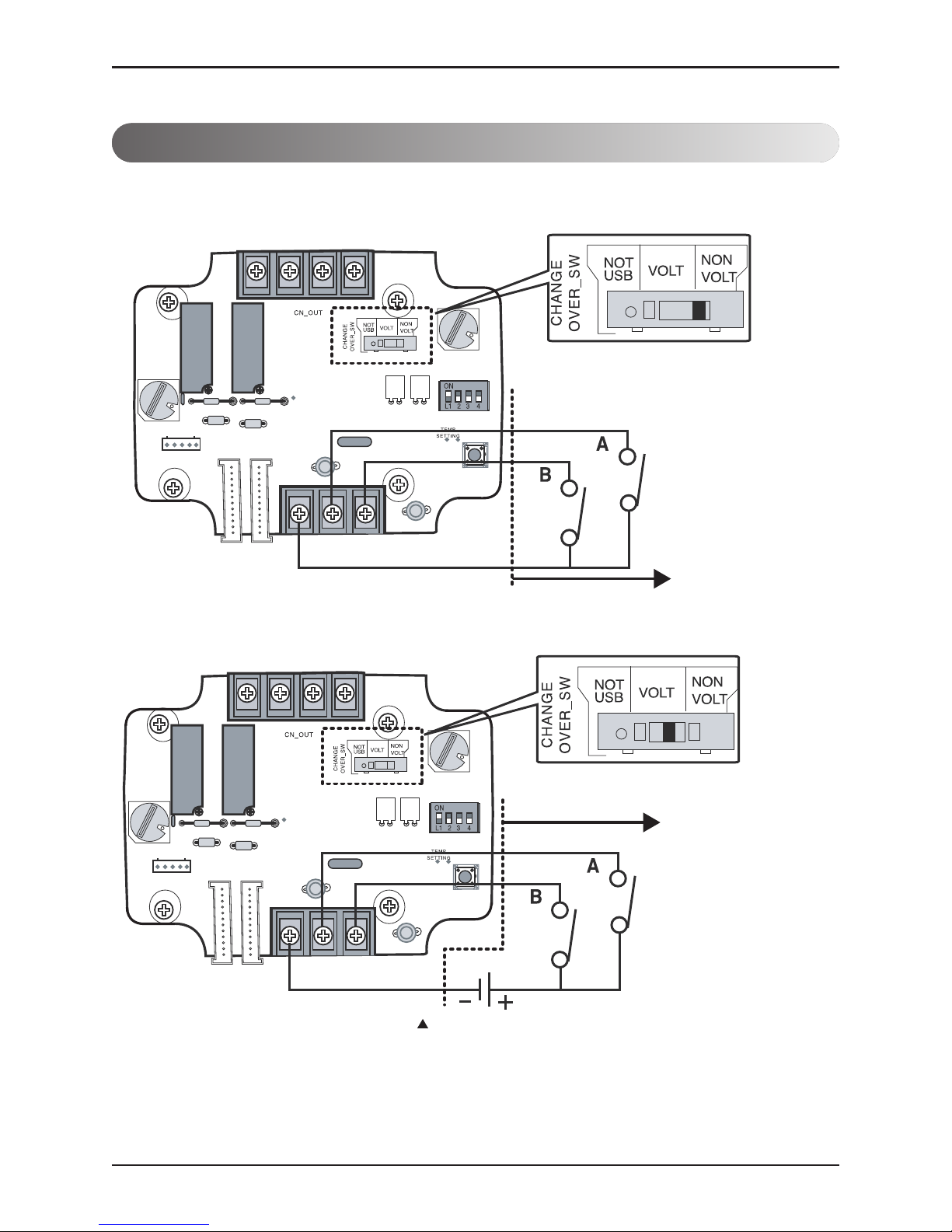

2. Setting of Contact Signal Input

nFor no power contact point signal input

nFor power contact point signal input

LG does not

supply this section

(Local supply)

LG does not

supply this section

(Local supply)

Connect separate external voltage of DC 5V~DC 12V

VOLT / COMMON
