Indoor Unit (2 Series)

IMPORTANT

• Please read this owner's manual carefully and thoroughly

before installing and operating your room air conditioner.

• Please retain this owner's manual for future reference after

reading it thoroughly.

Type: Ceiling Concealed Duct- High Static

ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

COOLING MODE

OPERATING TEMPERATURE(°C)

INDOOR OUTDOOR

MAX. MIN. MAX. MIN.

32°C

°C

HEATING MODE

INDOOR OUTDOOR

MAX. MIN. MAX. MIN.

27°C

°C

2Indoor Unit

Ceiling Concealed Duct – High Static Type Indoor Unit Owner’s Manual

TABLE OF CONTENTS

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■Staple your receipt to this page in the event you need

to prove date of purchase or to issue warranty.

READ THIS MANUAL

Inside you will find many helpful hints on how to use

and maintain your air conditioner properly. Just a little

preventive care on your part can save you a great deal

of time and money over the life of your air conditioner.

You'll find many answers to common problems in the

chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call

for service at all.

PRECAUTION

•Contact the authorized service technician for repair or

maintenance of this unit.

•Contact the installer for installation of this unit.

•The air conditioner is not intended for use by young

children or invalids without supervision.

•Young children should be supervised to ensure that

they do not play with the air conditioner.

•When the power cord is to be replaced, replacement

work shall be performed by authorized personnel only

using only genuine replacement parts.

•Installation work must be performed in accordance with

the National Electric Code by qualified and authorized

personnel only.

Safety Precautions.................3

Prior to Operation ..................8

Operating Instructions...........9

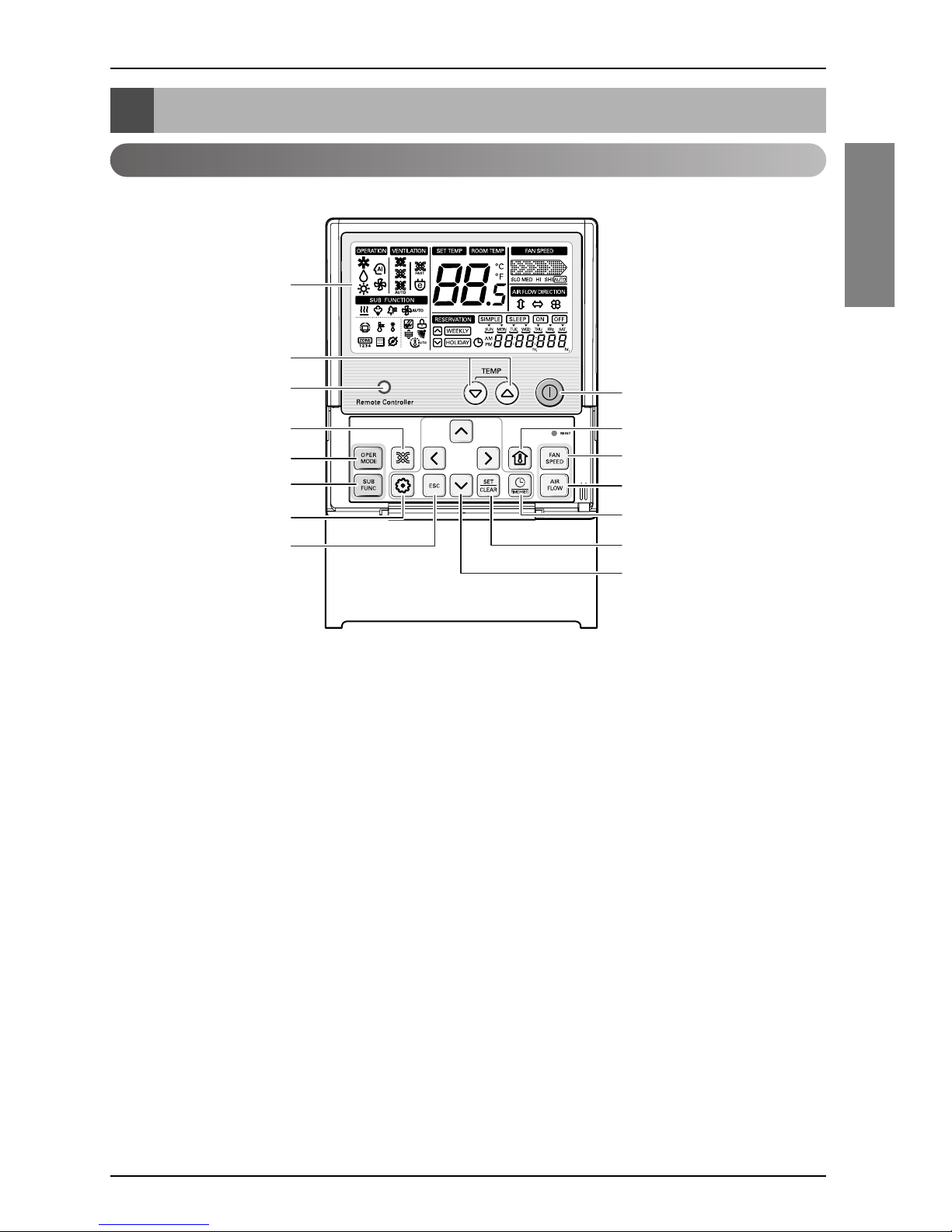

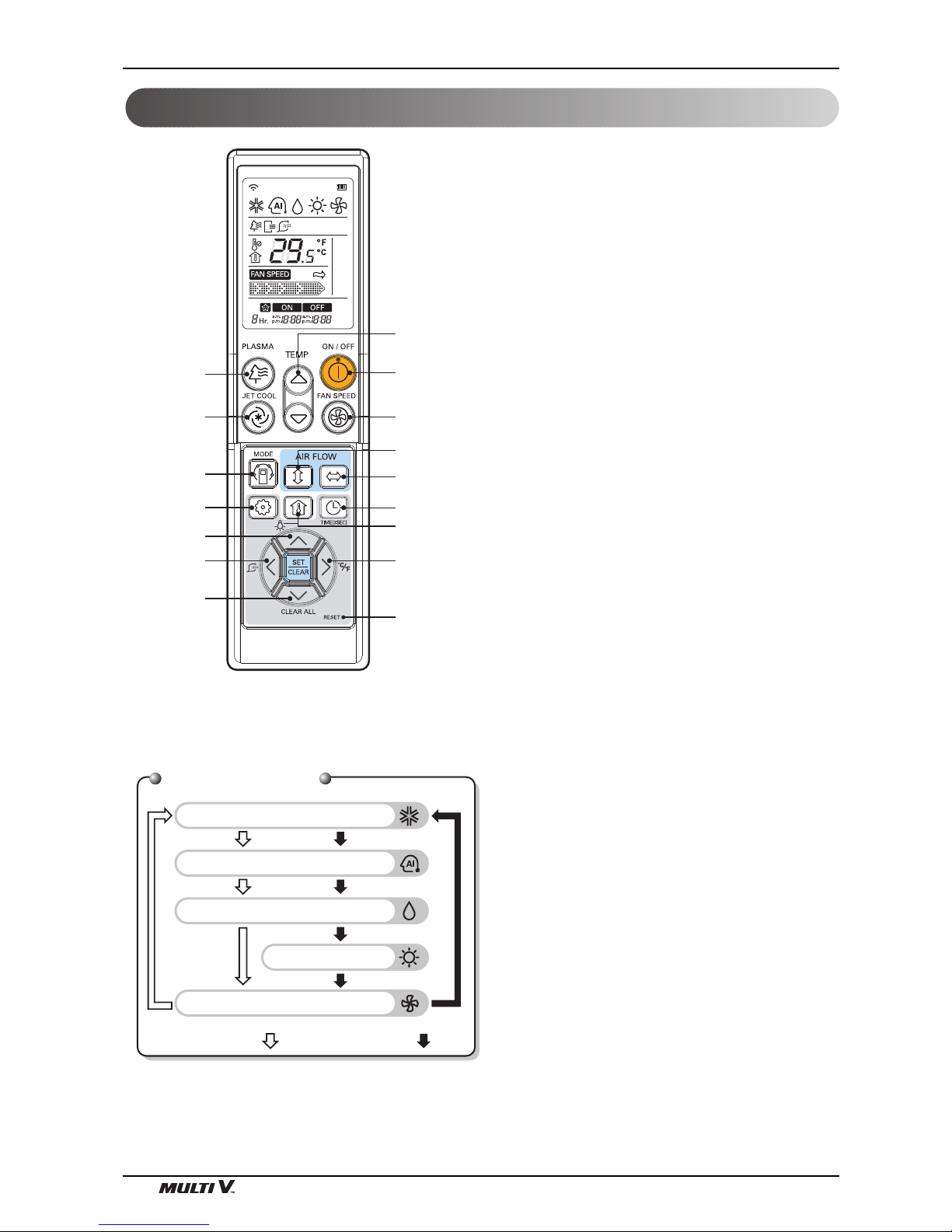

Name and Function of Remote

Controller ..............................9

Maintenance and Service ....11

Before you Call for

Service................................13

Safety Precautions

Owner’s Manual 3

To prevent injury to the user or other people and property damage, the following instructions must be

followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified

by the following indications.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

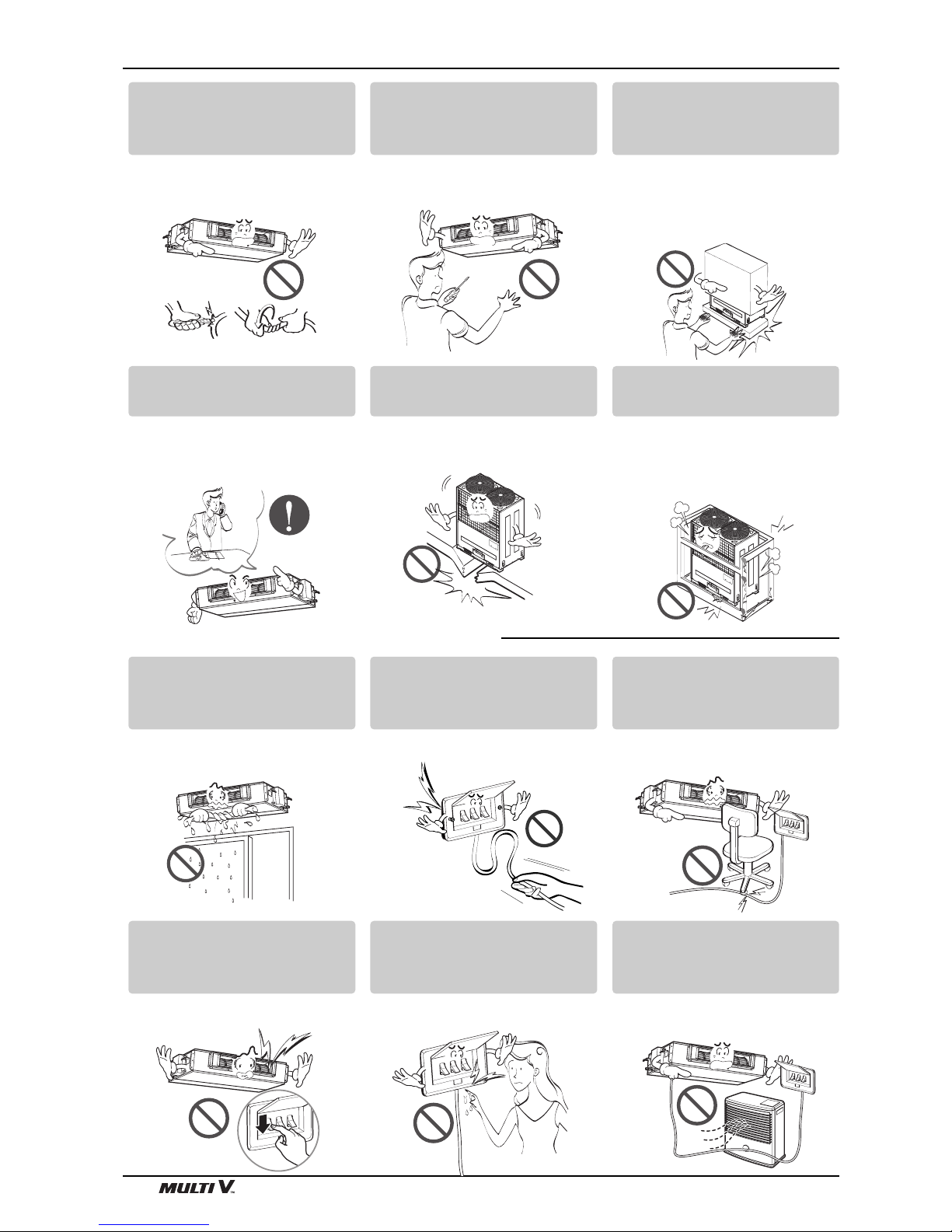

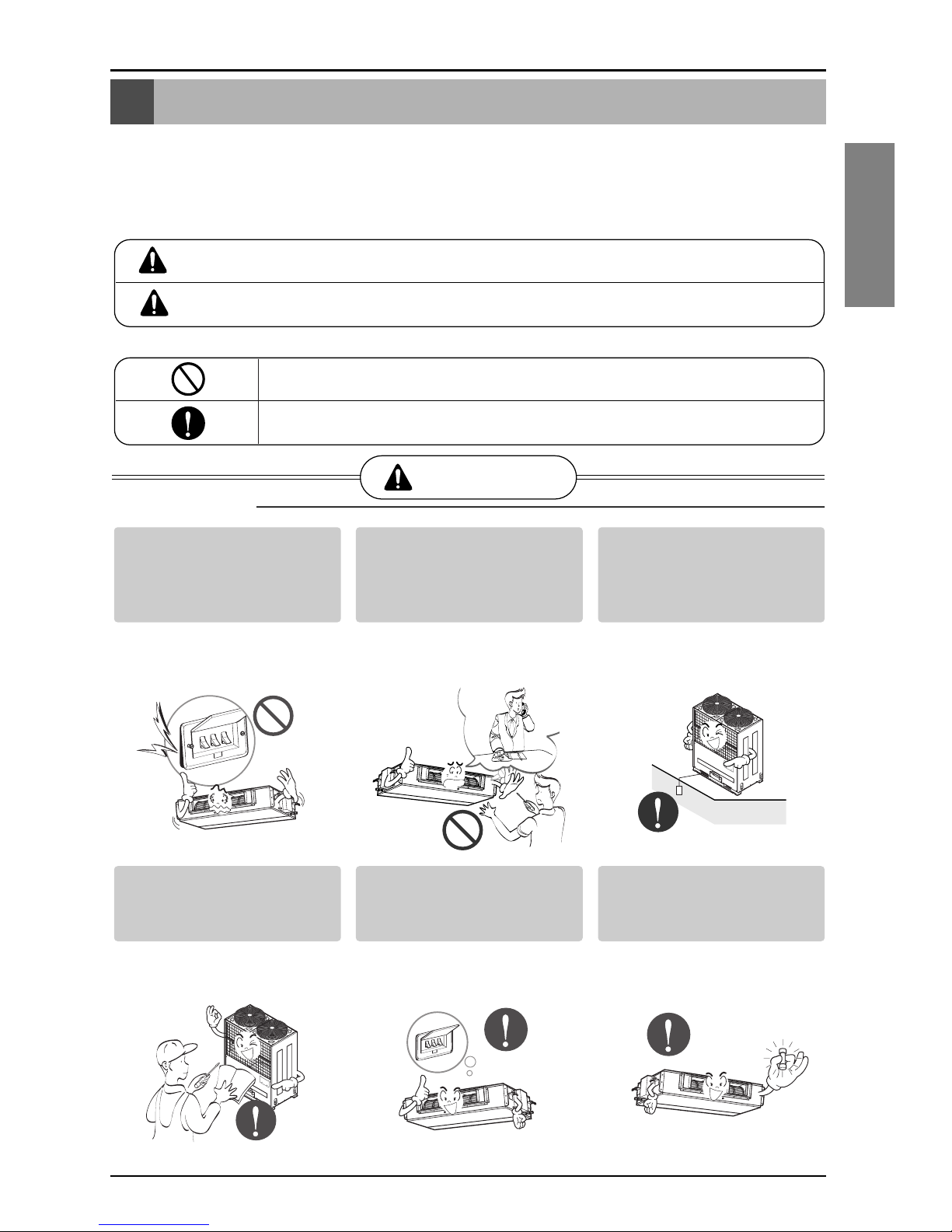

WARNING

■Installation

Do not use a defective or

underrated circuit breaker.

Use this appliance on a

dedicated circuit.

• There is risk of fire or electric

shock.

For electrical work, contact

the dealer, seller, a qualified

electrician, or an Authorized

Service Center.

• Do not disassemble or repair

the product. There is risk of fire

or electric shock.

Always ground the product.

• There is risk of fire or electric

shock.

Install the panel and the

cover of control box

securely.

• There is risk of fire or electric

shock.

Always install a dedicated

circuit and breaker.

• Improper wiring or installation

may cause fire or electric shock

Use the correctly rated

breaker or fuse.

• There is risk of fire or electric

shock.

ENGLISH

Safety Precautions

4Indoor Unit

■Operation

Do not modify or extend the

power cable.

• There is risk of fire or electric

shock.

Do not install, remove, or

re-install the unit by

yourself (customer).

• There is risk of fire, electric

shock, explosion, or injury.

Be cautious when

unpacking and installing

the product.

• Sharp edges could cause injury.

Be especially careful of the

case edges and the fins on the

condenser and evaporator.

For installation, always contact the

dealer or an Authorized Service Center.

• There is risk of fire, electric

shock, explosion, or injury.

Do not install the product on

a defective installation stand.

• It may cause injury, accident, or

damage to the product.

Be sure the installation area

does not deteriorate with age.

• If the base collapses, the air

conditioner could fall with it,

causing property damage,

product failure, and personal

injury.

Do not plug or unplug the

power supply plug during

operation.

• There is risk of fire or electric

shock.

Do not touch(operate) the

product with wet hands.

• There is risk of fire or electrical

shock.

Do not place a heater or

other appliances near the

power cable.

• There is risk of fire and electric

shock.

Do not let the air conditioner run for a

long time when the humidity is very high

and a door or a window is left open

• Moisture may condense and

wet or damage furniture.

Take care to ensure that power

cable could not be pulled out

or damaged during operation.

• There is risk of fire or electric

shock.

Do not place anything on

the power cable.

• There is risk of fire or electric

shock.

Do not allow water to run

into electric parts.

• It may cause There is risk of

fire, failure of the product, or

electric shock.

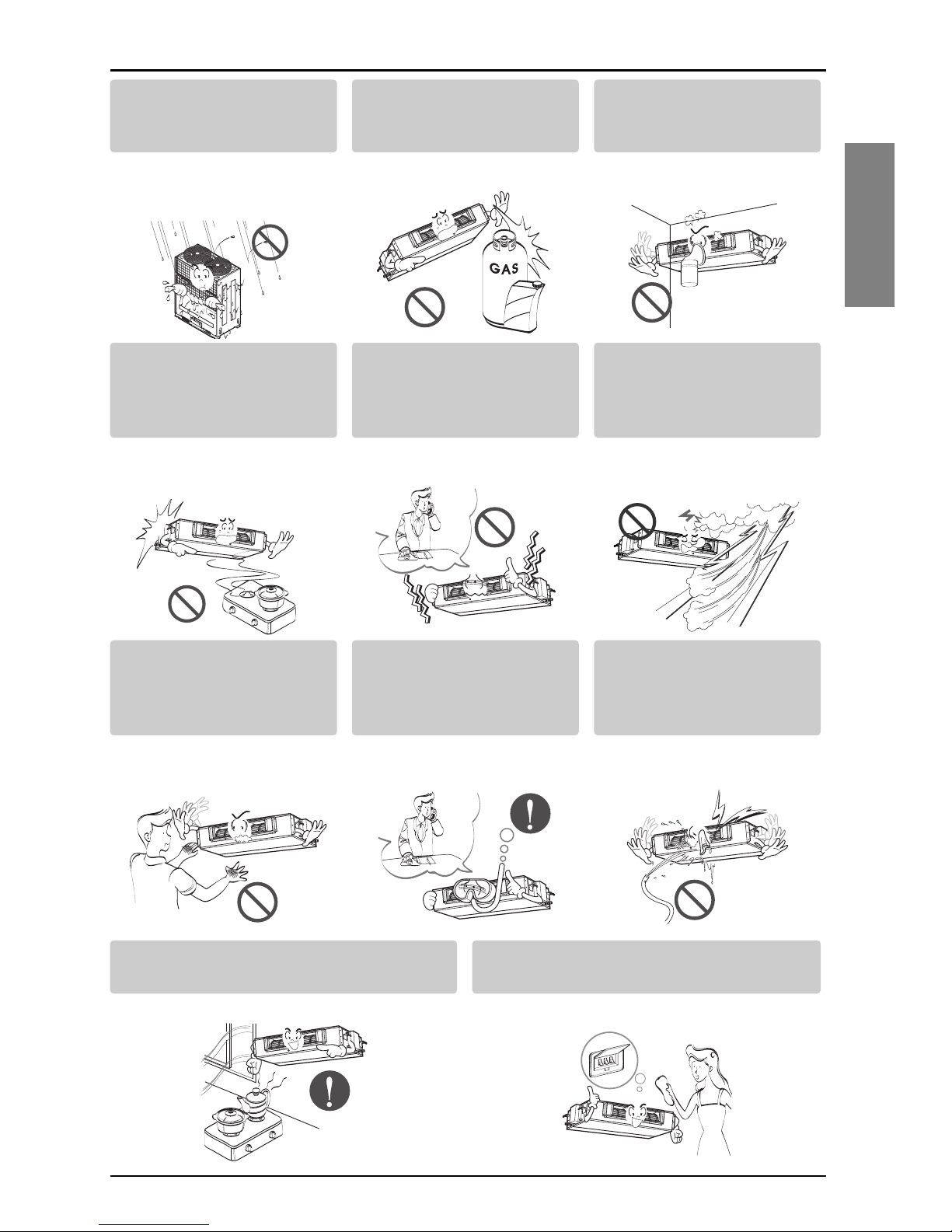

Do not store or use flammable

gas or combustibles near the

product.

• There is risk of fire or failure of

product.

Do not use the product in a

tightly closed space for a

long time.

• Oxygen deficiency could occur.

When flammable gas leaks,

turn off the gas and open a

window for ventilation

before turn the product on.

• Do not use the telephone or

turn switches on or off.

There is risk of explosion or fire

If strange sounds, or small or

smoke comes from product. Turn

the breaker off or disconnect the

power supply cable.

• There is risk of electric shock or

fire.

Stop operation and close the window

in storm or hurricane. If possible,

remove the product from the window

before the hurricane arrives.

• There is risk of property

damage, failure of product, or

electric shock.

Do not open the inlet grill of the

product during operation.

(Do not touch the electrostatic

filter, if the unit is so equipped.)

• There is risk of physical injury,

electric shock, or product

failure.

When the product is soaked

(flooded or submerged),

contact an Authorized

Service Center.

• There is risk of fire or electric

shock.

Be cautious that water

could not enter the product.

• There is risk of fire, electric

shock, or product damage.

Gasolin

Ventilate the product from time to time

when operating it together with a stove, etc.

• There is risk of fire or electric shock.

Turn the main power off when cleaning or

maintaining the product.

• There is risk of electric shock.

Safety Precautions

Owner’s Manual 5

ENGLISH

Safety Precautions

6Indoor Unit

■Installation

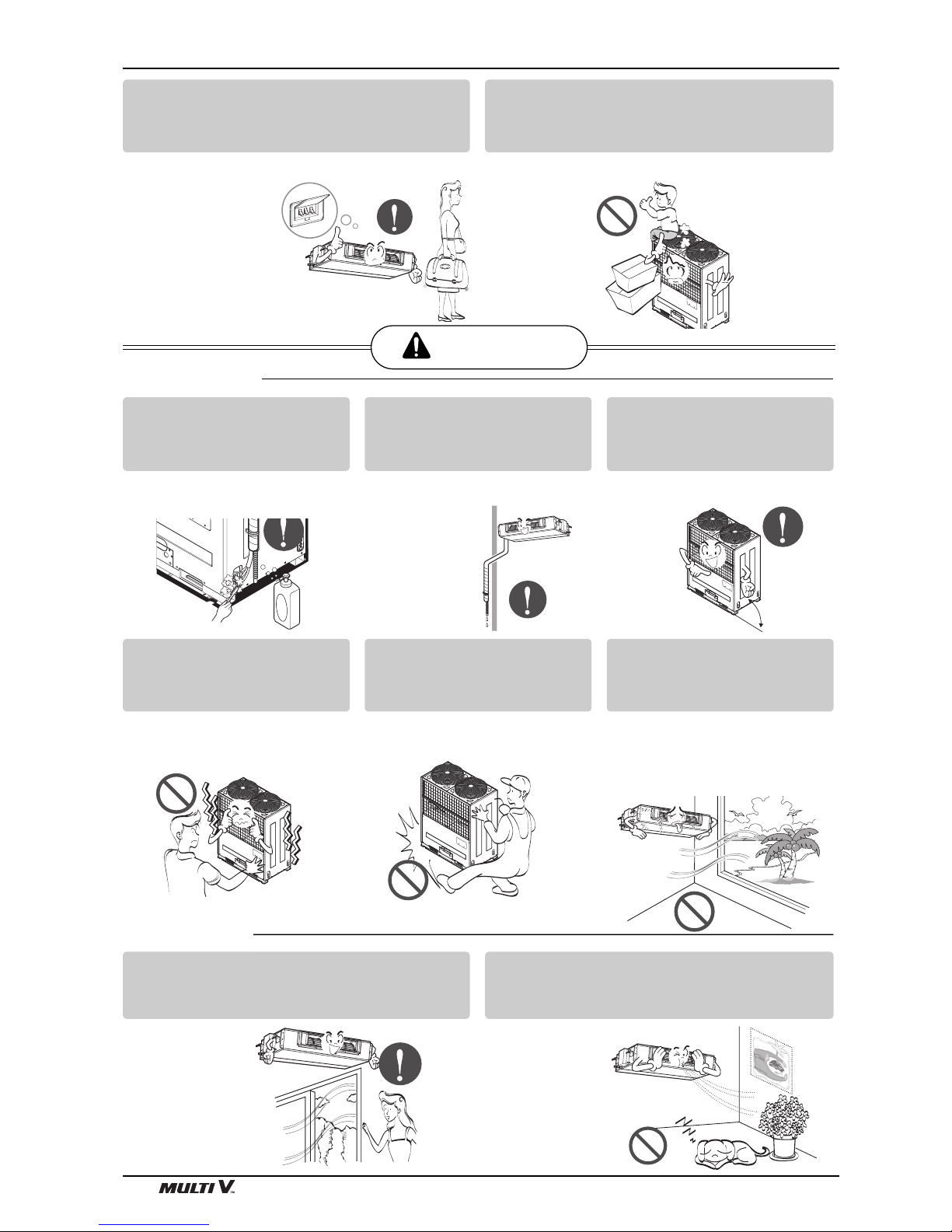

CAUTION

■Operation

Always check for gas

(refrigerant) leakage after

installation or repair of product.

• Low refrigerant levels may

cause failure of product.

Install the drain hose to ensure

that water is drained away

properly.

• A bad connection may cause

water leakage.

Keep level even when

installing the product.

• To avoid vibration or water

leakage.

Do not install the product where the

noise or hot air from the outdoor unit

could damage the neighborhoods.

• It may cause a problem for your

neighbors.

Use two or more people to lift

and transport the product.

• Avoid personal injury.

Do not install the product

where it will be exposed to

sea wind (salt spray) directly.

•

It may cause corrosion on the product.

Corrosion, particularly on the condenser

and evaporator fins, could cause product

malfunction or inefficient operation

90˚

When the product is not be used for a long

time, disconnect the power supply plug or

turn off the breaker.

•There is risk of product damage or failure, or

unintended operation.

Take care to ensure that nobody could step

on or fall onto the outdoor unit.

•This could result in personal injury and product

damage.

Do not expose the skin directly to cool air

for long periods of time.

(Don't sit in the draft.)

•This could harm

to your health.

Do not use the product for special purposes, such as

preserving foods, works of art, etc. It is a consumer

air conditioner, not a precision refrigeration system.

•There is risk of

damage or

loss of property.

Do not recharge or

disassemble the batteries.

Do not dispose of batteries

in a fire.

•They may burn or explode.

If the liquid from the batteries gets

onto your skin or clothes, wash it

well with clean water. Do not use the

remote if the batteries have leaked.

•

The chemicals in batteries could

cause burns or other health hazards.

If you eat the liquid from the

batteries, brush your teeth and see

doctor. Do not use the remote if the

batteries have leaked.

•The chemicals in batteries could cause

burns or other health hazards.

Safety Precautions

Owner’s Manual 7

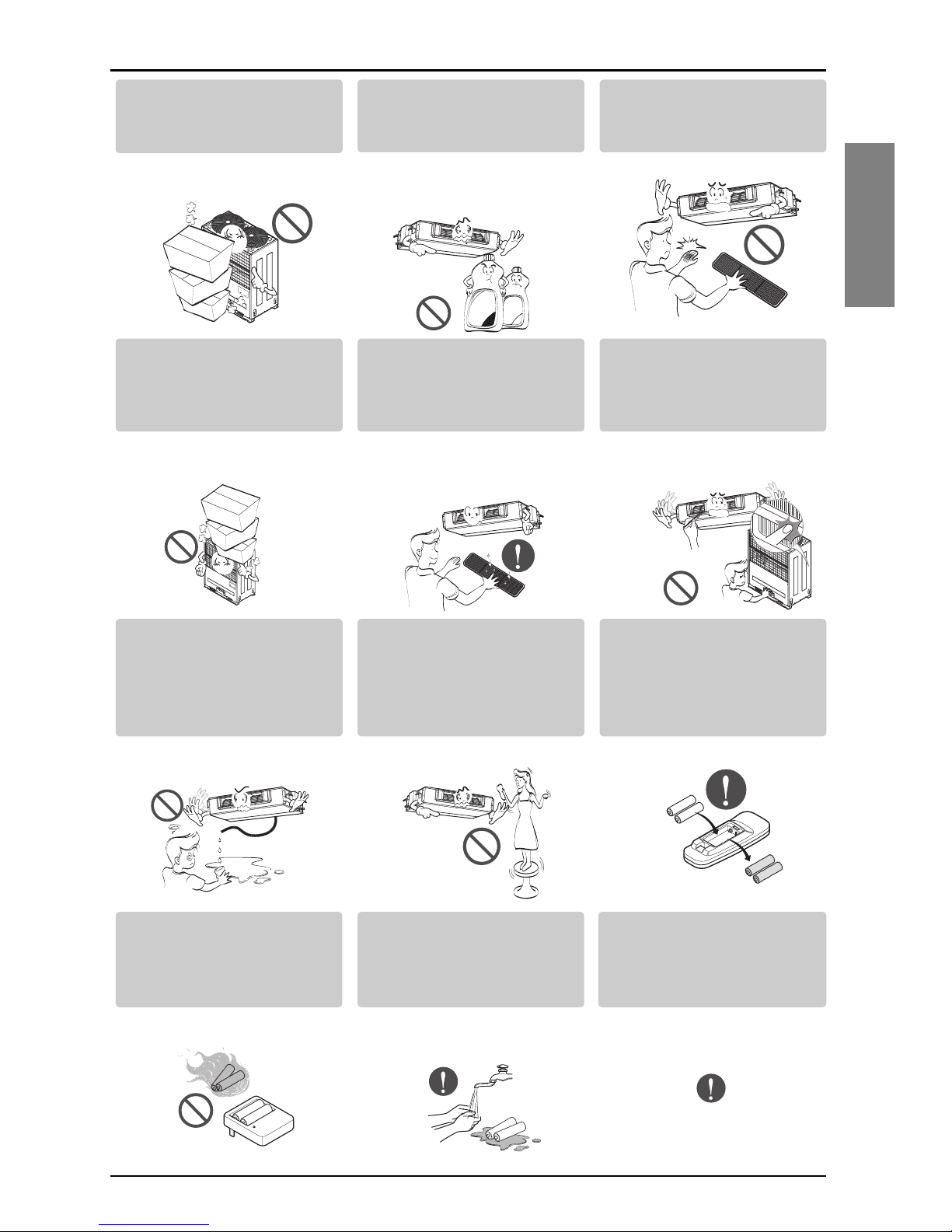

Do not block the inlet or

outlet of air flow.

•It may cause product failure.

Use a soft cloth to clean. Do

not use harsh detergents,

solvents, etc.

•There is risk of fire, electric

shock, or damage to the plastic

parts of the product.

Do not touch the metal parts of

the product when removing the

air filter. They are very sharp!

•There is risk of personal injury.

Wax

Thinner

Do not step on or put

anyting on the product.

(outdoor units)

•There is risk of personal injury

and failure of product.

Always insert the filter

securely. Clean the filter

every two weeks or more

often if necessary.

•

A dirty filter reduces the efficiency

of the air conditioner and could

cause product malfunction or

damage.

Do not insert hands or other

objects through the air inlet

or outlet while the product

is operated.

•There are sharp and moving

parts that could cause personal

injury.

Do not drink the water

drained from the product.

•It is not sanitary and could

cause serious health issues.

Use a firm stool or ladder

when cleaning or

maintaining the product.

•Be careful and avoid personal

injury.

Replace the all batteries in the

remote control with new ones

of the same type. Do not mix

old and new batteries or

different types of batteries.

•There is risk of fire or explosion

ENGLISH

Prior to operation

8Indoor Unit

Prior to Operation

1. Contact an installation specialist for installation.

2. Use a dedicated circuit.

1. Being exposed to direct airflow for an extended period of time could be hazardous to your health.

Do not expose occupants, pets, or plants to direct airflow for extended periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or

other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision

devices, food, pets, plants, and art objects). Such usage could damage the items.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling

sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,

leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates

at a very high speed during operation. There is a possibility of injury if the unit’s power is

accidentally triggered on while cleaning inner parts of the unit.

For repair and maintenance, contact your authorized service dealer.

Preparing for operation

Usage

Cleaning and maintenance

Service

ENGLISH

Operating Instructions

Owner’s Manual 9

4 10

•Wired remote controller:

PQRCUSA0

Operating Instructions

Name and function of wired remote controller(Optional)

Operating Instructions

1. Operation indication screen

2. Set temperature button

3. Wireless remote controller Receiver

•Some kind of product could not receive

wireless signal.

4. Ventilation button

5. Operation mode selection button

6. Sub-function button

7. Function setting button

8. Exit button

9. On/ Off button

10. Room temperature button

11. Fan speed button

12. Air flow button

13. Reservation/ Time setting button

14. Setting/ Cancel button

15. Up, Down, Left, Right

Operating Instructions

10 Indoor Unit

Name and function of wired remote controller(Optional)

Cooling Mode

Auto Mode or Auto Changeover

Dehumidification mode

Heating Mode

Fan Mode

•

Cooling Model( ), Heat Pump Model( )

Operation Mode

PQWRCDF0 (Heat pump)

PQWRHDF0 (Cooling only)

1. Plasma button (optional)

Used to start or stop the plasma-purification

function.

2. Jet cool button

Speed cooling operates super high fan speed.

3. Operation mode selection button

Used to select the operation mode.

4. Function setting button

Used to set or clear auto clean or smart clean.

5. LCD luminosity button (optional)

Used to adjust LCD luminosity

6. Smart clean button (optional)

Used to start or stop smart clean.

7. Clear all button

Used to clear all timer.

8. Room temperature setting button

Used to select the room temperature.

9. ON/OFF button

Used to turn off/on the unit.

10. Indoor fan speed selection button

Used to select fan speed in four steps low,

medium, high and chaos.

11. Auto swing button

Used to stop or start louver movement and set the

desired up/down airflow direction.

12. Horizontal airflow direction control button

(optional)

Used to set the desired horizontal airflow direction.

13. Timer and time setting button

Used to set the time of starting or stopping and

sleeping operation.

14. Room temperature checking button

Used to check the room temperature.

15. ˚C/˚F switch button

Used to switch temperature reading from Celsius to

Fahrenheit.

16. Reset button

Used to reset the remote controller.

Autres manuels pour URNU76GB8A2

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels LG Climatiseur

LG ARNU243BHA2 Manuel utilisateur

LG LP090CED Manuel utilisateur

LG LP150HED-Y8 Manuel utilisateur

LG LW8017ERSM1 Manuel utilisateur

LG VM242C6A Manuel utilisateur

LG LV-B2420CL Manuel utilisateur

LG ARUB80LT3 Manuel utilisateur

LG ARNU36GTYB4 Manuel utilisateur

LG Room air conditioner Manuel utilisateur

LG S10MIV Manuel utilisateur

LG Multi Type Air Conditioner Manuel utilisateur

LG APNQ24GS1A4 Manuel utilisateur

LG BECON HVAC BACnet PQNFB17C0 Mode d'emploi

LG ARUN040GSS0 Manuel utilisateur

LG LV-B18 C Series Manuel utilisateur

LG FMN0760NL Manuel utilisateur

LG LS120HEV1 Manuel utilisateur

LG LW1512ER Manuel utilisateur

LG A4UW363FA2 Manuel utilisateur

LG UU18W Manuel utilisateur

LG S326GC Manuel utilisateur

LG LW1813HR Manuel utilisateur

LG LW1800_Series Manuel utilisateur

LG LT1210CR Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
