TYPE : Dry contact For Economizer
MODEL : PQDSBC1
INSTALLATION MANUAL
• Please read this installation manual completely before installing the product.
• Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
• Please retain this installation manual for future reference after reading it
thoroughly.
ENGLISH ESPAÑOL FRANÇAIS
2Dry contact For Economizer
Dry Contact for setback Unit Installation Manual
TABLE OF CONTENTS
nSafety Precautions .............................................................3~5
nPart Description ......................................................................6
nInstallation Method .............................................................7~9
Installation inside of the indoor unit..........................................................7
Installation outside of the indoor unit .......................................................8
nSetting and using method ..............................................10~17
1. Power supply and indoor unit connection .........................................10
2. Setting of Contact Signal Input ..........................................................11
3. Setting the desired temperature ........................................................12
4. Control mode setting..........................................................................13
5. Indoor unit monitoring ........................................................................18
Safety Precautions
Installation Manual 3
ENGLISH
nInstallation
Service
Center
Service
Center
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
nMeanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
WARNING
Don’t touch with the hands
while the power is on.
• Cause fire, electric shock,
explosion or injury.
Product installation must
be referred to a service
center or installation shop.
• Cause fire, electric shock,
explosion or injury.
Request installation from
installation shop or service
center when reinstalling
the product.
• Cause fire, electric shock,
explosion or injury.
Safety Precautions
Standardized
product
Safety Precautions

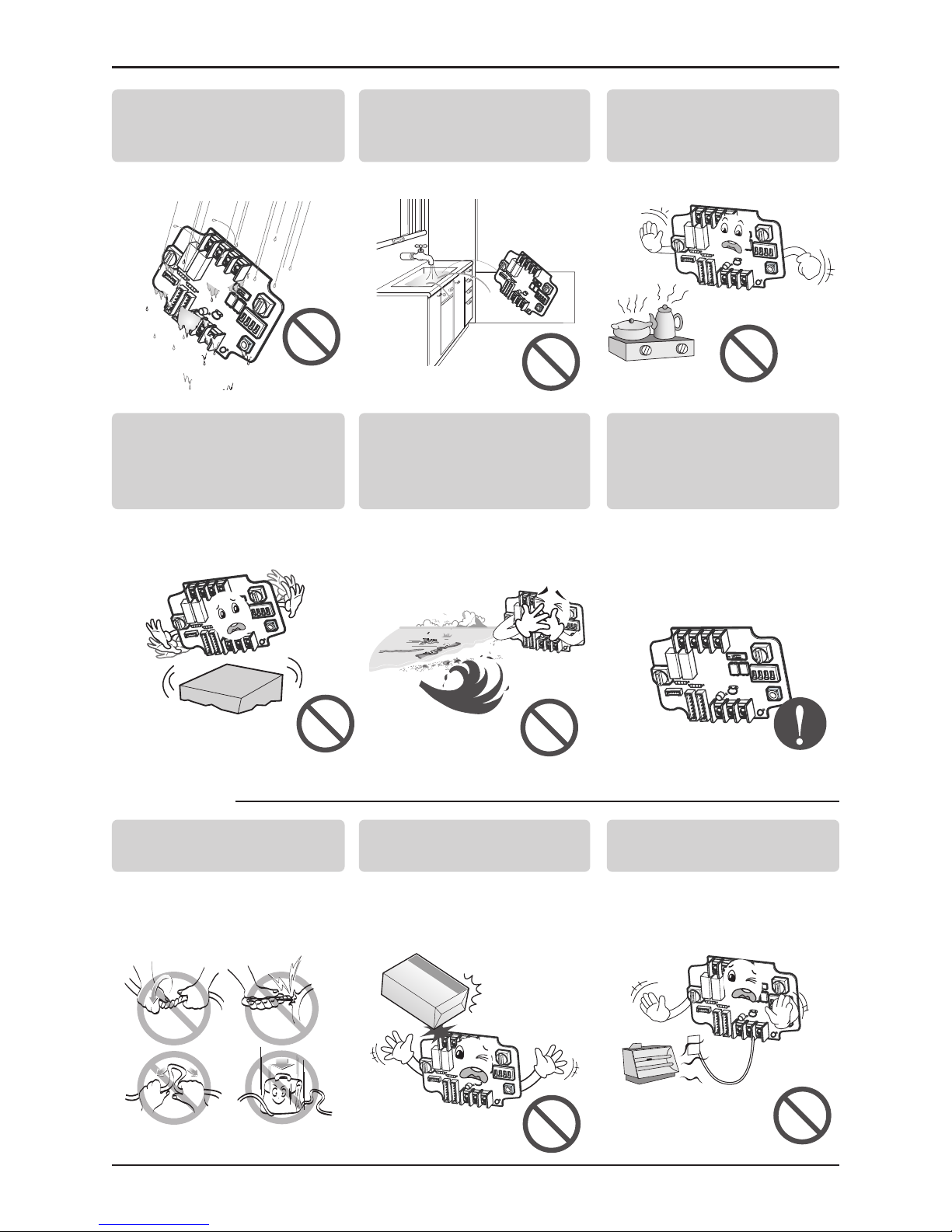

4Dry contact For Economizer
Do not install the product
in the place where rain can
get to the product.
• Cause product failure
Do not install the unit in
humid locations.
• Cause product failure
Do not put the product
closer to fire.
• Cause fire
Do not install in a place
that cannot withstand the
weight of the product.
• The product may get
damaged or may break.
Do not install the product
to a place that generates
oil, steam, salt, sulfuric
gas, etc.
• Cause the product’s
deformation or failure.
Use standardized Product.
• Cause product failure
Do not change or extend
power lines arbitrarily.
• Cause fire or electric shock.
Do not give a shock to the
product.
• If you give a shock to the
product, it may cause the
product’s failure.
Do not use a heater near
the power line.
• Cause fire or electric shock.
nOperation
Service
Center
STOP
Safety Precautions
Installation Manual 5
ENGLISH
Do notspill water inside of
the product.
• Cause electric shock or
breakdown.
If the product has been
inundated, you must refer to
a service center or
installation shop.
• It can cause a fire.
Children and elderly use the
product under the
guardian’s supervision.
• Cause accidents and product
failures.
Do not use for special
purpose / place such as
conserving flora and fauna,
precision instruments, art.
• Otherwise, it can cause property
damage.
Remove the power plug
when cleaning.
• Cause fire or electric shock.
Do not place heavy objects
on the power line.
• Cause fire or electric shock.
Do not disassemble, repair,
or modify the product.
• Cause fire or electric shock.
Do not touch with wet
hands.
• Cause fire or electric shock.
6Dry contact For Economizer
Part Description
PCB
Front Case Rear Case
ISO View
Side Side
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLT NON
VOLT
TEMP
SETTING
1
2
5
89
7
3
6
11
10
4
Part Description
1. CN_INDOOR : Connect communication wire between indoor unit and Dry contact For Economizer
and supply power to Dry contact For Economizer
2. CN_PI485 : PI485 connector
3. CHANGE_OVER_SW : Switch to select voltage (5V-12V) of contact point
4. CN_CONTROL : Contact point signal input
5. CONTROL_MODE_SW : Switch to select the control mode
6. SETTING_SW : Switch to select whether to use set function of Dry contact For Economizer
7. TEMP_SETTING : Switch to set the desired temperature of the indoor unit
8. CN_OUT (O1, O2) : Connector to show whether the indoor unit is operating
9. CN_OUT (E3, E4) : Connector to show whether there is an error with the indoor unit
10. DISPLAY_LED : LED to display the status of the Dry contact For Economizer
11. RESET_SW : Reset switch
DRY CONTACT FOR ECONOMIZER
Installation Manual 7
Installation Method
Installation inside of the indoor unit
1) Loosen and remove one screw that secures the product.
2) Loosen two screws that secure the PCB to separate rear of the case from the PCB.
3) Connect the connection wires properly according to the connection method. (Refer to the instruction
and set-up description)
4) Set the switch according to the setting method. (Refer to the instruction and set-up description)
5) Secure PCB on adequate space inside of the indoor unit.
1. Install the product on flat surface and install anchoring screws at more than 2 places. Otherwise
the central controller may not be anchored properly.
2. Do not tighten anchoring screws too tightly. It may cause deformation of the case.
3. Do not deform the case at random. It may cause malfunction of the central controller.
Installation Method
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
ENGLISH
8Dry contact For Economizer
Installation Method
Installation outside of the indoor unit
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLT NON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLT NON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLT NON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLT NON
VOLT
TEMP
SETTING
1) Loosen and remove one screw that secures the
product.
2) Position the rear case to the direction towards to the
connector for convenient cable arrangement.
3) Secure the rear case on the installation place using the
supplied fixing screws.
4) Remove knock out shapes on the rear case (4-sided)
according to the connector’s size and direction.
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
Installation Manual 9
ENGLISH
Installation Method
5) Connect the connection wires properly according to the connection method. (Refer to the instruction
and set-up description)
6) Set the switch according to the setting method. (Refer to the instruction and set-up description)
7) Hang the front of the case to the rear case hook and tighten the fixing screws on the bottom part.
1. Install the product on flat surface and install anchoring screws at more than 2 places. Otherwise
the central controller may not be anchored properly.
2. Do not tighten anchoring screws too tightly. It may cause deformation of the case.
3. Do not deform the case at random. It may cause malfunction of the controller.
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
NOT
USB
e
CN_OUT
CHANGE
OVER_SW
VOLTNON
VOLT
TEMP
SETTING
Setting and using method
10 Dry contact For Economizer
Setting and using method
1. Power supply and indoor unit connection
You must press the RESET switch when you are completed with all the settings to reflect the
settings.
n
When using the Dry contact For Economizer independently
nWhen using with the central controller (Only when the indoor
unit PCB is a non-communication model)
Indoor unit
PCB
PI485: Connect to central controller
CN_PI485
CN_INDOORCN_INDOORCN_INDOOR
CN_INDOOR
Indoor unit
PCB
CN_INDOOR
CN_INDOORCN_INDOORCN_INDOOR
ÚCN-CC ↔CN_INDOOR, CN-OUT(PI485) ↔CN_PI485
