OWNER’S MANUAL

AIR CONDITIONER

Please read this manual carefully before operating

your set and retain it for future reference.

P/NO : 3828A20467B www.lg.com

TYPE : Simple Central Controller

MODEL : PQCSB101S0

ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

РУССКИЙ ЯЗЫК

2Simple Central Controller

Central Control Unit

TABLE OF CONTENTS

■Safety precautions..................................................................3

■Before use................................................................................5

System drawing........................................................................5

Name of each part....................................................................6

■Operation tips..........................................................................7

Individual operation...................................................................7

Total control for each group ......................................................7

Total On/Off operation...............................................................7

Mode change............................................................................8

Setting individual lock...............................................................9

Setting total lock .......................................................................9

Connected indoor unit search function...................................10

Self diagnosis for indoor unit ..................................................11

Set group inquiry ....................................................................11

Function controller connection................................................12

Safety Precautions

Owner’s Manual 3

ENGLISH

■Installation

¿‰ˆ¿¿ł ¿‰ˆ`⁄`

Service Center

Original Parts

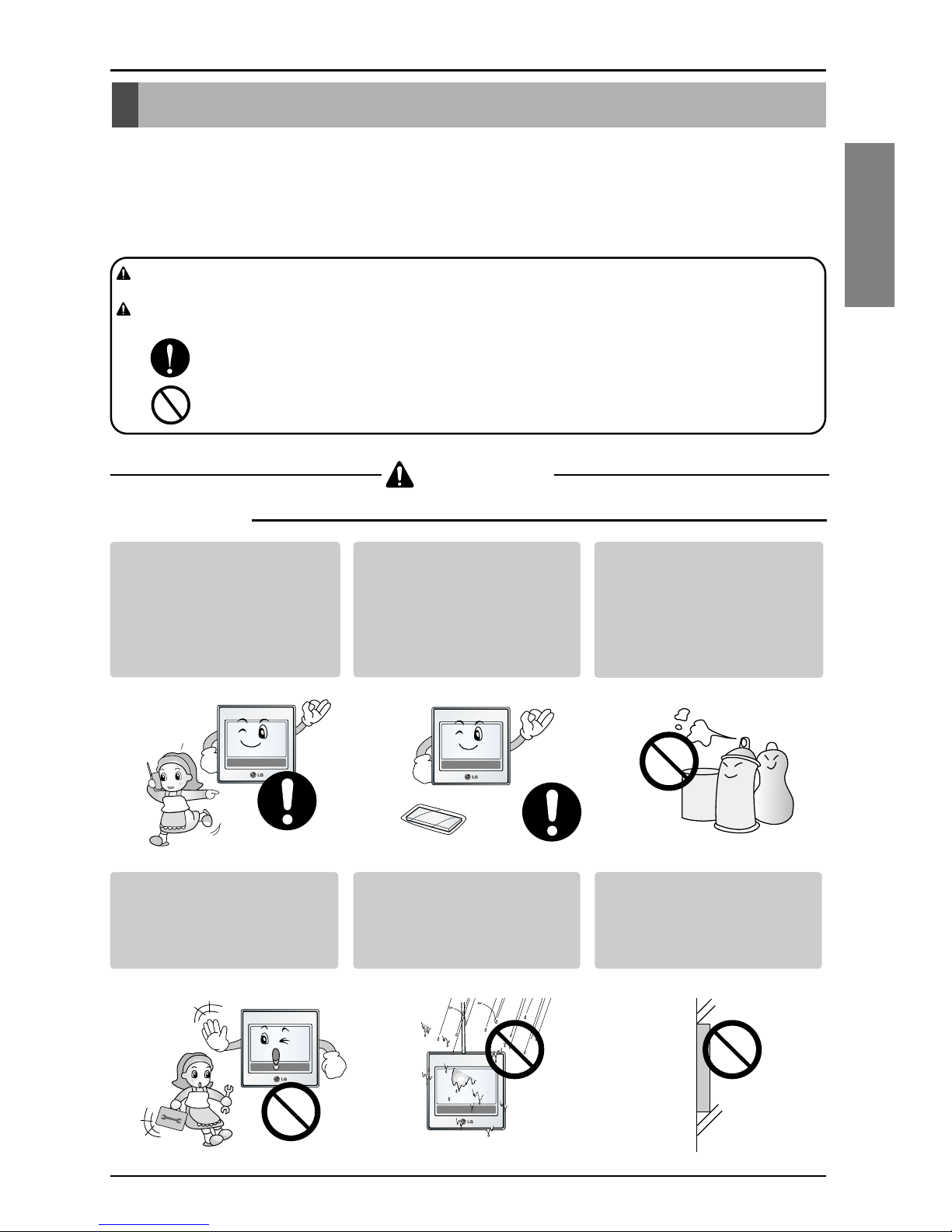

Safety Precautions

• The installation requires expert skills, and it should be installed by the service center or other shops specialized

in the installation and recognized by our company.

• For all the problems arising after installation by someone who has no relevant qualifications, LG will not provide

free service.

• The following safety cautions are provided to prevent unexpected dangers or losses.

: If the user does not follow the mandatory items, it may result in serious injury or death.

: If the user does not follow the mandatory items, it may cause personal injury or property

damage.

: Warning and Caution are to call the user’s attention to the possible danger. Read and follow

them carefully in order to prevent a safety accident.

: Warning and Caution are indicated in this guide and the product itself to help protect the users

from danger.

WARNING

CAUTION

WARNING

Entrust installation of the

product to the service center

because improper installation

may cause fire, an electric

shock, explosion, and physical

injury.

Use the original parts in

order to prevent fire, an

electric shock, explosion,

and product breakdown.

Keep combustible and/or

inflammable materials away

from the product in order to

prevent fire or product

breakdown.

Do not disassemble, repair, or

modify the product at your

discretion in order to prevent fire

or an electric shock.

Do not install the product in wet

and humid areas in order to

prevent product breakdown.

Do not expose the product to the

sun in order to prevent product

breakdown.

Safety Precautions

4Simple Central Controller

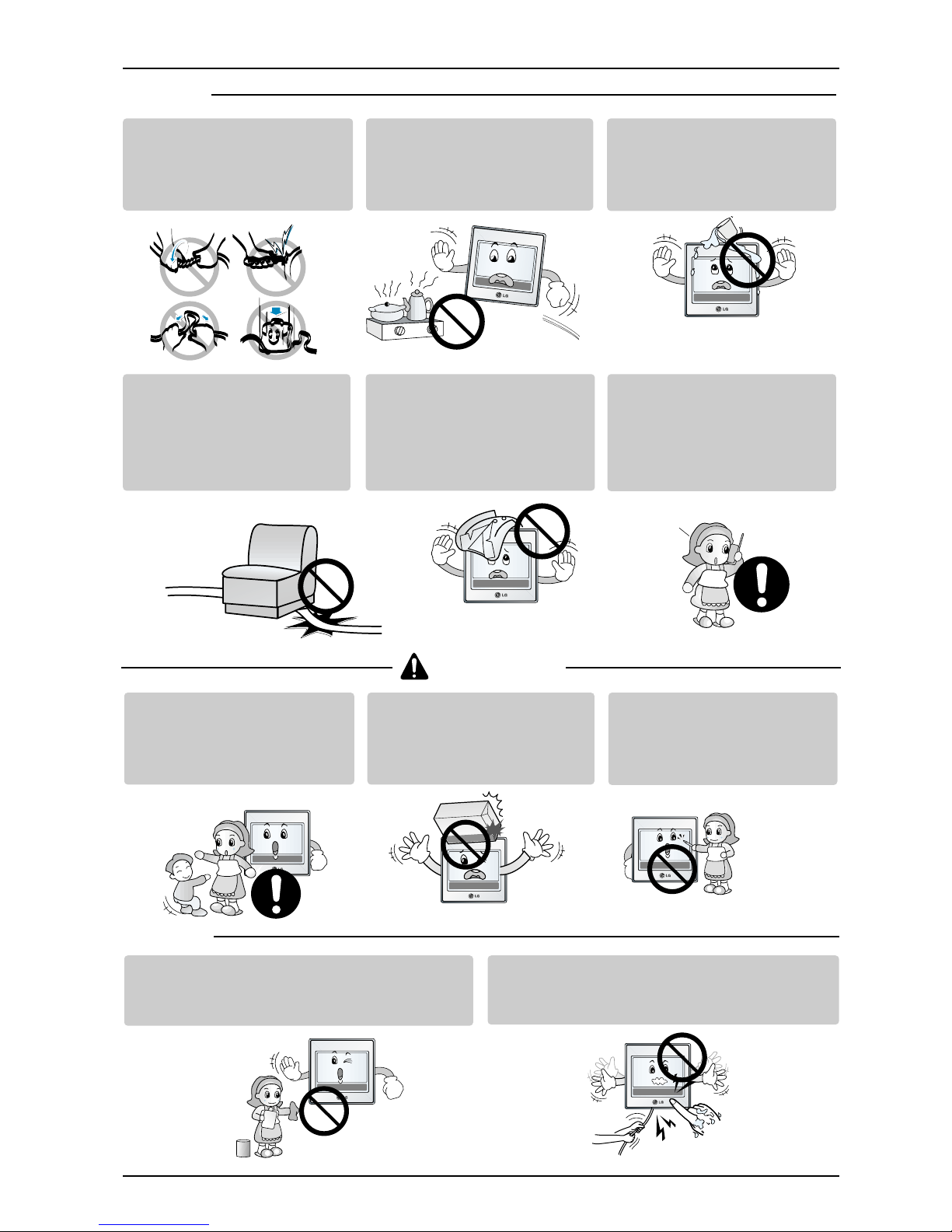

Do not modify or lengthen the

power cable at your discretion.

It may cause fire or an electric

shock.

Do not place a heating device

near the product. It may cause

fire.

Do not drop water on to the

product. It may cause an electric

shock or product breakdown.

Do not place something heavy on

the power cable. It may cause fire

or an electric shock.

Do not place a heavy thing on the

product. It may cause product

breakdown.

If the product was submerged

under water, ask the service

center for instruction. It may

cause fire or an electric shock

unless you do that.

■In-use

¿‰ˆ¿

¿ł ¿‰ˆ`⁄`

¿‰ˆ¿¿ł ¿‰ˆ`⁄`

Service Center

Make sure children or senor

citizens use the product under

proper observation in order to

prevent safety accident.

Do not subject the product to

shock. It will cause product

breakdown.

Do not pick the product with a

sharp tool. It may cause

product breakdown with the

damage to its parts.

Do not clean the product with strong cleanser such

as solvent. Use soft clothes in order to prevent fire

or product deformation.

Do not touch the product with a wet hand. Do not

pull the lead cable. It may cause product breakdown

or an electric shock.

¿‰ˆ¿¿ł ¿‰ˆ`⁄`

CAUTION

Before Use

Owner’s Manual 5

ENGLISH

Before Use

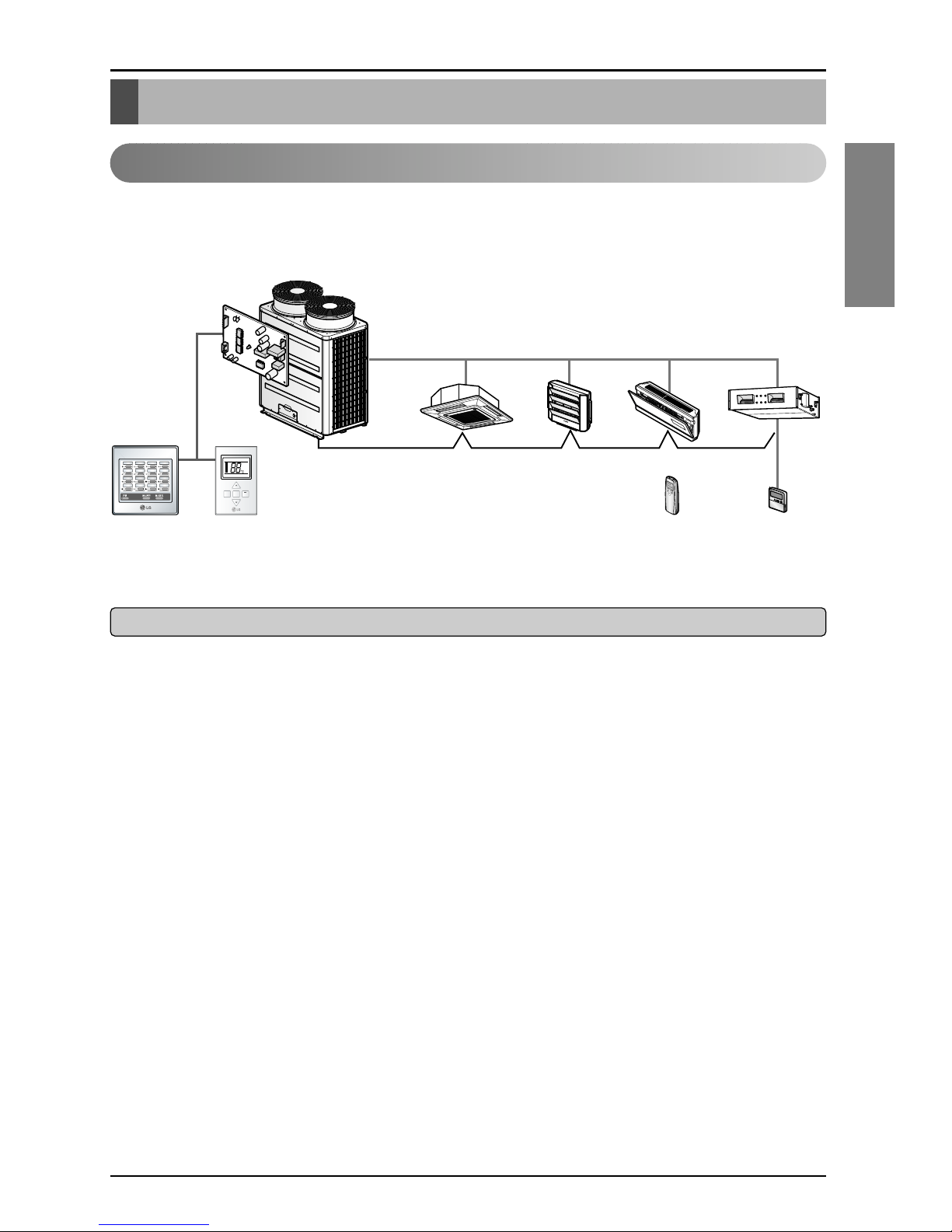

Total 128 indoor units can be controlled by central controllers using function controller along with.

Function controller is connected as shown below.

PI 485

Central

controller Function

controller

Individual controller

Indoor unit

(1) (3) (16)

PQRCHCS0

FAN

SPEED

MODE

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

RoomTemp

Totalon

CentralRun

System Drawing

•Function controller and PI 485 are sold separately.

6Simple Central Controller

Before Use

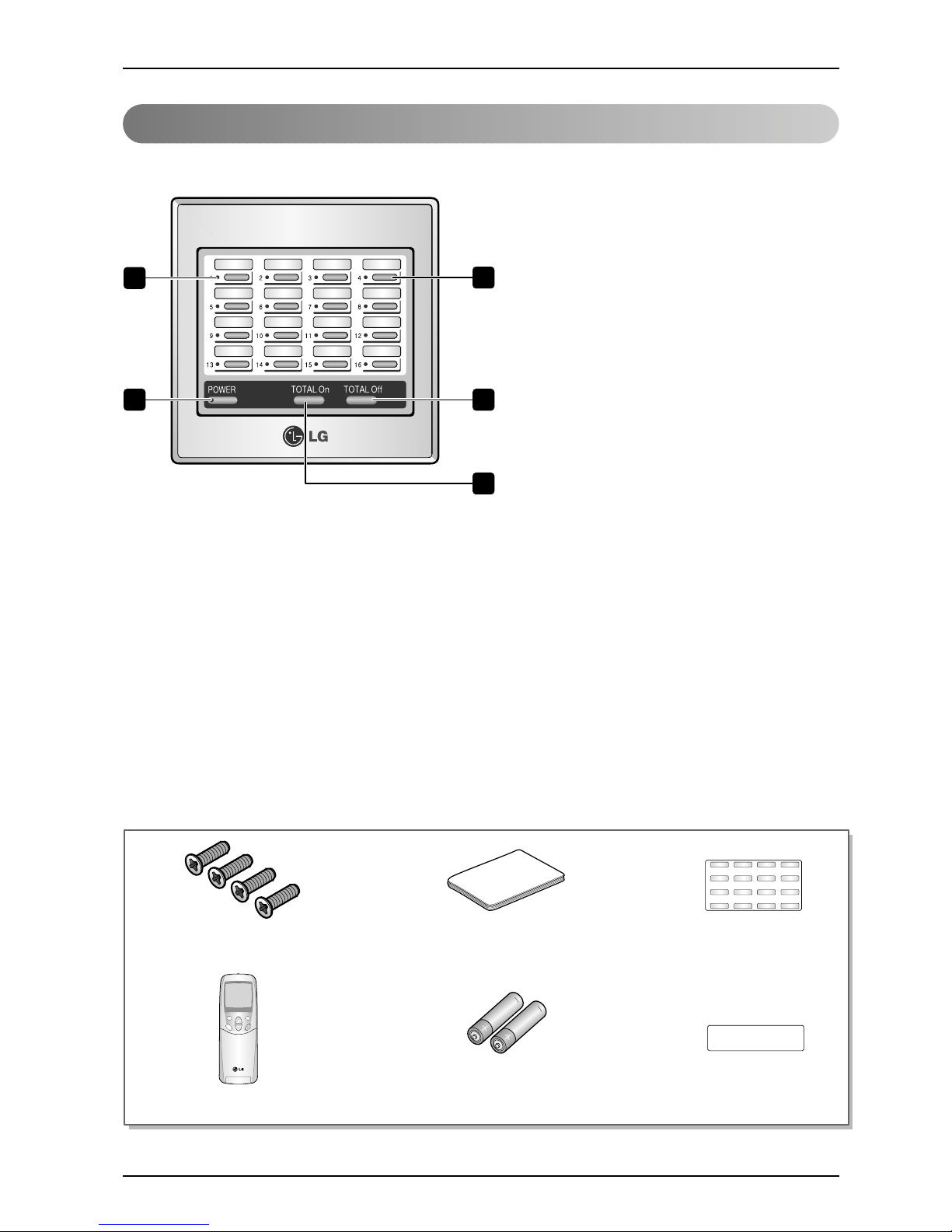

Displays the status of the indoor unit if

individual On/Off button is pressed.

•Cooling/dehumidification/blowing

operation: Green

•Heating operation: Orange

•Failure of product: Red

•Stop: Off

1. On/Off status display LED (total 16EA)

•Application of power: Green

•No power: Off

•During control: Flickering

2. Power display LED

On/Off control of the connected indoor

units.

3. Individual On/Off button (total 16EA)

Sequentially turns off all indoor units

connected to it.

4. Total Off button

Sequentially starts all indoor units

connected to it.

5. Total On button

Central controller anchoring

screws (4EA) Owner/Installation manual Actual name description

sheet

Addressing remote control AAA cell (2EA) Guide sheet

Name of Each Part

Annexed parts

Central controller

Owner’s Manual 7

ENGLISH

Operation Tips

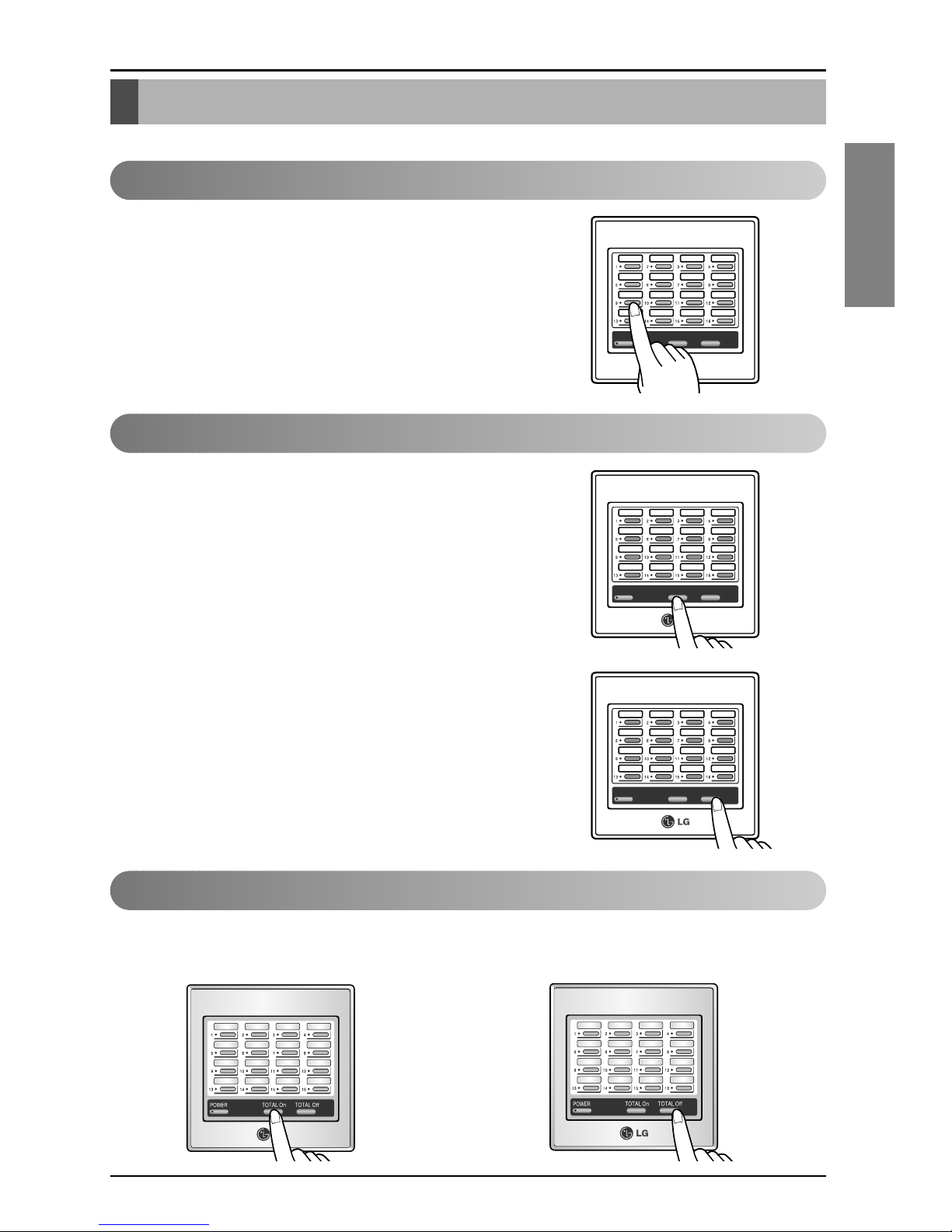

Individual Operation

Total Control for Each Group

Operation Tips

Control of On/Off operation

1. Press the individual On/Off button, then the equivalent

unit starts and LED is on.

2. If pressing the individual On/Off button, equivalent unit

stops and LED is off.

•Press Total On button, then all units of that group

operate sequently and LED is on.

•Press Total Off button, then each group units stop

sequently and LED is off.

Total On/Off Operation (master & slave combination)

1. Press Total On button for more than 2sec, then all

linked units start sequentially and their LEDs turn

on.

2. Press Total Off button for more than 2sec, then all

linked units stop sequentially and their LEDs turn

off.

8Simple Central Controller

Operation Tips

Mode Change

•Mode change function doesn't work when the function controller is connected with the system.

Operating mode change for individual

indoor unit

While changing the operating mode of the indoor unit, press the individual

Operate/Stop button for 2 seconds and the operating mode of the

applicable indoor unit will change from cooling to heating mode or from

heating to cooling mode.

When the indoor unit is running in the cooling mode, the status indicator

LED would be green and when the indoor unit is running in the heating

mode, it will be orange.

❈This is applicable to heatpump models only.

Operating mode change for

group of indoor units

1. Cooling operation of group of indoor units

Press the Total On, Total Off and no. 5 button

simultaneously to change all indoor units to cooling

mode through the Central controller and the LEDs

will turn green.

2. Heating operation of group of indoor units

Press the Total On, Total Off and no. 8 button

simultaneously to change all indoor units to heating

mode through the Central controller and the LEDs

will turn orange.

Owner’s Manual 9

ENGLISH

Operation Tips

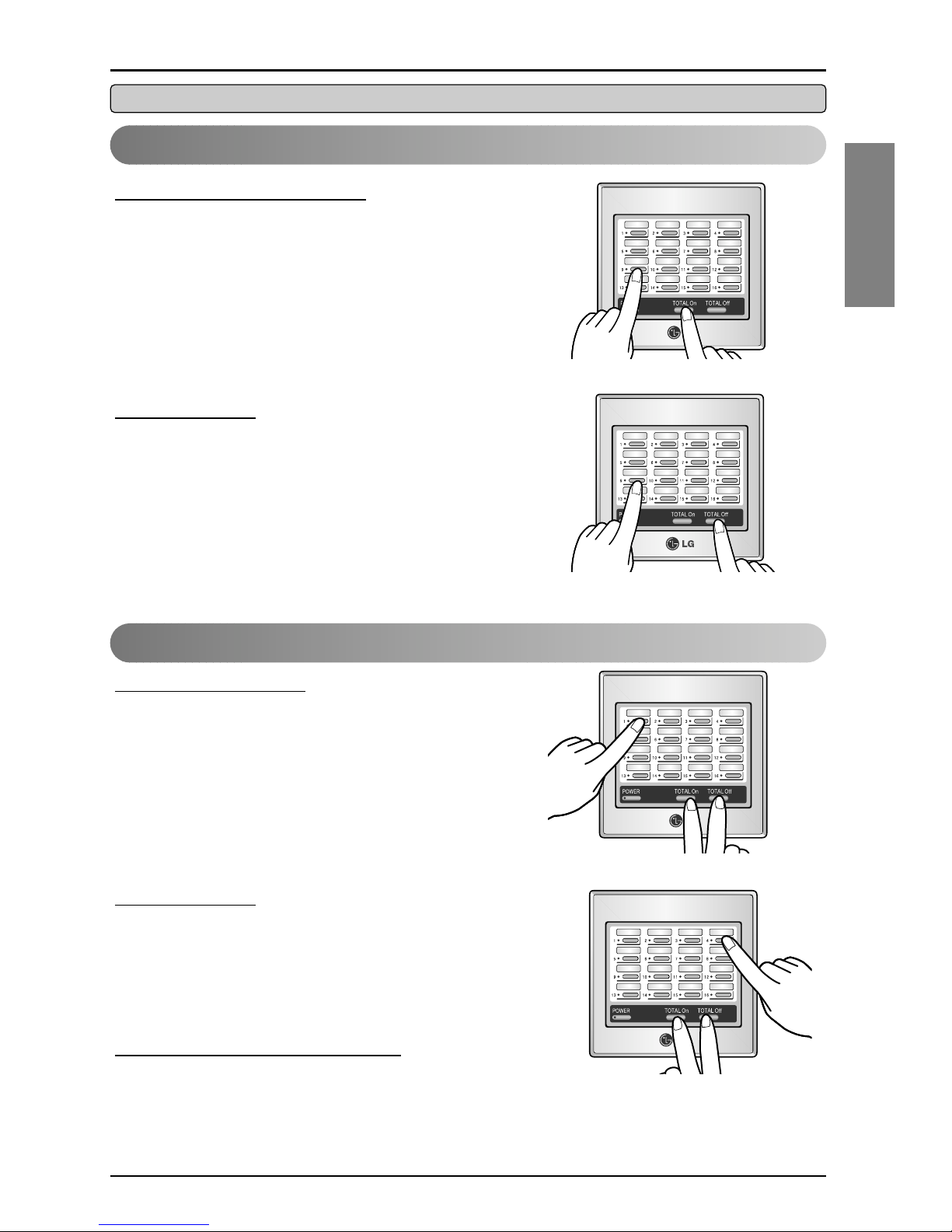

Setting Individual Lock

•Control is available only by central controller & control by individual remote controller is impossible

Setting individual lock

Press Total On and individual On/Off button at the same time.

•In this case, equivalent unit is controlled only by Central

controller.

After lock function is set, the equivalent LED of locked unit

blinks for 5 sec.

Cancellation

Press, Total Off and individual On/Off button at the same time

to cancel the lock function.

After lock function is canceled, the equivalent LED of unlocked

unit blinks for 5 sec.

Setting Total Lock for Each Group

Setting total lock

Press Total On, Total Off and no. 1 button at the same time.

•All linked units are now controlled only by central controller,

control of main body is impossible. After lock function is set,

LEDs of all locked units blink for 5 sec.

Cancellation

Press Total On, Total Off and no. 4 button at the same time.

•Lock of all units is cancelled and the LEDs of all unlocked

units blink for 5 sec.

Check of the locked units

Press Total On and Total Off

•LED of locked units blinks for 5 sec.

Operation Tips

10 Simple Central Controller

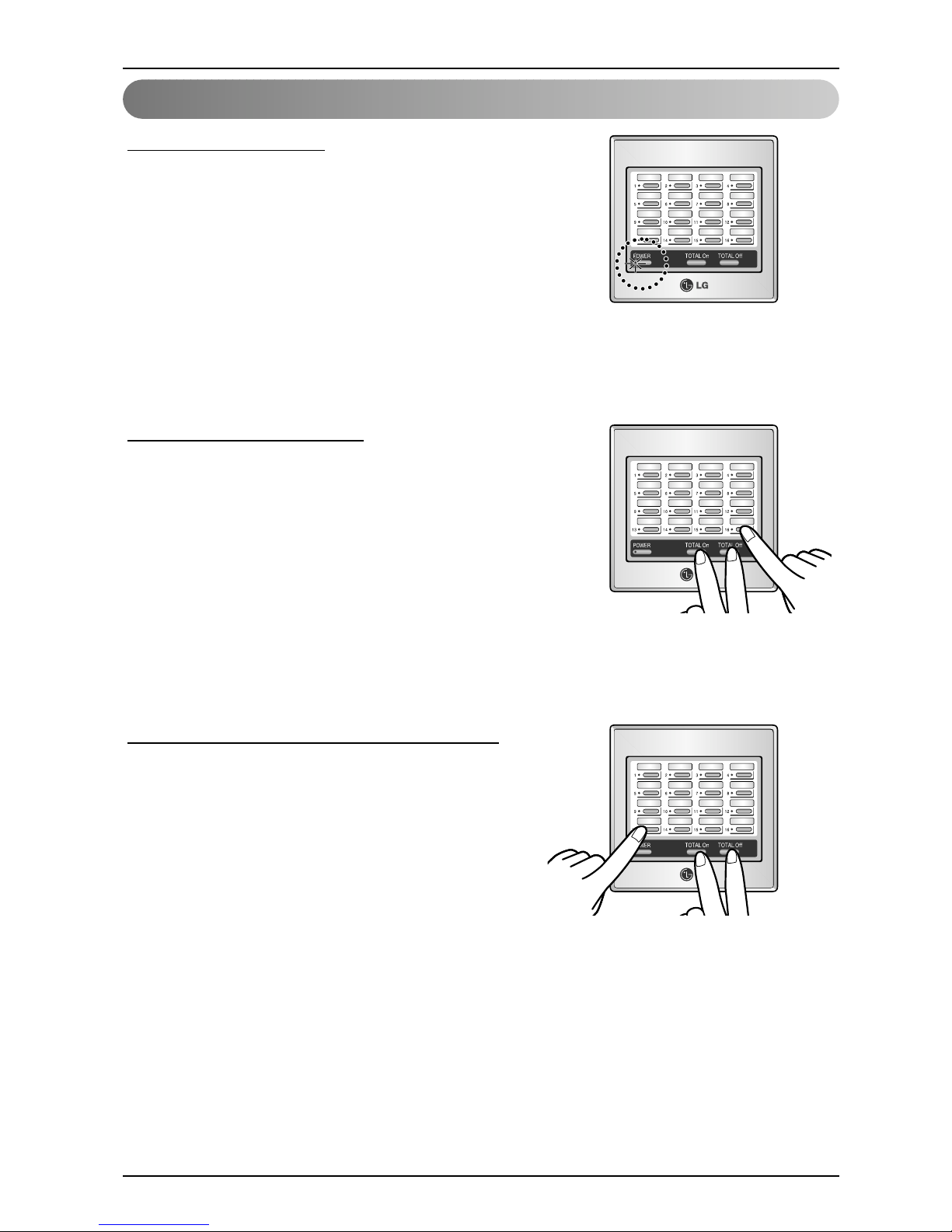

Connected Indoor Unit Search Function

Automatic search

When power is connected to the Central controller set as

master, LEDs from no. 1 to 16 will light up in sequence and

automatically runs a search for all the connected indoor units

for 3 minutes. This is generally the just operation after the

installation of the controller.

Indoor unit re-search

If all indoor units have not been searched during the automatic

search, press the Total On, Total Off and no. 16 button

simultaneously to re-search all the connected indoor units from

no. 1 to 16 by lighting up the LEDs in sequence.

Connected indoor unit indication

Press the Total On, Total Off and no. 13 button simultaneously

and all LEDs of the indoor units connected to a group/central

controller and the power LEDs will flash simultaneously to

notify which indoor units are connected to the central

controller.

Autres manuels pour PQCSB101S0

Table des matières

Autres manuels LG Climatiseur

LG AHNW166T0 Manuel utilisateur

LG LW5012J Manuel utilisateur

LG AMNW07GDBL1 Manuel utilisateur

LG P09EP2 Manuel utilisateur

LG RS-Q18LNXE Manuel utilisateur

LG ARNU18GS5L1 Manuel utilisateur

LG LSN-HSV2 Manuel utilisateur

LG PP485B00K Manuel utilisateur

LG AP-Z488TC0 Manuel utilisateur

LG LW1016ER Manuel utilisateur

LG P12AWN Manuel utilisateur

LG Art Cool Gallery Wall Mounted Manuel utilisateur

LG MULTI V ARNU05GL4G4 Manuel utilisateur

LG 456744 Manuel utilisateur

LG BWC076GBAA0 Manuel utilisateur

LG LP1213GXR/00 Manuel utilisateur

LG AMNW07GDBB0 Manuel utilisateur

LG ARTCOOL LAN181CNW Manuel utilisateur

LG APUQ55GT3E0 Manuel utilisateur

LG AS-W183CSA5 Manuel utilisateur

LG MULTI V ARNU Series Manuel utilisateur

LG LW1800 series Manuel utilisateur

LG LA120HYV Manuel du propriétaire

LG LM-2422C2L Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
