LG LP1413SHR Manuel utilisateur

Portable Air Conditioner

SVC MANUAL(General)

MODEL : LP1413SHR

CAUTION

Before Servicing the unit, read the safety precautions in General SVC manual.

Only for authorized service personnel.

http://biz.lgservice.com

- 2 -

Only for training and service purposes LGE Internal Use Only

1. Specification

Note:

: Applied, - : No relation

For circuit breaker rating, please conform to local standards wherever necessary.

Buyer Model LP1413SHR

LG Model XWH141YDMM2

PERFORMANCE

Btu performance (Cooling) 14000

Btu performance (Heating) 14000

EER 10.1

COP 10.1

Dehumid. ( Pts/Hr) 3.4

Dry Air Flow (CFM) 270

dBA Level (Front) 55

ELECTRICAL RATINGS

Voltage / 60 Hz 115

Plug Type

Watts 1380

Rated Amps 12.0

FEATURES

Display Panel White LCD

Thermostat Control

YES

Remote Controller LCD Remote Controller

Control Button Type Digital touch sensor

Auto Swing Yes

Energy saver switch Yes

Auto Restart Yes

Auto Door Open/Close System Yes

Timer 24Hr,On/Off

Fan Speed : Cooling 3

Fan Only 3

Compressor LVN

Indoor / Outdoor Fan Type Blower

Type Air Discharge Inclinded and Top

Water Full Indicator Yes(check)

Outdoor Vent / Exhaust Exhaust Only(1.5M)

Power Cord

Chassis Type Fixed

Panel Color Silver

Easy-Roll Casters Yes

Air Filter Washable

Window Installation Kit Yes

DIMENSIONS & WEIGHTS

Net Height_inch(mm) 33 1/16 (840)

Width 18 1/2 (470)

Depth 13 (330)

Carton Height_inch(mm) 34 7/16 (875)

Width 23 1/8 (587)

Depth 17 1/2 (444)

Net Weight_lbs.(kg) 72.8 (33)

Shippling Weight_lbs.(kg) 81.6 (37)

Stuffing Quantity (20ft/40ft/40ft High) 100/200/300

Some of functions are slightly different depending upon models.

-3-

Only for training and service purposes LGE Internal Use Only

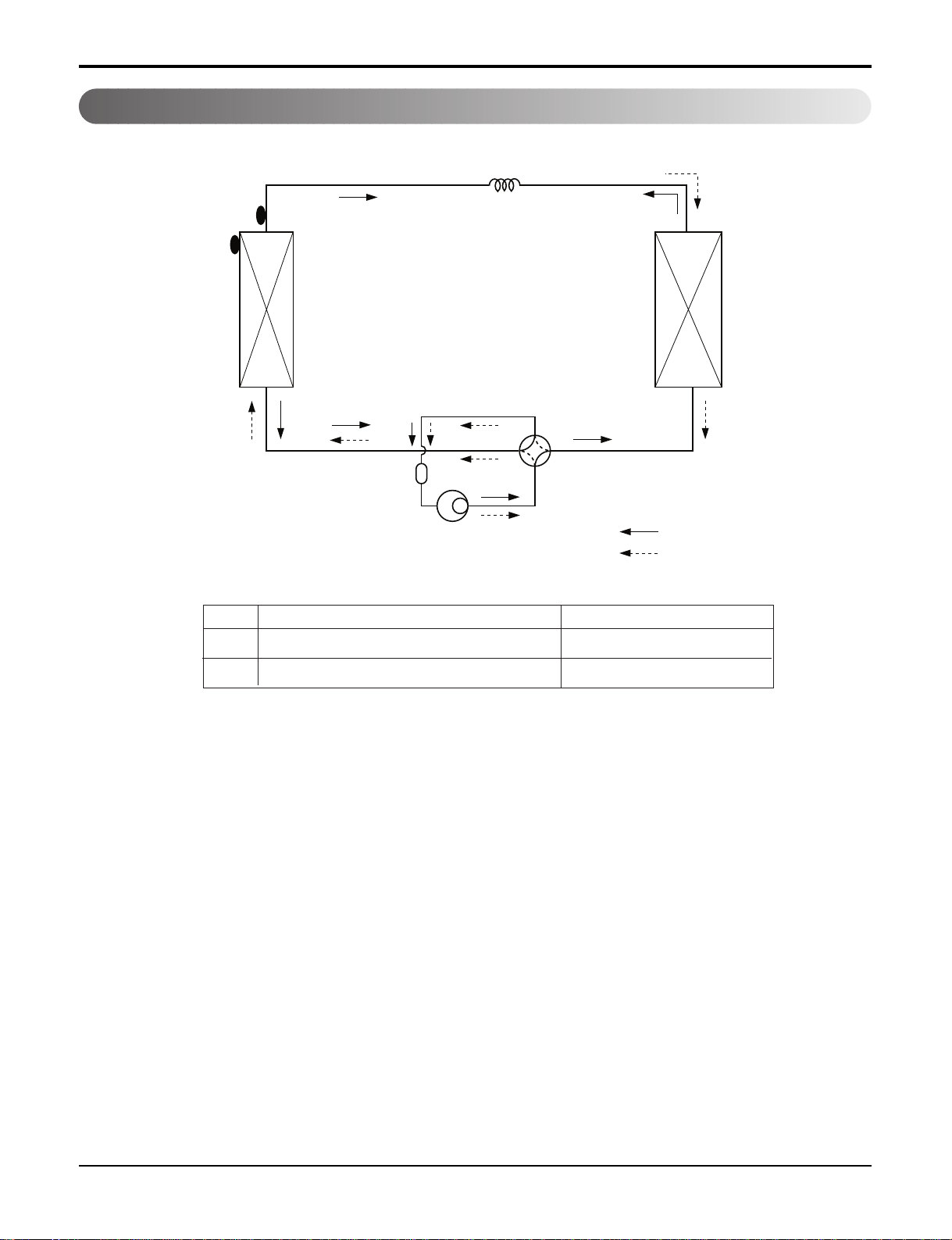

2. Piping Diagrams

LOC. Description PCB Connector

Th1 Thermistor for indoor Air temperature RT

Th2 Thermistor for evaporator temperature CN-IDPT

Heat

Exchanger

(Evaporator)

Heat

Exchanger

(Condenser)

Capi

Compressor

Accumulator

Cooling

Heating

Reversing Valve

Th2

Th1

- 4-

Only for training and service purposes LGE Internal Use Only

WIRING DIAGRAM

CN-WAT

FAN-DOWN

CN-WAT

CNWAT

CN-DISP2

CN-DISP1

3. Wiring Diagrams

249950

130410

554030

267110

354210

Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.

Please check the correct parts in View RPL(Replacement Part List) on GCSC.

(GCSC Website http://biz.Lgservice.com,)

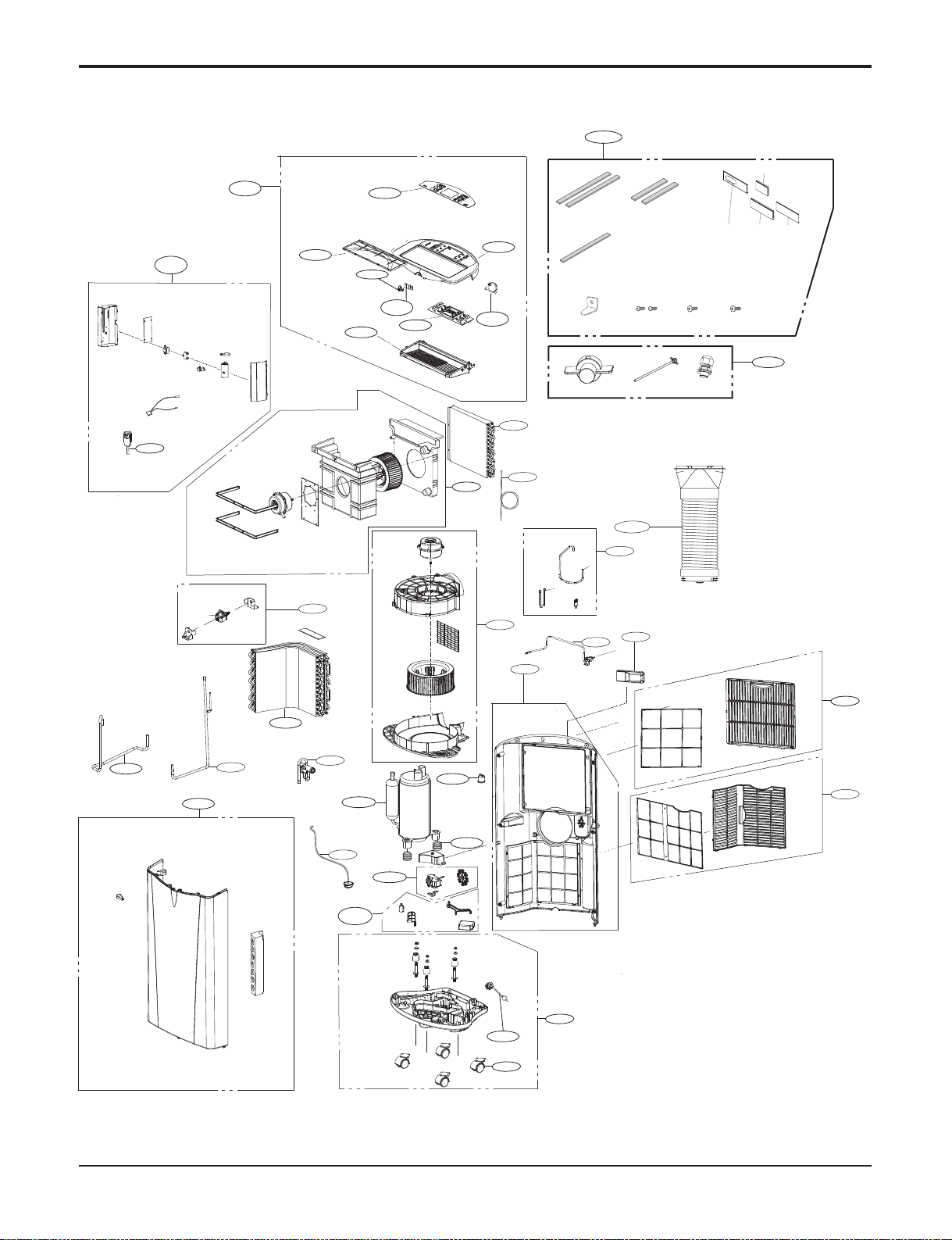

4. Exploded View

346811A

349011

346811B

435313

152302B

346811C

35211A

552113

137214

137210

152302A

352113

552202

158580

264110

422100A

422100B

567502

550140

554160

237901

267120

235512

146811

268711A

147590

238310

237203

731270B

731270A

2 Type A Screws 1 Type B Screw 1 Type C Screw

2 Type A Foam Seals

(Adhesive)

Security Bracket

1 Type B Foam Seal

(Non-adhesive)

2 Type C Foam Seals

(Adhesive type-Shorter)

Window Installation Kit (includes 1 Window

Vent Panel and 3 Extension Panels)

1 Window Vent Panel

Panel A (18’’)

3 Extension Panels

Panel C (17’’) Panel D (17’’)

Panel B (9’’)

352390

W50060A

-5-

Only for training and service purposes LGE Internal Use Only

144410

352111

Mar 2013
