OWNER’S MANUAL
CINEMA 3D TV
DM2780D
Please read this manual carefully before operating the
your set and retain it for future reference.
CINEMA 3D TV MODEL
ENGLISH
2
ENGLISH
TABLE OF CONTENTS
CONTENTS
4ASSEMBLING AND PREPARING
4Unpacking
6Parts and buttons
7Lifting and moving the TV
7Setting up the TV
7- Attaching the Stand Base
8- Detaching the Stand Base and Body
8- Mounting on a table
10 - Tidying cables
10 - Swivel stand
10 - Mounting on a wall
12 REMOTE CONTROL
14 WATCHING TV
14 Connecting an antenna or cable
14 - Connecting an antenna or basic cable
14 - Connecting with a cable box
15 Accessing the TV for the first time
16 Watching TV
16 Managing channels
16 - Setting up channels
17 - Using favorite channels
18 - Checking current program info
19 Using additional options
19 - Adjusting aspect ratio
20 - Using the input list
21 - Locking the buttons on the Monitor set
(Child Lock)
21 Using the Quick menu
22 CONNECTING TO A PC
22 HDMI connection
23 DVI to HDMI connection
23 RGB connection
24 Adjusting the screen
24 - Selecting an image mode
24 - Customizing image options
25 - Customizing PC display options
25 Adjusting the sound
25 - Selecting an sound mode
26 - Customizing sound options
27 ENTERTAINMENT
27 Using integrated media features
27 - Connecting USB storage devices
29 - Browsing files
30 - Viewing Photos
31 - Listening to Music
32 - Viewing Movies
35 - DivX registration code
35 - Deactivating the DivX feature
36 3D IMAGING(ONLY 3D MODEL)
36 3D Technology
36 Precautions to take when viewing 3D im-
ages
37 When using 3D Glasses
37 3D Imaging Viewing Range
38 Viewing 3D Imaging
39 3D Mode Setting Option
40 CUSTOMIZING SETTINGS
40 Accessing main menus
41 Customizing settings
41 - CHANNEL settings
42 - PICTURE settings
45 - AUDIO settings
46 - TIME settings
47 - OPTION settings
49 - LOCK settings
51 - INPUT settings
51 - USB settings
3
ENGLISH
TABLE OF CONTENTS
52 MAKING CONNECTIONS
52 Connection overview
54 Connecting to a Camcorder, Camera,
HD receiver, DVD, VCR player or Gaming
device
54 - HDMI connection
54 - DVI to HDMI connection
54 - Component connection
55 - Composite connection
55 Connecting to an audio system
55 - Digital optical audio connection
56 - Headphone connection
56 Connecting to a USB
57 MAINTENANCE
57 Screen and frame
57 Cabinet and stand
57 Power cord
58 TROUBLESHOOTING
58 General
59 PC mode
61 TROUBLESHOOTING WHEN
USING 3D MODE
62 SPECIFICATIONS
66 IR CODES
67 EXTERNAL CONTROL DEVICE
SETUP
67 RS-232C Setup
67 Type of connector; D-Sub 9-Pin Male
67 Communication Parameters
68 RS-232C configurations
69 Command reference list
70 Transmission / Receiving protocol
76 LICENSES
77 CHILD SAFETY
ENGLISH
4ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

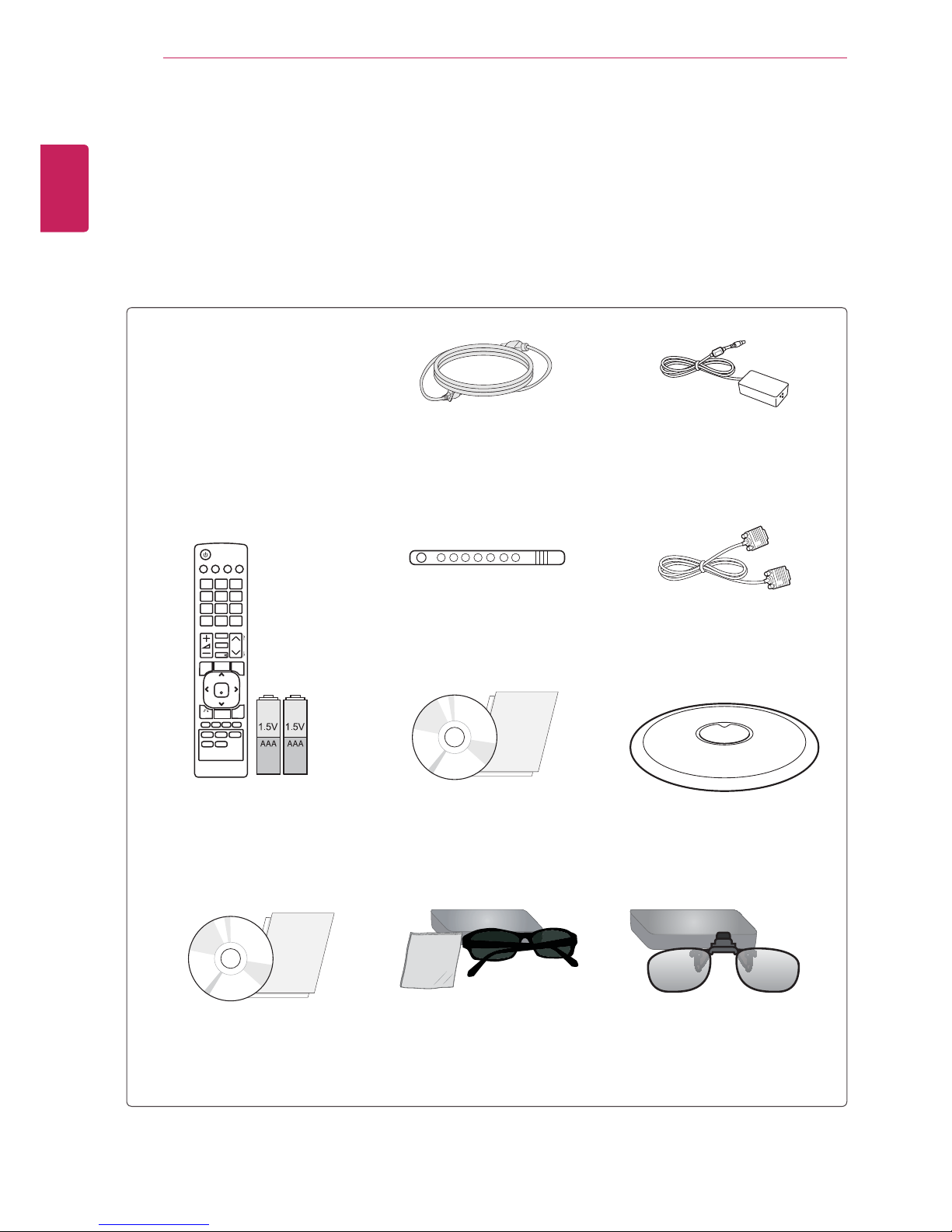

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
Remote control and Batteries Stand Base
Power Cord
Cable Tie
CD (Owner's Manual) /
Card
TriDef 3D Game Software CD /
Quick Installation Guide
3D Glasses
(Normal type)
3D Glasses
(Clip type)
AC-DC Adapter
RGB Cable
ENGLISH
5
ASSEMBLING AND PREPARING
y Do not use any pirated items to ensure the safety and product life span.
y Any damages or injuries by using pirated items are not covered by the warranty.
y The accessories supplied with your product may vary depending on the model.
y Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
CAUTION
NOTE
ENGLISH
6ASSEMBLING AND PREPARING
y You can set the Power indicator to on or off by selecting OPTION in the main menus.
NOTE

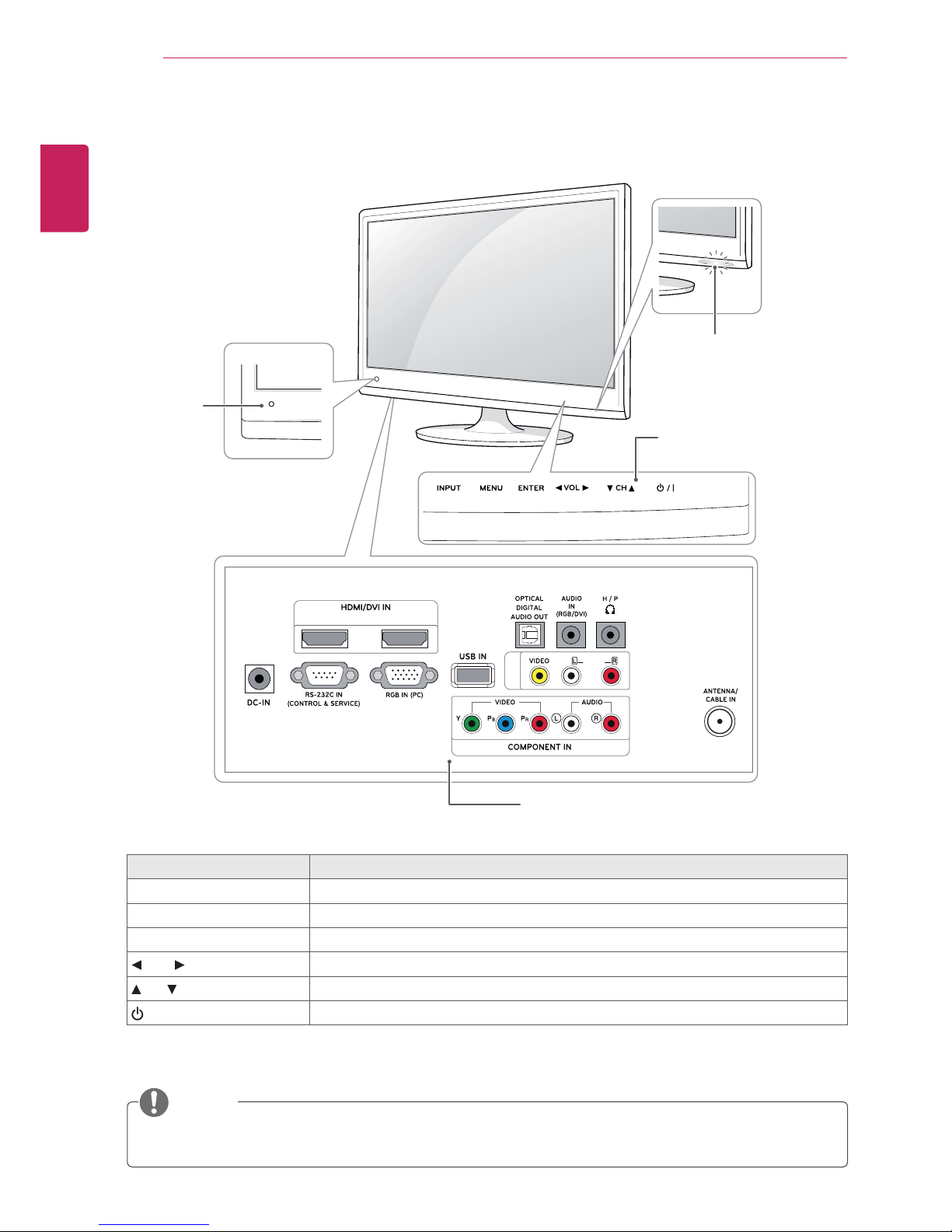

Parts and buttons
Touch button Description
INPUT Changes the input source.
MENU Accesses the main menus, or saves your input and exits the menus.
ENTER Selects the highlighted menu option or confirms an input.
VOL Adjusts the volume level.
CH Scrolls through the saved channels
/ITurns the power on or off.
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
(MONO)
12
AUDI0
AV IN
Remote
Control
Sensor
Power Indicator
y Lighting On: Turned on
y Lighting Off: Turned off
Connection panel (See p.52)
Touch Buttons
ENGLISH
7
ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Setting up the TV
Attaching the Stand Base

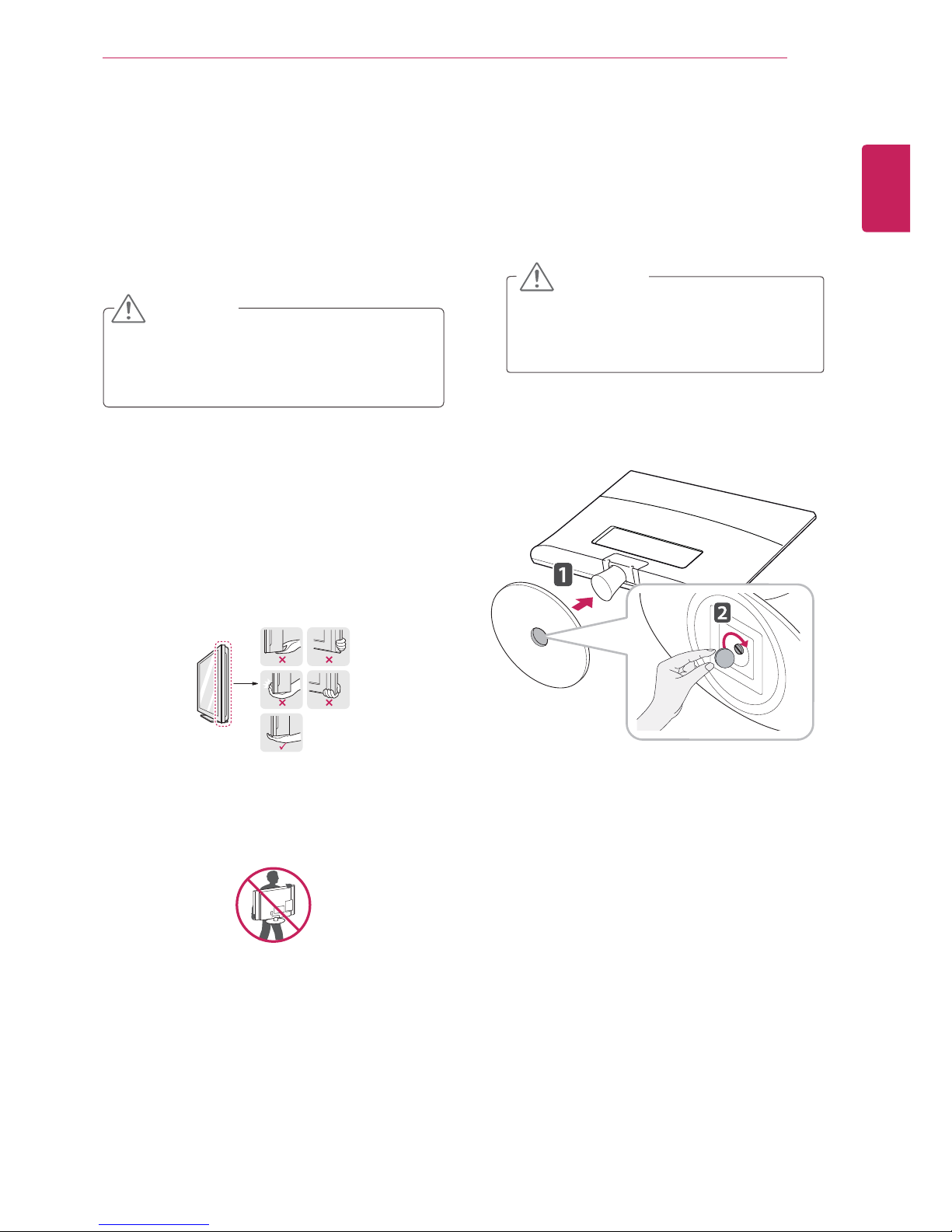

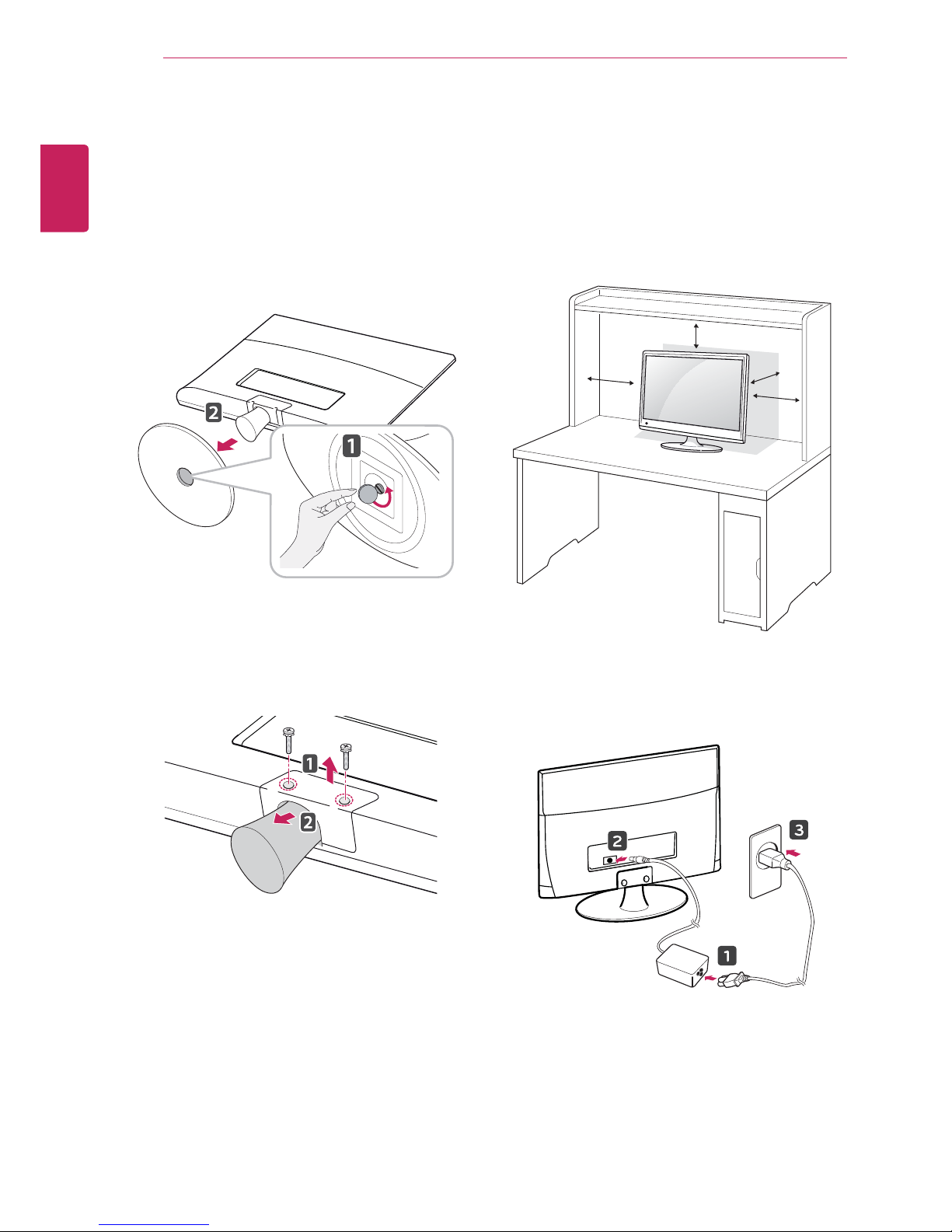

1Place the TV with the screen side down on a
flat and cushioned surface.
Avoid touching the screen at all times, as this
may result in damage to the screen or some
of the pixels used to create images.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
y It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y Before moving or lifting the TV, disconnect
the power cord and all cables.
y Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
y When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
y When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
2Attach the
Stand Base from the set by turning
the screw to the right with a Coin.
CAUTION
ENGLISH
8ASSEMBLING AND PREPARING
Detaching the Stand Base and Body
1Place the TV with the screen side down on a
flat and cushioned surface.
2Turn the screw to the left, and then pull out
the Stand Base from the Stand Body.
3Remove 2 screws and pull out the Stand Body
from the TV.
Mounting on a table
1Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2Connect the
AC-DC Adapter and Power Cord
to a wall outlet.
ENGLISH
9
ASSEMBLING AND PREPARING
When you adjust the angle, do not hold the
buttom of the TV frame as shown on the
following illustration, as may injure your
fingers.
Disconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
CAUTION

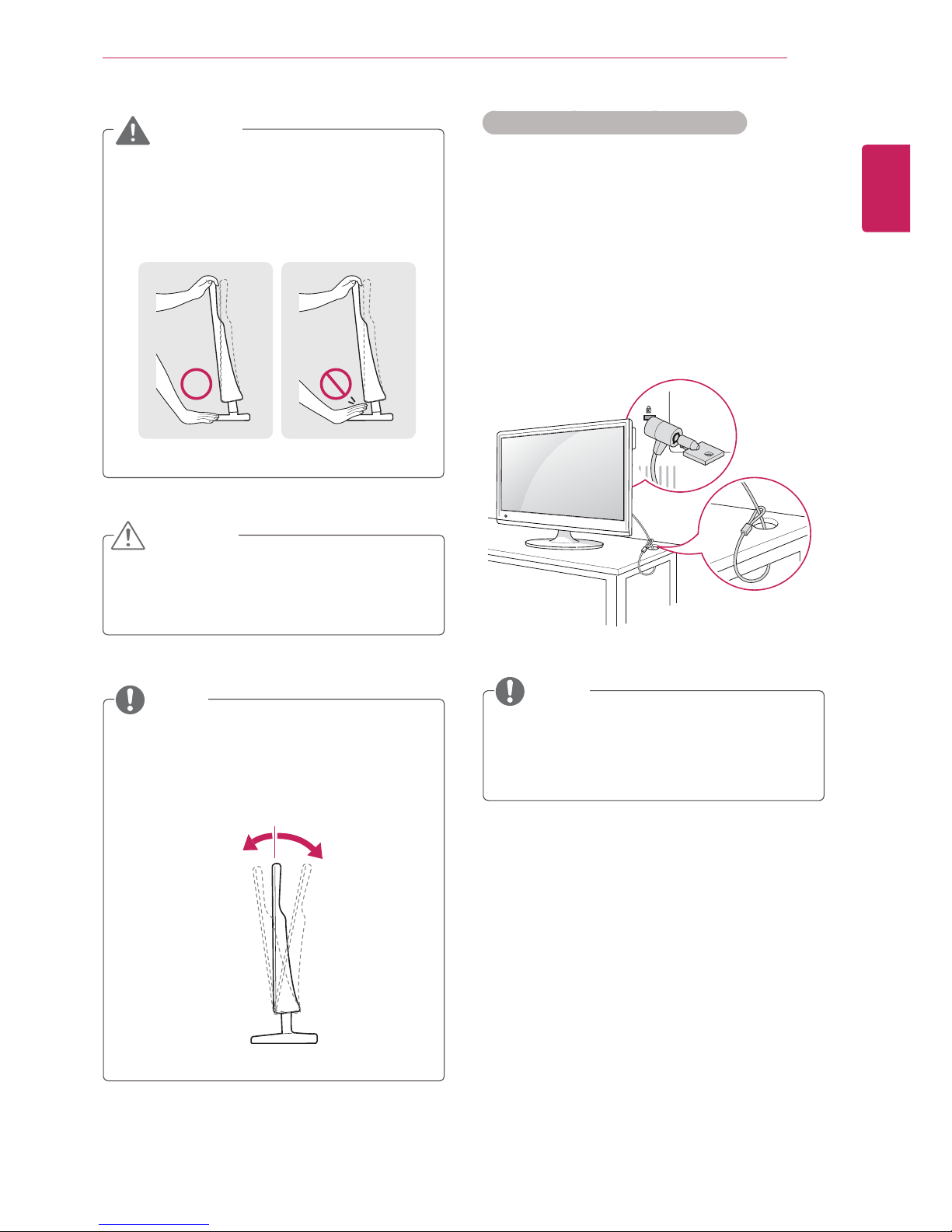

Tilt from 18 to -5 degrees up or down to adjust
the angle of the TV to suit your view
NOTE
Front Rear
18°-5°
Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
WARNING
