LF Illumination VF100 Series Manuel utilisateur

Butterﬂy Mounting (Commercial):

Step 1. Fixture comes equipped with Universal BUTTERFLY

MOUNTING BRACKETS and take common 1” or 1-1/2” Black

Iron or Galvanized MOUNTING CHANNELS (Supplied By Others).

Step 2. POSITION FIXTURE so the MOUNTING CHANNELS lie on

top of ceiling runners.

Step 3. Fasten MOUNTING CHANNELS securely to the ceiling

runners with wire tie downs.

Step 4. Secure MOUNTING CHANNELS to the UNIVERSAL

BUTTERFLY MOUNTING BRACKETS with wire tire downs.

Step 5. ADJUST ELEVATION OF FIXTURE so that the surface of

the PERFORATED HOUSING PLATE SITS FLUSH with the top of

the ﬁnished ceiling surface. Fine adjustments can be made by

loosening the two (2) 1/4” HEX SCREWS on both UNIVERSAL

BUTTERFLY MOUNTING BRACKETS and set accordingly Fig 1.

See FINE CEILING ADJUSTMENT

Fig 4

VF100 Series Mini and Small

SQUARE TRIMMED FIXTURE

INSTALLATION INSTRUCTIONS

* Risk of ﬁre or electric shock.

* Disconnect all power before installing or servicing.

* Installation Instructions for qualiﬁed electricians only.

* Install per National Electrical Code and local regulations.

* Read Installation Instructions completely before installation.

* Failure to follow Installation Instructions may void warranties.

THIS PRODUCT MUST BE INSTALLED IN

ACCORDANCE WITH THE APPLICABLE

INSTALLATION CODE BY A PERSON

FAMILIAR WITH THE CONSTRUCTION AND

OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

C US

Warnings:

It is IMPORTANT TO READ instruction sheet completely before installation

Joist Installation:

Includes Heavy-Duty L-Bars™ hanger bar system LF# LBARS4PK

Step 1. Extend HANGER BARS to ﬁt between joist and

attach to joist or frame member using appropriate hardware for

material. See Fig 2, Detail 2A.

Step 2. ADJUST ELEVATION OF FIXTURE so that the surface of

the PERFORATED HOUSING PLATE SITS FLUSH with the top of

the ﬁnished ceiling surface. See Fig 1.

Step 3. Position housing horizontally by sliding on hanger bars.

Secure housing in position using wire tie downs. See Fig 2.

Pre-Installation Note: The trim and housing are packaged and shipped in separate cartons. Set the trim unit aside in a clean

and undamaging environment. The trim unit will be put in place after housing / ceiling installation. For joist installations or where wiring

access to housing is limited, it is advised to pre-wire the housing with leads before installation.

Alternate Mounting

Suspension Tabs

Mounting

Channel

(By others)

Universal Butterﬂy

Mounting Bracket

(2) 1/4” Hex Screw

Trim Collar

Perforated

Plaster Frame

Finished

Ceiling Surface

FIGURE 1

Hanger Bars

Detail 2A

Adjustable

Plaster Frame with

Breakaway Feature

Breakaway Plaster Frame Length

for Closer Edge Positioning

Alternate Mounting

Suspension Tabs

Joist Joist

FIGURE 2

VF100 Series

SQUARE TRIMMED FIXTURE

Added Feature

45° Rotatable

Trim

Connection

Power Supply

Line

Round Trim w/Snap-in

Spring Loaded Ball Plungers

Trim Safety Cable

Housing Safety Cable

Square Trim Housing

Square Rotatable

Collar Plate

Suspension tabs

TRIMMED INSTALLATION ASSEMBLY

INSTALLATION INSTRUCTIONS

FIGURE 5

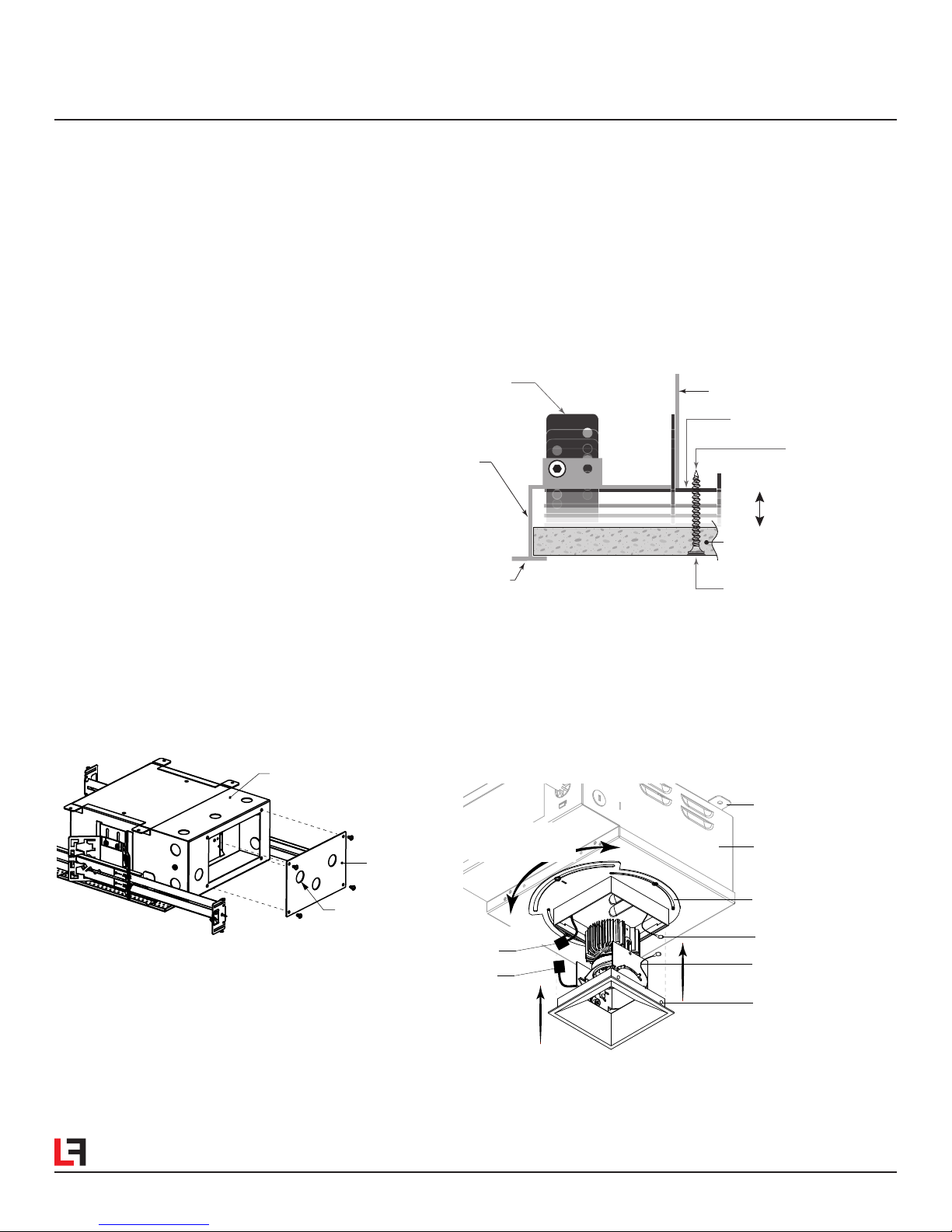

FINE CEILING ADJUSTMENT

FIGURE 4

1/2”

5/8”

3/4”

1”

Four

locking

height

positions

Trim

Aperture

Wall

Housing

Adjustable

Plaster Frame

Drywall screw.

Only use screw if

adjustable plaster frame

is set to proper height.

Adjustable

Frame Tabs

Drywall Ceiling

Patch over screw head.

CEILING INSTALLATION:

Step 1. PLASTER FRAME

FINE CEILING ADJUSTMENT accommodates

for 1/2”, 5/8”, 3/4” and 1” ceiling thickness. See Fig 4.

Step 2. CUT A CLEAN SQUARE OPENING in the CEILING MATERIAL to

ﬁt the trim collar. Install the ceiling material below housing as shown in

Fig 1. Ceiling Cut-Out - 4.25” Square.

ELECTRICAL CONNECTION:

The housing features an easy access electrical compartment

for simpliﬁed ﬁeld wiring installation.

DO NOT modify the factory wiring settings as it may cause

the luminaire to malfunction.

Notes: The cover panel knockouts will accept 3/4˝ trade size

ﬁttings. Review ﬁxture labeling to make sure it is rated for the

voltage installation being used.

Step 1. Provide electrical service according to the “National

Electrical Code” or your local electrical regulations from a

suitable junction box. Supply wire insulation must be rated for

at least 90°C.

Step 2. Remove electrical compartment cover panel Fig 3.

Step 3. Remove appropriate knockout and connect conduit

with proper connector (not included).

Step 4. 120V or 277V AC Supply: Connect white to white,

black to black and green (from electrical service) to the green

copper wire located in the junction box. Make sure no bare

wires are exposed outside wire connectors.

Step 5. Place all connections and excess wiring into the

electrical compartment and reattach cover panel Fig 3.

FIGURE 3

Electrical Compartment

Power Supply

Cover

Panel

Knockouts

ELECTRICAL COMPARTMENT

FIGURE 3

It is IMPORTANT TO READ instruction sheet completely before installation

FIXED

ADJUSTABLE

FIXED SHOWER

WALL WASH

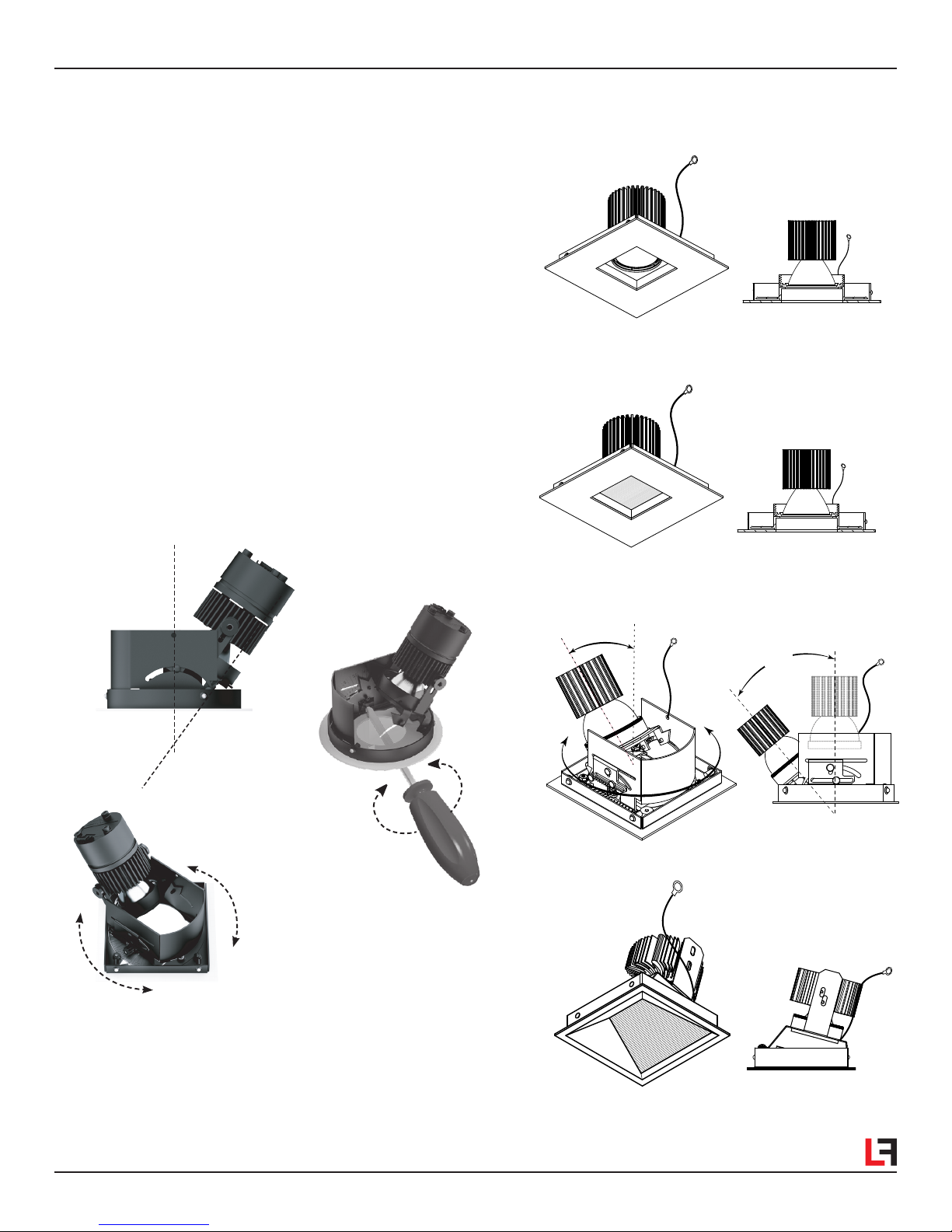

TRIMMED FIXTURE APPLICATIONS:

Tilt

TRIM INSTALLATION - FASTENING TO COLLAR:

Step 1.

FOR ALL TRIM APPLICATIONS. Secure safety cable on

the trimmed ﬁxture to the safety cable in the housing using the

clasp provided.

Step 2.

Connect the power supply line from the housing to the

trim using connections provided.

Step 3.

Push the trim into the housing collar. The spring loaded

ball plungers will snap into place See Fig 5.

ADJUSTABLE HOT AIMING

The VF100 adjustable ﬁxtures are offered in trim or trimless versions.

The ﬂat trims can adjust from 0° to 40° while the beveled may be

adjusted from 0° to 45°. Both styles include HOT AIMING capability to

enable the ﬁxture to be aimed with an ordinary Phillips screwdriver

while it is powered on Fig 6.

0º - 40º

Flat Trims

360º+ Locking

Rotationon

Square Fixtures

0º - 45º

Beveled Trims

Place screwdriver in through the apperture.

Turn the adjusting screw located on the

inner sidewall to desired aiming position.

Hot Aiming with

Phillips screwdriver

Both Round & Square

Apertures

See back panel for LED WARNINGS

FIGURE 6

It is IMPORTANT TO READ instruction sheet completely before installation

www.lfillumination.com

HEADQUARTERS

9200 Deering Avenue

Chatsworth CA 91311

Telephone: 818-885-1335

Toll Free: 855-885-1335

Fax: 818-576-1335

We reserve the right to change or

withdraw specifications without prior notice. VFS-1BA-T 111517

VF100 Series

SQUARE TRIMMED FIXTURE

LED WARNING:

LED’s are sensitive electronic components and cannot be

subjected to the excessive dust present during the

construction process. Under no circumstances should the

LED luminaires be used as work lights during the

construction process as this will cause irreparably damage

to LED.

Only compressed air may be used to blow the dust from

the components. The LED and heatsink may not be cleaned

with any sort of a liquid or solvent. The COB array may

not be touched or dusted. LEDs are ESD (Electro Static

Discharge) sensitive devices that can be easily damaged

if the proper ESD mitigating steps are not taken. LEDs are

sensitive to mechanical damage, caution must be taken to

avoid touching the LEDs. ESD or mechanical damage voids

all warranties.

CAUTION:

ALL WORK MUST BE DONE WITH CIRCUIT OFF AND

COMPONENTS SHOULD NOT BE INSTALLED WHEN

ENERGIZED.

It is IMPORTANT TO READ instruction sheet completely before installation
