OptraImage 725 Parts Catalog

4036–205

• Notices and Safety Information

•PartsCatalog

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

• Manuals Menu

Edition: May 2001

The following paragraph does not apply to any country where such

provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC.

PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply

to you.

This publication could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in later editions. Improvements or changes in the products or the

programs described may be made at any time.

Comments may be addressed to Lexmark International, Inc., Department D22A/

032-2, 740 West New Circle Road, Lexington, Kentucky 40550, U.S.A or e-mail at

ServiceInfoAndTraining@Lexmark.com. Lexmark may use or distribute any of the

information you supply in any way it believes appropriate without incurring any

obligation to you. You can purchase additional copies of publications related to this

product by calling 1-800-553-9727. In other countries, contact your point of

purchase.

Lexmark, Optra,and Lexmark with diamond design, are trademarks of Lexmark

International, Inc., registered in the United States and/or other countries.

OptraImage is a trademark of Lexmark International, Inc.

PostScript is a registered trademark of Adobe Systems Incorporated.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth

in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark

International, Inc., Lexington, KY 40550. U.S.A.

U.S.A. P/N 12G9077 Service Manual P/N 12G9076

Group Reorder P/N 12G9075

4036–205 Parts Catalog 3

Notices and Safety Information

Safety Information

•This product is designed, tested and approved to meet strict

global safety standards with the use of specific Lexmark

components. The safety features of some parts may not always

be obvious. Lexmark is not responsible for the use of other

replacement parts.

•The maintenance information for this product has been prepared

for use by a professional service person and is not intended to be

used by others.

•There may be an increased risk of electric shock and personal

injury during disassembly and servicing of this product.

Professional service personnel should understand this and take

necessary precautions.

Consignes de Sécurité

•Ce produit a étéconçu, testéet approuvépour respecter les

normes strictes de sécuritéglobale lors de l'utilisation de

composants Lexmark spécifiques. Les caractéristiques de

sécuritéde certains éléments ne sont pas toujours évidentes.

Lexmark ne peut être tenu responsable de l'utilisation d'autres

pièces de rechange.

•Les consignes d'entretien et de réparation de ce produit

s'adressent uniquement àun personnel de maintenance qualifié.

•Le démontage et l'entretien de ce produit pouvant présenter

certains risques électriques, le personnel d'entretien qualifié

devra prendre toutes les précautions nécessaires.

Norme di sicurezza

•Il prodotto èstato progettato, testato e approvato in conformitàa

severi standard di sicurezza e per l’utilizzo con componenti

Lexmark specifici. Le caratteristiche di sicurezza di alcune parti

non sempre sono di immediata comprensione. Lexmark non è

responsabile per l’utilizzo di parti di ricambio di altri produttori.

•Le informazioni riguardanti la manutenzione di questo prodotto

sono indirizzate soltanto al personale di assistenza autorizzato.

•Durante lo smontaggio e la manutenzione di questo prodotto, il

rischio di subire scosse elettriche e danni alla persona èpiù

elevato. Il personale di assistenza autorizzato, deve, quindi,

adottare le precauzioni necessarie.

Sicherheitshinweise

•Dieses Produkt und die zugehörigen Komponenten wurden

entworfen und getestet, um beim Einsatz die weltweit gültigen

Sicherheitsanforderungen zu erfüllen. Die sicherheitsrelevanten

Funktionen der Bauteile und Optionen sind nicht immer

offensichtlich. Sofern Teile eingesetzt werden, die nicht von

Lexmark sind, wird von Lexmark keinerlei Verantwortung oder

Haftung für dieses Produkt übernommen.

•Die Wartungsinformationen für dieses Produkt sind ausschließlich

für die Verwendung durch einen Wartungsfachmann bestimmt.

•Während des Auseinandernehmens und der Wartung des Geräts

besteht ein zusätzliches Risiko eines elektrischen Schlags und

körperlicher Verletzung. Das zuständige Fachpersonal sollte

entsprechende Vorsichtsmaßnahmen treffen.

4036–205 Parts Catalog 4

General Information

The Lexmark™OptraImage™725 is a high speed, multifunction

scanner option that adds convenient, full function, copy, fax and

network scan capabilities to the Lexmark Optra™W810 printer.

Features

•33 ppm monochrome scanner unit with single–pass duplex input

•Automatic document feeder with single–pass duplex

•Flatbed scanning

•Accepts documents up to A3/11 x 17 inch

This parts catalog assists in identifying Lexmark serviceable parts for

the OptraImage 725 scanner. Use this document as a supplement to

the manufacturer’s service manual.

4036–205 Parts Catalog 5

Parts Catalog

Preface

Use this parts catalog to identify illustrations and part numbers for

individual FRUs for the OptraImage 725.

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the other

of the assemblies are listed separately and identified by

description.

•NS: (Not Shown) in the Asm-Index column indicates that the part

is procurable but is not pictured in the illustration.

Parts Catalog 6

Assembly 1: Covers

4036–205 Parts Catalog 7

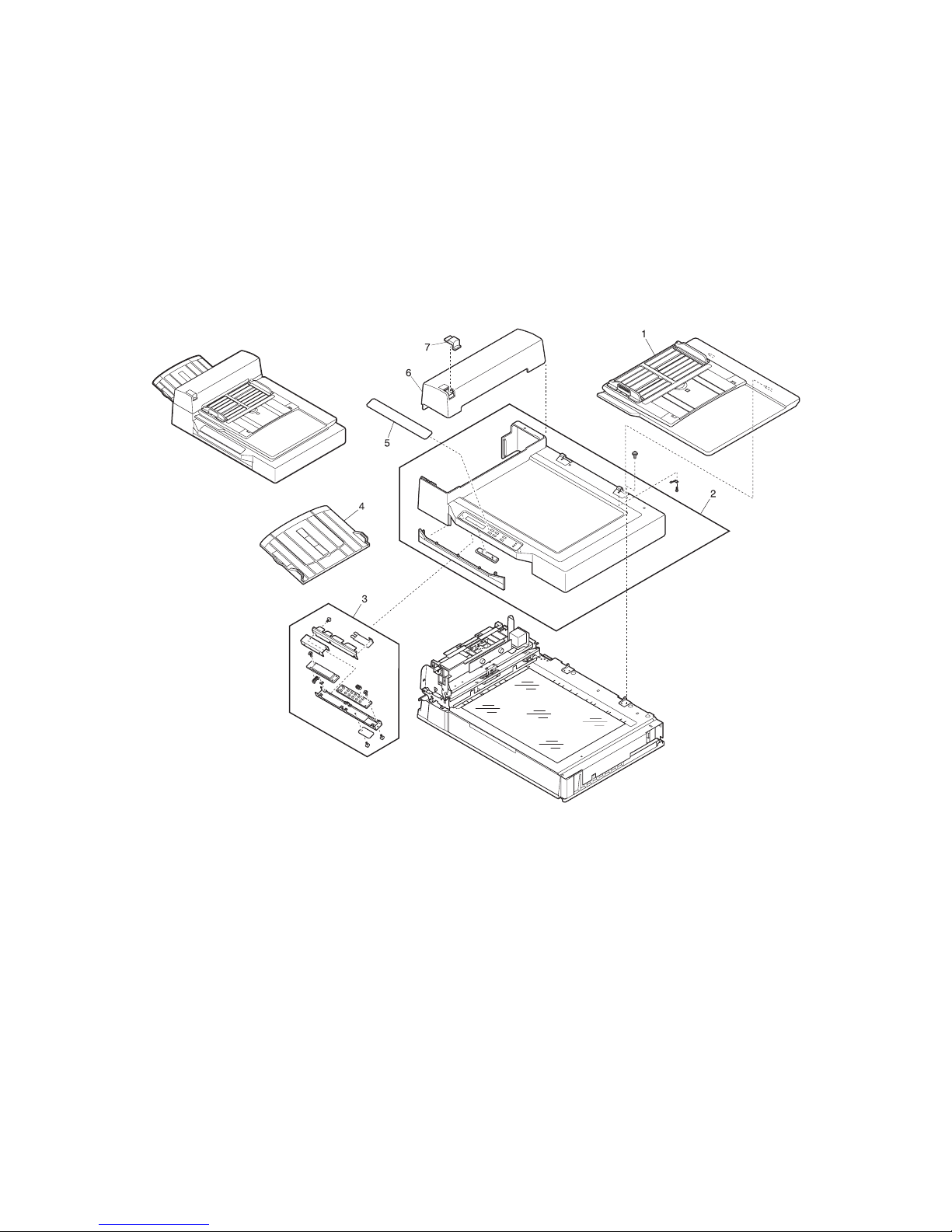

Assembly 1: Covers

Asm-

Index Part

Number Units Description

1–1 12G6197 1 Lid Assembly, Flatbed Scanner

2 12G6283 1 Cover Assembly, Upper

3 12G6196 1 Panel Assembly, Operator

4 12G1837 1 Stacker, Paper Exit

5 12G6281 1 Cover, Operator Panel Stick–On

6 12G6285 1 Cover, ADF

7 12G6286 1 Button, ADF Cover Release

Parts Catalog 8

Assembly 2: Upper Flatbed

4036–205 Parts Catalog 9

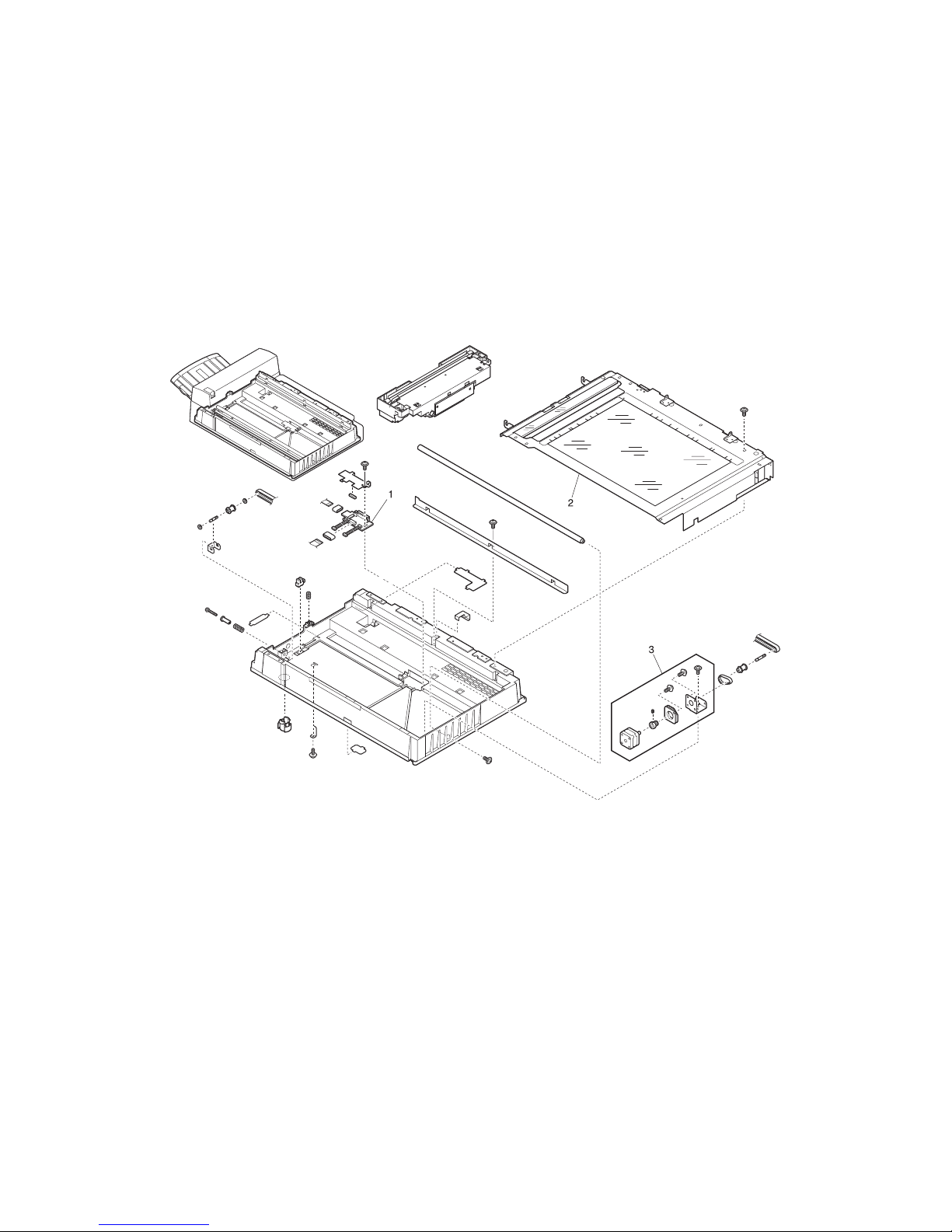

Assembly 2: Upper Flatbed

Asm-

Index Part

Number Units Description

1–1 12G6195 1 Card Assembly, Junction

2 12G6995 1 Cover, Glass

3 12G6275 1 Motor Assembly, Carrier

Parts Catalog 10

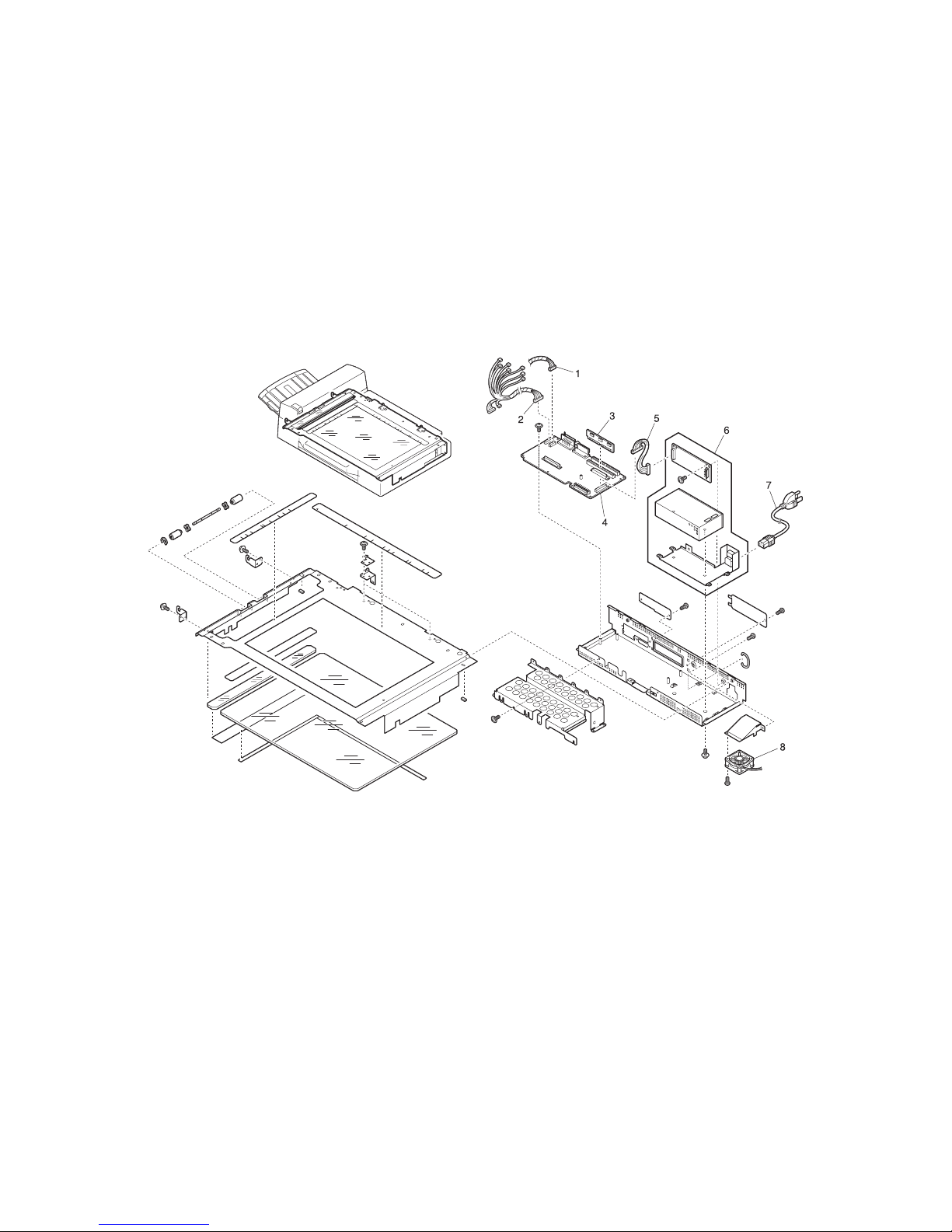

Assembly 3: Electronics
