Lexar MULTI-CARD 24-IN-1 READER Manuel utilisateur

MULTI-CARD 24-IN-1

READER

SDHC / MMC xD

CF MS

Duo

micro SD

QUICK START GUIDE

The Lexar®Multi-Card 24-in-1 USB Reader is an easy-to-use, all-in-one ﬁle

transfer solution. The reader has an innovative pop-up design, supports multiple

memory card formats,* and has the ability to support concurrent downloads and

card-to-card ﬁle transfer.

Product highlights:

•Extremely versatile—reads 24 popular memory card formats*

•Enables concurrent downloads and card-to-card ﬁle transfer

•Pop-up design protects card slots

•Quickly and easily transfer photos, videos, music, and ﬁles

•Includes USB cable—no external power supply needed

•One-year limited warranty

This Quick Start Guide explains how to set up, connect, and use the Lexar Multi-

Card 24-in-1 USB Reader.

Package Contents

•

Lexar Multi-Card 24-in-1 USB Reader

•

USB 2.0 Cable

•

Reader operation instructions

Connection

•USB 2.0

System Memory Requirements

•Windows®XP/Windows Vista®/Windows 7

•

Mac OS® X 10.4 and up

SDHC / MMC xD

CF MS

Duo

micro SD

A Quick Look at the Reader

Release button

LED activity light

Mini USB port

SDHC/MMC

miniSD

M2/MS Duo

CompactFlash

One-push, pop-up design—

protects card slots when not in use

Connecting the Reader

The Lexar Multi-Card 24-in-1 Reader has a plug-and-play design, with no driver

installation needed.

To connect the reader, simply follow these steps:

- Remove cable and reader from the box

- Locate the mini USB port on the back of the reader and

insert the USB cable into the reader as illustrated above

- Locate the USB port on your desktop or laptop and

connect the USB cable into the port

To open the reader, locate the release button on each

side of the reader and push simultaneously. The reader

will pop open.

Note: Windows XP Network users

If your laptop or desktop is linked to a work or home network with multiple drives, your

system may not detect all 5 reader slots. If that’s the case, follow the instructions below:

- On your desktop screen, right click on MY COMPUTER and select MANAGE

- Select DISK MANAGEMENT from the menu located on the left hand side of your screen

- Locate and select your REMOVABLE DRIVE (reader slot), then right click

- Select CHANGE DRIVE LETTER AND PATH and select CHANGE

- On the right side, you will see a drop-down menu with a letter. Click on the drop-down

arrow, select a new letter for your REMOVABLE DRIVE (reader slot), and click OK

Repeat the above process for each undetected reader slot.

To Remove Cards:

To remove a card from the reader, eject the card in the same manner you would a

disk drive from your computer:

•

PC: Click on the SAFELY REMOVE HARDWARE icon on the toolbar

•Mac: Drag the REMOVABLE DRIVE icon to the recycle bin

After the blue LED activity light stops blinking, it is safe to remove the card.

WARNING: Do not remove the card from the reader when the LED activity light is

blinking or you may lose data or damage the card.

SDHC / MMC xD

CF MS

Duo

micro SD

LED Activity Light

The LED activity light was speciﬁcally designed to safeguard the ﬁles stored on

your memory card, preventing interrupted ﬁle transfer, and reducing the risk

of data loss or card damage. The light acts as a status indicator to help ensure

proper use of the reader.

LED Indicators:

LED off: The reader is plugged into the computer but does not have a

card inserted.

LED on: The reader is plugged into the computer with card(s) inside the reader

LED blinks continuously: The reader is transferring data between memory cards

in different slots, or memory card and computer. Once the LED stops blinking,

the data transfer is complete.

SDHC / MMC

micro SD

Lexar Customer Support Options

FAQ:

Please visit the FAQ section at www.lexar.com/support to ﬁnd answers to com-

monly asked questions.

Live Support:

Click on the “Click to Chat Live” link at www.lexar.com/support/index.html to

start a live chat 24 hours a day, 7 days a week.

Email:

E-Mail us at support@lexar.com with your contact information, product details,

and a description of your problem.

Phone:

Phone support is available during regular business hours, 7 a.m. to 5 p.m. PST,

Monday through Friday.

North America: 1-510-413-1233, (510) 413-1275

UK: +44 1-483-797-788

*Reads the following types of memory cards: CompactFlash® Type I and Type II, SD™,

SDHC™, miniSD™, miniSDHC™, MMC™, MMCplus™, RS-MMC™, microSD™, microS-

DHC™, M2™, Memory Stick™, Memory Stick (with MagicGate™), Memory Stick PRO™,

Memory Stick PRO Duo™, Memory Stick Duo (with MagicGate), Memory Stick PRO Duo

Mark 2, Memory Stick PRO-HG Duo™, Memory Stick PRO-HG Duo “HX”, xD-Picture

Card™, xD-Picture Card Type-M, xD-Picture Card Type-M+, and xD-Picture Card Type-H.

Lexar, the Lexar logo, and When Memory Matters are trademarks of Lexar Media, Inc. Mac

OS is a trademark of Apple, Inc., registered in the U.S. and other countries. Windows and

Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the Unit-

ed States and other countries. All other trademarks or registered trademarks are the property

of their respective owners. Lexar Media, Inc. is a subsidiary of Micron Technology, Inc.

Autres manuels pour MULTI-CARD 24-IN-1 READER

Table des matières

Autres manuels Lexar Lecteur de cartes

Lexar

Lexar MULTI-CARD 24-IN-1 READER Manuel utilisateur

Lexar

Lexar USB 3.0 Dual-Slot Reader Manuel utilisateur

Lexar

Lexar FIREWIRE 800 READER - DATASHEET REV A Manuel utilisateur

Lexar

Lexar USB 2.0 COMPACTFLASH READER - QUICK START GUIDE REV... Manuel utilisateur

Lexar

Lexar RW022 Manuel utilisateur

Lexar

Lexar PROFESSIONAL EXPRESSCARD COMPACTFLASH READER - REV... Manuel utilisateur

Lexar

Lexar MULTI-CARD 24-IN-1 READER Manuel utilisateur

Lexar

Lexar DUAL-SLOT USB READER - DATASHEET REV B Manuel utilisateur

Lexar

Lexar MOBILE USB CARD READER - DATASHEET REV A Manuel utilisateur

Lexar

Lexar MULTI-CARD 25-IN-1 Manuel utilisateur

Lexar

Lexar MEDIAMOVE Manuel utilisateur

Lexar

Lexar USB 3.0 Dual-Slot Reader Manuel utilisateur

Lexar

Lexar USB 3.0 Dual-Slot Reader Manuel utilisateur

Lexar

Lexar MULTI-CARD READER - QUICK START GUIDE REV A Manuel utilisateur

Lexar

Lexar USB CompactFlash Reader Manuel utilisateur

Lexar

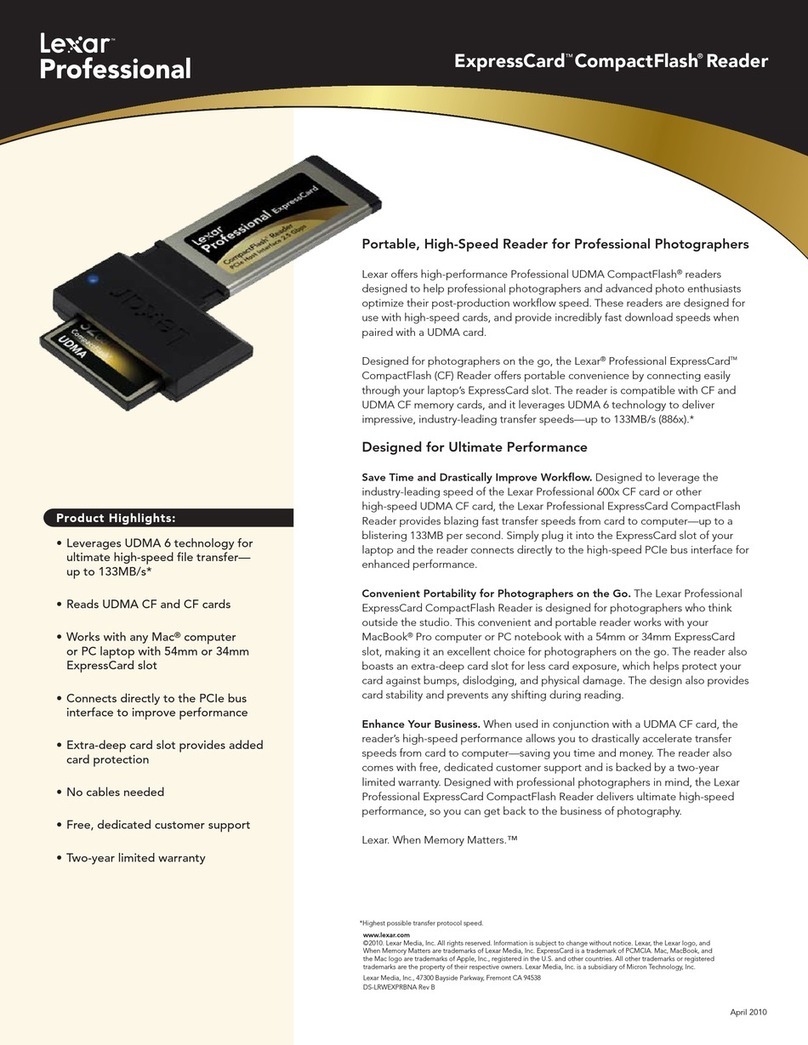

Lexar EXPRESSCARD COMPACT FLASH READER - DATASHEET REV... Manuel utilisateur
