Lex Computech 2I260D Manuel utilisateur
2I260D
Cedarview-M N2600 + NM10 / DDR3 800 MHz /
HDMI / LAN / Audio / USB / PCIe mini card
NO. 2I260D
Release date: August . 22 . 2013
All-In-One
Intel Cedarview-M N2600, 1.6GHz
VGA, HDMI, PCIe mini card
Multi-LAN Board, Audio, USB, SATA, COM
i
Contents
7
9
10
10
11
1
2
4
5
6
12
15
16
14
23
22
19
24
21
26
25
19
17
17
13
29
35
35
35
36
39
37
37
31
38
21
38
39
2I260D
Warning!...........................................................................................................................
Hardware Notice Guide .............................................................................................
CHAPTER 1 GENERAL INFORMATION ........................................................................
1-1 MAJOR FEATURE........................................................................................................
1-2 SPECIFICATION ..........................................................................................................
1-3 INSTALLING THE MINI PCI-E CARD ..........................................................................
1-4 PACKING LIST..............................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ...................................................................
2-1 UNPACKING PRECAUTION .......................................................................................
2-2 UNPACKING CHECKUP .............................................................................................
2-3 DIMENSION-2I260D ....................................................................................................
2-4 LAYOUT-2I260D ...........................................................................................................
2-5 DIAGRAM-2I260D ........................................................................................................
2-5-1 BOTTOM SIDE DIAGRAM-2I260D ...........................................................................
2-6 LIST OF JUMPERS ......................................................................................................
2-7 JUMPER SETTING DESCRIPTION ............................................................................
2-8 CMOS DATA SET .........................................................................................................
CHAPTER 3 CONNECTION ........................................................................................
3-1 LIST OF CONNECTORS ...........................................................................................
3-2 AUDIO PORT .............................................................................................................
3-3 GRAPHIC / VIDEO PORT CONNECTOR ..................................................................
3-4 COM PORT .................................................................................................................
3-5 FRONT PANEL CONNECTOR ...................................................................................
3-6 DIGITAL INPUT / OUTPUT / WATCH DOG TIME ......................................................
3-6-1 IO DEVICE: F75111 UNDER DOS ..........................................................................
3-6-2 IO DEVICE: F75111 UNDER WINDOWS ................................................................
3-6-3 IO DEVICE: F75111 VB6 UNDER WINDOWS ........................................................
3-6-4 IO DEVICE: F75111 UNDER LINUX ........................................................................
3-7 I C BUS INTERFACE ..................................................................................................
3-8 DC-IN POWER CONNECTOR ...................................................................................
3-9 CMOS BATTERY CONNECTOR ................................................................................
3-10 LAN PORT .................................................................................................................
3-11 USB PORT ................................................................................................................
3-12 DC+5/+12V VOLTAGE OUTPUT CONNECTOR .....................................................
3-13 SATA INTERFACE ....................................................................................................
3-14 MINI AND SIM CARD ...............................................................................................
CHAPTER 4 INTRODUCTION OF BIOS......................................................................
4-1 ENTER SETUP ..........................................................................................................
2
ii
4-2 GETTING HELP .........................................................................................................
4-3 THE MAIN MENU .......................................................................................................
4-4 STANDARD CMOS FEATURES ................................................................................
4-5 ADVANCED BIOS FEATURES ..................................................................................
4-5-1 HARD DISK BOOT PRIORITY ................................................................................
4-5-2 USB BOOT PRIORITY ............................................................................................
4-6 ADVANCED CHIPSET FEATURES ...........................................................................
4-6-1 PCI EXPRESS ROOT PORT FUNC .......................................................................
4-7 INTEGRATED PERIPHERALS ..................................................................................
4-7-1 OnCHIP IDE DEVICE ............................................................................................
4-7-2 SUPER IO DEVICE .................................................................................................
4-7-3 USB DEVICE FUNCTION .......................................................................................
4-8 POWER MANAGEMENT SETUP ..............................................................................
4-8-1 PCI EXPRESS PM FUNCTION ...............................................................................
4-9 PNP/PCI CONFIGURATION SETUP ..........................................................................
4-9-1 IRQ RESOURCES ...................................................................................................
4-10 PC HEALTH STATUS ................................................................................................
4-11 LOAD OPTIMIZED DEFAULTS ................................................................................
4-12 SET SUPERVISOR / USER PASSWORD ...............................................................
CHAPTER 5 DRIVER INSTALLATION........................................................................
5-1 INF INSTALL INTEL CEDARVIEW CHIPSET DRIVER ..............................................
5-2 VGA INSTALL INTEL CEDARVIEW VGADRIVER ....................................................
5-3 SOUND INSTALL VIA HD AUDIO CODEC DRIVER ..................................................
5-4 HOW TO UPDATE BIOS ............................................................................................
APPENDIX A: POWER CONSUMPTION TEST................................................................
APPENDIX B: RESOLUTION LIST ..................................................................................
42
48
40
40
43
45
45
46
49
48
52
47
53
51
50
65
60
62
66
54
55
54
58
64
56
55
Copyright
Trademarks
This manual is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality, and reliability. The author assumes no responsibility for any errors or omissions,
which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark ofAward Software, Inc.
All other trademarks, products and or product's name mentioned here are for
identification purposes only, and may be trademarks and/or registered trademarks
of their respective companies or owners.
c Copyright 2013
All Rights Reserved.
User Manual edition 0.1,August . 22. 2013
1
1. Battery
Battery on board is consumables. We doesn’t guarantee the life time of it.
2. Fanless solution with HDD
Please be aware of specification & limitation for HDD when fanless solution
is implemented.
3. We will not give further notification if there is any change about the product
information and the manual.
4. SATA does not support Hot SWAP.
5. There would be 20% difference of WDT at room temperature.
6. Please make sure the voltage specification meet the requirement
of the equipment before plugging into the power.
7. SSD has 2 types, commercial grade and industrial grade, which provide
different read/write speed, operation temperature and life cycle.
Please contact sales for further information before ordering.
8. Caution ! Please notice that the heat dissipation problem could cause the
MB system unstable. Please handle the heat dissipation properly when
buying single MB.
9. Please avoid to approach the heat sink area and prevent being scalded when
using the Fanless products.
10. If the users repair, modify or destroy any component of product
unauthorized, We would not take responsibility or provide warranty.
11. DO NOT apply any other material onto the thermal pad in case reducing
cooling performance.
12. It is important to install a System Fan toward the CPU to prevent the
possibility of overheating / system hang up issues from Cedar view-D series
of motherboard or else customer is required to have well cooling system to
dissipate heat from CPU.
Warning !
+
-
2
Hardware Notice Guide
1. Before installing the power supply with this motherboard, please attach the 12V/DC
( 2 pin connector )of the adapter to motherboard first.
After that, plug the adapter power to AC outlet.
Always normally shut down the computer before you move the system unit or remove
the power supply from the motherboard.
Please unplug the 12V/DC ( 2 pin connector ) of the adapter from motherboard first.
Then unplug the adapter from theAC outlet.

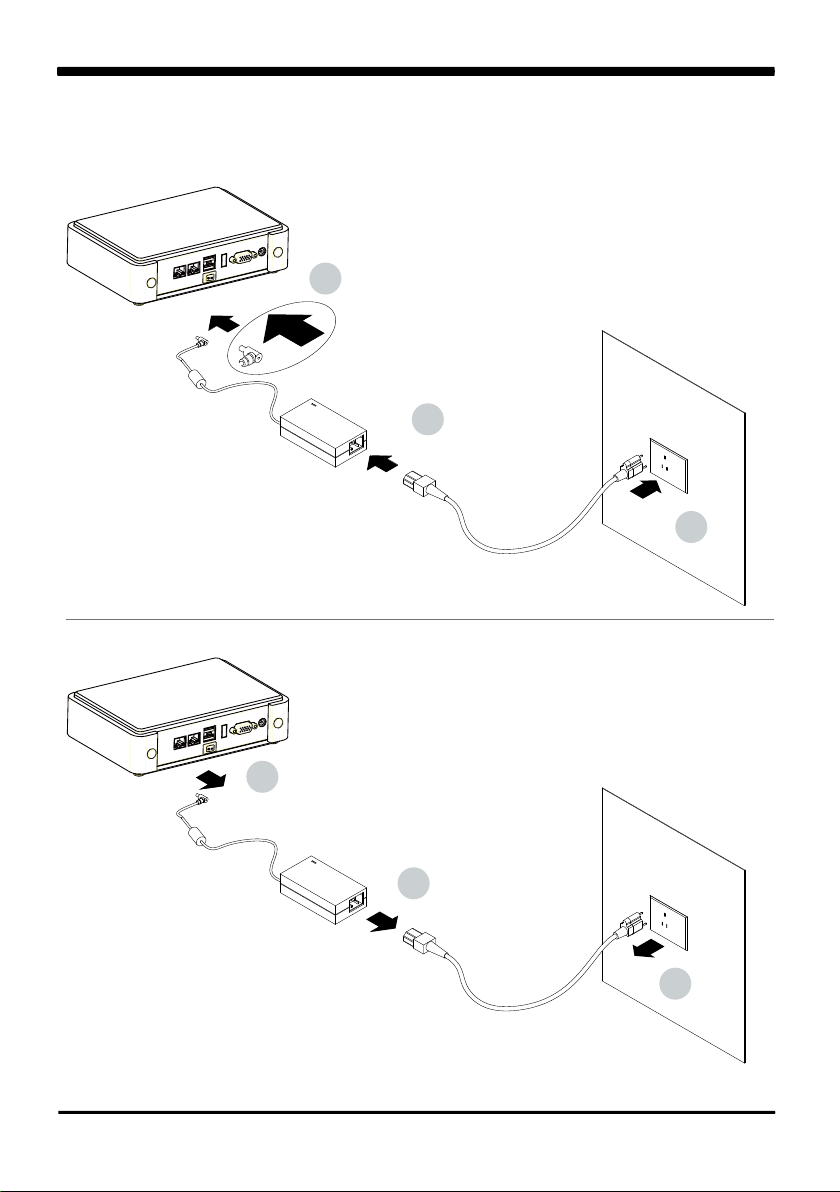

Please refer to procedure from the photo 1
2. There will be high possibility to burn out the CPU if you change/ modify any parts of the
CPU cooler.
3. Please wear wrist strap and attach it to a metal part of the system unit before handling a
component.
You can also touch an object that is of ground connection or with metal surface if you don't
have wrist strap.
4. Please be careful when you handle this product. Pay attention to & don't touch the
sharp-pointed components at the bottom PCB .
5. Please pay attention to this: Remove or change any components form the motherboard
will VOID the warranty of the motherboard you purchased .
6. Before you install/remove any components or make any jumper setting on the motherboard,
please make sure to disconnect the power first.
( Please follow the instructions as of this guide )
7. Please only use single side Mini PCIe card, do not use the double side Mini PCIe card
which is not suitable.
8. Please follow this instruction carefully when using the "POWERON after PWR-Fair" function.
When the DC power adaptor runs out of power, unplug it from the DC current;
when power returns plug it back in only after 5 seconds. If there is a power outage,
unplug it from the AC current, when power returns plug it back in only after 30 seconds.
Otherwise it will cause system locking or serious damage.
Remark 1:
Always insert/unplug the 12V/DC ( 2 pin connector ) horizontally & directly from the
motherboard.
DO NOT twist the 12V/DC ( 2 pin connector ) gently, it is designed to fit snugly .
Moreover, erratic pull / push testing with the DC Jack might cause the unpredictable
damage to the component & system unit.
*
3
Photo 1
2
1
3
1
2
3
Insert
Unplug
4
The 2I260D is a 2.5 inches form factor All-In-One Board. The board design combines all
necessary input and output effects interfaces, which makes itself an ideal all-in-one control
board for Thin Client, firewall or server application. 2I260D is the perfect platform for a whole
range of small form factor and low-power devices.
The 2I260D All-In-One motherboard is with Intel Cedar view-M N2600 1.6GHz /
N2800 1.86GHz CPU (Dual core processor), Intel Cedarview-M + NM10 chipset and Intel
Cedar view-M Integrated Graphics chipset. This integrated Cedar View platform offers superb
performance and PC specification in the industry. Despite the limited space of 2I260D,
it supports 2 COM ports of RS232 (or RS485) and 6 ports of Hi-Speed USB 2.0 to enhance
the host controller interface which will ensure the high performance level
and flexible expansion.
High-performance and power-efficient networking platform, the embedded motherboard
2I260D is specially designed for advanced embedded VPN or firewall applications
where the economical use of power is in high demand.
2I260D is supported with 3 of 10/100/1G Ethernet for seamless broadband
connectivity. With Wake-On LAN function and the PXE function in BIOS,
these are perfect control boards for networking devices.
The built-in Lan is RTL8111F LAN chipset for PCIe x 1 interface,
integrated 10/100/1000 transceiver.
The 2I260D motherboard is built in on board DDR3 SDRAM 2GB, N2600 Memory DDR3 data
transfer rate of 800MT/s and optional with On board SATA SSD 2/4/8/16/32/64---GBytes.
The expendable interfaces include one full size PCIe Mini card for PCIe by one
and USB interface, one half size PCIe Mini card for mSATA and USB interface.
The All-In-One motherboard 2I260D is fully compatible with industry standards,
plus technical enhancements and thousands of software applications developed for
IBM PC/AT compatible computers. These control logic provides high-speed performance for
the most advanced multi user and multitasking applications available today.
Chapter-1
General lnformation
5
1. Intel Cedarview-M N2600 1.6GHz CPU / N2800 1.86GHz CPU
2. Intel Cedarview-M and NM10 chipset on board
3. Intel Cedarview-M Integrated Graphics chipset, N2600 400 MHz render clock
frequency. Support Directx* 10.1 compliant Pixel Shader* v2.0 and OGL 3.0,
Display Ports: HDMI or CRT
4. On board DDR3 SDRAM 2GB, N2600 Memory DDR3 data transfer rate of 800MT/s
5. On board SSD 2/4/8/16/32/64 GBytes (Option)
6. Support 3 x 10 / 100 / 1000 Mbps Realtek LAN
7. Support 2 x Mini PCIe ( full size & half size)
8. One SATA port with independent DMA operation supported
mSATA share with mini PCIe (Option)
9. 1 x HDMI support resolution up to 1920 x 1200
10. Hardware digital Input & Output, 4 x DI / 4 x DO (Option)
Hardware Watch Dog Timer, 0~255 sec programmable (Option)
11. On board DC +12V
12. PCB Dimension: 102 x 73 mm (2.5 inch)
13. One 3G SIM card socket (Option)
1-1 Major Feature
6
1. CPU: Intel Cedarview-M N2600 / N2800
2. Chipset: Intel Cedarview-M and NM10
3. Memory: DDR3 SDRAM 2GB, N2600 Memory DDR3 data transfer rate of 800MT/s
4. SATA: 1x SATA: mSATA share with mini PCIe (Option)
5. NAND flash memory (Option):
On board SATA SSD 2/4/8/16/32/64---GBytes (Option)
6. LAN: 3 x Realtek RTL8111F 10 / 100 / 1000 Mbps
7. Serial Port: 1 x RS232 or 422/485(external)
1 x RS232 or 422/485 (internal)
8. USB: 6 x USB 2.0 (2 external + 4 internal)
9. Sound: Intel High Definition Audio Specification Rev.1.0 Compliant
10. Audio Amplifier: Two channel Class D Audio Amplifier. 2.57W/Ch (Typ.) into a 4ΩLoad;
1.46 W/Ch (Typ.) into a 8ΩLoad
11. WDT/DIO: Hardware digital Input & Output, 4 x DI / 4 x DO (Option) /
Hardware Watch Dog Timer, 0~255 sec programmable (Option)
12. Expansion interface: One full size PCIe Mini card for PCIe by one and USB interface;
One half size PCIe Mini card for mSATA and USB interface
13. BIOS: Award BIOS Version
14. Dimension: 102 x 73 mm (2.5 inch)
15. Power: On board DC +12V
16. Power Consumption: Please refer to Page. 65
17. 3G Wireless: 3G SIM card reader
1-2 Specification
Table des matières
Manuels Carte PCI populaires d'autres marques
Belkin
Belkin F5D7000F Manuel utilisateur
Pericom
Pericom PI7C7100 Manuel utilisateur
ADLINK Technology
ADLINK Technology cPCI-3548 Manuel utilisateur
Digium
Digium TE200 Series Manuel utilisateur
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur
Western Digital
Western Digital FireWire PCI Adapter Manuel utilisateur
