Leviton I 24 Manuel

i Series i24, i24e, & quad Installation Supplement Page 1of 3

LIT-30955-02

Wall Mounted Dimmer Racks

Installation and Maintenance Manual Supplement

Applies to i24, i24e and i48 Quad

Enclosed is a copy of the Installation and Maintenance Manual for the original product. The

wall-mounted units are very similar to the floor-supported units except in the way they mount

and the size of the feeder lugs. The Quad version also includes additional load lugs. This

supplement serves as a modifier to that manual for the wall-mounted product. Please follow the

instructions in the manual except where modified below.

Page 2, Chapter 3 –The wall-mounted units are separate stand-alone dimmer racks. They may

be mounted side-by-side but are not fastened together. Disregard this chapter.

Page 7, Chapter 4 –The wall-mounted units are provided with concentric knock-outs top and

bottom in lieu of un-punched conduit entry panels. Two 1.5 / 2 / 2.5” T.S. and Eight 0.5 / 0.75 /

1 / 1.25” T.S. knock-outs are provided in both locations.

Page 10, Chapter 5 –Also allow 1” clearance on the left side so that the door can fully open.

Page 10, Chapter 6 –The wall-mounted units are attached to the wall via four holes in the back

to accept 5/16” bolts. The rack must be mounted in a substantial manner to support its 179 lbs.

plus the weight of any field wiring and conduit. The use of Unistrut or similar steel channel is

recommended.

Page 11, Chapter 9 –The i24 and i24e are provided with single feeder lugs with the option for a

second set. The i48 Quad is provided with dual feeder lugs.

Page 12, Table 1 –Line Lugs (rated for 90oC copper only at 75oC ampacity)

6 AWG –250 kcmil. 375 in-lbs.

Ground Lug

14-10 AWG 35 in-lbs.

8 AWG 40 in-lbs.

6-4 AWG 45 in-lbs.

2-1/0 AWG 50 in-lbs.

i Series i24, i24e, & quad Installation Supplement Page 2of 3

LIT-30955-02

Page 13, Table 2 –The load terminals are as shown in the table. The load neutral terminals are

as shown below.

14-10 AWG 35 in-lbs.

8 AWG 40 in-lbs.

6-4 AWG 45 in-lbs.

Page 13, Table 3 –The Quad modules are as shown below.

4-1001 120V 15A 1.8kW i350 Quad Dimmer

4-1002 120V 20A 2.4kW i350 Quad Dimmer

Page 14, Paragraph 1 –The Quad rack has a second pair of load terminals to the left of those

shown. The wiring to the right pair passes behind the left pair through openings in the support

system for the left pair. The terminal set is wired in the same relationship as the circuit breaker

arrangement in the dimmer module, upper left, upper right, lower left and lower right.

Page 36, Specifications –The following specifications are different than those shown.

Rack Capacity: 24 –20/25A circuits max. (48 circuits for Quad)

12 – 50A circuits max.

Dimensions: 30.75” H x 15.5” W x 15.38” D

Weight: 78 lbs. empty (83 lbs. for Quad)

168 lbs. full (179 lbs. for Quad)

Max. Fan Noise Rating: 50 dba

Max. Feeder Size: 200A (400A for Quad)

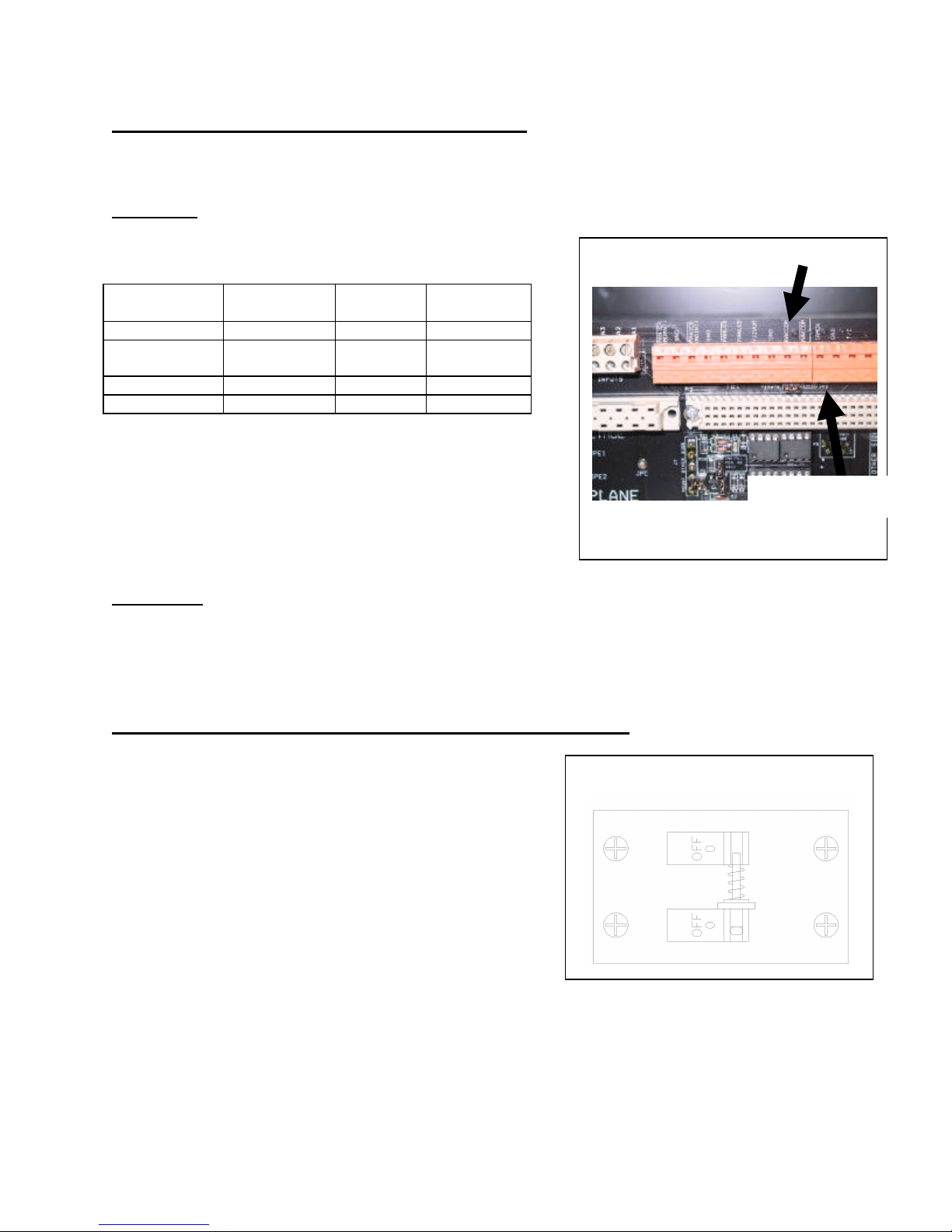

i Series i24, i24e, & quad Installation Supplement Page 3of 3

LIT-30955-02

Breaker with Fluorescent Breaker Handle Tie

Kit Installed

Luma

Net Termination

Luma-Net Control Signal Installation Requirements

For i Series e dimmer racks which require the termination of a Luma-Net control run, follow

these instructions.

Connection

The Luma-Net link connects to the backplane of the rack on

TB1 as follows:

Signal Luma-Net 3

Terminal Rack

Terminal Rack Label

Rem + 19RAKCOM

Rem -210 RAKCOM

overlined

Common 38GND

+V 47+12V

Although most Luma-Net phoenix style connectors have six

terminals, there is no terminal 5 nor terminal 6 connection at

the dimmer rack. Terminal 6 which is used for the hardware

lock feature has no use at the dimmer rack and the

“terminate” feature which is handled by terminal5 is

handled by the termination jumper.

Termination

If the rack is at the end of the run,Jumper JP2 (Rackcom Termin.) must be installed in the

backplane to terminate the run. The jumper is shipped installed by factory default.

Now the dimmer rack is capable of receiving and processing Luma-Net commands.

Special Installation Requirements for HiLume Dimming Circuits

The HILUME feature is only usable in i Series e. This

style of fluorescent dimming ballast requires (3) wires, (1)

switched, (1) dimmed, and (1) neutral. To accommodate

these requirements, the software will couple the odd-

numbered dimmer with the next even-numbered dimmer.

The odd-numbered dimmer is the variable component and

the even-numbered dimmer is the switched component.

The breakers for these dimmers must be tied together with

the CTP-4-0307 fluorescent handle-tie kit and the rack

slot labeled. Installation instructions for this are included

with the kit.

The odd/even breakers in the i Series Quad are not below each other so they cannot be tied

together; therefore, HILUME is not a quad feature. When the HILUME feature couples the

dimmers the second address is dropped unless the subsequent addresses are moved up dimmer by

dimmer. For this reason it is a good idea to put the HILUME dimmers at the end.

Termination Jumper

(Rackcom Termin)
