FAN SPEED CONTROLLER

Install Guide

Cat. No. DW4SF

WEB VERSION

See the complete line of My Leviton app compatible

dimmers, switches, plug-ins and controllers at

leviton.com/decorasmart

Welcome to the

My Leviton Family

WEB VERSION

CALL

1-800-824-3005 (USA)

1-800-405-5320 (Canada)

ONLINE

leviton.com/decorasmart

CHAT

www.leviton.com

dssupport@leviton.com

Welcome

The Decora Smart Wi-Fi Fan

Speed Controller allows you

to select one of 4 fan speeds

or turn your fan o from a

smartphone or tablet even

when you're away from home

as long as you have an internet

connection. Use the built-in

scheduling to control your fan

at speciﬁc times of the day, and

at sunrise or sunset.

The Decora Smart fan

controller looks at home with

your other Decora branded

devices. It has a convenient

manual on/o control, and an

integrated bar to provide easy

speed adjustment and hidden

indicator lights.

We are here to help

WEB VERSION

RATINGS

Fan Motor 1.5A - 120VAC, 50/60Hz

Operating Temp 0°C - 40°C (32°F - 104°F)

Operating Humidity 0-90% non-condensing

NETWORK

Wi-Fi 802.11 a/b/g/n @ 2.4GHz and 5GHz

Security WPA or WPA2

MY LEVITON APP

iOS Version 11 or later

Android Version 6 or later

Your fan controller

works with:

• For use with one or more ceiling

paddle fans with split-capacitor

or shaded pole motors, not to

exceed a total of 1.5A.

• Not for use with lighting loads

including ceiling fan light kits.

• Not for use with

aluminum wire.

• If the fan is controlled from

more than one location, you will

need a DD00R remote. See the

DD00R installation instructions

for wiring instructions.

• To ensure proper

communication, do not use

with metal wall plates.

• For additional support use

the support options in the My

Leviton app.



WEB VERSION

Features

Rocker

Manually turn fan on/o.

Fan speed bar

Manually adjust speed.

Speed indicator lights

Show fan speed when

adjusting levels.

Status light

Illuminates when fan is o.

Air gap switch

This feature will stop power to the

fan. Gently pull bottom out until a

click is heard. Power to the fan and

indicator lights will turn o. After

servicing is complete, push back in

for normal operation.

WEB VERSION

WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn o power at

the circuit breaker.

Check your wall box:

1. Remove wallplate and disconnect switch.

2. Restore power. Carefully test wires with voltage tester

to ﬁnd the hot wire.

3. Turn o power at the circuit breaker.

4. Mark the wires as shown:

Identify your wires

If your wall box looks dierent,

call an electrician.

Two white

(neutral)

wires

hot (line) wire

(ﬁnd with voltage tester)

load wire

copper ground

NEUTRAL

LINE

LOAD

GROUND

WEB VERSION

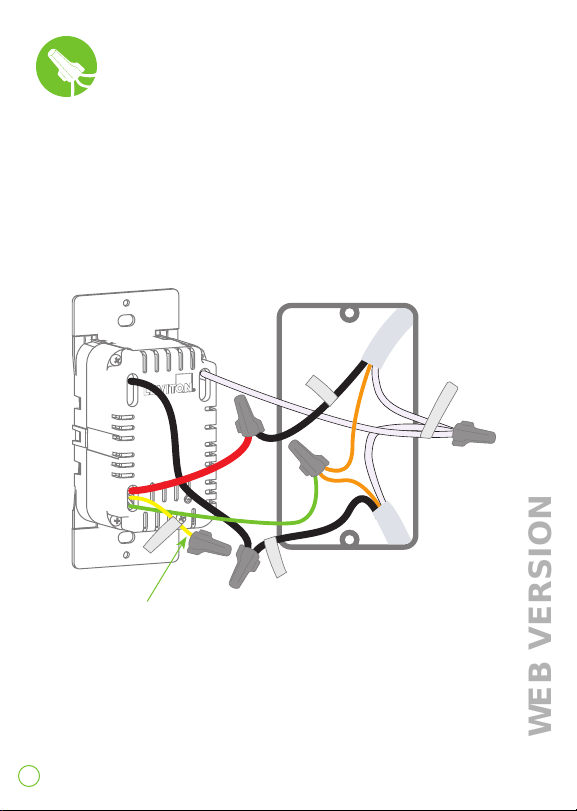

1. Work on only one connection at a time.

2. Connect wires as shown.

3. Secure wire connections.

Wire your fan controller

If your wall box looks dierent,

call an electrician.

LINE

NEUTRAL

LOAD

TRAVELER

This wire is used in 3-way installations only.

For single pole installations, do not remove

insulating label.

WEB VERSION

Test and install

1. Restore power. Status light should ﬂash green

indicating your fan controller is ready to be enrolled.

WEB VERSION

Turn o power at circuit breaker before

screwing in your fan controller.

2. Gently push wires

into wall box.

Screw fan controller

to box.

3. Snap on Decora®wallplate.

Restore power.

Congratulations!

Your Decora Smart fan controller

is ready to control your fan speed level.
