zHand-held scanner for 2D codes and bar

codes

zTransmission to ST 2020 base station via

Bluetooth standard V1.2

zLarge reading field for the detection of high-

contrast codes

zRobust trigger button

zBuilt-in decoder

zRead-display

zRS 232, USB and PS/2 interface

zOperating temperature from 0 through 50°C

9 V

Accessories

zTTL RS 232 cable/PIN 9 IT 4xxx

Part No. 501 04586

zPS/2 cable for IT 4xxx

Part No. 501 03409

zUSB cable for IT 4xxx

Part No. 501 03404

zPower supply unit for IT 4x2x

Part No. 501 03989

Dimensioned drawing

Electrical connection

for TTL RS 232 cable / PIN 9

for USB cable

for PS/2 cable

9-pin Sub-D Signal IT 4820 RJ41

SH Shield 2

2TXD6

3RXD5

5GND4

7CTS9

8RTS8

95VDC7

USB type A Signal IT 4820 RJ41

15VDC7+3

2 Data - 10

3Data+2

4GND4

Mini DIN connector Mini DIN socket Signal IT 4820 RJ41

1 - PC Data 6

22NC

33GND4

445VDC7

5 - PC Clock 5

66NC

- 1 KB Data 8

-5KBClock9

IT 4820 2D-code hand-held scanner with Bluetooth data transmission

IT 4820 - 03

Part No. 501 06668

Leuze electronic

IT 4820 - 03 0705

Specifications

Reading field

Electrical data IT 4820 ST 2020

Operating voltage UB4.2VDC internal battery 9VDC

Power consumption max. 8W @ 9VDC

Li-ion battery

Capacity 2.000mAh

Max. number of scans 57.000

Max. operating time 16h at 1scan/s

Charging time at 9VDC 4h for complete charge following complete discharge

RF data transmission

Frequency 2.4 … 2.4835GHz (ISM band)

Frequency hopping, Bluetooth ® V1.2, Class 2

Typ. Range 10m

Transmission speed 720kBit/s

Interfaces

Interface type RS 232, PS/2 and USB

Trigger via button or serial command

Code types

2D codes Data Matrix ECC 200, MaxiCode, PDF417, MicroPDF, QR Code, Az-

tec, Aztec Mesas, Code 49, EAN/UCC Composite

Bar codes 2/5 Interleaved, Code 39, Code 128, Code 93, Codabar, UPC/EAN,

RSS, Codablock

OCR OCR-A, OCR-B

Optical data

Optical system high-resolution pixel array 752x480

Contrast 45% (black/white)

Light source integrated diffuse LED 626nm

Read distance 33 … 333mm

Read direction omnidirectional, various tilt and rotational angles up to 45°

Mechanical data IT 4820 ST 2020

Housing UL94V0 grade

Weight 255g 250g (without cable)

Dimensions 157x135x81mm 79x142x109mm

Shock resistance 50 falls from a height of 1.8m 50 falls from a height of 1m

Environmental data

Ambient temp. (operation) 0°C … +50°C 0°C … +50°C

Ambient temp. (storage) -20°C … +35°C -40°C … +60°C

Relative air humidity 0 … 95% (non-condensing) 0 … 95% (non-condensing)

Protection class IP 41 IP 41

IT 4820 SR Module or cell from to

Bar codes 8.3mil / 0.21mm 89mm 191mm

UPC bar code 13mil / 0.33mm 53mm 333mm

PDF 417 Code 6.6mil / 0.17mm 112mm 155mm

10mil / 0.25mm 76mm 226mm

Data Matrix Code 15mil / 0.38mm 58mm 257mm

Maxi Code 35mil / 0.89mm 51mm 328mm

IT 4820 SF Module or cell from to

Bar codes 7,5mil / 0,19mm 64mm 163mm

UPC bar code 13mil / 0,33mm 51mm 224mm

PDF 417 Code 6,6mil / 0,17mm 71mm 150mm

10mil / 0,25mm 50mm 191mm

Data Matrix Code 15mil / 0,38mm 40mm 188mm

QR Code 15mil / 0,38mm 56mm 180mm

Order guide

2D-code hand-held scanner for high-contrast Data Matrix codes

(standard range)

Part No.

IT 4820 SR OC1C IT 4820 SR with RS 232/USB/PS/2 interface 501 03988

2D-code hand-held scanner for high-contrast Data Matrix codes

(special focus for small codes)

Part No.

IT 4820 SF OC1C IT 4820 SF with RS 232/USB/PS/2 interface 501 03987

Base station for Bluetooth transmission Part No.

ST 2020 ST 2020 with RS 232/USB/PS/2 interface

(without cable)

501 03990

Tables

Diagrams

Remarks

Ergonomically shaped hand-

held scanner with integrated

decoder for high-contrast

codes.

Data transmission via config-

urable RS 232 interface.

Or keyboard-wedge opera-

tion via PS/2 or USB inter-

face.

For a functional unit, an

IT 4820 hand-held scanner

and a ST 2020 base station

as well as a power supply unit

and corresponding cable

must be ordered.

Bluetooth is a trademark owned by

Bluetooth SIG, Inc., U.S.A. and

licensed to Hand-Held Products

IT 4820

Leuze electronic GmbH + Co. KG Post-box 1111 D-73277 Owen-Teck Tel. +49 7021 5730 IT 4820 - 03

www.leuze.de

Leuze electronic

Switching off the computer

Information on switching off and shutting down the connected computer - which must always be performed before connecting

peripheral devices, such as a scanner - can be found in the appropriate operating instructions for your computer.

Connecting the IT 4820

Shown in the figure to the right are the locations for installing the cable on

the base station. The individual installation steps are described in the fol-

lowing.

1.To secure the interface cable to the scanner, proceed as follows:

plug the RJ 41 connector into the socket on the bottom of the base sta-

tion until the cable clicks into place.

2.Connect the interface cable to the appropriate connection socket on the

computer.

3.You may need a power supply unit for voltage supply if you would like to

charge the hand-held scanner at the base station or if you use an

RS 232 interface. Use the pin assignments (see "Electrical connection"

on page 1) to select the appropriate cable for your application.

4.Connect the power supply unit to the power socket.

5.Use the code for the respective application to configure the hand-held

scanner, see chapter "Configuration".

6.Check the operational readiness of the scanner by pointing the scanning

surface towards a flat surface and pulling the trigger. A green target line

as well as the red illumination should now be visible. Now scan a sample label.

The scanner emits an audible signal to confirm that the label has been read; if necessary, the data are now passed on to the

computer.

Configuration

The hand-held scanner can always be configured using bar codes. To do this, the barcode must first be selected on the package

insert and then the trigger actuated in order to read the code. The configuration is then immediately accepted and executed.

Several of the most important configurations are listed in the following.

A second option is to configure the hand-held scanner with the USB and RS 232 interfaces with the aid of the VisualMenu PC

program. You can download and install this program from our homepage at

www.leuze.de

The program can be used to make settings and transfer them to the hand-held scanner. The configuration can also be stored so

that it can be reused at a later time.

Further information on this can be found in the User's Guide for the IT 4820.

The standard applications are described and summarised below.

Notice!

Additional information on the device and short instructions can be found on the Internet at www.leuze.de.

Resetting the IT 4820 to factory settings

To reset all parameters to factory settings, scan the adjacent

barcode.

Attention!

All settings are lost!!!

Return the IT 4820 to the base station to apply the settings. This procedure is concluded with audible confirmation signals.

You may then continue making settings or operation of the device.

Connection for

power supply unit

Connection for

interface cable

IT 4820 2D-code hand-held scanner with Bluetooth data transmission

IT 4820 - 03 0705

Leuze electronic

Trigger

To activate the read process, a trigger signal is to be sent via the serial RS 232 interface or USB interface (COM port emulation

only). The command is to be sent at the set baud rate, parity, and data and stop bits.

The command for activation is: SYN T CR ASCII decimal values: 022; 084; 013

To cancel read readiness, send a deactivation.

The command for deactivation is: SYN U CR ASCII decimal values: 022; 085; 013

Following a successful read operation, the IT 4820 deactivates itself.

The second option is activation via the built-in trigger button.

Configuration for the Leuze standard protocol

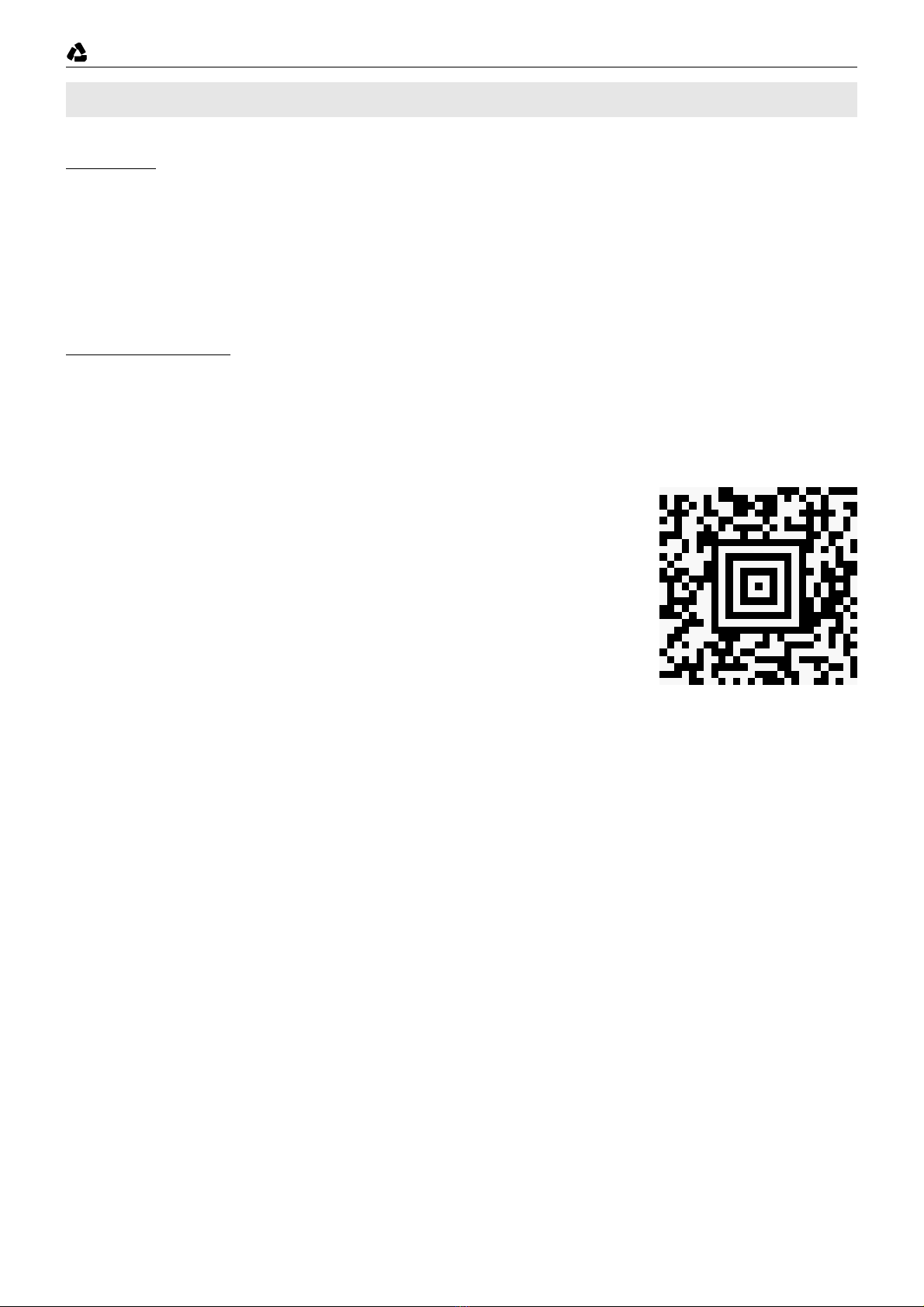

Scan the adjacent 2D code.

The IT 4820 is set to the following transmission parameters:

RS 232 transmission with 9,600 baud, 8 data bits, 1 stop bit, no parity, prefix <STX>,

terminators <CR><LF>.

IT 4820

Leuze electronic GmbH + Co. KG Post-box 1111 D-73277 Owen-Teck Tel. +49 7021 5730 IT 4820 - 03

www.leuze.de

Leuze electronic

Connecting the IT 4820 to the serial PC interface

With TTL-RS232 cable/PIN9 IT 4xxx Part No. 501 04586

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 04 586 Cable TTL-RS232/PIN9

1x 501 03 989 Power supply unit ST 2020

Procedure:

1.Switch off the PC.

2.Connect the interface cable to a free COM port

(RS 232) on the computer (3) and to the base station

(2).

3.Plug one end of the power supply unit cable into the

base station (4) and the other end into a free power

socket (5).

4.Switch the PC back on.

5.Scan the adjacent barcode.

The IT 4820 is set to the following transmission parameters:

RS 232 transmission with 115,200 baud, 8 data bits, 1 stop bit, no parity, terminators <CR><LF>.

6.Return the IT 4820 to the base station to apply the settings. This procedure is concluded with optical confirmation signals (green

LED on the ST 2020).

7.If necessary, adjust the transmission parameters of the used COM port to those of the IT 4820.

Attention!

We recommend connecting the IT 4820 directly to a PC or to the MA 21 or MA 41… connector units. If connecting to

other components, please note that a voltage level range of -14 … +14V is maintained on the data lines!

IT 4820 2D-code hand-held scanner with Bluetooth data transmission

IT 4820 - 03 0705

Leuze electronic

Connecting the IT 4820 to the MA 41 DP-K or MA 41 IS

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 04 586 Cable TTL-RS232/PIN9

1x 501 03 989 Power supply unit ST 2020

1x 500 35 421 KB 021 Z

1x 500 33 638 MA 41 DP-K for Profibus (for Interbus: 500 28 994 MA 41 IS

or 500 30 085 MA 41 IS PDP)

Pin assignments KB 021 Z:

Core colour: signal terminal in the MA 41:

brown (RXD) 2

white (TXD) 1

blue (GND) 4

red (VCC) 

black (GND) 

bare (shield) (PE) 21

Procedure:

1.Connect cable KB 021 Z to the MA 41… acc. to the above pin assignments.

2.Connect the interface cable to cable KB 021 Z. Connect the interface cable and the power

supply unit to the base station (see "Connecting the IT 4820 to the serial PC interface").

3.Scan the adjacent 2D code.

The IT 4820 is set to the following transmission parameters: RS 232 transmission with 9,600

baud, 8 data bits, 1 stop bit, no parity, terminators <CR><LF>.

4.Return the IT 4820 to the base station to apply the settings. This procedure is concluded

with audible confirmation signals.

IT 4820

Leuze electronic GmbH + Co. KG Post-box 1111 D-73277 Owen-Teck Tel. +49 7021 5730 IT 4820 - 03

www.leuze.de

Leuze electronic

Connecting the IT 4820 to the MA 21

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 04 586 Cable TTL-RS232/PIN9

1x 501 03 989 Power supply unit ST 2020

1x 500 35 421 KB 021 Z

1x 500 30 481 MA 21 100

Pin assignments KB021 Z:

Core colour: signal terminal in the MA 21:

brown (RXD) 26

white (TXD) 27

blue (GND) 28

red (VCC) 

black (GND) 

bare (shield) (PE) 21

Procedure:

1.Connect cable KB 021 Z to the MA 21… acc. to the above pin assignments.

2.Connect the interface cable to cable KB 021 Z. Connect the interface cable and the power

supply unit to the base station (see "Connecting the IT 4820 to the serial PC interface").

3.Scan the adjacent 2D code.

The IT 4820 is set to the following transmission parameters: RS 232 transmission with 9,600

baud, 7 data bits, 1 stop bit, even parity, terminators <CR><LF>.

4.Return the IT 4820 to the base station to apply the settings. This procedure is concluded with

audible confirmation signals.

IT 4820 2D-code hand-held scanner with Bluetooth data transmission

IT 4820 - 03 0705

Leuze electronic

Connecting the IT 4820 to the PS/2 interface

The operation of the IT 4820 in keyboard emulation mode is described in this section. A PC keyboard is emulated in this operating

mode. The data which are read in are written directly to the currently activated program. Thus, the data can be processed further

in all standard programs.

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 03 989 Power supply unit ST 2020

1x 501 03 409 PS/2 cable

Procedure:

1.Switch off the PC.

2.Disconnect the keyboard.

3.Connect the cable for the ST 2020 base station

between the keyboard and the PC.

4.Switch the PC back on.

5.Scan the 2D code shown below.

6.Return the IT 4820 to the base station to apply

the settings. This procedure is concluded with

audible confirmation signals.

Notice!

To charge the IT 4820, the power sup-

ply unit must be plugged in and the

hand-held scanner placed in the

ST 2020 base station.

Disconnect

IT 4820

Leuze electronic GmbH + Co. KG Post-box 1111 D-73277 Owen-Teck Tel. +49 7021 5730 IT 4820 - 03

www.leuze.de

Leuze electronic

Connecting the IT 4820 to the USB interface (keyboard emulation)

The operation of the IT 4820 in keyboard-emulation mode on a USB port is described in this section. A PC keyboard is emulated

in this operating mode. The data which are read in are written directly to the currently activated program. Thus, the data can be

processed further in all standard programs.

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 03 989 Power supply unit ST 2020

1x 501 03 404 USB cable

Procedure:

1.Connect the cable for the ST 2020 base station to a free

USB port.

2.The scanner acknowledges this connection with a beep.

3.Scan the adjacent 2D code.

Notice!

To charge the IT 4820, the power supply unit

must be plugged in and the hand-held scanner

placed in the ST 2020 base station.

IT 4820 2D-code hand-held scanner with Bluetooth data transmission

IT 4820 - 03 0705

Leuze electronic

Connecting the IT 4820 to the USB interface (COM-port emulation)

The operation of the IT 4820 as a serial interface on a USB port is described in this chapter. A COM interface is emulated in this

operating mode. The data which are read in are sent to a new COM interface. The driver with which you emulate this COM interface

can be downloaded from our homepage at

www.leuze.de

. Thus, the data can be processed further in programs which expect data

via COM interfaces.

required parts:

1x IT 4820 XX 0C1C

1x 501 03 990 Base station ST 2020

1x 501 03 989 Power supply unit ST 2020

1x 501 03 404 USB cable

Procedure:

1.Connect the cable for the ST 2020 base station to a free

USB port.

2.The scanner acknowledges this connection with a beep.

3.Scan the adjacent 2D code.

4.Install the USB serial driver when you are prompted to do

so by Windows.

5.Open a terminal program or your program for the serial

interface, select the new COM port, and make the follow-

ing settings: baud rate 38,400, 8 data bits, 1 stop bit, no

parity, terminator <CR>.

Notice!

To charge the IT 4820, the power supply unit

must be plugged in and the hand-held scanner

placed in the ST 2020 base station.

IT 4820

Table des matières

Autres manuels Leuze electronic Lecteur de codes-barres

Leuze electronic

Leuze electronic 50130487 Manuel utilisateur

Leuze electronic

Leuze electronic BCL308i Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 300 Series Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 90Manual Manuel utilisateur

Leuze electronic

Leuze electronic IT 1911i Manuel utilisateur

Leuze electronic

Leuze electronic CR55M2/R2 Manuel utilisateur

Leuze electronic

Leuze electronic BCL348i Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 900i Series Manuel utilisateur

Leuze electronic

Leuze electronic 50126970 Manuel utilisateur

Leuze electronic

Leuze electronic BCL558i Manuel de la liste des pièces

Leuze electronic

Leuze electronic HFM 3500D Manuel utilisateur

Leuze electronic

Leuze electronic BCL 80 Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 34 Series Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 90 Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 608i Manuel utilisateur

Leuze electronic

Leuze electronic BCL508i Manuel de la liste des pièces

Leuze electronic

Leuze electronic DCR 55 Manuel utilisateur

Leuze electronic

Leuze electronic IT 1911i Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 8 S 2 Series Manuel utilisateur

Leuze electronic

Leuze electronic BCL358i Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL 8 Series Manuel utilisateur

Leuze electronic

Leuze electronic BCL 338i Manuel utilisateur

Leuze electronic

Leuze electronic VisionREADER 2300 Manuel de la liste des pièces

Leuze electronic

Leuze electronic BCL500i series Manuel de la liste des pièces

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
