Operating Instructions 132847A

LESTRONIC BATTERY CHARGER

MODEL 07690-74

PLEASE SAVE THESE IMPORTANT SAFETY AND OPERATING INSTRUCTIONS

For correct operation of the equipment, it is important to read and be familiar

with this entire manual before installing and operating the charger.

DO NOT DISCARD THIS MANUAL AFTER READING.

LOOK FOR THIS SYMBOL TO POINT OUT SAFETY PRECAUTIONS. IT MEANS:

BECOME ALERT—YOUR SAFETY IS INVOLVED.

IF YOU DO NOT FOLLOW THESE

SAFETY INSTRUCTIONS, INJURY OR PROPERTY DAMAGE CAN OCCUR.

WARNING: NOT FOR USE WHEN DC CORD

IS PERMANENTLY CONNECTED TO THE

BATTERIES.

1. Connect power supply cord to properly grounded

outlet of the proper voltage and frequency as

specified on the charger nameplate. Circuit

breaker or fuse protection in the AC line must be

adequate to handle the input power requirements.

When it is necessary to use an AC extension cord

to the charger, use a three conductor, 12 gauge

cord with ground and keep as short as possible.

If DC output cord is connected to batteries,

charger will automatically turn on after a short

delay.

2. Connect DC output cord to batteries. Charger

turns on automatically. To prevent arcing and

burning of the battery and charger plug contacts,

be sure to attach the plugs firmly and securely

together.

CAUTION: DO NOT REMOVE DC CORD

FROM BATTERIES WHEN CHARGER IS

OPERATING. IF CHARGE CYCLE MUST BE

INTERRUPTED, DISCONNECT POWER SUPPLY

CORD BEFORE REMOVING DC CORD.

3. Monitor ammeter for correct charge rate. Refer to

instructions printed on charger case to determine

proper charge rate. Normal charging at the finish

charge rate for the last 3 to 5 hours is important to

achieve equalization of all battery cells every time

the batteries are charged. New batteries or

batteries charged in cold temperatures (below

50°F) will require more time to achieve full charge.

4. Charger turns off automatically when batteries are

fully charged.

CAUTION: IN THE UNLIKELY EVENT THAT

THE CHARGER DOES NOT TURN OFF

AUTOMATICALLY, OVERCHARGING AND

POSSIBLE BATTERY DAMAGE MAY RESULT.

FOR BEST BATTERY LIFE, CHECK TO BE SURE

THE CHARGER HAS TURNED OFF PROPERLY

AFTER EACH CHARGE CYCLE.

*32847*

Operating Instructions 232847 A

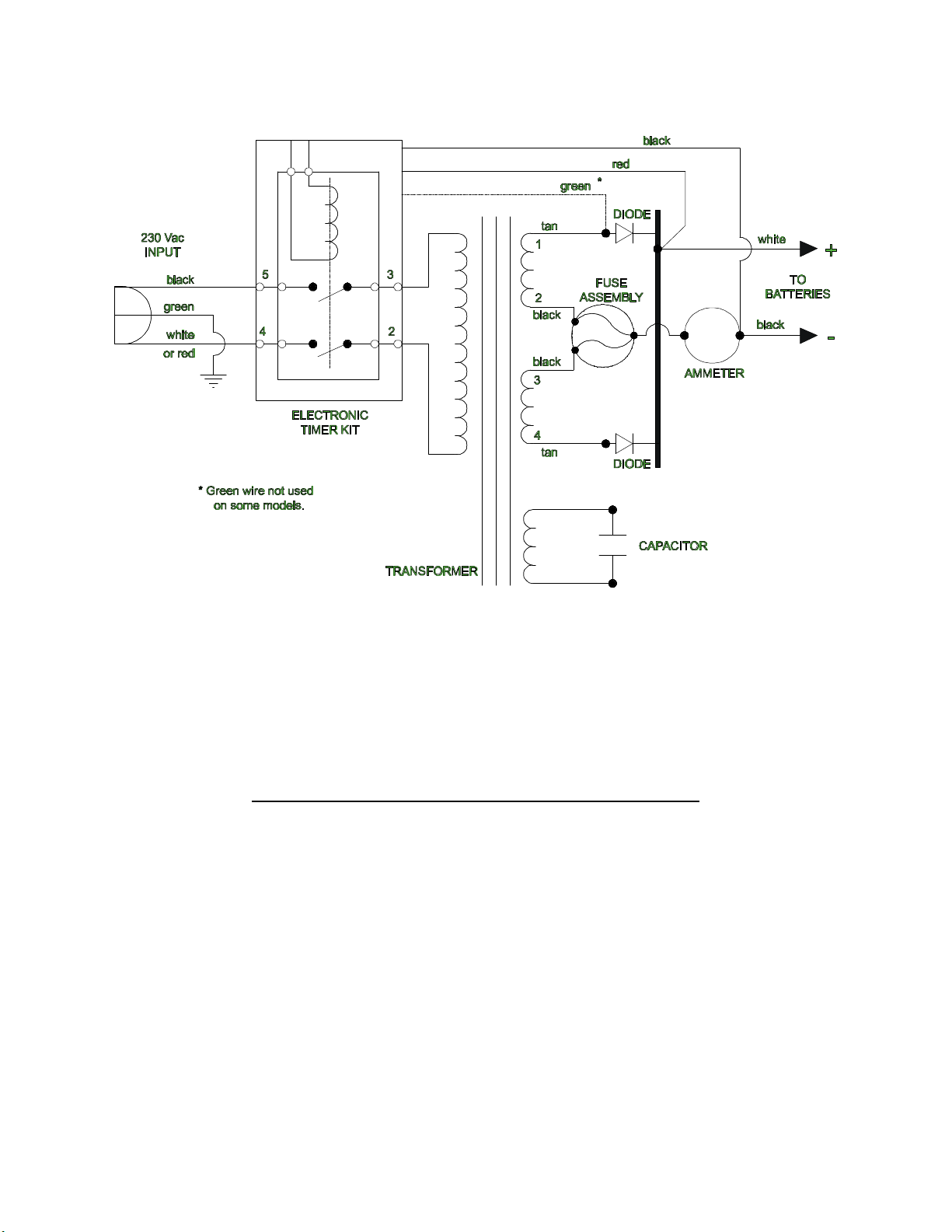

WIRING DIAGRAM

PARTS LIST FOR LESTRONIC II CHARGER

MODEL 07690-74 TYPE 12LC25-8ET

230 VAC / 50 HZ

PART NO. DESCRIPTION

07671S CASE ASSEMBLY

07687S TRANSFORMER ASSEMBLY

16354S HEATSINK ASSEMBLY, W/ DIODES

04127S AMMETER

07668S ELECTRONIC TIMER ASSEMBLY

02390S CAPACITOR, 6.0 MFD, 660 VAC

02028S BUSHING, 7W-2, INSULATOR FOR DC CORD

03894S BUSHING, 7K-2, INSULATOR FOR AC CORD

08947S CORDSET, AC

25328S CORDSET, DC, W/ SB175, YELLOW PLUG

08776S FUSE ASSEMBLY

Operating Instructions 332847 A

L I M I T E D W A R R A N T Y

Minuteman warrants each new Battery Charger for defects in material and workmanship for a period of one (1) year from

the date of manufacture of the complete unit. Repairs can be made at the Minuteman factory. To do so, send the defective

unit with transportation charges prepaid to: Minuteman, Inc.

111 South Rohlwing Road

Addison, Illinois 60101

Attention: Service Department

For repairs made at other than the Minuteman factory, Minuteman will provide only the replacement parts.

Defective parts should be sent with transportation charges prepaid to the Minuteman factory at the address noted

above.

If the unit or parts are found in the reasonable judgment of Minuteman to be defective in material or workmanship, repair or

replacement will be made by Minuteman without charge for parts or labor. Repair or replacement will be at the discretion of

Minuteman, with replacements being made using current models or parts performing the equivalent function. Labor charges

other than those incurred at the Minuteman factory are not covered under this warranty. All expenses associated with

delivering defective items to the Minuteman factory and the expense of returning repaired or replaced items from the

Minuteman factory to the owner will be paid for by the owner. All warranty work accomplished at the Minuteman factory will be

completed with a reasonable time after receipt of defective items.

This warranty does not cover any semiconductor parts, such as diodes, which are vulnerable to electrical overloads beyond

the control of Minuteman. Warranty on parts not manufactured by Minuteman, which include, but are not limited to, timers and

ammeters, is limited to the period specified in the original manufacturer's warranty.

This warranty does not cover any charger that has been subject to misuse, neglect, negligence, or accident, or

operated in any way contrary to instructions specified on the charger case and in the owner's manual. No claim of

breach of warranty shall be cause for cancellation of the contract of sale of any Minuteman charger. Minuteman

assumes no responsibility for loss of time, inconvenience, or other damage, consequential or otherwise, resulting

from a defective charger. All implied warranties (including merchantability) are limited in duration to the one year

from date of manufacture warranty period.

Some states do not allow the exclusion or limitation of incidental or consequential damages; or limitations on how long an

implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you

may also have other rights which vary from state to state.

Minuteman's obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective items.

Minuteman issues this warranty in good faith and with full confidence in the workmanship and quality of Minuteman products.
