RackInstallationInstructions

Guidelines

Thispublicationprovidesinformationabouthowtoinstallyourserverintoastandardrackcabinetusingthe

railkitshippedwithyourserver.

Ifyounolongerhaveacopyofthispublication,youcanobtainaPortableDocumentFormat(PDF)version

fromtheLenovo®SupportWebsiteat:

http://www.lenovo.com/ThinkServerUserGuides

CAUTION:

Besuretoreadandunderstandthedocumentationthatcomeswiththerackcabinetforsafetyand

cablinginformation.Alsomakesurethatyoureadandunderstandalltherelatedsafetyinformation

fortheserverandreviewtheguidelinesinthispublicationbeforeyouinstalltheserverintoarack

cabinet.Readingandunderstandingtheinformationreducestheriskofpersonalinjuryandor

damagetoyourproduct.

Therackcabinetmustmeetoneofthefollowingrequirements:

•Standard4-post(square-hole),19-inchrackcongurationcompliantwithEIA-310-Easdenedbythe

ElectronicIndustriesAlliance

•Standard4-post(unthreadedround-hole),19-inchrackcongurationcompliantwithEIA-310-Easdened

bytheElectronicIndustriesAlliance

Thedimensionsoftherackcabinetmustmeetthefollowingrequirements:

Figure1.Thedimensionrequirementsoftherackcabinet

1Rearmountingange

2Frontmountingange

3Frontdooroftherackcabinet

Thefollowingtableexplainsthedimensionrequirementsoftherackcabinet.

Table1.Thedimensionrequirementsoftherackcabinet

ItemDimensionsDescription

A750mm–900mm（29.53–

35.43inches）

ItemAreferstothedistancebetweenthefrontmountingange2andthe

rearmountingange1.Thedistanceshouldbe750mm(29.53inches)in

minimumand900mm(35.43inches)inmaximum.

B>474mm(18.66inches)ItemBreferstothewidthoftheserverincludingtherailkitwhentheserver

isinstalledintotherackcabinet.Thewidthshouldexceed474mm(18.66

inches).

D>60mm(2.36inches)ItemDreferstothedistancebetweenthefrontmountingange2andthe

insideofthefrontdooroftherackcabinet3.Thedistanceshouldexceed

60mm(2.36inches).Thisclearanceisrequiredforthechassispullhandles

onthefrontoftheserveraswellasaircirculationthroughthecabinet.

L>950mm(37.4inches)ItemLreferstothedistancebetweenthefrontmountingange2andthe

rearoftheserver.Thedistanceshouldexceed950mm(37.4inches).This

clearanceisusedtosaveadequatespaceforthecablemanagementarm.

Beforeyouinstalltheserverintoarackcabinet,reviewthefollowingguidelinestohelpyouinyourinstallation

andavoidtheriskofpersonalinjuryandordamagetoyourproduct:

•Twoormorepeoplearerequiredtoliftaserver,moveaserver,orinstallaserverintoarackcabinet

iftheservermeetsoneofthefollowingcriteria:

–Theserveris2Uorlarger.(“U”istheunitofmeasurementfordeningtheverticalspaceusedbyyour

serverand1Uisequivalentto4.445cmor1.75inches.)

–Theweightoftheserverisratedabove18kg(39.7lbs).Refertothefollowingstatementforsafe

practiceswhenlifting.

≥18kg(39.7lb)≥32kg(70.5lb)≥55kg(121.2lb)

<32kg(70.5lb)<55kg(121.2lb)<100kg(220.5lb)

CAUTION:

Usesafepracticeswhenlifting.

•Beforeinstallingaserverintoarackcabinet,removeallmediafromthedrivesandturnoffallattached

devicesandtheserver.Then,disconnectallpowercordsfromelectricaloutletsanddisconnectall

cablesthatareconnectedtotheserver.

•Makesurethattheroomairtemperatureisbelow35°C(95°F).

•Donotblockanyairvents;usually15cm(6inches)ofspaceprovidesproperairow.

•Donotleaveopenspacesaboveorbelowaninstalledserverinyourrackcabinet.Tohelpprevent

damagetoservercomponents,alwaysinstallablankllerpaneltocovertheopenspaceandtohelp

ensureproperaircirculation.

•Installtheserveronlyinarackcabinetwithperforateddoor(s)forbothsecurityandproperairow.

•Startfromthebottomoftherackcabinetfortheserverordeviceinstallation.

•Installtheheaviestserverordeviceinthebottomoftherackcabinet.

•Donotextendmorethanoneserverordeviceoutoftherackcabinetatthesametime.

•Ifpossible,removethedoorsandsidepanelsoftherackcabinettoprovideeasieraccessduring

installation.

•Donotoverloadtheelectricaloutletwhenyouinstallmultipledevicesintherackcabinet.

•Connectallpowercordstoproperelectricaloutletsandrefertothedocumentationthatcomeswiththe

rackcabinetforcablinginformationtohelpyouproperlymanageallthecablesintherackcabinet.

•Observethefollowingguideline:

CAUTION:

Donotplaceanyobjectontopofrack-mounteddevices.

Railkitpackage

Beforeyoubegintherackinstallation,removeallthepartsfromtherailkitpackageshippedwithyour

serverandlayallthepartsonaworkingsurface.

Notes:

•Anoptionalcablemanagementarmcanhelpyoutomanageyourcables.ContactyourlocalService

Providertopurchasethecablemanagementarmandrefertothelaterpartofthissectionformore

informationaboutthecablemanagementarm.

•Allthepartsrelatedtothecablemanagementarminthefollowingguresaremadeingrey.Thisindicates

thattheyareoptional.

Therailkitpackagecontainsthefollowingparts.Contactyourplaceofpurchaseifanypartismissingor

damaged.

Figure2.Partsintherailkitpackage

1Sliderails(2)5M6x16screws(2)

2Bar-railjoint6Cablemanagementarm

3Cablemanager7Arm-railjoint

4#10-32x10screws(2)8Crossbar

Theleftsliderailandtherightsliderailarealmostthesame.Theillustrationbelowshowsthecomponentsof

theleftsliderail.

Figure3.Sliderailcomponents

1Frontendofthesliderail3Rearendofthesliderail

2Innerrail4Outerrail

Note:TheinnersideoftheleftsliderailismarkedwithL.TheletterLstandsforleft.Theinnersideofthe

rightsliderailismarkedwithR.TheletterRstandsforright.

Theillustrationbelowshowsthecomponentsofthecablemanagementarm.

Figure4.Cablemanagementarmcomponents

1ArmmarkedwithA2ArmmarkedwithB

Installingyourserverintoarackcabinetusingtherailkit

Beforeyoubegin,removeallthepartsfromtherailkitpackageandlayallthepartsonaworkingsurface.

See“Railkitpackage”onpage4.Thelengthofeachsliderailrangesfrom65cm(25.6inches)when

collapsedto90cm(35.4inches)whenfullyextended.Measuretherackbeforetheinstallationtoensurethat

therackcanaccommodatethesliderail.

Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Guidelines”

onpage1.

Toinstalltheserverintoarackcabinetusingtherailkit,dothefollowing:

1.Installtherailkitbydoingthefollowing:

a.Onarearmountingangeoftherightsideoftherackcabinet,selectaproperrackmountingarea

fortherightsliderail.Positiontherearendoftherightsliderailtothemountingareasothatthe

tabsontherearendoftherightsliderailarealignedwiththecorrespondingholesinthemounting

area.Pushtherightsliderailinthedirectionasshowninthegureuntiltherearendoftheright

sliderailisrmlysecuredtothemountingange.

Note:Theholesinamountingangeareseparatedintogroupsbymeasuringmarks.Thethree

holesbetweentwoadjacentmeasuringmarksformagroup,whichindicates1Uspace.Notethe

measuringmarksonamountingangetohelpyoucorrectlyselectarackmountingareaforthe

server.Formoreinformationabouttheplacementoftheholesinamountingange,refertothe

documentationthatcomeswiththerackcabinet.

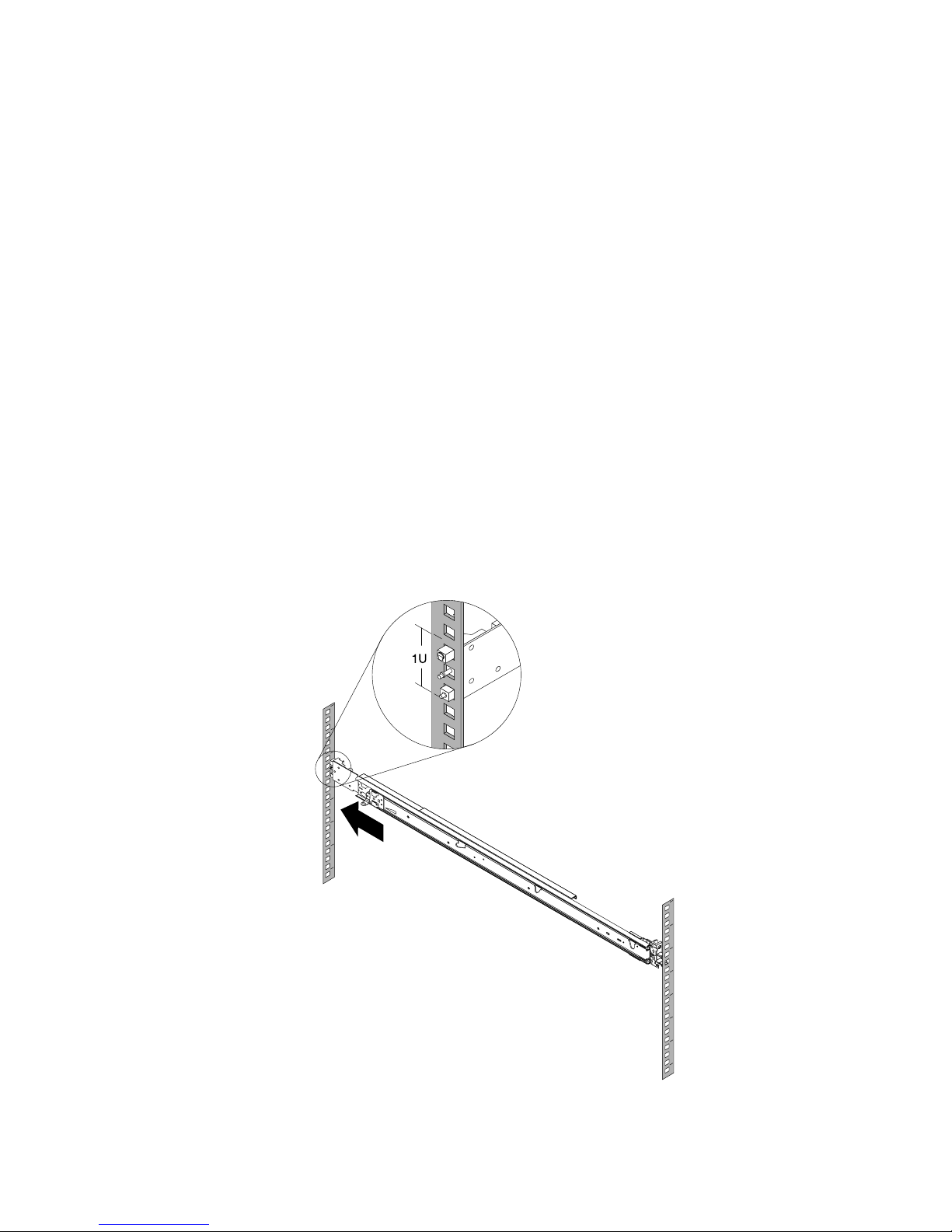

Figure5.Securingtherearendoftherightsliderailtothemountingange

b.Pullupthereleaselatch1onthefrontendoftherightsliderail.Keepthereleaselatchinthe

raisedpositionandpullouttheslideraillock2.

Figure6.Unlockingtheslideraillock

c.Positionthefrontpartoftherightsliderailtothemountingange.Makesurethatthefrontendand

rearendoftherightsliderailareatthesamehorizontallevel.Pushtherightsliderail1untilthe

frontendoftherightsliderailisrmlysecuredtothemountingange.Pushtheslideraillock2

backhorizontallyuntilitislockedintoplace.

Figure7.Securingthefrontendoftherightsliderailtothemountingange

d.Repeatsteps1through3toinstalltheleftsliderailtotheoppositesideoftherackcabinet.

2.Installthecablemanagementarmbydoingthefollowing:

a.Turntotherearoftherackcabinet.

b.Alignthebumponthecrossbarwiththedentonthebar-railjoint1.Turnthecrossbarcounter

clockwiseuntilitissecured2.

Figure8.Connectingthecrossbarandthebar-railjoint

c.Alignthebumpontheotherendofthecrossbarwiththedentonthesliderail1.Turnthecrossbar

counterclockwise2untilitissecured.Pullouttheejectbutton3andinsertthebar-railjoint

intothesliderail4.

Figure9.Connectingthecrossbarandthesliderails

d.ConnectthearmmarkedwithAandthearm-railjointbypullingouttheejectbutton1andinserting

thearmintothearm-railjoint2.

Figure10.Connectingthecablemanagementarmandthearm-railjoint

e.ConnectthearmmarkedwithBandthesliderailbypullingouttheejectbutton1andinsertingthe

armintothearm-railjoint2.ThenconnectthearmmarkedwithAandthesliderailbypullingout

theejectbutton3andinsertingthearmintothearm-railjoint4.

Figure11.Connectingthecablemanagementarmandthesliderail

3.Installtheserverbydoingthefollowing:

a.Fullyextendtheinnerrailsonbothsidesuntiltheinnerrailscannotbepulledoutfurther.

Figure12.Fullyextendingtheinnerrails
