Lenovo SPECTRUM Series Manuel utilisateur

SERVICE MANUAL

SPECTRUM Series

LCD Monitor

http://www.wjel.net

THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY

REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL;

WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE

OF PUBLICATION AND DISCLAIMS RE LIABILITY FOR CHANGES, ERRORS OR

OMISSIONS,

MANUFACTURE DATA : May-25. 2004

http://www.wjel.net

TABLE OF CONTENTS

PAGE

1. SPECIFICATIONS .................................................................................................... 3

1-1 GENERAL SPECIFICATIONS ...................................................….............. 3

1-2 LCD MONITOR DESCRIPTION .................................................................. 4

1-3 INTERFACE CONNECTOR .................................................................……. 4

2. PRECAUTION AND NOTICES ................................................................................ 5

2-1 ASSEMBLY PRECAUTION ......................................................................... 5

2-2 OPERATIONG PRECAUTION ..................................................................... 5

2-3 STORAGE PRECAUTION …........................................................................ 5

2-4 HIGH VOLTAGE WARNING ....................................................................... 5

3. OPERATING INSTRUCTIONS ................................................................................ 6

4. ADJUSTMENT .......................................................................................................... 7～8

5. CIRCUIT & SOFTWARE DESCRIPTION ................................................................ 8～13

6. TROUBLE SHOOTING............................................................................................. 14～22

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY........................................... 23

8. PARTS LISTING .........................................................................................………... 24～33

9. SCHEMATIC DIAGRAM …..................................................................................... 33～37

10 PCB LAYOUT .....................................................................………………………... 38～40

http://www.wjel.net

1. SPECIFICATIONS FOR LCD MONITOR

1-1 General specifications

1. LCD-PANEL :

Active display area 15 inches or 15.1 inches diagonal

Pixel pitch 0.297 mm x 0.297 mm

Pixel format 1024 x 768 RGB vertical stripe arrangement

2. Display Color :

6-bit, 262144 colors or 8-bit, 16.7 million colors

3. ●External Controls :

a).Power On/Off, Auto key, Rotary-knob ( for shuttle)

b).Power On/Off, Auto key, Left key, Right key ( for 4-key )

●OSD menu Controls

Contrast, Brightness, Focus, Clock,H-position, V-position, Language, Recall-C2(warm

color), Recall-C1 (Cool color), Reset, Exit-OSD, Red, Green, Blue

4. Input Video Signal :

Analog-signal 0.7Vpp

Video signal termination impedance 75 OHM

5. Scanning Frequencies :

Horizontal: 29 KHz - 63 KHz

Vertical: 55 Hz – 75 Hz

Pixel clock: 80 MHz

6. Factory Preset Timing : 18

User Timings : 19

Input signal tolerance : H tolerance ±1 K, V tolerance ±1 Hz

7. Power Source :

Switching Mode Power Supply

AC 100 – 240 V, 50/60 Hz Universal Type

8. Operating Temperature : 5℃- 35℃Ambient

Non-operating Temperature : -20℃- 60℃

9. Humidity :

Operating : 20% to 80% RH (non-condensing)

Non Operating : 5% to 95%RH (38.7℃maximum wet bulb temperature)

10.Weight : 3.0 kg

11.External Connection : 15Pin D-type Connector, AC power-Cord

12.View Angle : x-axis right/left = 60, y-axis up/down = 45 ,45

13.Outside dimension : Width x Height x Thickness = 356mm x 358mm x 160mm

14.Plug and Play : VESA DDC1/DDC2B

15.Power saving : VESA DPMS

http://www.wjel.net

1-2 LCD MONITOR DESCRIPTION

The LCD MONITOR will contain an main board, an inverter/power board, keypad board

and internal adapter which house the flat panel control logic, brightness control logic and

DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel

and the main board chips each voltage.

1-3 Interface Connectors

(A) AC-Power Cable

(B) Video Signal Connectors and Cable

Power board

(include: adapter, inverter)

Flat Panel and

CCFL backlight

Main Board

Keyboard

RS232 Connector

For white balance

adjustment in factory

mode

HOST Computer

CCFL Drive.

AC-IN

100V-240V

Video signal, DDC

Monitor Block Diagram

http://www.wjel.net

2. PRECAUTIONS AND NOTICES

2-1 ASSEMBLY PRECAUTION

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil

LCD panel surface by touching with bare hands (Polarizer film, surface of LCD panel is

easy to be flawed)

In the LCD panel, the gap between two glass plates is kept perfectly even to maintain

display characteristic and reliability. If this panel is subject to hard pressing, the

following occurs :

(a) Uniform color (b) Orientation of liquid crystal becomes disorder

(2) Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it

being soiled.

(3) Please wipe out drops of adhesive like saliva and water in LCD panel surface

immediately.

They might damage to cause panel surface variation and color change.

(4) Do not apply any strong mechanical shock to the LCD panel.

2-2 OPERATING PRECAUTIONS

(1) Please be sure to unplug the power cord before remove the back-cover. (be sure the

power is turn-off)

(2) Please do not change variable resistance settings in MAIN-BOARD, they are adjusted

to the most suitable value. If they are changed, it might happen LUMINANCE does not

satisfy the white balance spec.

(3) Please consider that LCD backlight takes longer time to become stable of radiation

characteristic in low temperature than in room temperature.

(4) Please pay attention to displaying the same pattern for very long-time. Image might

stick on LCD.

2-3 STORAGE PRECAUTIONS

(1) When you store LCD for a long time, it is recommended to keep the temperature

between 5℃-35 without the exposure of sunlight and to keep the humidity less than℃

80% RH.

(2) Please do not leave the LCD in the environment of high humidity and high temperature

such as 60℃90%RH.

(3) Please do not leave the LCD in the environment of low temperature; below -15℃.

2-4 HIGH VOLTAGE WARNING

The high voltage was only generated by INVERTER module, if carelessly contacted the

transformer on this module, can cause a serious shock. (the lamp voltage after stable

around 600V, with lamp current around 8mA, and the lamp starting voltage was around

1500V, at Ta=25℃)

http://www.wjel.net

3. OPERATING INSTRUCTIONS

This procedure gives you instructions for installing and using the LM520 LCD monitor

display.

1. Position the display on the desired operation and plug–in the power cord into External

Adapter AC outlet. Three-wire power cord must be shielded and is provided as a safety

precaution as it connects the chassis and cabinet to the electrical conduct ground. If

the AC outlet in your location does not have provisions for the grounded type plug, the

installer should attach the proper adapter to ensure a safe ground potential.

2. Connect the 15-pin color display shielded signal cable to your signal system device

and lock both screws on the connector to ensure firm grounding. The connector

information is as follow:

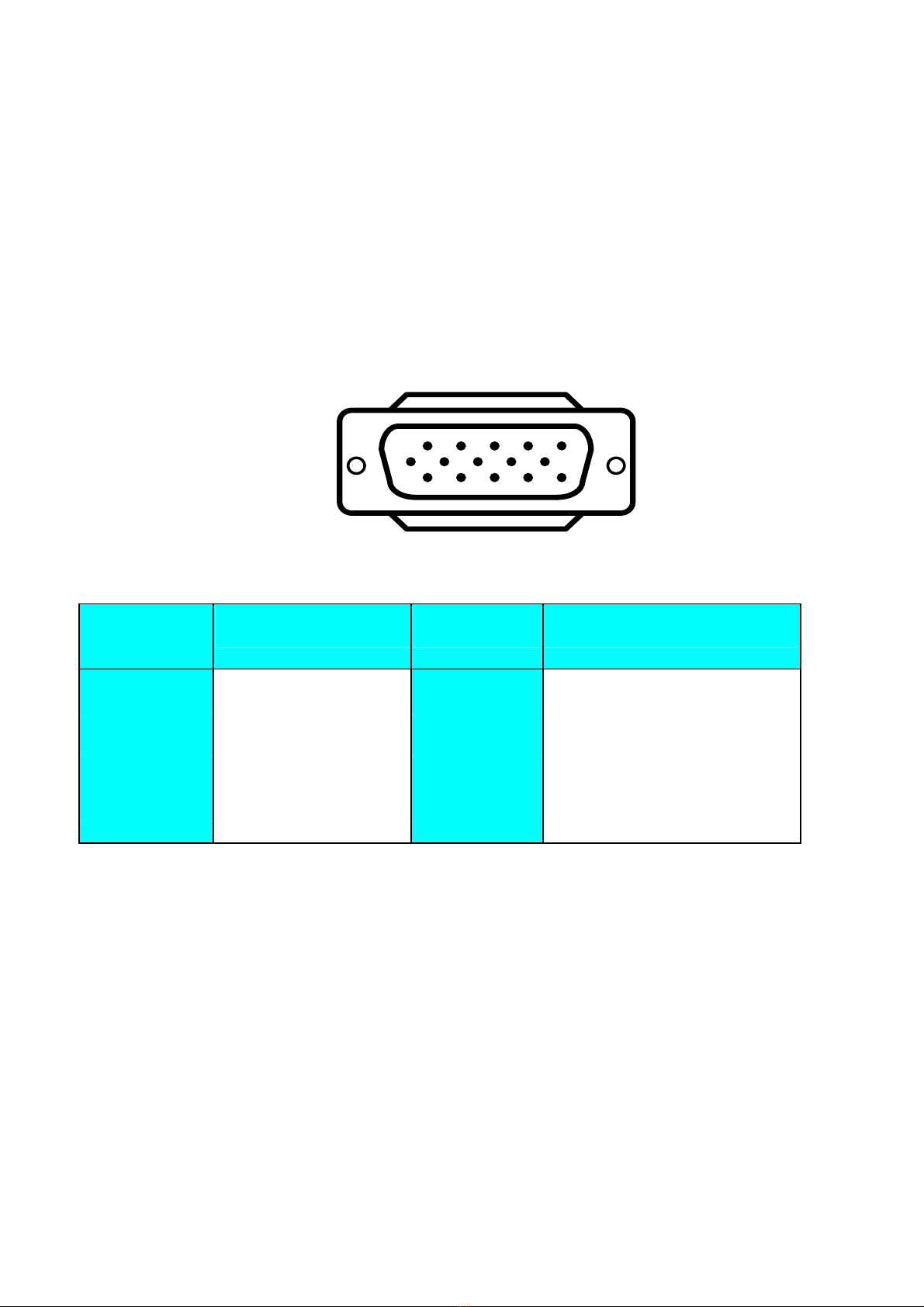

15 - Pin Color Display Signal Cable

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1. RED 9. 5V power from VGA-card

2. GREEN 10. GND

3. BLUE 11. SYNC. GND

4. GND 12. SDA

5. GND 13. HORIZ. SYNC

6. GND-R 14. VERT. SYNC

7. GND-G 15. SCL

8. GND-B

3. Apply power to the display by turning the power switch to the "ON" position and allow

about thirty seconds for Panel warm-up. The Power-On indicator lights when the

display is on.

4. With proper signals feed to the display, a pattern or data should appear on the screen,

adjust the brightness and contrast to the most pleasing display, or press auto-key to

get the best picture-quality.

5. This monitor has power saving function following the VESA DPMS. Be sure to connect

the signal cable to the PC.

6. If your LCD monitor requires service, it must be returned with the power cord &

Adapter.

11 15

http://www.wjel.net

4. ADJUSTMENT

1024x768 48K 5 9 H z

亮度和对比度

位置调整

视频杂讯

语言选择

O S D 显示时间

色温调整

O S D 位置

退出菜单

恢复出厂模式

http://www.wjel.net

5. CIRCUIT-DESCRIPTION

5-1 PANEL SPECIFICATION (LG X08)

5-1-1Panel Feature

－15” XGA TFT LCD Panel

－2 CCFLS Backlight System

－Supported (H1024Pixel × V768Lines) resolution

－By applying 8 bit digital data

5-1-2 Display Characteristics

5-1-3 Optical Characteristics

http://www.wjel.net

5-1-4 Parameter guide line for CCFL Inverter

INVERTER MAX BRINGTHNESS (Vadj:5.0v), LOAD=120KΩX4

(ROOM TEMPERATURE 25℃±4℃)

ITEM SYMBOL MIN. TYP. MAX. UNIT REMARK

Input voltage Vin 10.8 12 13.2 V

Input current Iin 2250 2500 mA FOR 4 LOAD

Output Current Iout 6.0 6.5 7.0 mA FOR 1 LOAD

Frequency F 50.0

55.0 60.0 KHZ

FOR 1 LOAD

H.V open Vopen 1450 1600 1750 Vrms NO LOAD

H.V Load Vload 710 810 910 Vrms RL=120KΩ

Start voltage Vst 1650 1750 1850 Vrms RL=CCFL

Protect delay time PDT 0.4 1 4 Sec



INVERTER MIN BRINGTHNESS (Vadj:0.0v), LOAD=120KΩX4

(ROOM TEMPERATURE 25℃±4℃)

ITEM SYMBOL MIN. TYP. MAX. UNIT REMARK

input voltage Vin 10.8 12 13.2 V

input current Iin 660 750 mA FOR 4 LOAD

Output Current Iout 3.0 3.5 4.0 mA FOR 1 LOAD

Frequency F 50.0

55.0 60.0 KHZ FOR 1 LOAD

H.V open Vopen 1450 1600 1750 Vrms NO LOAD

Start voltage Vst 1650 1750 1850 Vrms RL=CCFL

H.V Load Vload 350 450 550 Vrms RL=120KΩ

http://www.wjel.net
