Lenovo V560 Manuel utilisateur

Lenovo V560

User Guide V1.0

Read the safety notices and important tips in the

included manuals before using your computer.

©Lenovo China 2010

New World. New Thinking.TM

www.lenovo.com

P/N: 147003427

Printed in China

If your product is not working correctly,

DO NOT RETURN IT TO THE STORE.

For technical assistance, contact a Lenovo support specialist 24 hours a

day by calling toll free 1-877-4 LENOVO (1-877-453-6686).

Additionally, you can find support information and updates on the Lenovo

Web site located at http://consumersupport.lenovo.com.

* Only for the users from the United States.

First Edition (June 2010)

Before using the product, be sure to read Lenovo Safety and General Information Guide first.

The features described in this guide are common to most models. Some features may not be available on your

computer and/or your computer may include features that are not described in this user guide.

Some instructions in this guide may assume that you are using Windows®7. If you are using other Windows

operating system, some operations may be slightly different. If you are using other operating systems, some

operations may not apply to you.

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to

governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and

disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.

GS-35F-05925.

Notes

•

The illustrations in this manual may differ from the actual product. Please refer to the actual product.

•

The Regulatory Notice provides information about the radio frequency and safety standards. Be sure to read it

before using wireless devices on your computer.

To refer to it, go to http://www.lenovo.com, click Support, and then click User’s guides and manuals.

Regulatory Notice

•

Chapter 1. Getting to know your

computer.......................................................1

Top view.........................................................1

Left-side view ................................................3

Right-side view..............................................4

Front view ......................................................5

Bottom view...................................................6

Chapter 2. Learning the basics...................7

First use...........................................................7

Using AC adapter and battery ....................9

Using the touchpad.....................................11

Using the keyboard.....................................12

Connecting external devices......................14

Special keys and buttons............................16

System status indicators.............................17

Securing your computer.............................18

Chapter 3. Connecting to the Internet......19

Wired connection ........................................19

Wireless connection ....................................20

Chapter 4. OneKey Rescue system..........24

OneKey Rescue system ..............................24

Chapter 5. Troubleshooting...................... 25

Frequently asked questions....................... 25

Troubleshooting.......................................... 27

Appendix A. CRU instructions ................. 31

Replacing the battery.................................. 31

Replacing the hard disk drive................... 32

Replacing memory...................................... 35

Removing the optical drive ....................... 38

Appendix B. Lenovo limited warranty ..... 39

Warranty information ................................ 44

Appendix C. Product specific Notices..... 47

Energy star information............................. 47

Electronic emissions notices...................... 49

Appendix D. Specifications ...................... 52

Trademarks ................................................ 53

Index ........................................................... 54

Contents

Chapter 1. Getting to know your computer

Top view --------------------------------------------------------------------------------------------------------------------------

Note: The illustrations in this manual may differ from the actual product. Please refer to the actual product.

Attention:

•Do NOT open the display panel beyond 130 degrees. When closing the display panel, be careful NOT to

leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display

panel may be damaged.



Chapter 1. Getting to know your computer

Integrated camera

(Select models only)

Use the camera for video communication.

Wireless module

antennas (Select

models only)

The built-in antennas ensure optimal reception of wireless radio.

Computer display The LCD display provides brilliant visual output.

OneKey Rescue

system button

Press this button to open OneKey Rescue system (If OneKey Rescue

system has been preinstalled) when the computer is powered off.

Note: For details, see “OneKey Rescue system” on page 24.

Power button Press this button to turn on the computer.

Built-in microphone The built-in microphone (with noise reduction) can be used for video

conferencing, voice narration, or simple audio recordings.

System status

indicators

For details, see “System status indicators” on page 17.

Touchpad The touchpad functions as a conventional mouse.

Note: For details, see “Using the touchpad” on page 11.

Fingerprint reader

(Select models only)

With the fingerprint reader you can register fingerprints and use them as

passwords to secure your computer.

Lenovo Security Suite

button (Select models

only)

Press this button to get access to the Security Suite.

Volume buttons

(Select models only)

Use these buttons to adjust volume.

Chapter 1. Getting to know your computer

Left-side view -------------------------------------------------------------------------------------------------------------

USB ports Connect to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.

Fan louvers

Dissipate internal heat.

Note: Make sure that none of the fan louvers are blocked or else overheating of the computer may occur.

RJ-45 port

This port connects the computer to an Ethernet network.

Note: For details, see “Wired connection” on page 19.

VGA port

Connects to external display devices.

HDMI port (Select

models only)

Connects to devices with HDMI input such as a TV or a display.

eSATA/USB combo

port (Select models

only)

Connects to eSATA or USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.

efdc

Chapter 1. Getting to know your computer

Right-side view --------------------------------------------------------------------------------------------------------

Headphone jack Connects to external headphones.

Attention:

•Listening to music at high volume over extended periods of time may damage your hearing.

Microphone jack Connects to external microphones.

USB port Connects to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.

Optical drive Reads/Burns optical disks.

Kensington slot

Attach a security lock (not supplied) here.

Note: For details, see “Attaching a security lock (not supplied)” on page 18.

AC power adapter

jack

Connect the AC adapter here.

Note: For details, see “Using AC adapter and battery” on page 9.

efdcba



Chapter 1. Getting to know your computer

Front view ----------------------------------------------------------------------------------------------------------------------

System status

indicators

For details, see “System status indicators” on page 17.

Integrated wireless

device switch (Select

models only)

Use this switch to turn on/off the wireless radio of all wireless devices on

your computer.

Memory card slot

Insert memory cards (not supplied) here.

Note: For details, see “Using memory cards (not supplied)” on page 14.

a b

Chapter 1. Getting to know your computer

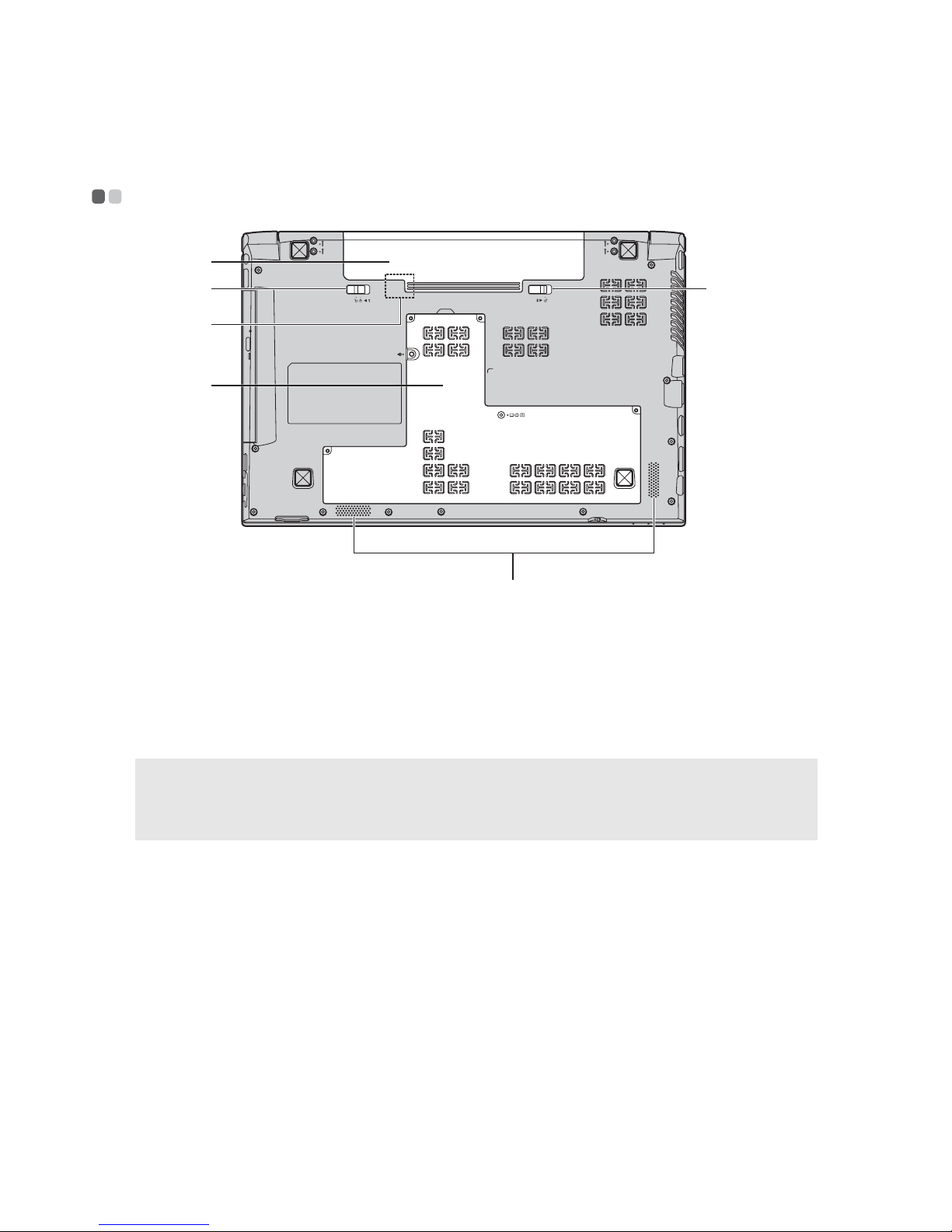

Bottom view ----------------------------------------------------------------------------------------------------------------

Battery pack

For details, see “Using AC adapter and battery” on page 9.

Battery latch - manual The manual battery latch is used to keep the battery pack secured in place.

SIM card slot (Select

models only)

Insert a SIM card (not supplied) for using Mobile Broadband.

Notes:

•In order to be able to insert a SIM card into this slot, you must first disconnect the AC adaptor and

remove the battery pack.

•For details, see “Using Mobile Broadband (Select models only)” on page 21.

Hard disk drive (HDD)/

Memory/Mini PCI

Express Card slot

compartment

Speakers The stereo speakers provide rich and powerful sound.

Battery latch - spring

loaded

The spring-loaded battery latch keeps the battery pack secured in place.
