Lenovo ThinkStation P620

Contents

OVERVIEW

CONSIDERATIONS

SECTION 1 – INSTALLING NVME DEVICES

SECTION 2 – INSTALLING HDDS/SSDS

SECTION 3 – CONFIGURING NVME RAID FOR P620

SECTION 4 – CONFIGURING SATA RAID FOR P620

SECTION 5 – REVISION HISTORY

Overview

The purpose of this document is to provide guidelines for users on how to

optimally configure the system storage in the ThinkStation P620 platform in

order to insure the proper functionality.

The P620 utilizes 3.5” SATA HDDs as well as NVMe M.2 SSDs with on-board

RAID controllers for both drive types. There are a maximum of five SATA drive

locations and eleven NVMe drive locations for a total of sixteen drives that can

physically be installed in the system. However, the maximum number of drives

supported in this system for simultaneous use is fourteen. This maximum

number can be affected based on the hardware configuration of the system as

well as the configuration of the RAID controllers. Enabling the NVMe RAID

controller individually or the NVMe and the SATA RAID controllers

simultaneously will alter the supported number of drives.

When the appropriate number of drives are present in system, the P620 can

support RAID 0, 1, 5, and 10. A given RAID level will only be available or

shown for selection if the system detects enough drives to support it. RAID

configurations are discussed in Sections 3 and 4.

Considerations

 The P620 has on-board RAID support for both the NVMe and SATA. At

the time of writing the are no add-in RAID controllers certified to work on

the P620.

 The ability to maximize the number of NVMe drives is dependent upon

using two optional Quad M.2 PCIe adapters, a single optional NVMe

M.2 PCIe Add In Card, and the two on-board NVMe M.2 slots. Two

Quad M.2 PCIe adapters can only be used if a single wide GPU is used.

Slot 3 is reserved for the first GPU. Slot 1 and Slot 4 are the only other

x16 PCIe slots that can accommodate a Quad M.2 PCIe adapter.

 The ability to maximize the number of SATA drives is dependent upon

using two default HDD bays located at the bottom of the chassis, as well

as two additional optional HDD bays that will mount next to those, and

finally adding an additional storage location in the front bay. Using the

front bay for an HDD device will require an optional Flex bay - Flex

storage enclosure, a Front-access storage enclosure (FASE). For more

information see Section 2.

 The P620 can simultaneously utilize up to fourteen drives. If the NVMe

RAID controller is enabled this will reduce the maximum number of

drives supported. Enabling the SATA RAID controller in addition to the

NVMe RAID controller will further affect the number of supported drives.

o If the NVMe RAID controller is disabled and the SATA RAID

controller is enabled or disabled, the system will support up to

fourteen drives.

o If the NVMe RAID controller is enabled and the SATA RAID

controller is disabled, the system will support a maximum of

thirteen drives. Although the system can support thirteen drives,

it can only support up to eight NVMe drives in any configuration.

The maximum number of NVMe drives is eight and the maximum

number of SATA drives is five.

o If the NVMe RAID controller is enabled and the SATA RAID

controller is enabled, the system can support a maximum of eight

drives. Although the system can support eight drives, it can only

support a maximum of six NVMe drives in any configuration.

 Although the system can support a wide array of configurations of

NVMe and SATA drives, care should be given when selecting drives

based on the types of RAID arrays that are desired.

o A given array should not mix drive types or sizes. Mixing drive

brands does not pose any issues so long as the brands share the

same Lenovo part numbers.

o Each RAID level requires a certain minimum and or maximum

number of drives. If altering the system storage devices after

purchase, it will be necessary to verify there are the proper types

and number of devices for a desired RAID configuration.

o In the proper configuration, the system can hold up to eleven

NVMe M.2 drives and the system supports the Gen 4 PCIe

standard for the latest generation of M.2 drives. The two

designated slots on the motherboard can support up to Gen 4

speeds. However, the currently supported optional Quad M.2

PCIe card and the single M.2 Add In Card are only capable of

Gen 3 speeds, even if Gen 4 drives are used.

 There are Lenovo limitations on the number of supported RAID arrays.

o There is a maximum of two RAID arrays per RAID controller. This

will limit the NVMe RAID controller to two arrays and limit the

SATA RAID controller to two arrays for a total of 4 RAID arrays

per system.

o RAID arrays on the NVMe RAID controller are limited to a single

interface. An array could be created with both M.2 drives in the

on-board M.2 slots. An array could also be created on a single

Quad M.2 PCIe adapter using up to 4 M.2 drives but an array

cannot span interfaces or adapters.

Section 1 – Installing NVMe Devices

Please make sure the NVMe devices are installed into the following PCIe slot

locations on the ThinkStation P620 motherboard seen below. The NVMe

drives may use the dedicated Gen 4 capable onboard M.2 slots see Figure 1

(1), or use up to two Quad M.2 PCIe adapters and one AIC single M.2 adapter

in any of the Gen 3 capable PCIe slots, see Figure 1 (2).

Figure 1

Note: Depending on the installation used, any of the designated PCIe slots

see Figure 1 (2) above may be used to configure NVMe drives except PCIe

Slot 3 which is reserved for the first GPU.

For M.2 NVMe drives in the onboard M.2 slots:

1. Remove the heatsink covering the onboard M.2 slots by turning the

mounting stud 90-degree counterclockwise to release the heat sink.

Then, remove the heat sink from the system board.

2. Remove the screw or screws from the mounting bracket and align the

notch in the screw holder with the corresponding notch in the M.2 NVMe

drive. Insert the screw holder onto the M.2 NVMe drive as shown.

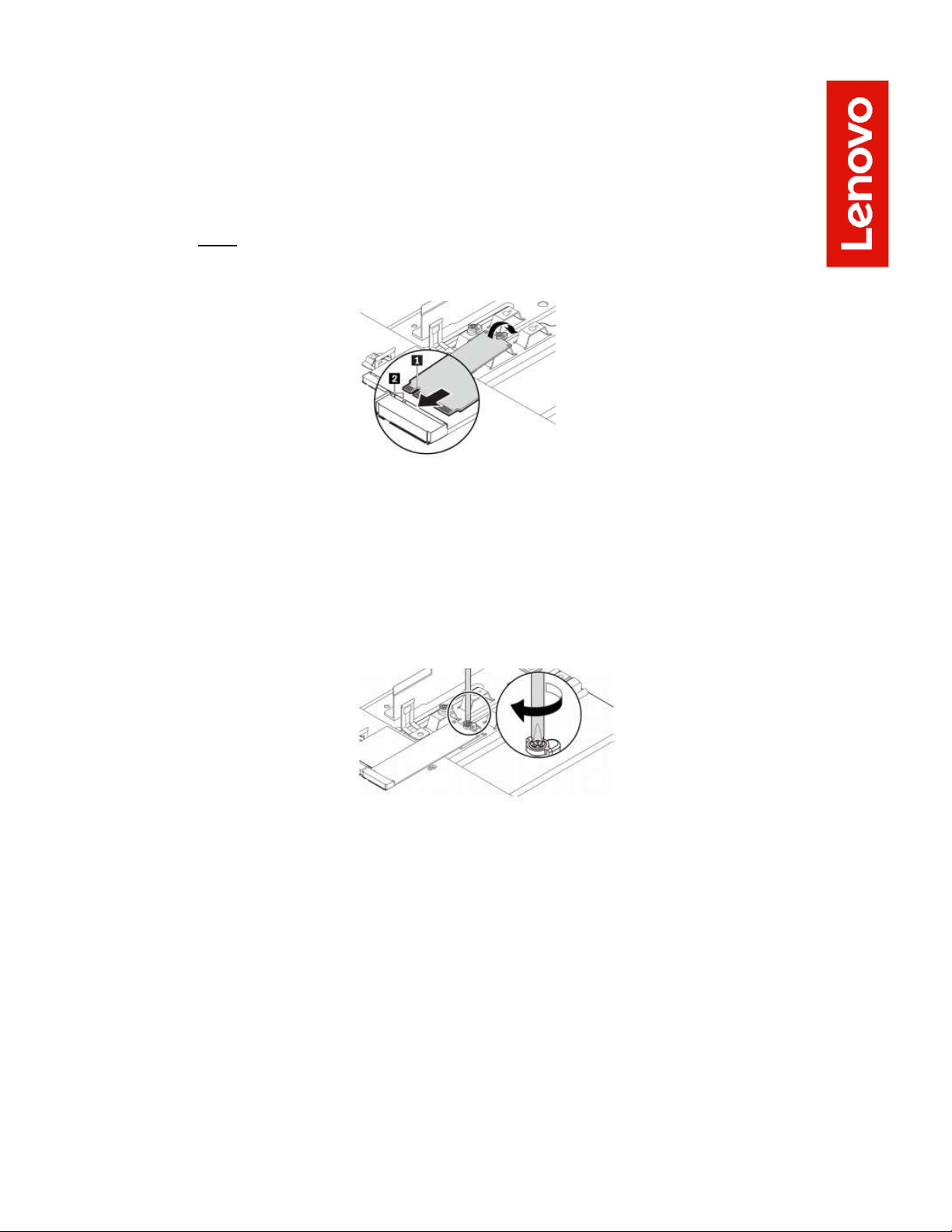

3. Hold the new drive by its edges so as not to touch the circuit board and

ensure that the circuit board side is facing upward. Align the notch in the

new drive with the slot key in the M.2 slot. Insert the drive into the

corresponding slot at an angle of about 20 degrees until it is firmly

secured. Pivot the M.2 NVMe drive downward.

Note: If only one M.2 NVMe drive is installed, ensure that the drive is

installed in the M.2 NVMe drive slot 1.

4. Tighten the screw to secure the M.2 NVMe drive. Be sure not to

overtighten the screw.

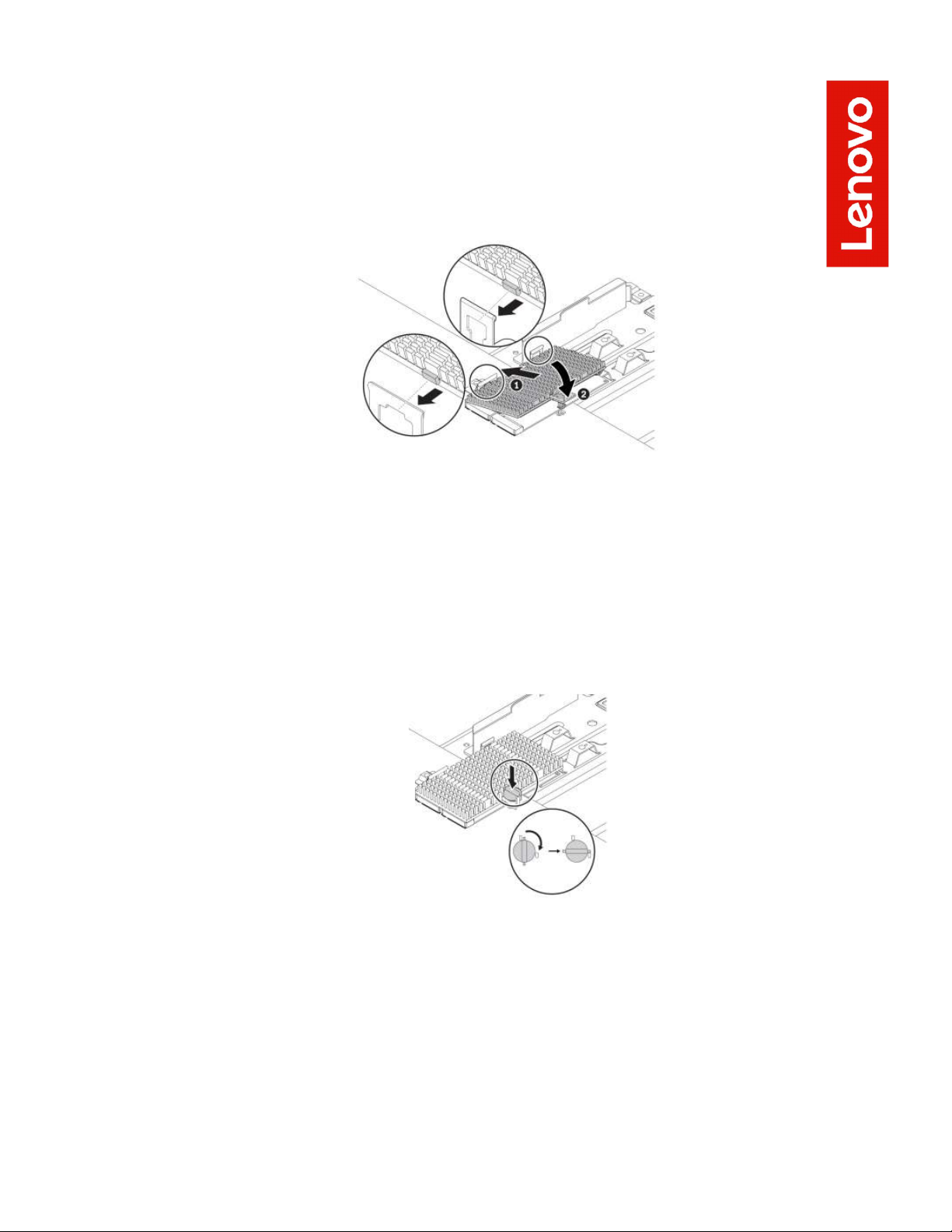

5. If necessary, remove the film that protects the thermal pad on the heat

sink. Insert the two hooks on the heat sink into the corresponding holes

as shown. Then, press the heat sink downward. Ensure that the

mounting stud on the heat sink is aligned with the hole in the system

board.

6. Press the mounting stud downward and turn the mounting stud 90-

degree clockwise to secure the heat sink to the system board.

For M.2 NVMe drives installed in the Add-in Card:

1. Ensure that a thermal pad is placed in position on the M.2 solid-state

drive PCIe adapter.

2. Pull the retention latch outward on the M.2 solid-state drive adapter.
