Lenovo ThinkStation P320 Tiny Manuel utilisateur

P320 Tiny Customer Replaceable Unit Guide

Machine Types (MTs): 30C1 (Energy Star , 30C2 (Energy Star , and

30C3 (Energy Star

Note: Before using this information and the product it supports, be sure to read and understand the

Important Product Information Guide.

Fourth Edition (May 2018)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-

35F-05925.

Contents

Chapter 1. Product o er iew . . . . . . 1

Front view . . . . . . . . . . . . . . . . . . 1

Rear view . . . . . . . . . . . . . . . . . . 2

System board . . . . . . . . . . . . . . . . 3

Machine type and model label . . . . . . . . . . 4

Chapter 2. I/O box . . . . . . . . . . . . 5

Overview . . . . . . . . . . . . . . . . . . 5

Using the I/O box . . . . . . . . . . . . . . . 5

Chapter 3. Connecting to other

de ices . . . . . . . . . . . . . . . . . . 7

Attaching a Kensington-style cable lock . . . . . . 7

Connecting to a Tiny-In-One monitor . . . . . . . 7

Chapter 4. Features . . . . . . . . . . . 9

Chapter 5. Replacing hardware . . . . 11

Before replacing hardware . . . . . . . . . . 11

Handling static-sensitive devices . . . . . . . . 11

Knowing replaceable parts . . . . . . . . . . 11

Replacing CRUs . . . . . . . . . . . . . . 14

Replacing the keyboard or wireless

keyboard . . . . . . . . . . . . . . . 15

Replacing the mouse or wireless mouse . . . 16

Replacing the power adapter . . . . . . . . 19

Replacing the vertical stand . . . . . . . . 22

Replacing the VESA mount bracket . . . . . 23

Replacing the external optical drive . . . . . 24

Replacing the external I/O box . . . . . . . 26

Replacing the power adapter bracket . . . . 28

Removing the computer cover . . . . . . . 29

Replacing the storage drive . . . . . . . . 29

Replacing the internal speaker . . . . . . . 31

Replacing the bottom cover . . . . . . . . 33

Replacing the memory module . . . . . . . 34

Replacing the M.2 storage drive . . . . . . 36

Completing the parts replacement. . . . . . 38

Appendix A. Notices. . . . . . . . . . 41

Trademarks . . . . . . . . . . . . . . . . 42

ii P320 Tiny Customer Replaceable Unit Guide

Chapter 1. Product o er iew

This chapter provides basic information to help you get familiar with your computer.

Front iew

Note: Your computer model might look slightly different from the illustration.

1 Power indicator 2 Power button

3 Storage drive activity indicator 4 Microphone connector

5 Headset connector 6 USB 3.0 connector

7 Always On USB 3.0 connector 8 Illuminated red dot

• Always On USB 3.0 connector

Used to connect a device that requires a USB 2.0 or USB 3.0 connection, such as a keyboard, a mouse, a

scanner, a printer, or a personal digital assistant (PDA . With the power adapter connected, you can

charge the automatically detected device even when the computer is in hibernation mode or turned off.

• Headset connector

Used to connect a headset or headphones to your computer.

• Illuminated red dot

This indicator is on when the computer is powered on.

• Microphone connector

Used to connect a microphone to your computer. You can use the microphone to record sounds or

interact with the computer using speech-recognition software.

• Power button

Used to turn on your computer. When you cannot shut down the computer from the operating system,

press and hold the power button for four or more seconds to turn off the computer.

• Power indicator

This indicator is on when the computer is on.

• Storage dri e acti ity indicator

This indicator is on when the storage drive is in use.

• USB 3.0 connector

Used to connect a USB-compatible device, such as a USB keyboard, mouse, scanner, printer, or personal

digital assistant (PDA . For optimal data transfer, connect a USB 3.0 device to a USB 3.0 connector

instead of a USB 2.0 connector.

Rear iew

Note: Your computer model might look slightly different from the illustration.

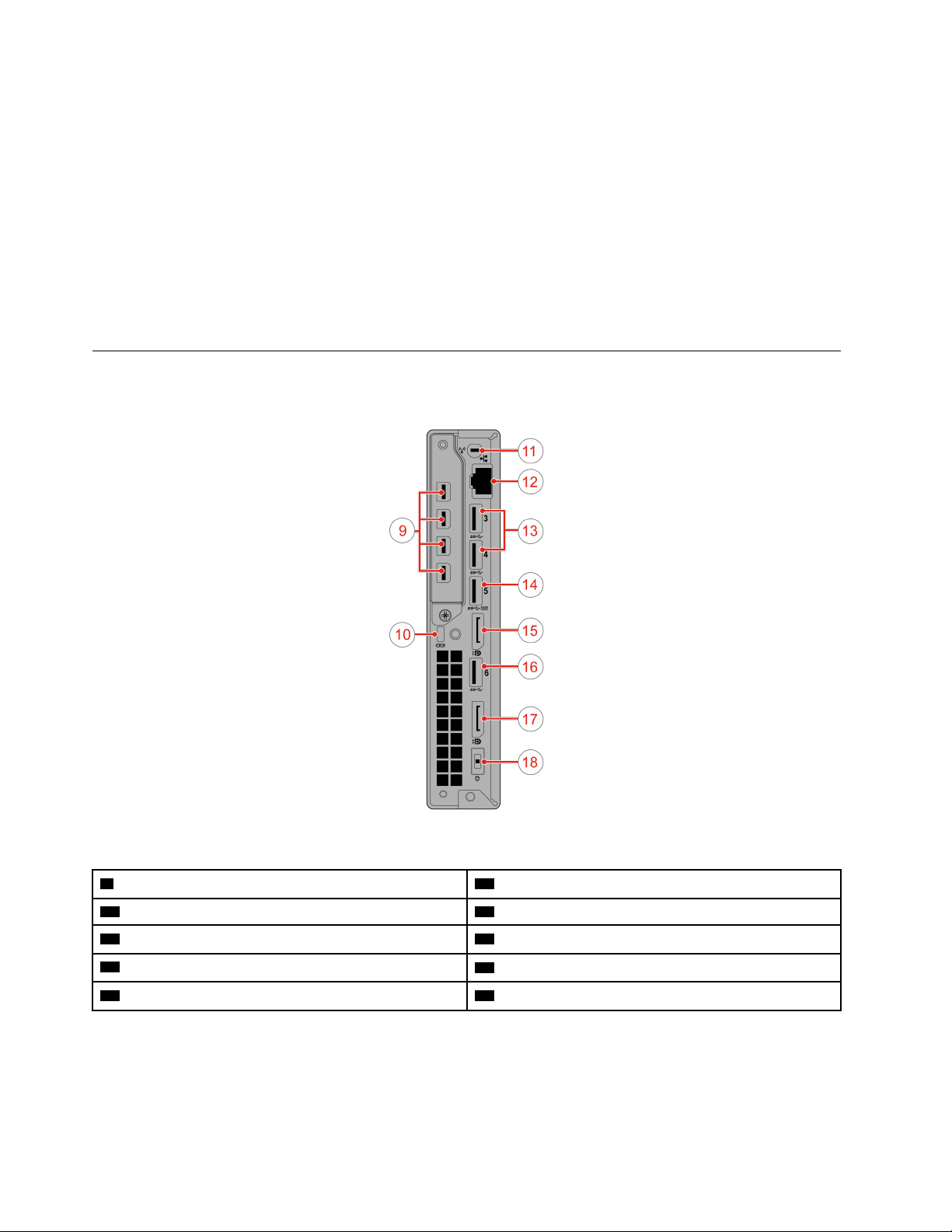

Figure 1. Rear view

9 Mini DisplayPort® connectors (4 (optional 10 Security-lock slot

11 Wi-Fi antenna slot 12 Ethernet connector

13 USB 3.0 connectors (2 14 USB 3.0 connector

15 DisplayPort connector 16 USB 3.0 connector

17 DisplayPort connector 18 Power adapter connector

• DisplayPort connector

Used to send or receive audio and video signals. You can attach a compatible audio or video device to

this connector, such as a high-performance monitor.

• Ethernet connector

2P320 Tiny Customer Replaceable Unit Guide

Used to connect an Ethernet cable for network access.

• Mini DisplayPort connector

Used to send or receive audio and video signals. You can attach a compatible audio or video device to

this connector, such as a high-performance monitor. Depending on the computer model, the connector

might vary.

• Power adapter connector

Used to connect the power adapter to your computer for power supply.

• Security-lock slot

Used to secure a Kensington-style cable lock.

• USB 3.0 connector

Used to connect a device that requires a USB 2.0 or USB 3.0 connection.

• Wi-Fi antenna slot

Used to install the rear Wi-Fi antenna cable connector that is available only on some models. The rear Wi-

Fi antenna is installed on the rear Wi-Fi antenna cable connector.

System board

Note: See “Front view” on page 1 or “Rear view” on page 2 for additional component descriptions.

Figure 2. Parts on the system board

1 Serial connector 1 2 Serial connector 2

3 USB 3.0 connector 4 Storage drive fan connector

5 Microprocessor socket 6 Coin-cell battery

7 Illuminated red dot connector 8 Internal speaker connector

9 System fan connector 10 Advanced speaker connector

11 SATA storage drive connector 12 M.2 Wi-Fi card slot

13 PCI Express graphics card slot 14 Memory slot (DIMM1

Chapter 1.Product overview 3

15 Memory slot (DIMM2 16 M.2 storage drive slot 2

17 M.2 storage drive slot 1

Machine type and model label

The machine type and model label identifies your computer. When you contact Lenovo for help, the machine

type and model information helps support technicians to identify your computer and provide faster service.

The machine type and model label is attached on the side of your computer as shown.

Figure 3. Machine type and mode abe

4P320 Tiny Customer Replaceable Unit Guide

Chapter 2. I/O box

O er iew

Note: Depending on your computer model, the I/O box might be optional.

Figure 4. I/O box overview

1 USB 2.0 connectors (2 2 Serial connector (optional

3 USB 2.0 connectors (2 4 USB 3.0 connectors (2

5 USB 3.0 connector (for connecting to the computer

Using the I/O box

When you use the I/O box with the ThinkStation® tiny computer, note the following:

• The I/O box supports a maximum current rating of 5 A. It is recommended that you connect low-current

devices to the I/O box and connect high-current devices directly to the ThinkStation tiny computer to

ensure the best performance of the devices.

• The USB 2.0 connectors and USB 3.0 connectors on the I/O box provide a current of 500 mA and 900 mA

current, respectively. When you connect a high-current storage drive to only one USB connector, the

system might not recognize the device. You can connect the storage drive to two USB connectors on the

I/O box.

• The serial connector does not support hot swapping. Do not connect a device to the connector or remove

a device from the connector while the system is running.

• The connectors on the I/O box cannot be enabled or disabled individually. To enable or disable any of the

connectors on the I/O box, enable or disable the USB connectors on the rear of the computer.

• The I/O box enables you to wake up the computer from standby mode through operations on devices

connected to the I/O box connectors.

6P320 Tiny Customer Replaceable Unit Guide
