Lenovo IdeaCentre Q200 Hardware Manuel utilisateur
www.lenovo.com
Version 1.0
WORLDWIDE PARTNER
IdeaCentre Q User Guide
31032755
31032755_UG_FM_EN.indd 1 2007.12.21 2:44:32 PM
Danger: Watch out for high risks
Caution: Watch out for medium risks
Attention: Pay attention to low risks
Prohibition: Dangerous operations
Recommendation: Helpful tips
Key to signs used in this manual
31032755_IdeaCentre Q-UG.indd 1 2007.12.21 2:28:49 PM
31032755_IdeaCentre Q-UG.indd 2 2007.12.21 2:28:49 PM
1
Table of contents
Table of contents
Key to signs used in this manual
Chapter 1 Instructions for using computer hardware ........... 1
1.1 Front View of the Chassis ........................................................2
1.2 Rear view of the chassis ..........................................................4
1.3 Notes on computer cabling and installation ..............................7
1.4 Keyboard and Mouse ..............................................................7
1.5 Using the Remote Control ......................................................11
Chapter 2 Lenovo Computer Rescue System Operation
Instruction .............................................................. 15
2.1 Installing Drivers and Software Shipped with Computer .........16
2.2 OneKey Recovery .................................................................17
2.3 File Management ..................................................................21
2.4 OneKey Antivirus ...................................................................22
Chapter 3 Using the software ................................................ 25
3.1 Power2Go — Burning Discs ..................................................26
3.2 Lenovo Healthcare Software ..................................................27
3.3 PC-cillin ................................................................................30
3.4 Lenovo Media Studio .............................................................31
3.5 Veriface (Only for computer which is shipped with camera) ....32
3.6 Earth link (Only for United States ) .........................................33
Chapter 4 System maintenance and recovery ..................... 35
4.1 Restoring the system .............................................................36
4.2 Cleaning up the disk ..............................................................36
4.3 Checking for, and correcting disk errors .................................37
4.4 Defragmenting the disk(s) ......................................................37
4.5 Performing daily maintenance tasks .......................................37
31032755_IdeaCentre Q-UG.indd 1 2007.12.21 2:28:50 PM
2Table of contents
Chapter 5 Troubleshooting and Confirming Setup .............. 39
5.1 Troubleshooting display problems ..........................................40
5.2 Troubleshooting audio problems ............................................40
5.3 Troubleshooting software problems .......................................41
5.4 Troubleshooting problems with optical drives and hard
disks .....................................................................................42
5.5 Special considerations for troubleshooting Windows .............43
31032755_IdeaCentre Q-UG.indd 2 2007.12.21 2:28:50 PM
1
2
3
4
5
Chapter
Instructions for using computer
hardware
This chapter describes some of the operations
commonly performed during routine use of the
computer, including the proper connection of
components. Please read it carefully.
The description of the TV card in this manual is only
used for the machines which have the TV card. It
is invalid for those machines which do not have TV
card.
Note: The configuration of your computer
model may vary slightly from the illustrations
used in this document.
User Guide 1
31032755_IdeaCentre Q-UG.indd 1 2007.12.21 2:28:14 PM
2User Guide

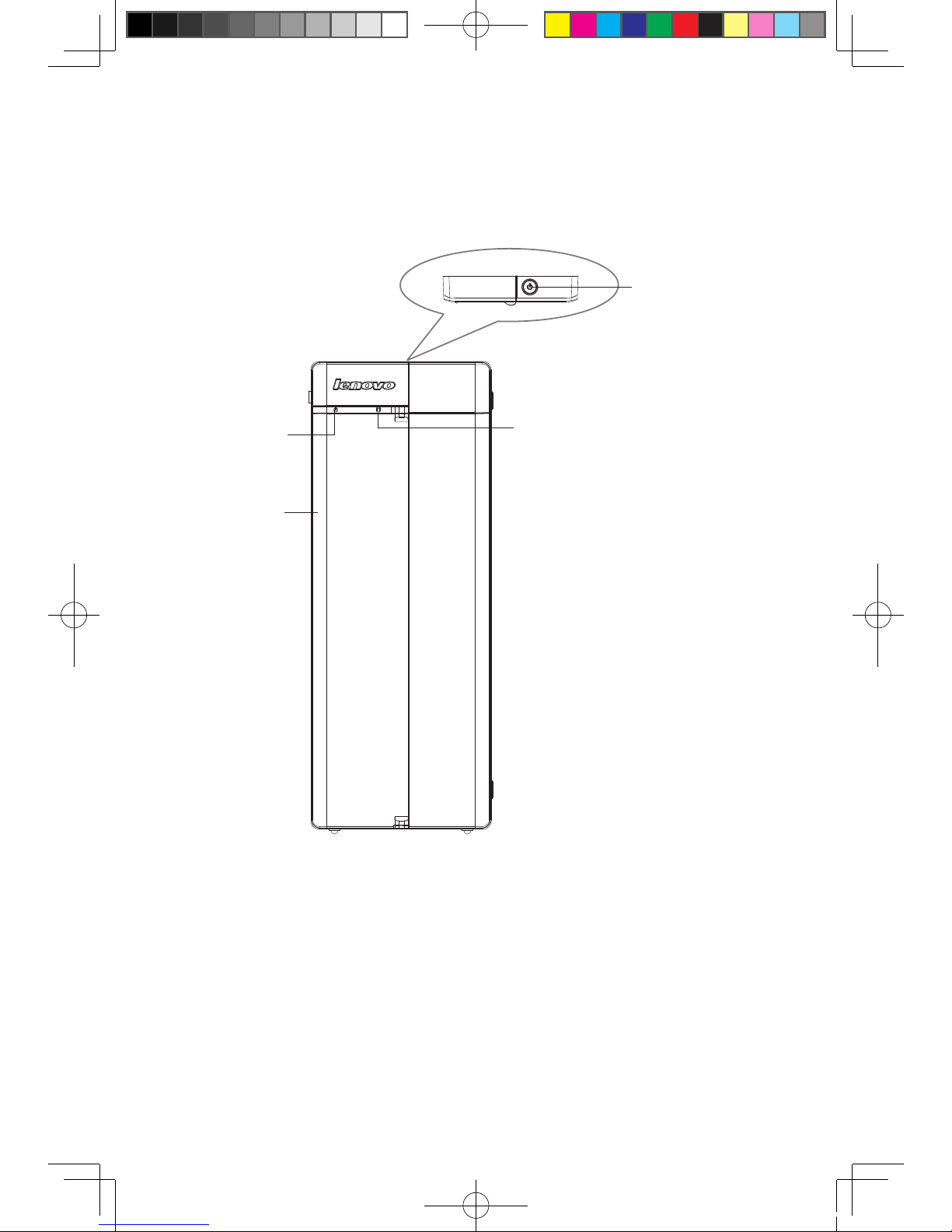

1.1 Front View of the Chassis
Instructions for the use of buttons and functional keys that are located at the
front of the computer.
F-1
F-2
F-3
F-4
F-1 Power switch: Press this button to turn on / off the computer.
F-2 Hard disk light: Indicates the read /write status of the hard disk.
F-3 Power light: Indicates the status of the power.
F-4 Front Digital Panel: Open the front digital panel. You can now see the front
digital connectors.
31032755_IdeaCentre Q-UG.indd 2 2007.12.21 2:28:15 PM
3
User Guide
Front Digital Panel:
D-4
D-1
D-2
D-3
D-5
D-1
MS/Pro/Duo/ProDuo
CF/I/II/MD
xD
SD/Mini/HC/MiniHC
MMC/RS/Plus/Mob
D-1 USB Connectors: To connect USB devices.
D-2 Microphone Connector: To connect the microphone and pass the
microphone audio input to the computer.
D-3 Speakers/Headphones Connector: To connect speakers or headphones. If it
is necessary to connect the headphones, remove the speaker plug and insert
the headphones plug.
D-4 Optical drive
D-5 Memory card reader Connector: Able to read/write data from CompactFlash
I/II/MD, xD, MS/Pro/Duo/Pro Duo, SD/Mini /HC/Mini HC/MMC/RS/Plus/Mobile
memory cards.
31032755_IdeaCentre Q-UG.indd 3 2007.12.21 2:28:15 PM
4User Guide

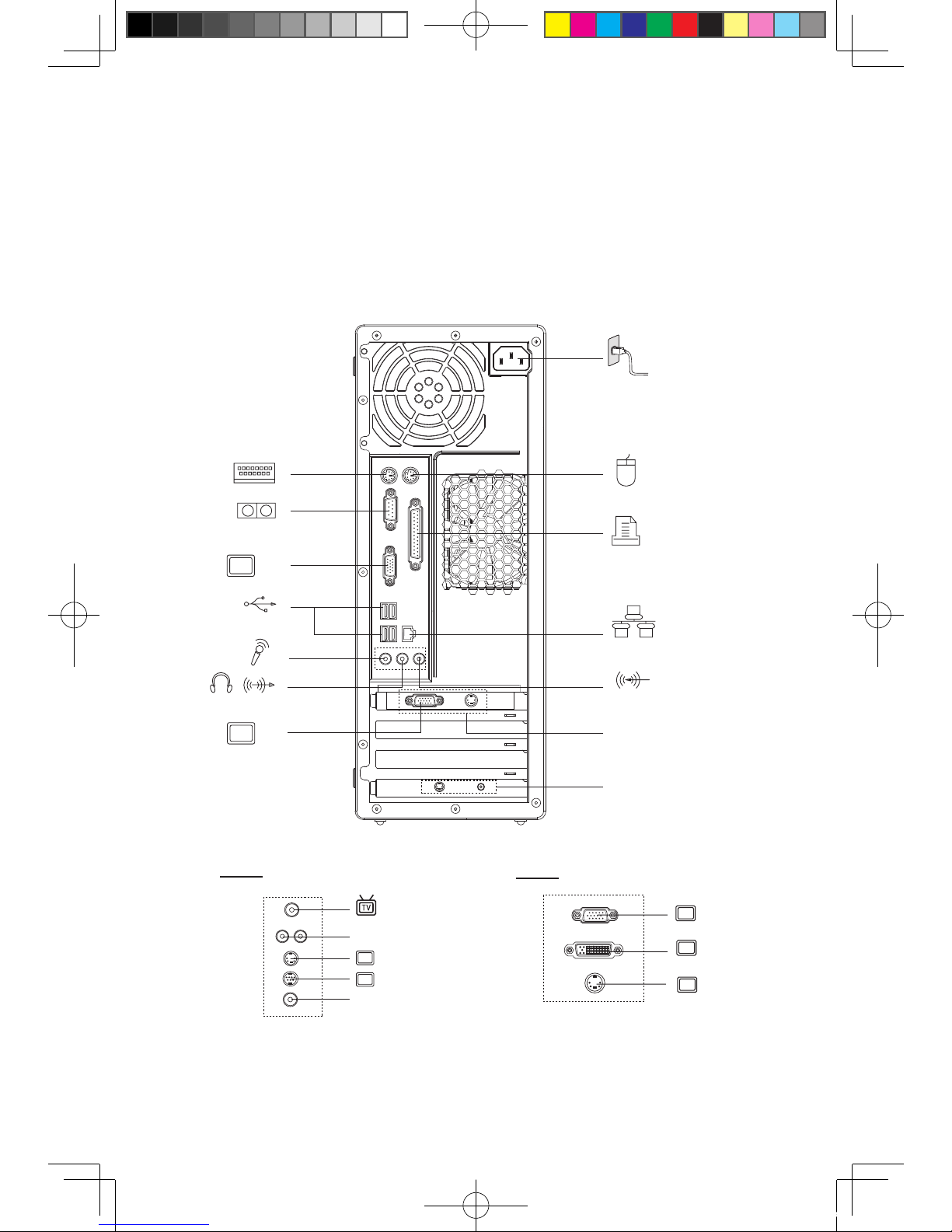

1.2 Rear view of the chassis
Instructions for the use of all I/O interfaces on the rear panel of the computer.
The following illustrations show connections located at the rear of some computer
models. The locations of connectors on your computer will be similar to, but
possibly not identical to these. Following the illustrations is a key that explains the
symbol callouts used in the figures.
X-1
X-2
T-2 V-2
S
DVI
X-2
L&R
FM
T-2
V-2
V
S
V-2 ———— The external VGA Card may have some of these connectors, but
not have all of them. Use the correct connector according to the
31032755_IdeaCentre Q-UG.indd 4 2007.12.21 5:09:42 PM
5
User Guide
monitor you used.
T-2 ———— The TV Card may have some of these connectors, but not have all
of them. Use the correct connector according to the usage.

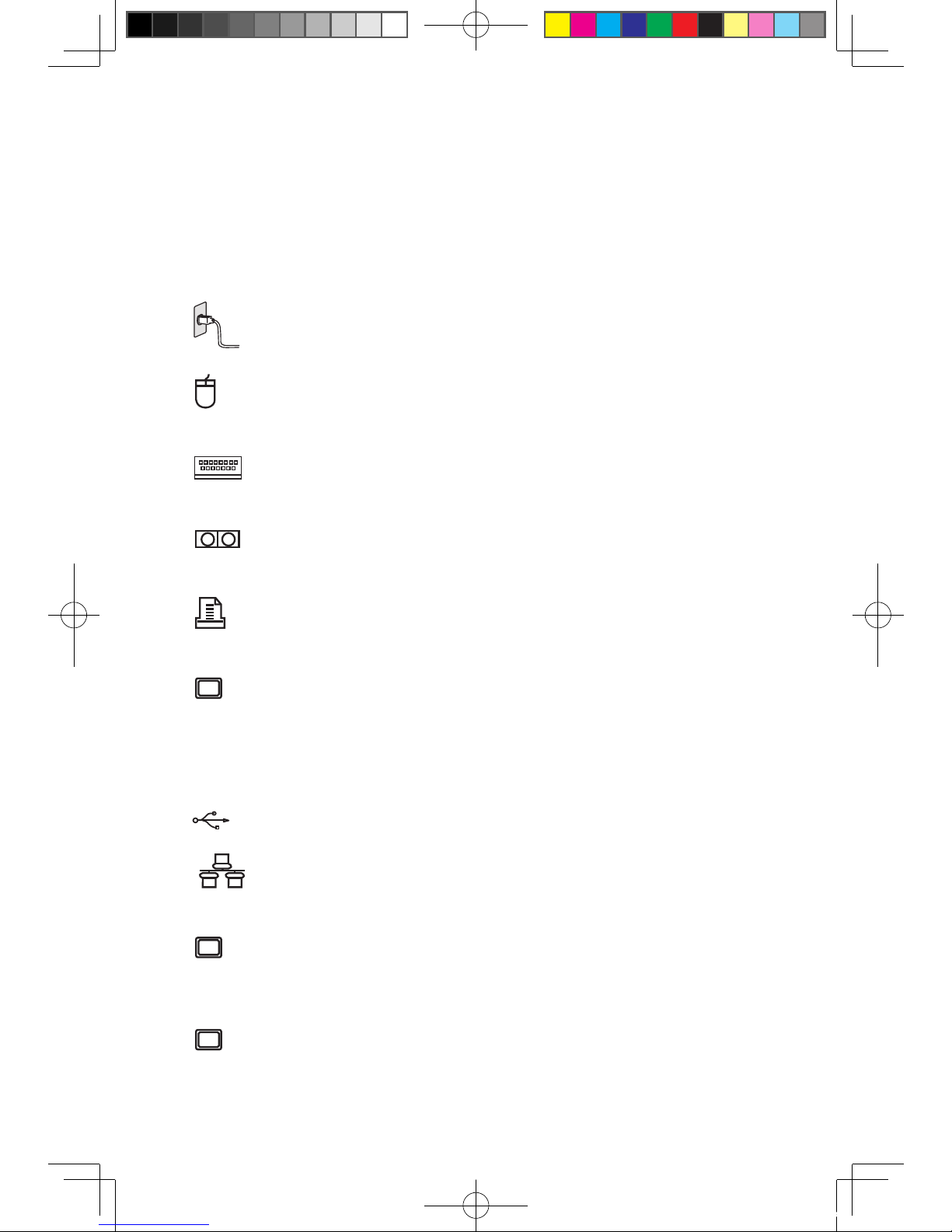

Key to symbols used in the above illustrations of the rear of the
chassis:
——— Power Connector: To supply power to the computer.
———— PS/2 Mouse Connector: To connect a mouse having a PS/2
connector.
—— PS/2 Keyboard Connector: To connect a keyboard having a PS/2
connector.
—— Serial Connector: To connect devices requiring a serial connection.
(COM Connector )
——— Parallel Connector: To connect devices requiring a parallel
connection.
X-1 —— On-board VGA Card Connector: To connect with the signal cable
of a monitor. On computer models that have an external graphics
card, on-board graphics card signals are shielded and there are
no VGA signal outputs - some models are equipped with this
connector.
——— USB Connector: To connect USB devices.
—— Ethernet Connector: To connect LAN or broadband network
devices.
X-2 —— External VGA Card Connector: To connect with the signal cable
of a monitor. It connects with the data cable of the monitor. (Some
models are equipped with this connector.)
DVI —— External DVI Card Connector: To connect to the data cable of the
DVI connector. (Some models are equipped with this connector)
31032755_IdeaCentre Q-UG.indd 5 2007.12.21 2:28:18 PM
