310S Series

User Guide

Machine Type (MT):

90G9 [ideacentre 310S-08ASR/Energy Star]

90HX [ideacentre 310S-08IGM/Energy Star]

1

Front view of the computer

ATTENTION: Be sure not to block any air vents on the computer. Blocked air vents may cause thermal

problems.

NOTE: This computer only can be placed in a vertical position.

ATTENTION: Do not insert 3-inch discs into the optical drive.

Optical drive eject button

(selected models only)

Optical drive (selected models

only)

Power button

Hard disk drive indicator

Microphone connector

Headphone connector

Memory card reader (selected

models only)

USB 3.0 connectors (2)

USB 2.0 connectors (2)

2

Rear view of the computer

310S-08IGM310S-08ASR

Audio connectors

HDMI-out connector

VGA-out connector

USB 2.0 connectors (2)

Ethernet connector

Power connector

Expansion card slots (such as

graphic card)

NOTE: If your model has two VGA monitor connectors, be sure to use the connector on the graphics

adapter.

ATTENTION: Do not open the Wi-Fi antenna cover.

3

Installing the computer bracket

NOTE: The computer bracket shown in the illustrations below is only for demonstration and need to be

purchased separately.

4

Safety information for replacing CRUs

Do not open your computer or attempt any repairs before reading the “Important safety information” in the

Safety, Warranty, Environment, Recycling Information Guide and Important Product Information Guide that was

included with your computer.

If you no longer have this copy of the Safety, Warranty, Environment, Recycling Information Guide and Important

Product Information Guide, you can obtain one online from the website at http://www.lenovo.com/UserManuals.

Pre-disassembly instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug all power and signal cables from the computer.

3. Place the system on a ﬂat, stable surface.

CRUs for your computer include:

• keyboard

• mouse

• harddiskdrive

• opticaldrive

• PCIexpressadapter

• memorymodule

This part contains instructions for replacing the following parts:

• Harddiskdrive(Followsteps:

1

2

3

)

• Opticaldrive(Followsteps:

1

2

4

)

• PCIexpressadapter(Followsteps:

1

2

5

)

• Memorymodule(Followsteps:

1

2

6

)

5

1

Removing the computer cover

2

Removing the front bezel

6

3

Replacing a hard disk drive

4

Replacing the optical drive

7

5

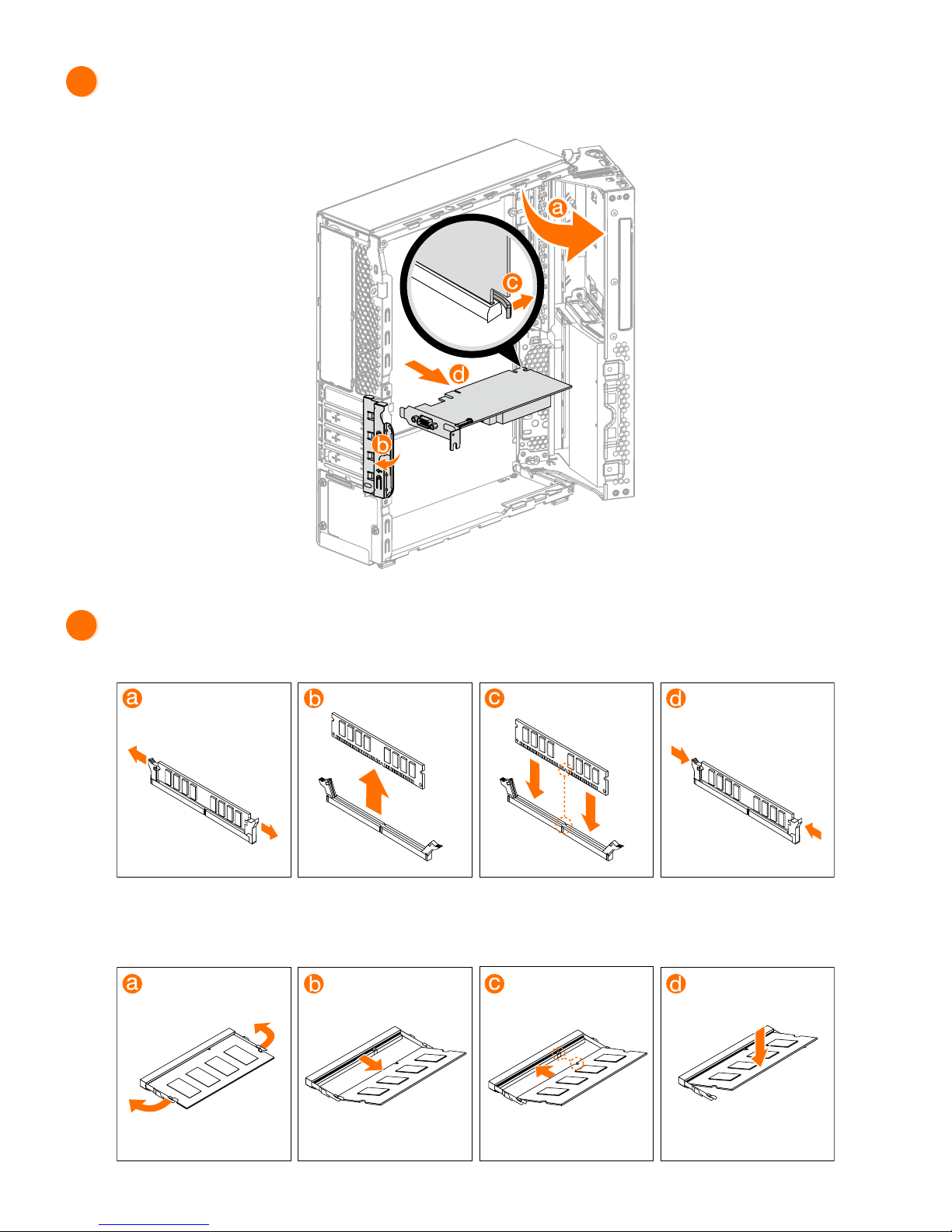

Replacing a PCI express adapter

6

Replacing a memory module

or
