Lenovo A7000-a Manuel utilisateur
Quick Start Guide
Lenovo A7000-a
English/Türkçe
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United
States, other countries, or both.
Other company, product, or service names may be trademarks or
service marks of others.
Read rst — regulatory information
Be sure to read the Regulatory Notice for your country or region
before using the wireless devices contained in your Lenovo Mobile
Phone. To obtain a PDF version of the Regulatory Notice, see the
“Downloading publications” section.
Getting support
For support on network service and billing, contact your wireless
network operator. For instructions on how to use Lenovo
smartphone, go to: http://support.lenovo.com/.
Downloading publications
To obtain the latest smartphone manuals, go to:
http://support.lenovo.com/
Accessing your User Guide
Your User Guide contains detailed information about your
smartphone. To access your User Guide, use one of the following
methods:
Go to: http://support.lenovo.com and follow the instructions on
the screen.
Turn on your smartphone, and then open the User Guide app.
*Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
English
Read this guide carefully before using your smartphone.
First glance.......................................................................1
Preparing your smartphone ..............................................2
Charging the battery.........................................................3
Technical specications ....................................................4
Important safety and handling information ........................5
Service, support, and warranty information.......................8
Recycling and environmental information ..........................9
Electronic emission notices..............................................11
Specic Absorption Rate information ...............................12
Contents
1
First glance
Front-facing camera
3
Light/Proximity sensor
1Receiver
2
On/Off button
6
Indicator Light
4Volume buttons
5
Home button
9
Touch screen
7Back button
8
Micro USB connector
12
Menu button
10 Rear-facing camera
11
Flashlight
15
Anti-noise mic
13 Speaker
14
16 17 Microphone
Headset connector
5
6
7
8910 17
11 12 13
15
14
16
1 2 3
4
2
Preparing your smartphone
You must insert the SIM card provided by your carrier to use cellular
services. Set up your smartphone as shown.
Step 1. Open the back cover.
Step 2. Insert the SIM cards and
the memory card.
Tip: Insert the (U)SIM card into
SIM1 slot and SIM card
into SIM2 slot.
Step 3. Install the battery.
a. Align the battery
connectors on the battery
with the pins in the
battery compartment.
b. Push the battery down
into place.
Step 4. Install the back cover.
Always turn off your smartphone rst before you insert or remove a
SIM card. Insert or remove a SIM card with your smartphone on may
damage your SIM card or smartphone permanently.
SIM1
SIM2
a
b
3
Charging the battery
Low battery power Fully charged Charging
Charge the battery as shown.
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Turn of f: Press and hold the On/Off button for a
few seconds, then tap Power off.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Your smartphone has a rechargeable battery. For more information
about battery safety, see the “Rechargeable battery notice” section.
2
1
4
① Depending on the measuring method, the dimensions and weight
might vary slightly.
② In some countries, LTE is not supported. To know if your
smartphone works with LTE networks in your country, contact
your carrier.
Type: CMOS
Pixels: 8 megapixels (rear) + 5 megapixels (front)
Processor: MT6752m
,
octa-core
,
1.5 GHz
Size: 5.5 inches (diagonal)
Resolution: 1280 × 720 pixels
Model: Lenovo A7000-a
System: Android
Bluetooth 4.0; WLAN 802.11 b/g/n;
② FDD-LTE/TDD-LTE/WCDMA/GSM; GPS
Battery: 2900 mAh
Height: 152.6 mm (6.01 inches)
Depth: 7.99 mm (0.31 inch)
Model and system
Display
Battery
Processor
① Dimensions and weight
Camera
Wireless communication
Technical specications
Width: 76.2 mm (3.00 inches)
Weight: 140 g (0.31 lb)
Screen: multi-touch
LCD type: IPS
5
Important safety and handling information
This section contains important safety and handling information for
Lenovo smartphones. Additional safety and handling information is
provided in the User Guide. See the “Accessing your User Guide”
section for details.

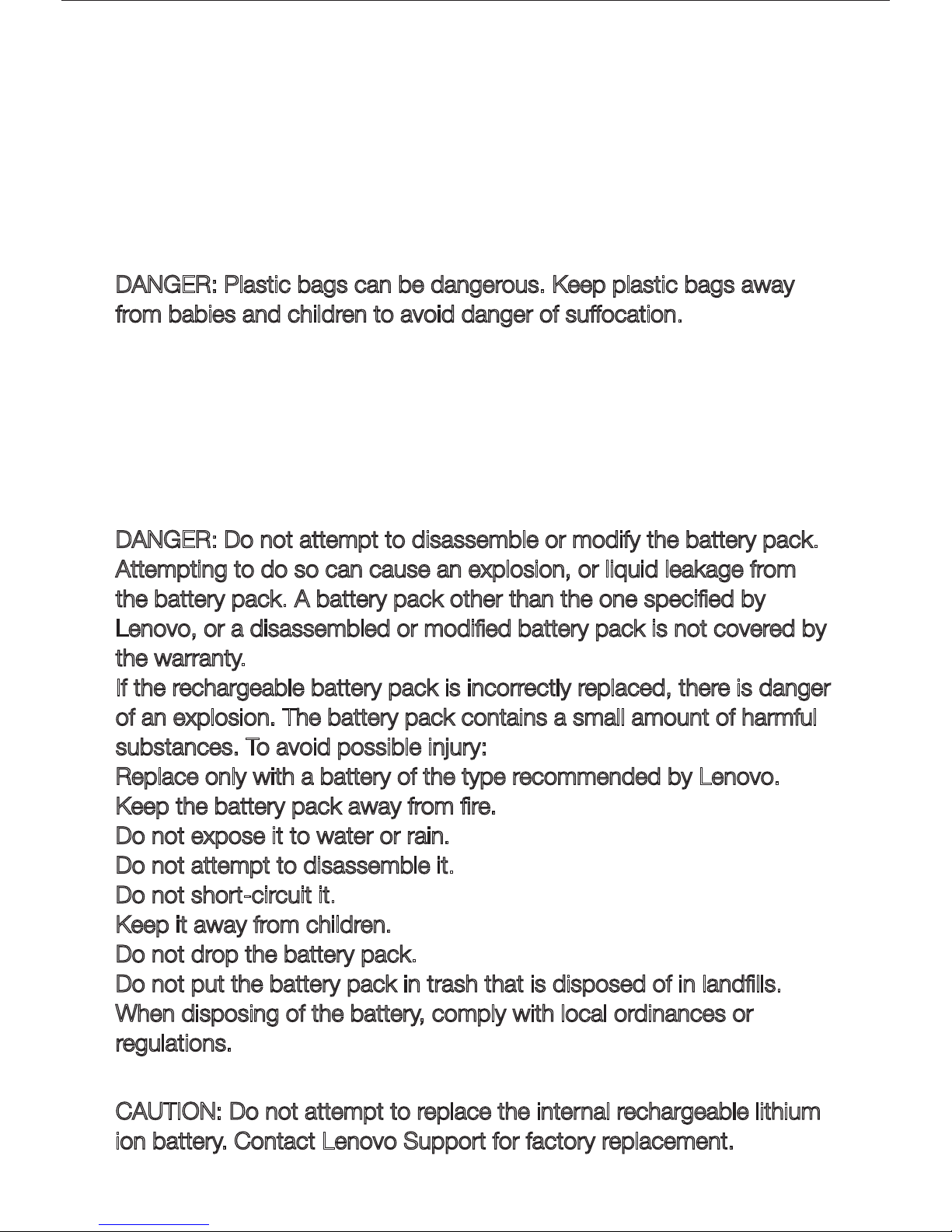

Plastic bag notice
DANGER: Plastic bags can be dangerous. Keep plastic bags away
from babies and children to avoid danger of suffocation.
General battery notice
Batteries supplied by Lenovo for use with your product have been
tested for compatibility and should only be replaced with approved
parts. Risk of explosion if the battery is replaced with an incorrect
type. Dispose of used batteries according to the instructions.
Rechargeable battery notice
DANGER: Do not attempt to disassemble or modify the battery pack.
Attempting to do so can cause an explosion, or liquid leakage from
the battery pack. A battery pack other than the one specied by
Lenovo, or a disassembled or modied battery pack is not covered by
the warranty.
If the rechargeable battery pack is incorrectly replaced, there is danger
of an explosion. The battery pack contains a small amount of harmful
substances. To avoid possible injury:
Replace only with a battery of the type recommended by Lenovo.
Keep the battery pack away from re.
Do not expose it to water or rain.
Do not attempt to disassemble it.
Do not short-circuit it.
Keep it away from children.
Do not drop the battery pack.
Do not put the battery pack in trash that is disposed of in landlls.
When disposing of the battery, comply with local ordinances or
regulations.
Built-in rechargeable battery notice
CAUTION: Do not attempt to replace the internal rechargeable lithium
ion battery. Contact Lenovo Support for factory replacement.
6
Charging
Lenovo is not responsible for the performance or safety of products
not manufactured or approved by Lenovo. Use only approved
Lenovo ac adapters and batteries. Adapter shall be installed near the
equipment and shall be easily accessible.
Prevent hearing damage
Lenovo Phone has a headphone connector. Always use the
headphone connector for headphones (also called a headset) or
earphones.

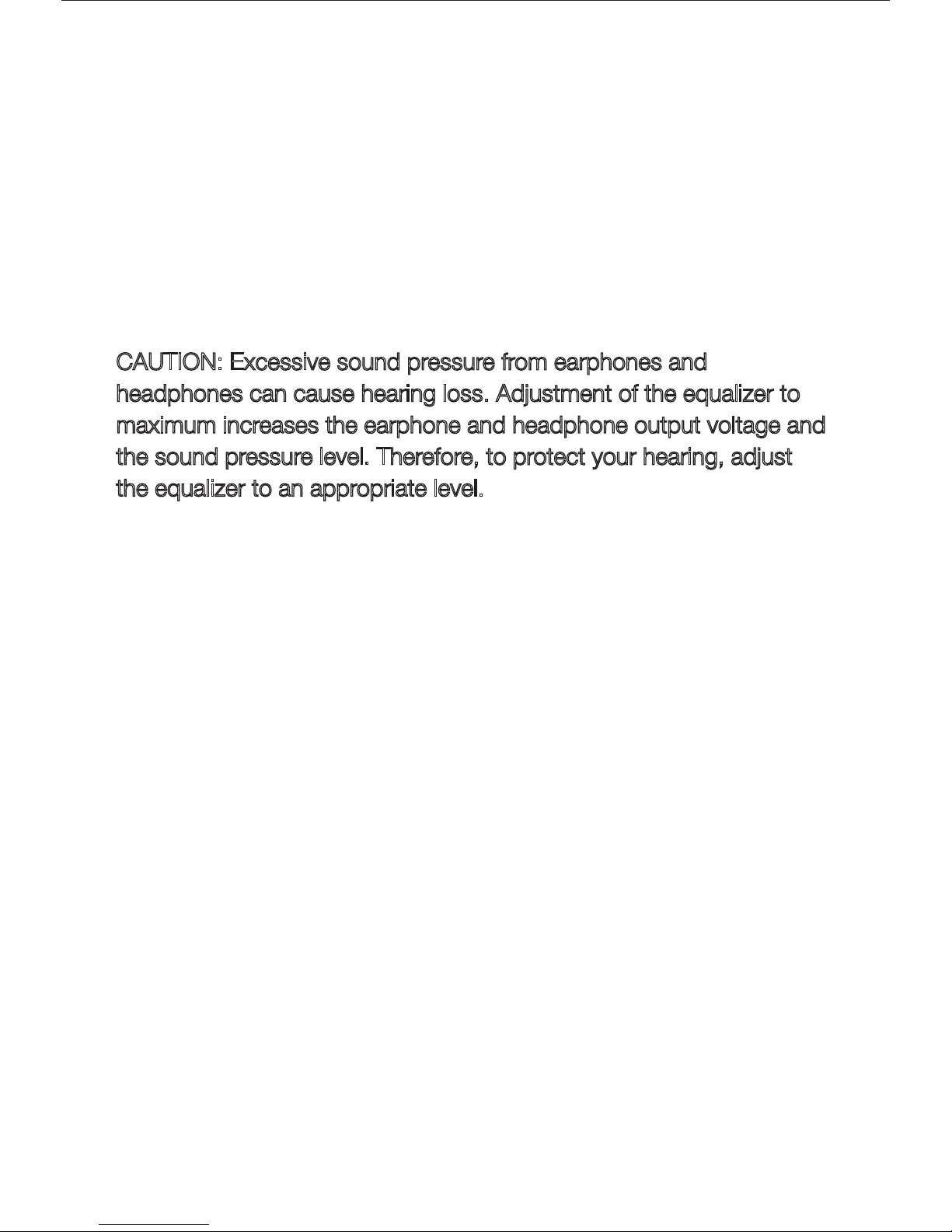

CAUTION: Excessive sound pressure from earphones and
headphones can cause hearing loss. Adjustment of the equalizer to
maximum increases the earphone and headphone output voltage and
the sound pressure level. Therefore, to protect your hearing, adjust
the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time
at high volume can be dangerous if the output of the headphone or
earphone connectors do not comply with specications of EN
50332-2.
The headphone output connector of Lenovo Phone complies with EN
50332-2 Sub clause 7. This specication limits Lenovo Phone's
maximum wide band true RMS output voltage to 150 mV. To help
protect against hearing loss, ensure that the headphones or
earphones you use also comply with EN 50332-2 (Clause 7 limits) for
a wide band characteristic voltage of 75 mV. Using headphones that
do not comply with EN 50332-2 can be dangerous due to excessive
sound pressure levels.
If Lenovo Phone came with headphones or earphones in the
package, as a set, the combination of the headphones or earphones
and Lenovo Phone already complies with the specications of EN
50332-1. If different headphones or earphones are used, ensure that
they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using
headphones that do not comply with EN 50332-1 can be dangerous
due to excessive sound pressure levels.
7

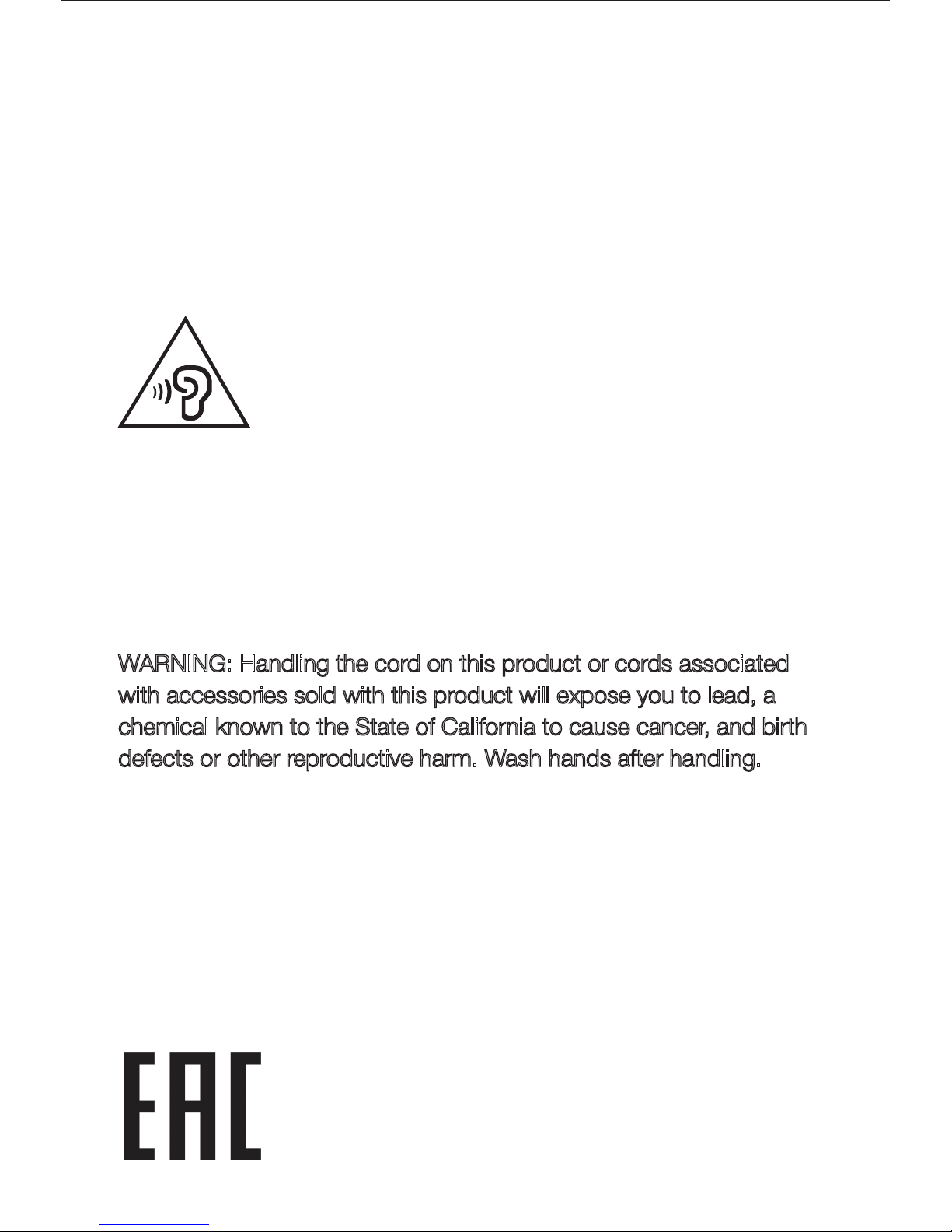

Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform
audio tests for EN50332.
This device has been tested to comply with the Sound Pressure Level
requirement in the applicable EN 50332-1 and/or EN 50332-2
standards. Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
Warning statement: To prevent possible hearing damage, do not listen
at high volume levels for long periods.
Operating temperature
Use Lenovo Phone only in the temperature range of -10 °C (14 °F) —
45 °C (113 °F) to avoid damage.
Polyvinyl Chloride (PVC) cable and cord notice
WARNING: Handling the cord on this product or cords associated
with accessories sold with this product will expose you to lead, a
chemical known to the State of California to cause cancer, and birth
defects or other reproductive harm. Wash hands after handling.
Disposing according to local laws and regulations
When Lenovo Phone reaches the end of its useful life, do not crush,
incinerate, immerse in water, or dispose of Lenovo Phone in any
manner contrary to local laws and regulations. Some internal parts
contain substances that can explode, leak, or have an adverse
environmental effect if disposed of incorrectly. See “
Recycling and
environmental information
” for additional information.
Eurasian compliance mark
