LENCO DVD-205 Manuel utilisateur

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

DVD205

FEATURES

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Centre list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30°.

GB-2

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Front View ...............................................................................................................6

Back View ...............................................................................................................7

Installation .....................................................................................................8

Electric Connection ......................................................................................9

Remote Control...........................................................................................10

Location and Function of Keys.............................................................................10

Preparing the Remote Control..............................................................................12

Loading a Disc ......................................................................................................12

Ejecting a Disc ......................................................................................................13

Operation .....................................................................................................13

Basic Play .............................................................................................................13

On-Screen Display Function.................................................................................15

Multi-audio Language Function............................................................................16

Menu Function .....................................................................................................16

Title Menu Function ..............................................................................................16

Subtitle Language Function..................................................................................16

Multi-angle Function .............................................................................................17

MP3 Disc Play.......................................................................................................17

Setup ............................................................................................................18

Initial Setup ...........................................................................................................18

General Setup.......................................................................................................18

Speaker Setup ......................................................................................................20

Audio Setup ..........................................................................................................21

Preferences Setup ................................................................................................22

Defaults Table .......................................................................................................23

Specifications..............................................................................................24

GB-3

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

GB-4

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

GB-5

THE PLAYER

1. POWER ( )

2. EJECT ( )

3. SETUP

4. AUD

5. SOURCE

6. Disc Slot

7. PLAY/PAUSE ( II )

8. STOP ( )

9. PREVIOUS ( )

10. NEXT ( )

11. VOLUME

12. VOLUME

13. / , / cursor buttons

14. ENTER

15. Indicator Light for DVD

14. Indicator Light for AV INPUT 1

15. Indicator Light for AV INPUT 2

16. VIDEO IN 1

17. AUDIO IN 1 L

18. AUDIO IN 1 R

21. IR

22. Reset button

115 16 17 9 5 76 8 10 221

201918141332212114

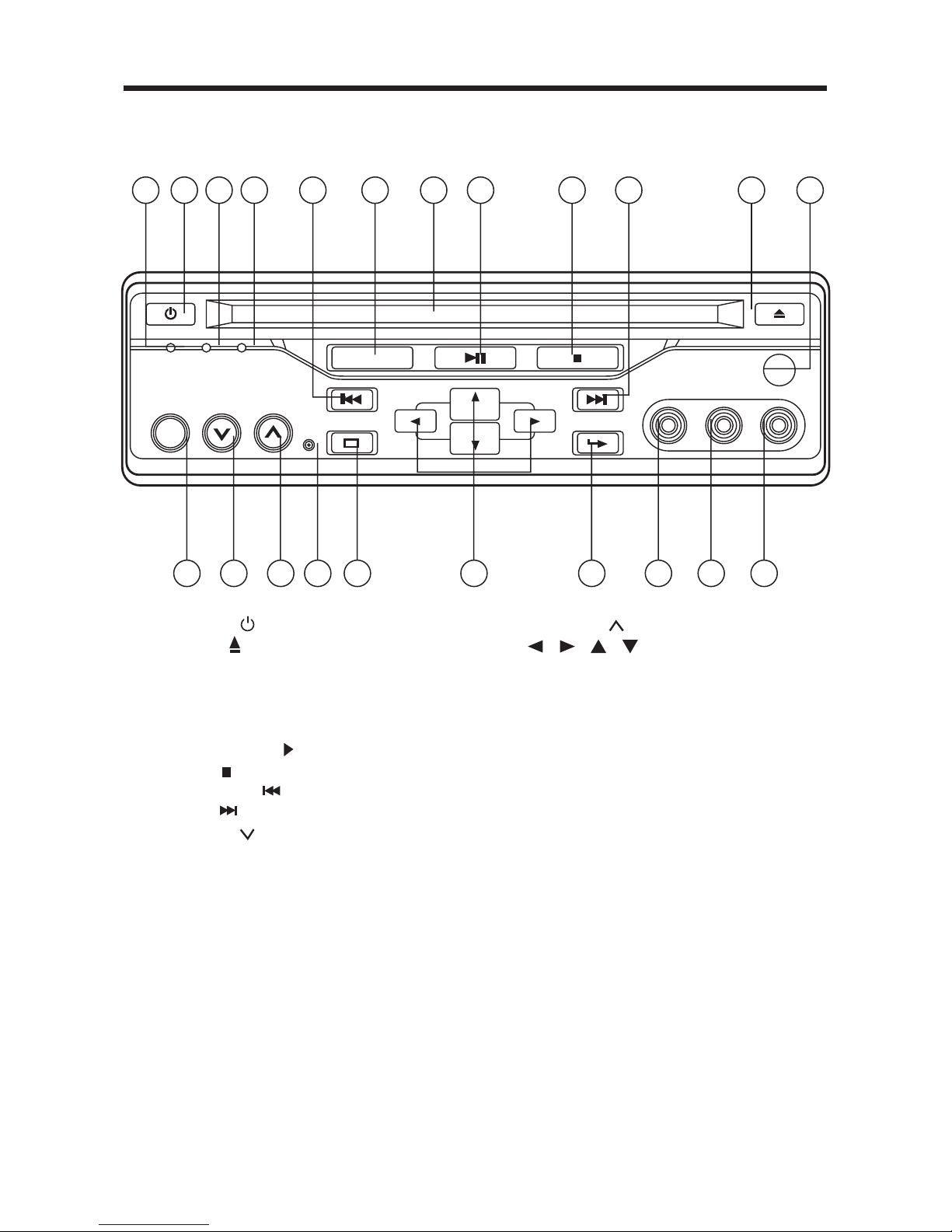

FRONT VIEW

GB-6

THE PLAYER

23. VIDEO 2 INPUT

24. AUDIO 2 L INPUT

25. AUDIO 2 R INPUT

26. REMOTE Socket

27. DIGITAL AUDIO

28. VEDIO 1 OUTPUT

29. VEDIO 2 OUTPUT

30. 14IN SOCKET

31. SUB. WOOFER OUTPUT

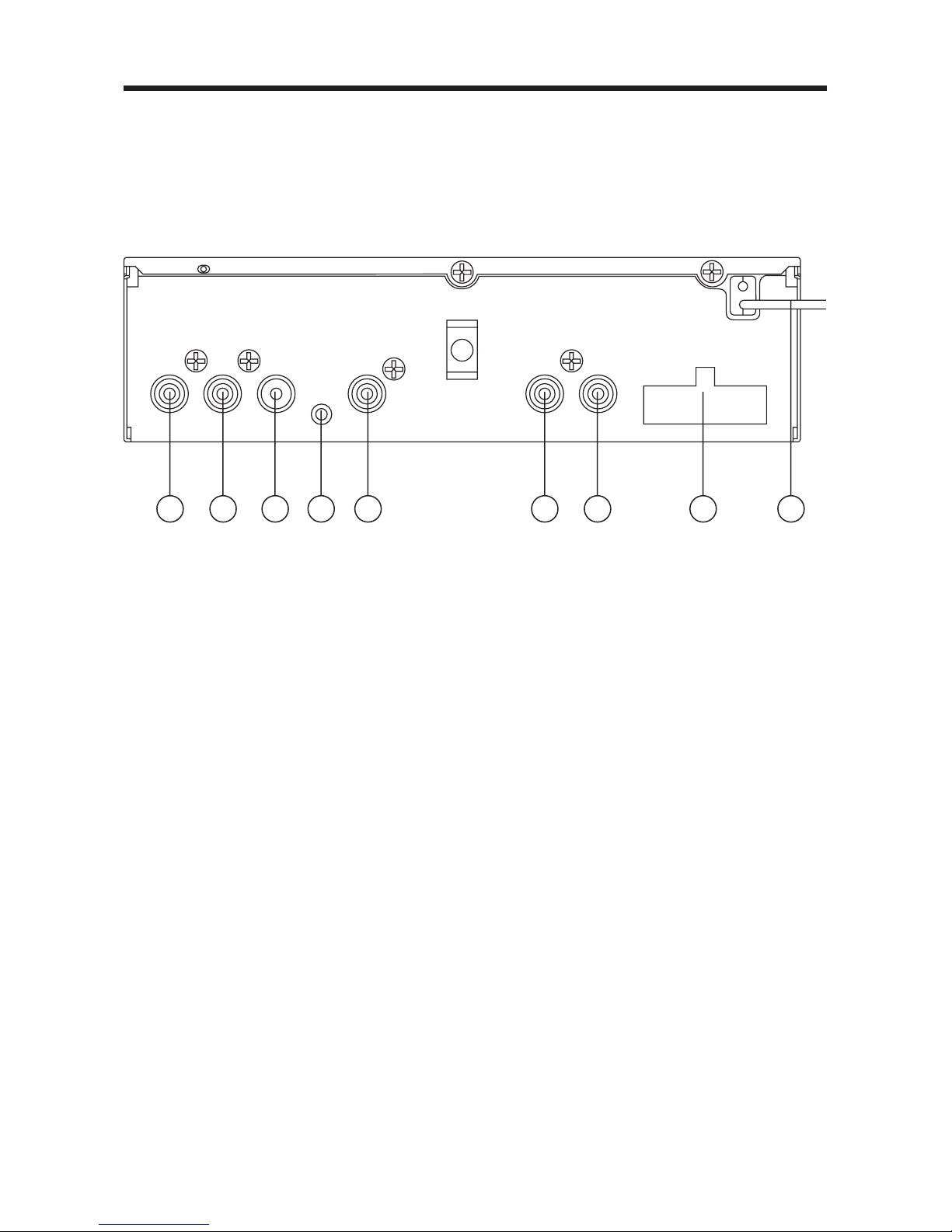

BACK VIEW

23 24 25 26 27 28 29 30 31

GB-7

INSTALLATION

NOTE:

1. First remove the two screws that locket the unit core, then attach the brackets on

both sides of unit with screws (M4x5), last install the unit with screws (M5x25).

3. When fix the unit, you can slide the screw (M5x25) to left side or right side to meet

your needed position. In FIG.2, select two holes among the positions that marked

1,2,3 and 4 to fix the bracket.

GB-8

FIG.2

SCREW

M5X25

SCREW

M4X5 SCREW

M4X5

SCREW LOCKED THE UNIT CORE

VIDEO 2 OUT

AC/DC

ADAPTOR

CIGARETTE LIGHTER

REMOTE CONTROL RECEIVER

VIDEO 2 IN

AUDIO 2 R IN

AUDIO 2 L IN

WHITE

RED

YELLOW

DC 12V IN

REMOTE

INPUT OUTPUT

VIDEO L/R

A/V 2 INPUT DIGITAL

AUDIO

A/V OUTPUT

VIDEO 1 VIDEO 2L/R

DIGITAL AUDIO

VIDEO 1 OUT

AUDIO R OUT

AUDIO L OUT

WHITE

RED

YELLOW

ELECTRIC CONNECTION

GB-9

REMOTE CONTROL

2421

2726

3130

GB-10
