How to use Leica DISTO™ X310

Switch On and Off

The red Dist on key displayed here switches on the instrument

and the laser in a single press.

Pressing the Clear off button for 2 seconds switches the

instrument off. Also the instrument switches off automatically

after 3 minutes of inactivity.

Basic operations

Other Operations on the device

Beep on/off –Press & keys simultaneously for 2 seconds.

Illumination on/off –Press & keys simultaneously for 2

seconds.

Keypad lock on/off –Press & keys simultaneously for 2

seconds to lock the keypad. To unlock, press within 2 seconds

after switching on the device or the device switches off on its own.

Adjusting measuring reference/tripod

Disto X310 is provisioned to measure the distance from the front, back or the tripod thread

of the device.

Each time the device is switched on, the display shows the default or the standard

mode as which means that the distance is being measurement is from the back of

the device .

You can further change the setting by pressing to adjust the mode to either

- Measurement from the front of the device or

- Measurement from the tripod thread of the device.

Timer (Self trigger) or Auto release

Timer is used for self triggering the measuremnt once the laser is activated. The delayed

release through the timer is recommended for precise aiming e.g. at long distances. As it

avoids shaking of the device when pressing the measurement key.

To set the timer, press the key once. The timer symbol appears on the display as

and the countdown starts automatically if the laser is active. The timer has a

preset setting of 5 seconds and the delay can be adjusted to maximum of 60 seconds.

You can increase and decrease the number of seconds by pressing & .

Long pressing the timer key increases the rate of change of the values.

Memory

The device stores last 20 results by default.

To view the results press the navigate through last 10 readings with help of

& keys.

To delete the memory records press & the together for 2 seconds and the

device is ready to record next 10 results.

Changing Units

Leica Disto X310 is provided with the stock of units that you can change as per your

requirement. You can change from meter to feet to inches as per your convenience.

By pressing the key each time for 2 seconds you can navigate

through different units of measurements.

They change in this order.

1. meter upto three decimal places

2. meter upto four decimal places

3. meter upto two decimal places

4. feet upto two decimal places

5. feet and inches

6. inches upto two decimal places

7. only inches

Changing Tilt Units

You can also change the Tilt unit setting as well to measure your triangle angles in degrees

°or percentage %.

Press & simultanaeously for 2 seconds and then

switch between and °& %units.

Adjusting/Standardising/Calibration of tilt sensor (Tilt Calibration)

Follow these quick 9 steps to adjust or calibrate your device in case of an unlikely

discrepancy.

1. Press & keys simultaneously for 2 seconds.

The device display would show as Mers 1 Hor.

2. Place the device on absolute flat surface and press .

3. Next the device display would show Mers 2 turn

180°.

4. Place the device on a horizontal surface with display

up and rotate it one round 18o° and press .

5. Next the device display would show Mers 3 Ver.

6. Place the device upside down on a flat surface and

press .

7. The device display will show Mers 4 turn 180°.

8. Turn the device horizontally by 180° and place it again

on an absolutely flat surface and press .

9. The device calibration is complete and screen displays

Ok Cal.

Basic Applications

Straight line single distance measurement

Basic usage is quite simple.

Beam and aim the laser on the selected target with the key.

Pressing the again records the measurement on device display.

* For measurements, where there is nothing obvious at the other end for the laser to reflect back, it is

recommended that you use Leica branded Target plate.

Permanent / Minimum-Maximum measurement

This function enables determining the minimum or maximum distance from a specific

measuring point, e.g. the determination of room diagonals (maximum value) or horizontal

distance (minimum value).

To activate permanent measuring, aim the laser at your desired

location and press the key for 2 seconds. This will activate the

continuous laser and the display would show the min and max values

on the screen.

Focus the laser on to the wall corner (for maximum measurement)

or to the horizontal side (for minimum measurement) at 0° with a

swaying movement as shown in the picture.

To stop permanent/minimum-maximum measuring press key

once.

Add/ Subtract function

Add / Subtract are two basic functions in X310. The keys are

displayed on the device for this application.

With the key, the next measurement you take is added to the

previous measurement.

And with the key, the next measurement is subtracted from the

previous one.

Area Measurement

Area measurement is a basic function provided in all Leica Disto devices. This helps you

calculate the area of wall or surface just by measuring its sides from the same reference

point.

For measuring the area of a surface, press the Function key once

and you get the area application which appears as on the

display screen.

Beam the laser pressing across to the end of the surface to take the

1st reading.

Then focusing from the same reference point take the 2nd reading by

measuring the adjacent wall length. Once this process is completed

the device automatically calculates the area for you.

* Adding and subtracting areas

You can measure two separate areas and add or subtract them from each other with the

help of or keys.

*Total linear distance (circumference) of the area calculated

Once you have calculated the area of a wall/floor you can long press the key for 2

seconds to view the circumference of that wall/floor . The device calculates this

automatically.

Volume Measurement

Same way as in the area measurement, press the Function key

twice and you reach the volume application which is displayed on

the screen as .

Measure the three adjacent lengths (l x b x h) using . The only thing

that needs to be kept in mind is that the all measurement needs to be

taken from the same reference point.

Once this process is completed the device automatically calculates

the volume on the display.

*Total linear distance (circumference) of the volume calculated

Once you have calculated the Volume of a room, you can long press the key for 2

seconds to view the circumference of that room . Along with this total of all the sides, the

device also calculates wall areas and the ceiling/floor area .

Triangular Area Measurement

For measuring the area of a triangular surface, press the Function

key thrice and you reach the triangular area measurement

application .

This is quite similar to previous area and volume measurement

functions. Measure all three sides of a triangular area aiming lasers

at 1st, 2nd and 3rd target points pressing key.

Once this process is completed the device automatically calculates

the area for you.

*Total linear distance (circumference) of the area calculated

Once you have calculated the triangular area of a wall/floor you can long press the key

for 2 seconds to view the circumference of that triangular wall/floor . And along with

the total of all 3 sides, the angle included by the first 2 measurements .

Smart Horizontal Mode™

A wonderful application to measure the horizontal distance even with an obstruction in the

way.

Press the key given in the center of the X310 device to activate the

application.

And shoot the laser at an angle of certain tilt and record the

measurement pressing .

The device automatically calculates the horizontal distance from the

target.

*Along with the horizontal distance this application also records angle of the tilt, length of

the tilt and the vertical height from the device.

Height Tracking

This function allows you to continuously track the height from a certain fixed point based

on changing angles as you move the device head reference.

Press the twice to reach the height tracking application which is

displayed on the screen as .

Aim the laser at the lowest point of the target for which the height is

to be tracked and record the measurement by pressing .

This starts height tracking automatically.

Now gradually and continously keep aiming the laser at upper points

and angles recording the desired readings.

Press again to stop height tracking.

*This application needs tripod.

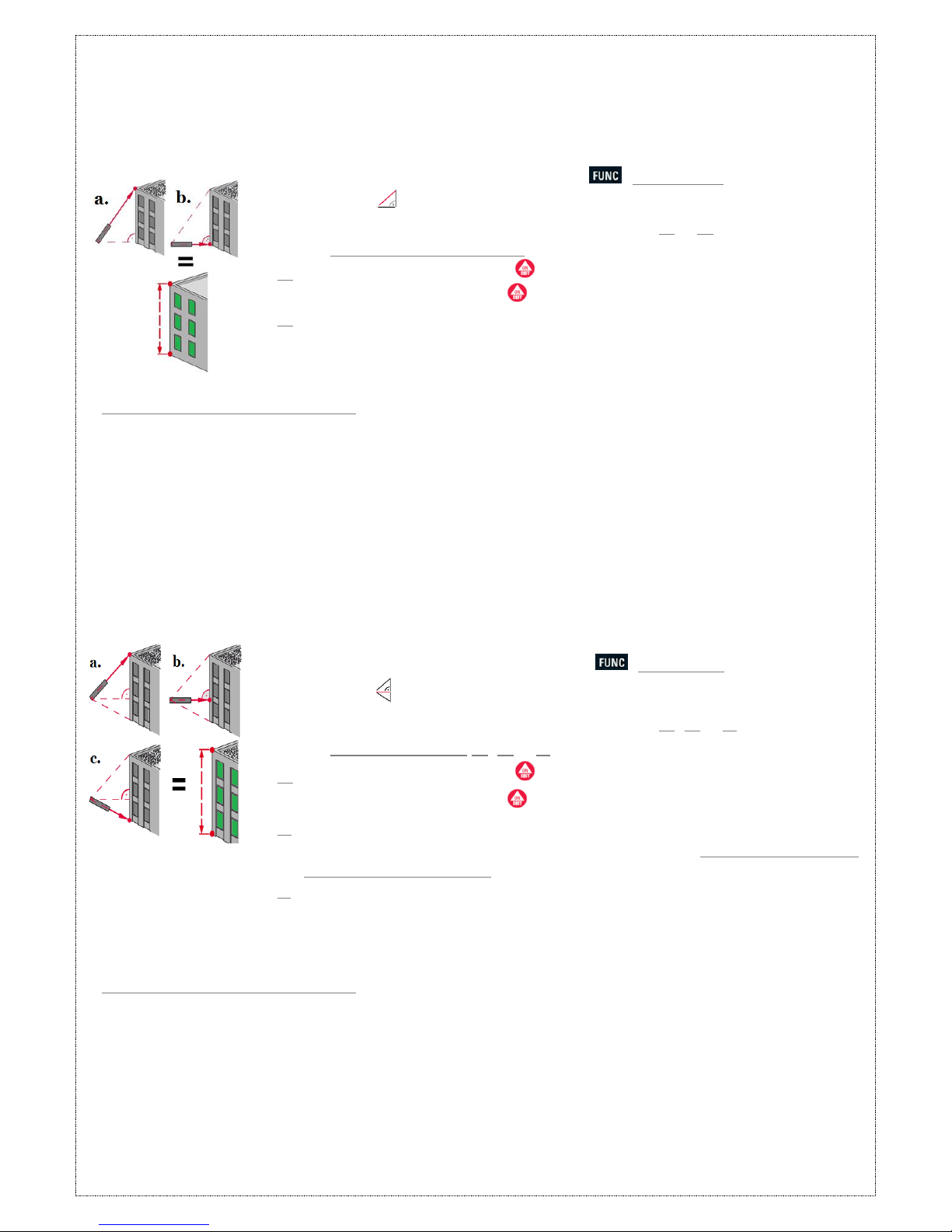

2 point Indirect Height measurement –With Disto X310, you can measure the height of

a building/object with the Pythagorean method. This function helps when you do not have direct

access to the building for straight line measurements.

This function is used to measure the height of an object or a building just by focusing on 2

points (the distance from the object/building & highest point of the object).

To do so, press the Function key four times and reach the

application on the display.

Then from the same reference point measure a. & b.

How to measure a. & b.

a. Shoot the laser with the key to the top or the highest point of

the object and press the key again to record that measurement.

b. Same way measure the horizontal distance from the building at

0°.

The device automatically calculates the height or the length of the

building.

*This application needs tripod.

3point indirect height measurement –With Disto X310, you can measure the height of

a building/object with the Pythagorean method. This function helps when you do not have direct

access to the building for straight line measurements.

This function is extremely useful in measuring the height of an object or a building when

you are measuring from a height or from above the ground.

With this application you can determine the vertical height of a building by recording 3

points (highest point of the building, the distance from the object/building & the lowest

point of the building).

To do so, press the Fucnction key five times and reach the

application on the display.

Then from the same reference point measure a., b. & c.

How to measure a., b. & c.

a. Shoot the laser with the key to the top or the highest point of

the object and press the key again to measure that point.

b. Same way and from the same reference point measure the

horizontal distance from the building at 0°. (perpendicular from

where you are standing)

c. Lastly aim the laser to the lowest point of the building to measure

that distance.

With all 3 calculations the device automatically calculates the height

or the length of the building.

*This application needs tripod.

Partial Height measurement –Disto X310 provides you with the application of measuring

partial length of an object/building at certain height from the ground.

To do so, press the Fucnction key 5 times and reach the

application on the display.

Then from the same reference point measure a. & b.

How to measure a. & b., c.

a. Shoot the laser with the key to the top or the highest point of

the object and press the key again to record that measurement.

b. Aim the laser at the 2nd point or the starting point of the desired

length to be measured as shown in the picture (left)

c. Same way measure the horizontal distance from the building at

0°.

The device automatically calculates the height or the length of the

building.

*This application needs tripod.

Autres manuels pour Disto X310

Table des matières

Autres manuels Leica Instrument analytique

Leica

Leica DistoX Manuel utilisateur

Leica

Leica DISTO D810 touch Manuel utilisateur

Leica

Leica RANGEMASTER CRF 1600-R Manuel utilisateur

Leica

Leica DISTO D8 Manuel utilisateur

Leica

Leica DISTO E7500 Manuel utilisateur

Leica

Leica DISTO D2 Manuel utilisateur

Leica

Leica Disto D510 Mode d'emploi

Leica

Leica DISTO X4 Manuel utilisateur

Leica

Leica DISTO X3 Manuel utilisateur

Leica

Leica DISTO D810 touch Manuel utilisateur

Leica

Leica 812795b Manuel utilisateur

Leica

Leica DISTO D810 touch Manuel utilisateur

Leica

Leica DISTO D210 Manuel utilisateur

Leica

Leica DISTO A2 Manuel utilisateur

Leica

Leica DISTO D5 Manuel utilisateur

Leica

Leica DISTO D210 Manuel utilisateur

Leica

Leica Disto D510 Mode d’emploi

Leica

Leica DISTO D810 touch Manuel d'utilisation et d'entretien

Leica

Leica DISTO S910 Manuel utilisateur

Leica

Leica DISTO D810 touch Mode d’emploi

Leica

Leica DISTO D5 Manuel utilisateur

Leica

Leica Disto X310 Manuel utilisateur

Leica

Leica DISTO E7500i Manuel utilisateur

Leica

Leica DISTO E7300 Manuel utilisateur

Manuels Instrument analytique populaires d'autres marques

Cocraft

Cocraft NLT04 Manuel utilisateur

M&C

M&C GENTWO PMA1000 Manuel utilisateur

MICRO-EPSILON

MICRO-EPSILON optoncdt 1700 Manuel utilisateur

CONDTROL

CONDTROL XP4 PRO Manuel utilisateur

Extech Instruments

Extech Instruments BR200 Manuel utilisateur

Dewetron

Dewetron DEWE-30-16 Manuel du produit

EXTOL PREMIUM

EXTOL PREMIUM 8820043 Instructions d'installation et d'utilisation

RIDGID

RIDGID SeeSnake Compact Manuel utilisateur

Teledyne

Teledyne 3000PA Manuel utilisateur

YDLIDAR

YDLIDAR TIA Manuel utilisateur

Olympus

Olympus IPLEX FX Series Manuel utilisateur

Bosch

Bosch GLM 50 C Professional Manuel utilisateur

Reflecta

Reflecta DigiEndoscope Manuel utilisateur

Chinavision

Chinavision CVACZ-G696 Instructions de montage

Fuji Electric

Fuji Electric ZKMA Manuel utilisateur

Teledyne

Teledyne 3300TA Manuel utilisateur

VOLTCRAFT

VOLTCRAFT IC-100HD Manuel utilisateur

RIDGID

RIDGID micro CA-25 Manuel utilisateur
