Legras FMA Manuel utilisateur

TARPAULIN COVER / UNCOVER FROM THE GROUND

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

FMA®

VIEW

This tarpaulin is operated from the ground.

INSTRUCTION SHEET FMA®

Reference : FU000011

NCL :

Edited the 01/04/2020

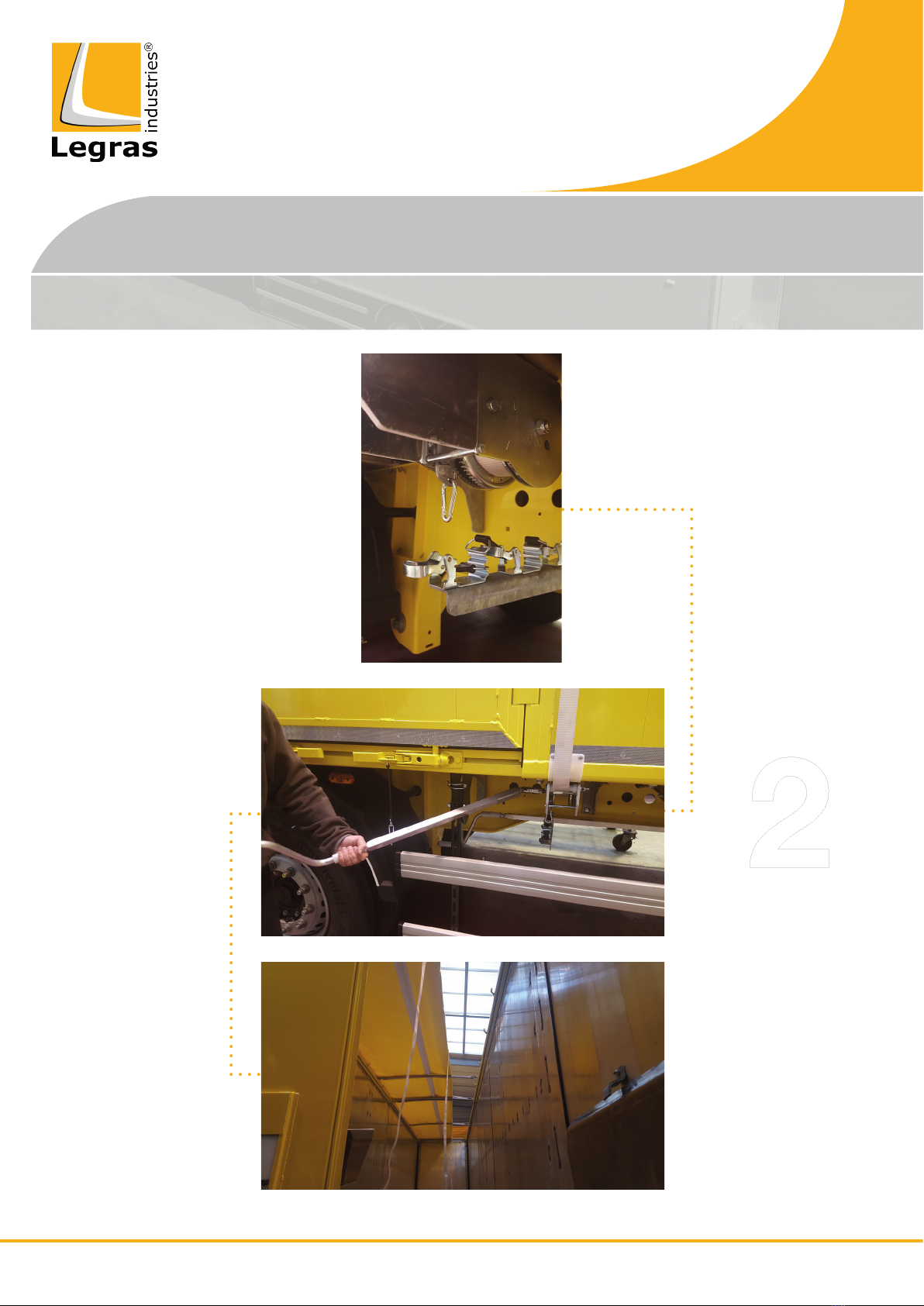

1. Unlock the

winch by turning

the snap hook

from the quarter.

3. The tarpaulin

move from the

left to right side

of the trailer.

2. Insert the handle

then turn it clockwise.

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

COVER USER MANUAL

INSTRUCTION SHEET FMA®

FMA®

TARPAULIN COVER / UNCOVER FROM THE GROUND

4. Tarpaulin is in

position.

6. Repeat

operation for

every straps.

5. Use the sheet

handle to put straps on

the trailer side.

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

FMA®

INSTRUCTION SHEET FMA®

TARPAULIN COVER / UNCOVER FROM THE GROUND

COVER USER MANUAL

910

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

INSTRUCTION SHEET FMA®

FMA®

7. Insert

straps in anti

vibrating pads.

9. Use the ratchet

to stretch side

straps.

10. When

stretched, keep

the ratchet tight

against trailer

bottom.

8. Then insert straps

edge in the ratchet.

TARPAULIN COVER / UNCOVER FROM THE GROUND

COVER USER MANUAL

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

FMA®

INSTRUCTION SHEET FMA®

11. Repeat

operation on all

straps.

13. Trailer is

covered and

ready to ride.

12. Lock the winch

then turn slightly a last

time with the handle.

After you can put

back the handle on its

support.

TARPAULIN COVER / UNCOVER FROM THE GROUND

COVER USER MANUAL

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

INSTRUCTION SHEET FMA®

FMA®

UNCOVER USER MANUAL

16. Remove all

straps.

15. Unlock all ratchets.

14. Unlock the winch

by turning the snap

hook from a quarter.

Pull on the strap.

TARPAULIN COVER / UNCOVER FROM THE GROUND

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

FMA®

INSTRUCTION SHEET FMA®

18. Insert the handle

socket in the tarpaulin

frame.

17. Take the handle

localized under the

chassis.

19. Turn the handle

anti-clockwise and

follow the tarpaulin roll-

up.

TARPAULIN COVER / UNCOVER FROM THE GROUND

UNCOVER USER MANUAL

Legras Industries • 37 Rue Marcel Paul • 51200 Épernay • Tél. +33 (0) 3.26.53.32.10 • WWW.LEGRAS.FR

INSTRUCTION SHEET FMA®

FMA®

20. The tarpaulin

rolling up slowly.

22. Lock the winch.

21. After the tarpaulin

is rolled, turn the

handle from quarter in

clockwise direction to

remove the pressure.

TARPAULIN COVER / UNCOVER FROM THE GROUND

UNCOVER USER MANUAL
