LEGRAND Dual band Access Point Manuel utilisateur
Dual band Access Point
802.11a/b/g
www.legrand.fr
USER
GUIDE
Contents
1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE p. 4
1.2 / CONFIGURATION PASSWORD INPUT p. 5
1.3 / CONFIGURATION WIZARD p. 6
1.4 / ACCESS POINT OVERVIEW p. 7
1.5 / IP ADDRESS p. 8
1.6 / ADMINISTRATION PASSWORD p. 9
1.7 / FIRMWARE MANAGEMENT p. 10
1.8 / CONFIGURATION MANAGEMENT p. 11
1.9 / REBOOT / FULL RESET p. 12
1.10 / MANAGEMENT INTERFACE p. 13
1.11 / SNMP, UPNP & SYSLOG p. 14
1.12 / TIME SETTINGS p. 16
1.13 / ETHERNET INTERFACE p. 18
1.14 / RADIO SETTINGS p. 19
1.15 / WIRELESS NETWORK p. 21
1.15.1 / WIRELESS NETWORK / SECURITY/Open p. 24
1.15.2 / WIRELESS NETWORK / SECURITY/Static WEP p. 25
1.15.3 / WIRELESS NETWORK / SECURITY/WEP with 802.1x p. 26
1.15.4 / WIRELESS NETWORK / SECURITY/Static WPA p. 27
1.15.5 / WIRELESS NETWORK / SECURITY WPA with 802.1x p. 28
1.15.6 / WIRELESS NETWORK / SECURITY/Static WPA2 p. 29
1.15.7 / WIRELESS NETWORK / SECURITY/WPA2 with 802.1x p. 30
1.15.7 / WIRELESS NETWORK / SECURITY/Static WPA or WPA2 p. 31
1.15.8 / WIRELESS NETWORK / SECURITY/WPA or WPA2 with 802.1x p. 32
1.15.9 / WIRELESS NETWORK / GUEST ACCESS p. 33
1.16 / RADIUS SETTINGS p. 34
GLOSSARY p. 36
Introduction
The Access Point’s Back Panel
The Access Point’s port (where an uplink
network cable is connected) is located on the
Access Point’s back panel, the power is
supplied by power over Ethernet (802.3af
standard).
The Access Point’s Front Panel
User port: This LAN (Local Area Network
100 base T) port allows to connect other
Ethernet network devices, such as a
computer, a hub, switch, router, printer, etc.
Reset Button: This button has two uses:
Short press will reboot the AP
Long press (more than 5 seconds) will reset
the AP to its factory defaults (blue Leds will
flash)
Green Power LED: The Power LED lights up
when the Access Point is powered on.
Blue Radio LEDs: The radio LED light up
when the radio is active.
4
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT
1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE
The list will show you all the Legrand Access Points in your installation.
Select one Access Point and click on connect to access the web configuration interface.
1. You have a computer running Windows XP
Check if the UPnP protocol is activated on
your computer. Otherwise follow this
procedure:
- Click on the Start Menu->Settings->Control
Panel
- Click “Add or Remove Programs” in Control
Panel.
- Click “Add/Remove Windows Components”.
- In the Components list, select the Networking
Services entry, and then click Details.
- Make sure the Universal Plug and Play
check box is selected. And click on OK, then
Next until the installation is complete.
UPnP is now activated on your computer,
when clicking on the Network Neighbourhood
icon on your desktop, a window will display the
Legrand Access Points discovered using
UPnP.
Double click on one Access point to access the web configuration interface.
2. You have a computer running a different Windows version, MAC, Linux,
Unix or other

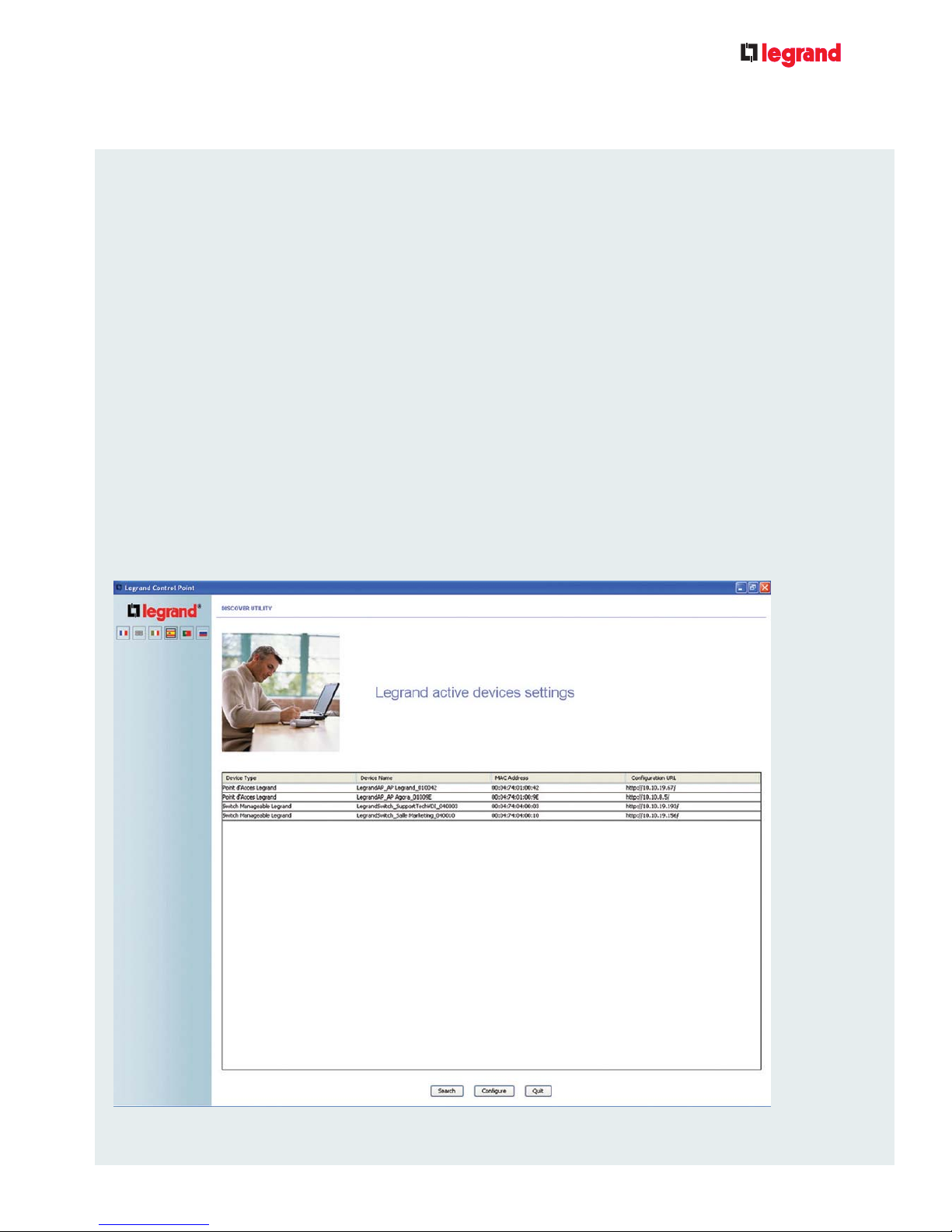

Use the CD ROM to launch the Legrand
Control point discovery utility.
Insert THE CD-ROM SUPPLIED WITH THE
ACCESS POINT. This CD provides the tools
needed to configure your wireless network.
The main menu will be displayed automatically
on your screen. If the main menu does not
appear automatically, browse the contents of
the CD-ROM and doubleclick on the file
“setup.exe”.
5

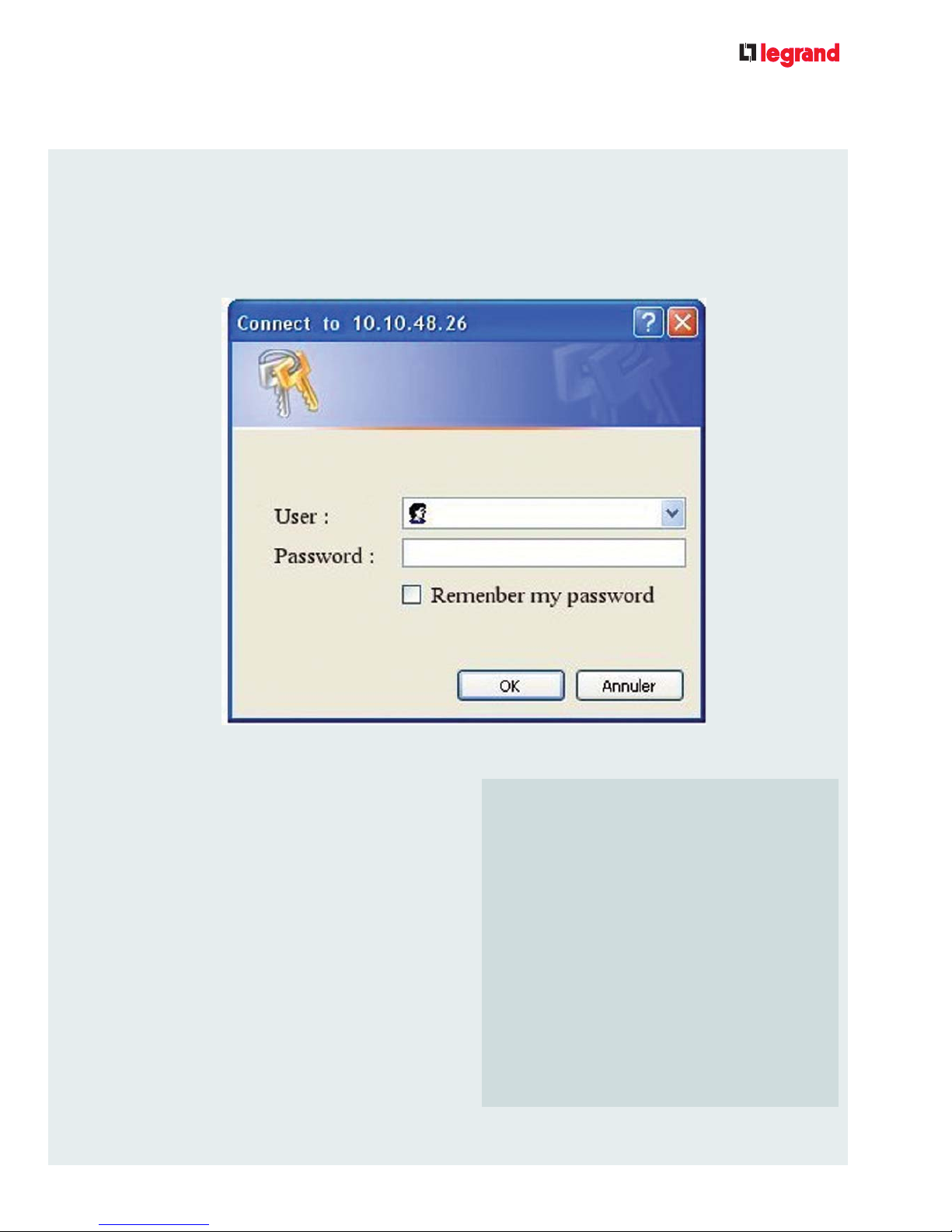

On the first connection to the management web interfaces, or after a full reset, no password
will be prompted to configure the Access Point; it is highly recommended to protect your
Legrand Access Point using a password, in which case access to the management web
interfaces will be subject to prior authentication. The Login will then be “admin”, and the
password will have to match with the one previously configured.
1.2 / CONFIGURATION PASSWORD INPUT
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT
Caution
Depending on your webbrowser, a
“Remember my password” dialog box may
be presented to you when the management
web interfaces are password-protected.
Enabling this option means your browser
will fill in the password automatically for you
for all subsequent connections to the
management web interfaces.
Do not check the option Remember my
password if other people have access to
your PC, or they could modify the Access
Point configuration without having to provide
the configuration password.
6

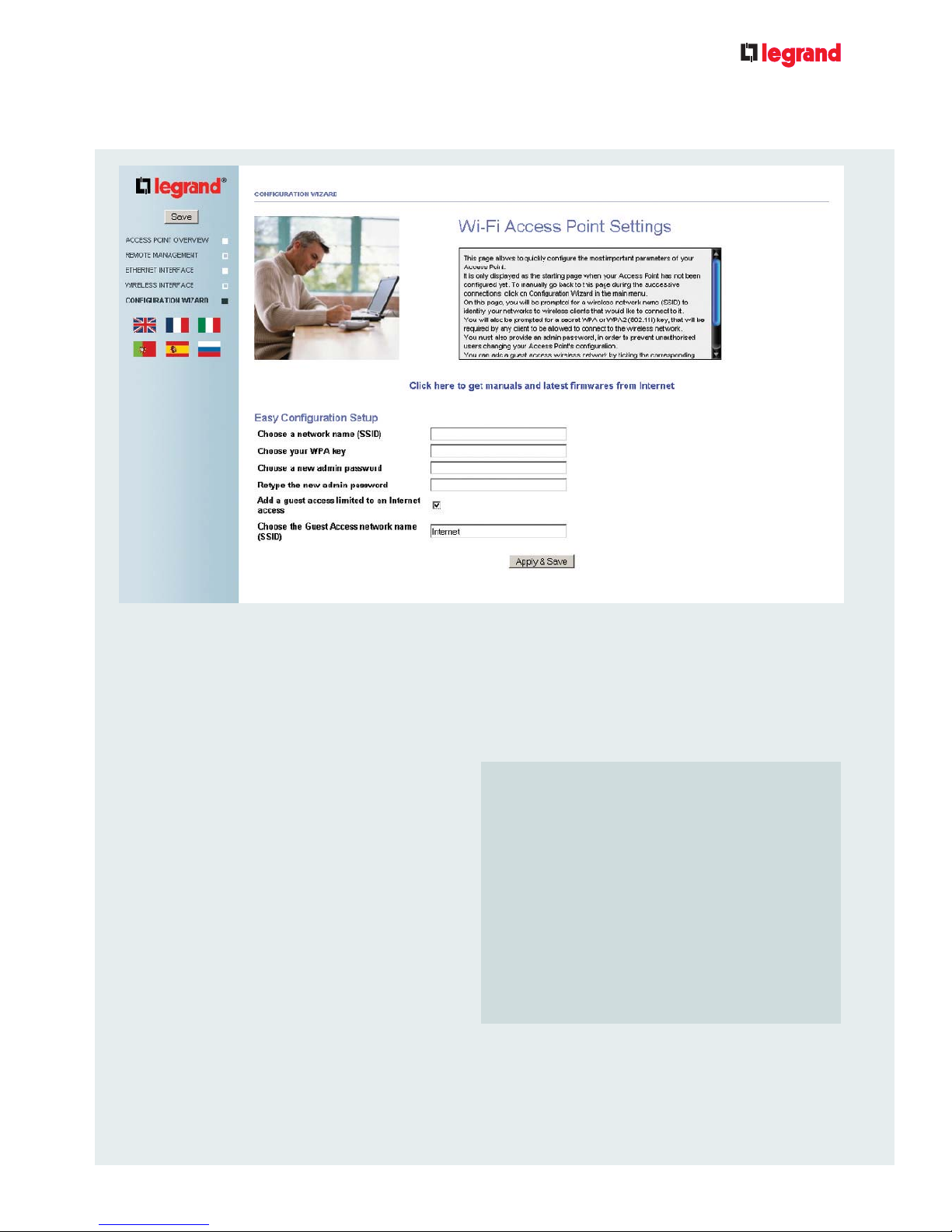

This page offers a quick access to the main security features of your Access Point.
When your configuration is done, the
connection between your computer and the
Access Point will be interrupted.
In order to restore your computer’s wireless
connectivity, you will need to apply the same
encryption and key to your PC’s wireless
connection settings.
At this stage your AP is secured and ready
to use, if you need to modify advanced
parameters use the left menu of the web
interface.
1.3 / CONFIGURATION WIZARD
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT
First enter the network name (SSID) of your
choice.
In the field choose your WPA Key select a
wireless key (at least 8 characters long), this
will have to be entered on all wireless devices
to connect to the wireless network.
In the field choose a new admin password
enter the password of your choice.
This password will be required to modify the
configuration of your Access Point.
Click on Apply & Save to update and save
this configuration.
By using this quick setup page, your Access
Point is configured with the Static WPA or
WPA2 encryption method (using the key
provided).
When you tick Add a guest access limited
to an Internet access, you can define a
nonsecure wireless network but this network
will only enable access to the Internet.
Use the Choose the Guest Access network
name (SSID) field to give a name to your
limited-access network.
7
1.4 / ACCESS POINT OVERVIEW
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT

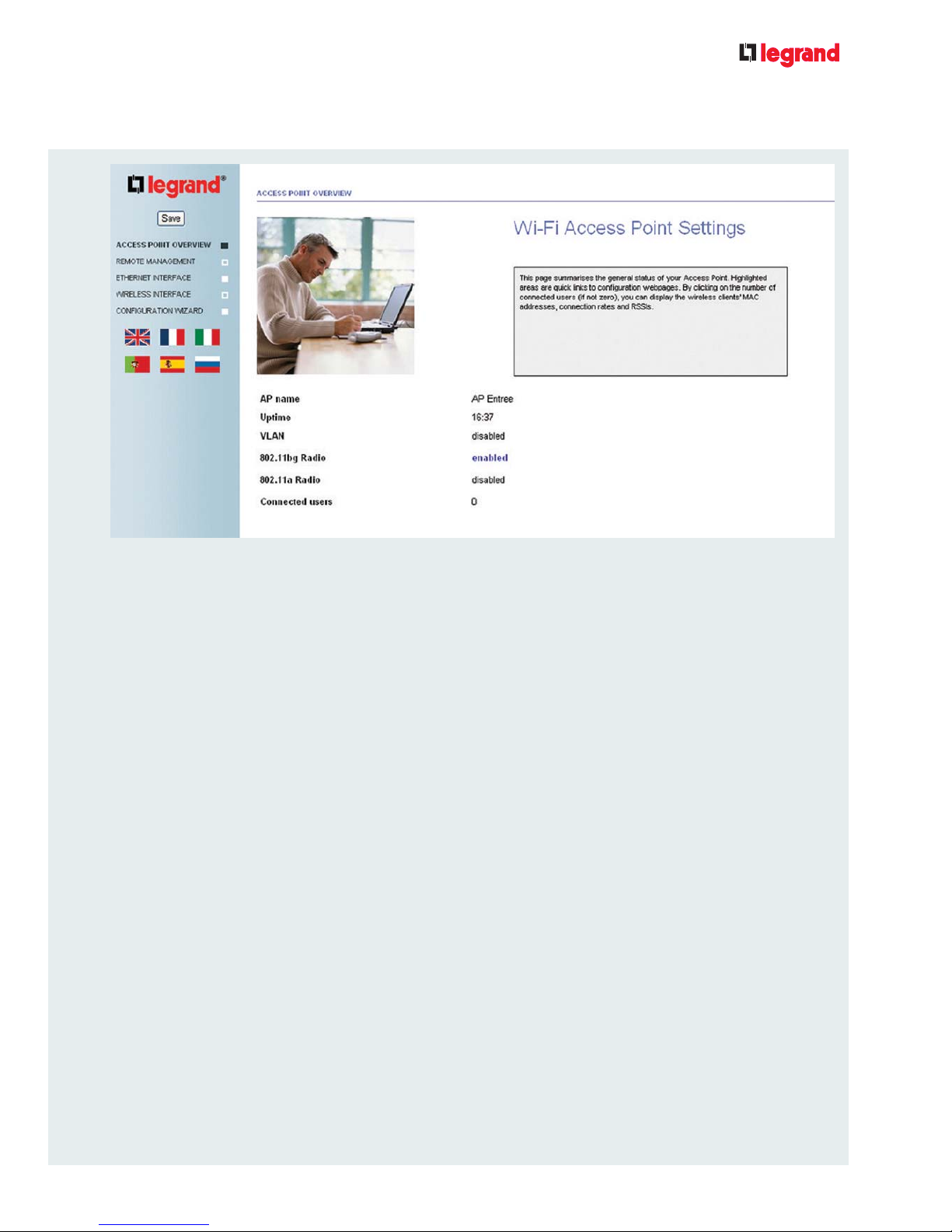

The screen provides an overview of the Legrand AP main information.
AP Name This name will identify your Access Point (i.e. it is shown in the
discovery utility)
Uptime Shows how long the Legrand AP has been running since its
last reboot/power on
VLAN Status of VLAN trunking Enabled/Disabled
802.11bg Radio Status of the 2.4GHz band radio Enabled/Disabled
802.11a Radio* Status of the 5GHz band radio Enabled/Disabled
Connected Users List of currently connected Wireless clients
Definition of RUNNING CONFIGURATION & STARTUP CONFIGURATION
In each configuration web interface, changes
have to be activated using the “Apply” button.
This will make the changes effective on the
Access Point.
In order to store the settings for the next
reboot you have to press the Save button.
This allows the user to test the configuration
(making changes and pressing the Apply
buttons on the relevant pages), and only to
press the Save button when the configuration
is satisfactory.
All the settings that are active while the Save
button is pressed will survive a reboot.
* Only for Dual band Access point.
8
1.5 / IP ADDRESS
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT

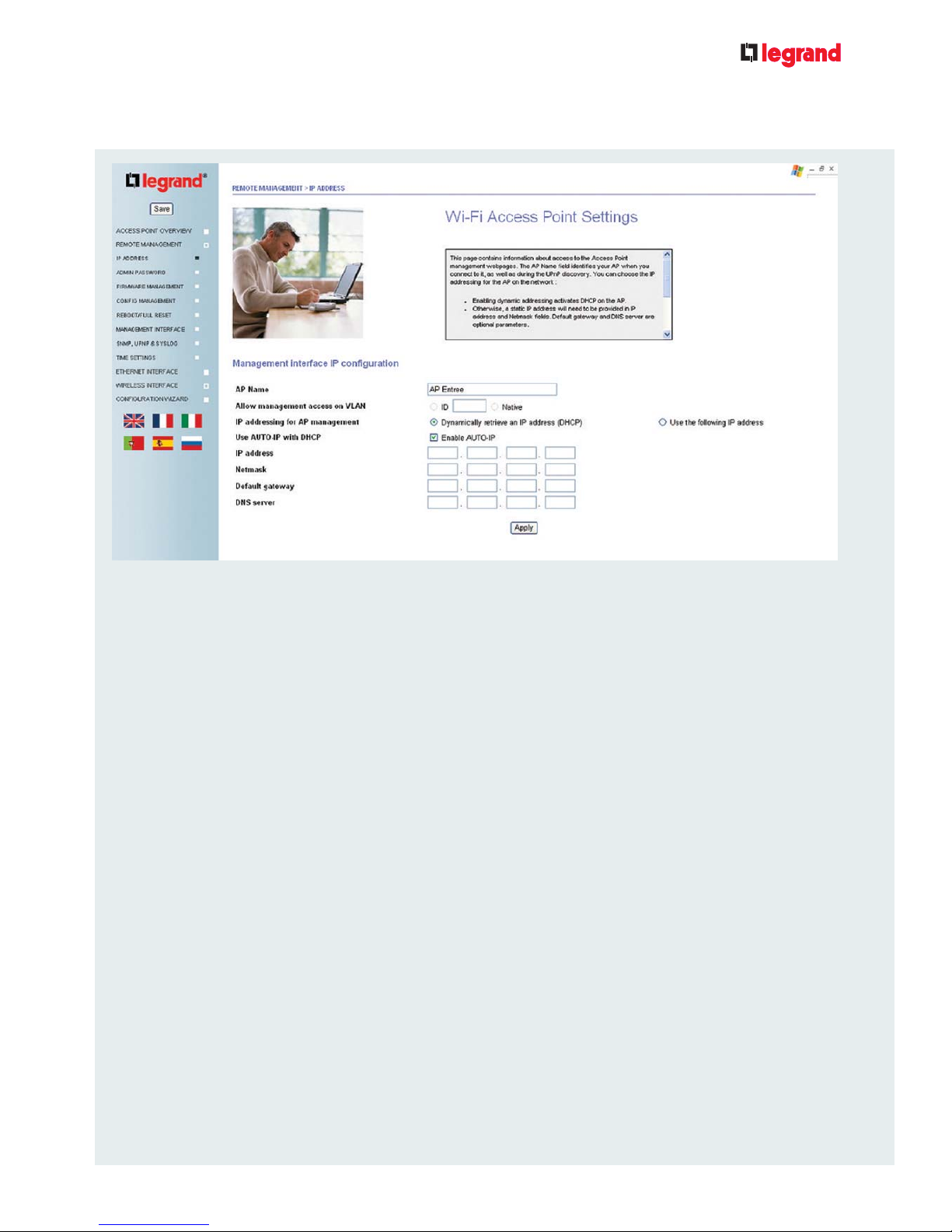

AP Name
This name will help you to identify your
Access Point.
Allow management access on VLAN
All management/configuration access to the
AP can be restricted to a specific VLAN on
the uplink port.
By default, VLANs are disabled, and access
to the management interface is allowed from
any interface.
If needed, one VLAN on the uplink port can
be selected as the only way to access the
management interface (VLANs must first be
enabled to do so, see the Ethernet Interface
section).
Note: if VLANs are enabled you can restrict
management/configuration access to a
specific VLAN ID or to the native VLAN.
Dynamically retrieve an IP address (DHCP)
You can either use Dynamic (DHCP) or Static
(use the following IP address) IP addressing
for the AP management.
By default or after a full reset, the Access
Point is set to use DHCP.
Enable AUTO-IP
If Enable Auto-IP is checked, the AP will fall
back to Auto-IP addressing mode
(169.254.0.0/16) if no DHCP server can be
found on the network.
Use the following IP address
(An IP address must be unique in your
network. Netmask, Default Gateway and
DNS Server, values can be safely copied
from a computer already configured with static
IP addressing in your network)
IP Address: Type in the static IP address for
your Access Point.
Netmask: Type in the IP Netmask for your
network.
Default Gateway: Type in the default
gateway IP address (used for any traffic
beyond the local network).
DNS Server: Type in your DNS IP address
(optional).
After changing settings on this page, click the
Apply button to validate your changes and
click the Save button to keep your changes
for future reboots.
9
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT
1.6 / ADMINISTRATION PASSWORD

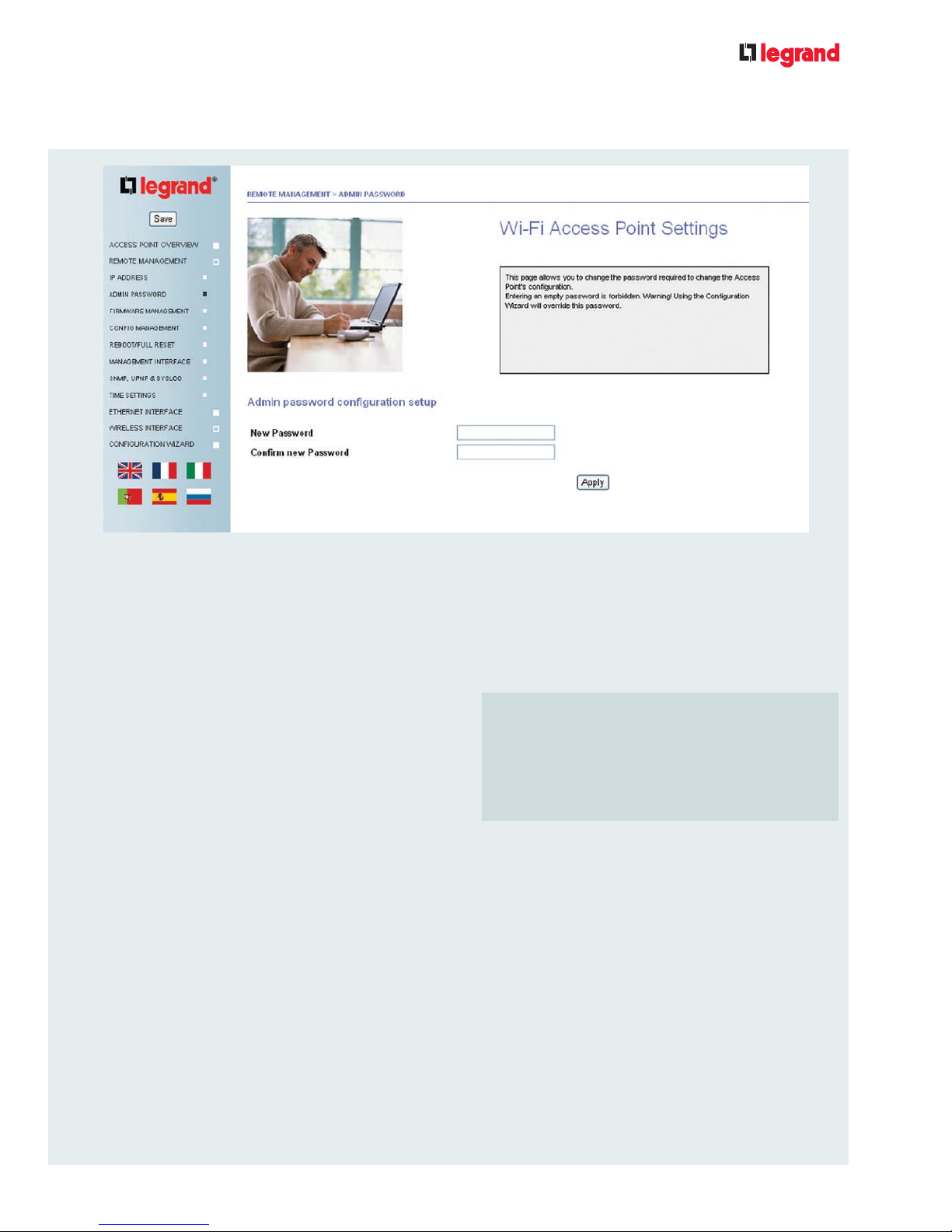

This page allows you to change the Access Point’s configuration password.
Enter the new password into the two fields, and click the Apply button to apply your changes.
Important:
Restoring the Access Point’s factory defaults
will erase your Password settings. No
password will be prompted for the web
interface after a factory defaults reset.
10
1.7 / FIRMWARE MANAGEMENT
USER GUIDE FOR LEGRAND DUAL
BAND WIRELESS ACCESS POINT

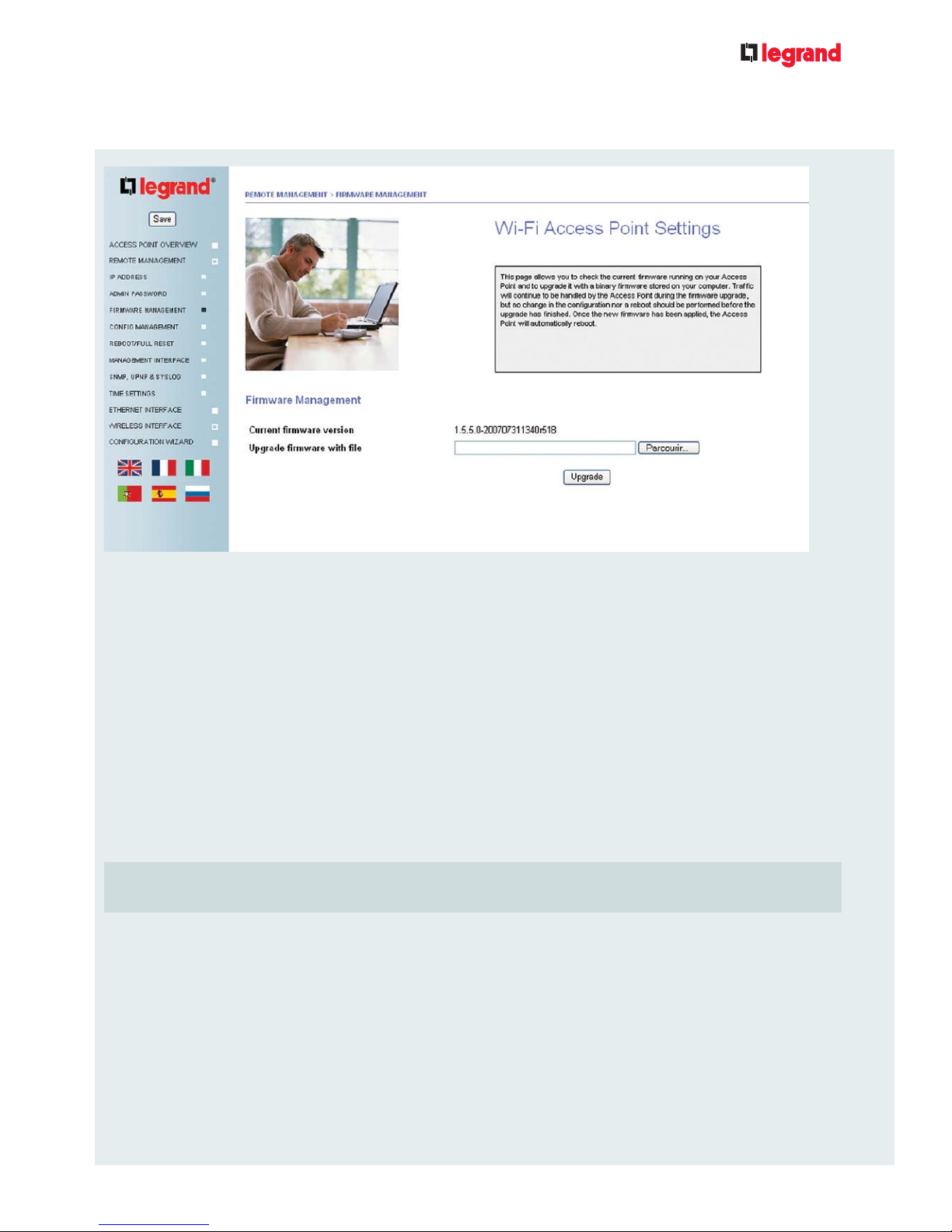

The field Current firmware version shows the firmware version running on your Legrand AP.
The firmware upgrade webpage displays the
Access Point’s current firmware version.
Before upgrading the Access Point’s
firmware, be sure to download the latest
firmware from Legrand website
http://www.wifi.legrandelectric.com.
Press the Browse button to select a firmware
file on your computer.
Then, click the Upgrade button to upgrade
the firmware.
This process takes about 5 or 6 minutes.
Note: When upgrading the firmware, you must not interrupt the Web browser or power down
your Access Point.
Table des matières
Autres manuels LEGRAND Point d'accès sans fil
LEGRAND
LEGRAND DA1104 Manuel utilisateur
LEGRAND
LEGRAND LUXUL AP-3064 Manuel utilisateur
LEGRAND
LEGRAND Intuity WiFi to RFLC Bridge Manuel utilisateur
LEGRAND
LEGRAND DA2131-V1A Manuel utilisateur
LEGRAND
LEGRAND 802.11a Manuel utilisateur
LEGRAND
LEGRAND DA1101 Manuel utilisateur
LEGRAND
LEGRAND Wireless access point Feuille d'instructions
LEGRAND
LEGRAND DA2131-V1 Manuel utilisateur
LEGRAND
LEGRAND N-WAP Manuel utilisateur
LEGRAND
LEGRAND LUXUL Manuel utilisateur
LEGRAND
LEGRAND 0 336 10 Manuel utilisateur
LEGRAND
LEGRAND 779 11 Manuel utilisateur
LEGRAND
LEGRAND 033523 Manuel utilisateur
LEGRAND
LEGRAND Luxul Apex XAP-1610 Manuel utilisateur
LEGRAND
LEGRAND DA2155 Manuel utilisateur
LEGRAND
LEGRAND HA7040 Manuel utilisateur
LEGRAND
LEGRAND DA1101 Manuel utilisateur
LEGRAND
LEGRAND 779 11 Manuel utilisateur
LEGRAND
LEGRAND DA2131-V1 Manuel utilisateur
LEGRAND
LEGRAND 0 503 97 Manuel utilisateur
Manuels Point d'accès sans fil populaires d'autres marques
D-Link
D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur
Ubiquiti
Ubiquiti NanoStation NSM2 Manuel utilisateur
Cisco
Cisco Aironet 1550 Series Manuel utilisateur
Aruba
Aruba IAP-335 Manuel utilisateur
Advantek Networks
Advantek Networks AWN-AP-54MR Manuel utilisateur
IP-COM
IP-COM AP355 Manuel utilisateur
