LEGRAND CHIEF LF40UxP Manuel utilisateur
INSTALLATION INSTRUCTIONS
LF49UxP LF55UxP-B2B
Back-to-Back Floor Kiosk
Floor Kiosk
40"/42"/43"/46"/47"/48"/49"/50"/55" Portrait Floor Kiosks,
40"/42"/43"/46"/47"/48"/49"/50"/55" Portrait Back-to-Back Floor
Kiosks
Portuguese Product Description
Italian Product Description
Dutch Product Description
LF40/42/43/46/47/48/49/50/55UxP,
LF40/42/43/46/47/48/49/50/55UxP-B2B
LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B Installation Instructions
2
DISCLAIMER
Legrand | AV and its affiliated corporations and subsidiaries
(collectively “Legrand | AV”), intend to make this manual
accurate and complete. However, Legrand | AV makes no claim
that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Legrand | AV
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Legrand | AV
assumes no responsibility for accuracy, completeness or
sufficiency of the information contained in this document.
Chief® is a registered trademark of Legrand AV Inc.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all mounting systems
are properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this mounting system can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to
make sure the structure to which this mounting system is
attached can support five times the combined weight of all
equipment. Reinforce the structure as required before
installing the mounting system.
WARNING: The floor kiosks may be installed to the
PACLFx or PACLFx-B2B free-standing kiosk base or back-to-
back base. The floor kiosks may also be installed to concrete.
Do NOT install floor kiosks and back-to-back floor kiosks to
any floor surface other than concrete! Concrete flooring must
be at least 4" in thickness and NOT be covered with any other
type of flooring material. Concrete anchors must be installed
directly into concrete surface.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the weight of
components attached to swing door(s) does not exceed:
• LF40/42/43/46/47/48UxP Models: 100 lbs (45.4 kg)
Removable storage panel capacity: 25 lbs (11.3 kg);
• LF40/42/43/46/47/48UxP-B2B Models: 100 lbs
(45.4 kg) per screen
Removable storage panel capacity: 25 lbs (11.3 kg);
•LF49/50/55UxP Models: 125 lbs (56.7 kg)
Removable storage panel capacity: 25 lbs (11.3 kg);
•LF49/50/55UxP-B2B Models: 125 lbs (56.7 kg) per
screen
Removable storage panel capacity: 25 lbs (11.3 kg).
The hinge-open position is for installation and service only.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this mounting system outdoors.
--SAVE THESE INSTRUCTIONS--
Installation Instructions LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B
3
TABLE OF CONTENTS
',6&/$,0(5
'(),1,7,216
,03257$176$)(7<,16758&7,216
7$%/(2)&217(176
',0(16,216/)8[3RI
',0(16,216/)8[3RI
',0(16,216/)8[3%%RI
',0(16,216/)8[3%%RI
',0(16,216/)8[3RI
',0(16,216/)8[3RI
',0(16,216/)8[3%%RI
',0(16,216/)8[3%%RI
/(*(1'
722/65(48,5(')25,167$//$7,21
3$576
$66(0%/<$1',167$//$7,21
5HPRYH.LRVNIURP3DFNDJLQJ
%ROW.LRVNWR)ORRURU%DVH
$WWDFKLQJ)ODW3DQHO
&DEOLQJ
6WRUDJH3DQHO
LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B Installation Instructions
4
DIMENSIONS
0.328 8.33
0.63 15.88
SLOT DIA
FLOOR MOUNTING
HOLES
Model Image Diagonal
(A) Viewing Area
Width
(B)
Viewing Area
Height
(C ) Side Bezels
(D) Top/Bottom Bezels
(E)
LF40UxP 40" 19.6" (497.8mm) 34.1" (866.1 mm) 5.84" (148.3 mm) 7.2" (182.8 mm)
LF42UxP 42" 20.4" (518.2 mm) 36.6" (929.6 mm) 5.44" (138.1 mm) 5.95" (151.1 mm)
LF43UxP
DIMENSIONS: INCH
[MILLIMETERS]
LF40UxP, LF42UxP, LF43UxP, LF46UxP, LF47UxP, LF48UxP (page 1 of 2)
LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B Installation Instructions
5
DIMENSIONS...cont’d
DIMENSIONS: INCH
[MILLIMETERS]
LF40UxP, LF42UxP, LF43UxP, LF46UxP, LF47UxP, LF48UxP (page 2 of 2)
REMOVABLE
STORAGE PANEL
LOWER FRONT PANEL REMOVED
THICKNESS
A
B
B
REMOVABLE
ACCESS PANEL
REMOVABLE
ACCESS PANEL
REMOVABLE
ACCESS PANEL
2RU KNOCKOUTS
ELECTRICAL OUTLET
KNOCKOUT
ELECTRICAL OUTLET
KNOCKOUT
2RU KNOCKOUT
FAN KNOCKOUTS
3.00
76.20
0.20 5.16
0.203 5.16
TOP KNOCKOUTS
SCALE 1:8
Installation Instructions LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B
6
DIMENSIONS...cont’d
0.328 8.33
0.63 15.88
SLOT DIA
FLOOR MOUNTING
HOLES
Model Image Diagonal
(A) Viewing Area
Width
(B)
Viewing Area
Height
(C ) Side Bezels
(D)
Top/Bottom Bezels
(E)
LF40UxP-B2B 40" 19.6" (497.8mm) 34.1" (866.1 mm) 5.84" (148.3 mm) 7.2" (182.8 mm)
LF42UxP-B2B 42" 20.4" (518.2 mm) 36.6" (929.6 mm) 5.44" (138.1 mm) 5.95" (151.1 mm)
LF43UxP-B2B
DIMENSIONS: INCH
[MILLIMETERS]
LF40UxP-B2B, LF42UxP-B2B, LF43UxP-B2B, LF46UxP-B2B,
LF47UxP-B2B, LF48UxP-B2B (page 1 of 2)
LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B Installation Instructions
7
DIMENSIONS...cont’d
DIMENSIONS: INCH
[MILLIMETERS]
LF40UxP-B2B, LF42UxP-B2B, LF43UxP-B2B, LF46UxP-B2B,
REMOVABLE
STORAGE PANEL
LOWER FRONT PANEL REMOVED
THICKNESS
3.00
76.20
0.20
5.16
0.203 5.16
TOP KNOCKOUTS
SCALE 1:8
LF47UxP-B2B, LF48UxP-B2B (page 2 of 2)
DIMENSIONS: INCH
[MILLIMETERS]
Installation Instructions LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B
8
DIMENSIONS...cont’d
0.328 8.33
0.63 15.88
SLOT DIA
0.50
12.7
SLOT LENGTH
30.67
779.0
FLOOR MOUNTING
HOLES
Model Image Diagonal
(A) Viewing Area
Width
(B)
Viewing Area
Height
(C ) Side Bezels
(D) Top/Bottom Bezels
(E)
LF49UxP 49" 23.8" (604.5 mm) 42.3 (1074.4 mm) 5.73" (164.5 mm) 6.48" (164.5 mm)
LF50UxP 50" 24.3" (617.2mm) 5.48" (139.1 mm) 6.08" (154.3 mm)
LF55UxP
LF49UxP, LF50UxP, LF55UxP (page 1 of 2)
DIMENSIONS: INCH
[MILLIMETERS]
LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B Installation Instructions
9

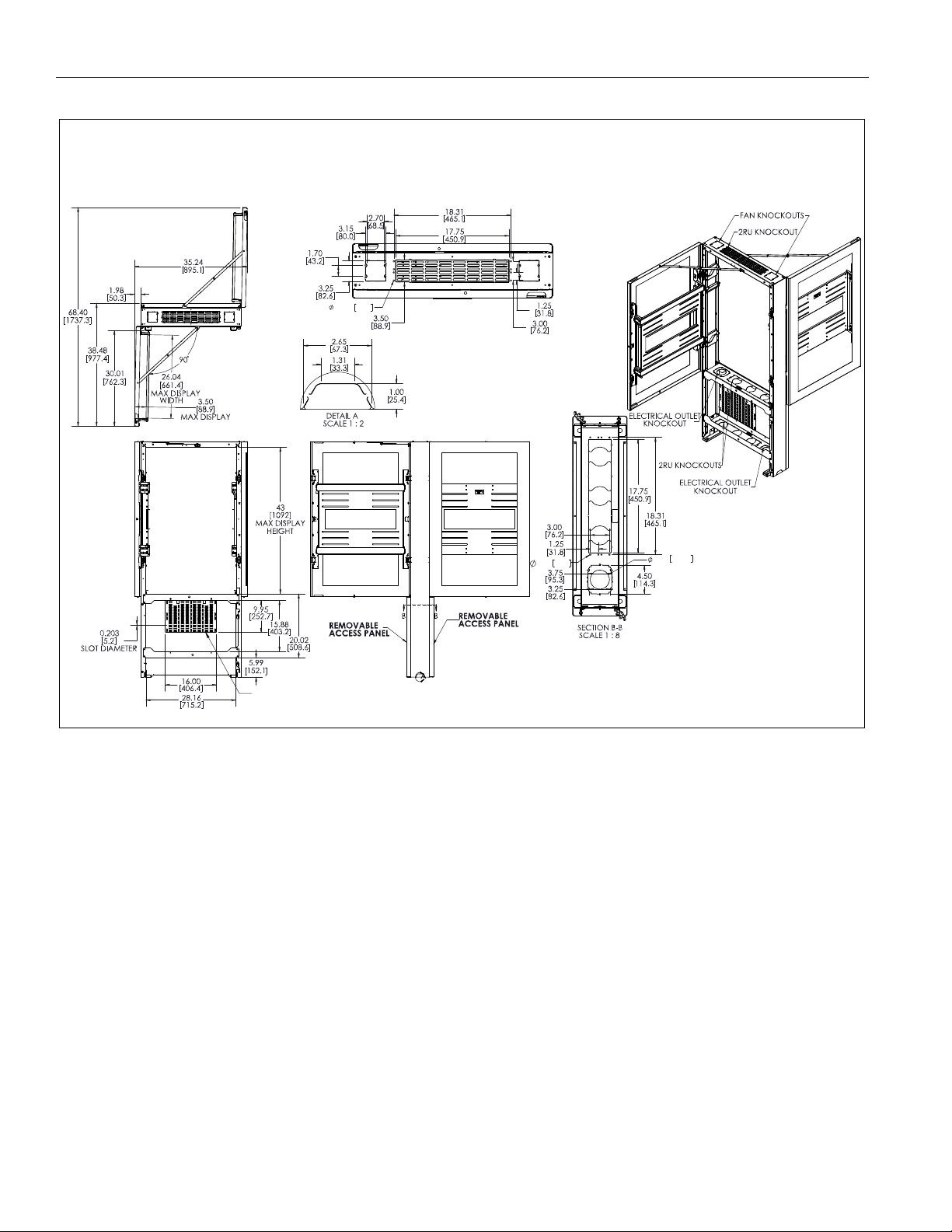

DIMENSIONS...cont’d
LF49UxP, LF50UxP, LF55UxP (page 2 of 2)
REMOVABLE
STORAGE PANEL
LOWER FRONT PANEL REMOVED
3.00
76.20
0.20 5.16
SECTION B-B
SCALE 1 : 8
0.203 5.16
TOP KNOCKOUTS
SCALE 1:8
DIMENSIONS: INCH
[MILLIMETERS]
Installation Instructions LF40/42/43/46/47/48/49/50/55UxP, LF40/42/43/46/47/48/49/50/55UxP-B2B
10
DIMENSIONS...cont’d
LF49UxP-B2B, LF50UxP-B2B, LF55UxP-B2B (page 1 of 2)
0.328 8.33
0.63 15.88
SLOT DIA
0.50
12.7
SLOT LENGTH
30.67
779.0
FLOOR MOUNTING
HOLES
Model Image Diagonal
(A) Viewing Area
Width
(B)
Viewing Area
Height Side Bezels
(D) Top/Bottom Bezels
(E)
LF49UxP-B2B 49" 23.8" (604.5 mm) 42.3 (1074.4 mm) 5.73" (164.5 mm) 6.48" (164.5 mm)
LF50UxP-B2B 50" 24.3" (617.2mm) 43.1" (1094.74) 5.48" (139.1 mm) 6.08" (154.3 mm)
LF55UxP-B2B
C
(
)
DIMENSIONS: INCH
[MILLIMETERS]
