1 Important
1.1 Safety notes
• Read instructions prior to use.
• Always test the system per instructions prior to use.
• The product may not be suitable for all persons.
• Check device regularly and replace when necessary.
• The PIR II is not intended as a life supporting device.
1.2 Use
• Use only original parts.
• Do not expose to direct sunlight.
• Keep away from dust, moist and dirt.
• Do not drop, knock, twist or shake the device.
• Do not warm up the device or use it near re.
• The PIR II may not be painted.
• For repairs, contact a NEAT dealer.
1.3 Cleaning
• Clean the device with a so cloth, dampened slightly
with mild soapy water.
• Do not clean the device with harsh chemicals, solvents
or other corrosive substances.
1.4 Recycling
• Dispose of properly. The worn out product must be retur-
ned to a recycling facility for proper disposal or returned
to NEAT.
4 PIR II User manual - NE41 19003-00 v1.2
2 Kit content
# Denomination
1 PIR II unit
2 Mounting bracket
3 Door magnet
4 AA (LR6) battery x 2

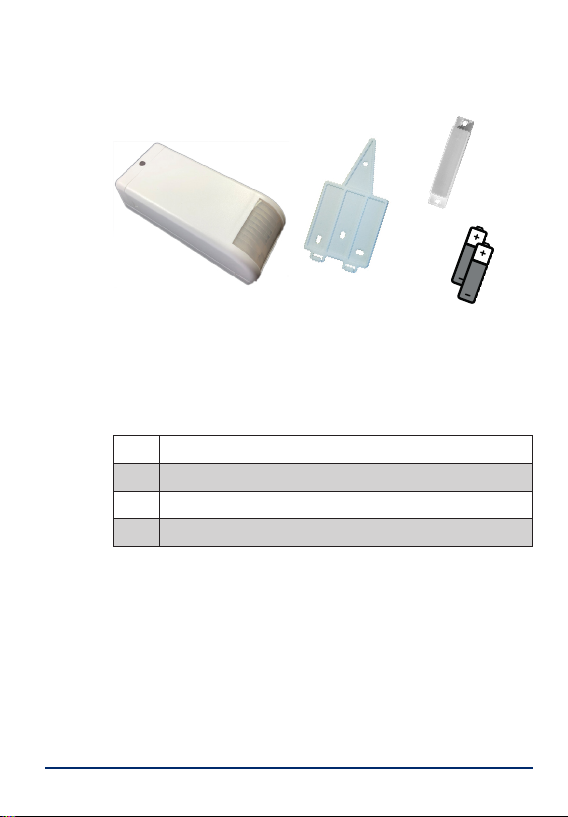

The list below shows the parts included in the pack-
age. If any part is missing or is defect, please contact
your reseller or distributor.
① ②
③
④
5PIR II User manual - NE41 19003-00 v1.2
3 Intended use
The PIR II infrared motion sensor monitors move-
ments. A movement results in an alarm being sent to
the care personnel.
The motion sensor may also be used to send an
inactivity alarm when it has not detected any motion
during a programmable period of time.
The PIR II can also be used as a door alarm with
out-passage detection (Intelligent Door Alarm).
PIR II is compatible with all radio-equipped
NEAT products.
4 Hardware overview
4.1 Cover

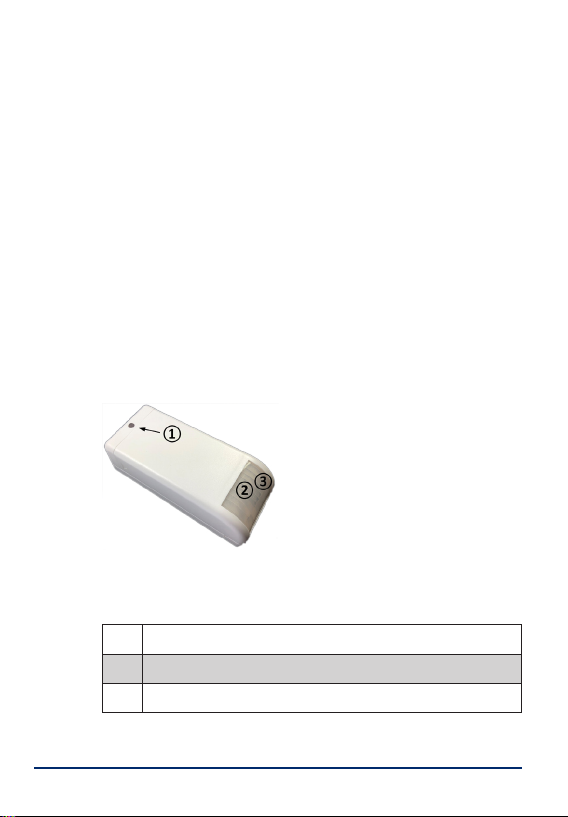

Picture 1. PIR II cover.
# Type/Function
1 Operation LED (D2)
2 IR detector (under lens)
3 Detection LED (D1) (under lens)
Table 1. PIR II cover denominations.
6 PIR II User manual - NE41 19003-00 v1.2
4.2 PCB
Open the cover by sliding the top cover downwards
from the Operation LED.
57
8
9
10
6
1
3
2
4
+ -
+ -

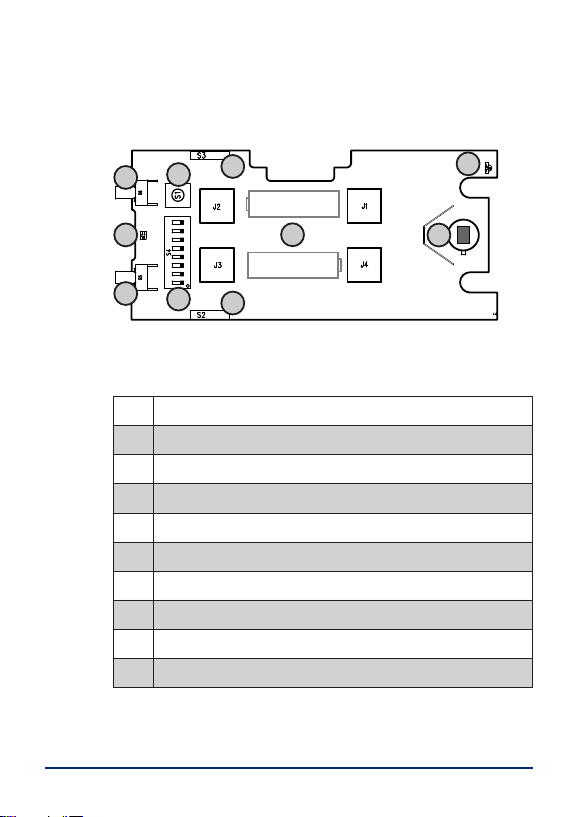

Picture 2. PIR II PCB overview.
# Type/Function
1 On button (S6)
2 Operation LED (D2)
3 O button (S5)
4 Function switch (S1)
5 DIP switches 1-8 (for conguration) (S4)
6 REED switch (magnetic switch) (S3)
7 REED switch (magnetic switch) (S2)
8 Battery holders (LR06, 1.5VDC) x 2
9 Detection LED (D1)
10 PIR sensor (D6)
Table 2. PIR II PCB items denominations.
7PIR II User manual - NE41 19003-00 v1.2
4.2.1 On/O buttons
The On/O buttons are located on the top of the unit.
ON OFF

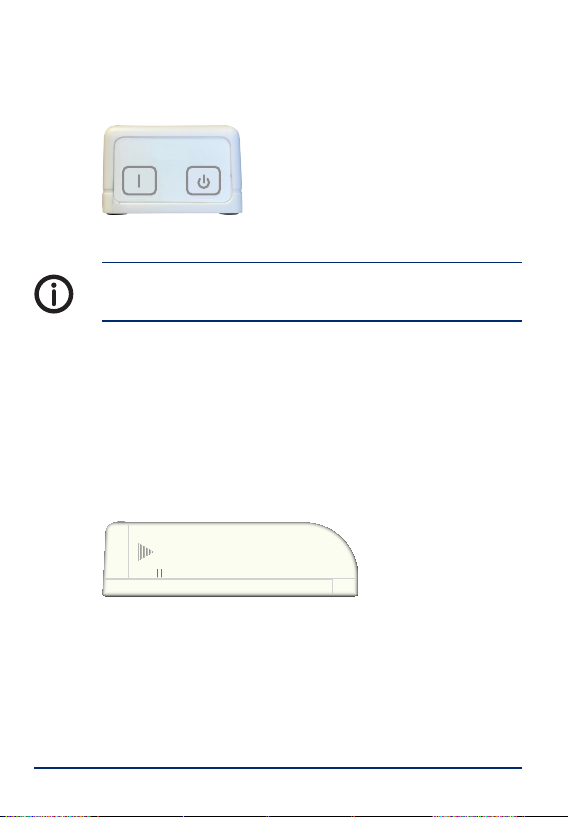

Picture 3. PIR II ON/OFF buttons.
The batteries must be removed in order to completely
turn o the unit.
4.2.2 REED switches
The REED switches (S2 and S3) are magnetic swit-
ches that make it possible to use the PIR II as a DOOR
alarm together with the accompanying door magnet,
see „6 IDA (Intelligent Door Alarm)“.
There are two small lines on each side of the PIR II
cover to indicate where the REED switches are loca-
ted.
Picture 4. Side view of PIR II.
4.2.3 Function switch
The function switch (S1) is used for pairing with other
radio units, e.g. a NOVO. See „7 Pairing“.
8 PIR II User manual - NE41 19003-00 v1.2
4.2.4 DIP Switches
The DIP switches are used for basic unit conguraton
out-of-the-box.
More advanced conguration is possible with a pro-
grammer soware and this is further elaborated in
the PIR II Technical Handbook - NE41 19005-02.
For an overview of the DIP-switch functions, see „13
DIP switch settings“.
4.2.5 LEDs
Operation LED (D2)
The operation LED (D2) indicates when alarms are
sent, e.g. a user alarm. Technical alarms (e.g. Battery
low or Radio Test Alarms) are not indicated by the
operation LED (D2).
The operation LED also visually indicates when the
unit starts up and is in Walk Test mode.
Detection LED (D1)
The Detection LED (D1) indicates if the PIR sensor has
detected any movement.
9PIR II User manual - NE41 19003-00 v1.2
4.3 IR detector sensor
4.3.1 Vertical detection area
1 m 2 m 3 m 4 m 5 m 6 m 7 m
2 m
Picture 5. Approximate detection area mounted on a wall.
Typically the PIR II is mounted on a wall and at a
height of approx 2 meters. The detection range is
then approx 4 meters out.
The unit can also be placed on a horizontal surface,
e.g on the floor beside or under a bed.
1 m 2 m 3 m 4 m
1 m
2 m
3 m
Picture 6. Approximate detection area when placed horizon-
tally.
10 PIR II User manual - NE41 19003-00 v1.2
4.3.2 Horizontal detection area
1 m 2 m 3 m 4 m
5 m 6 m 7 m
- 45°
+45°

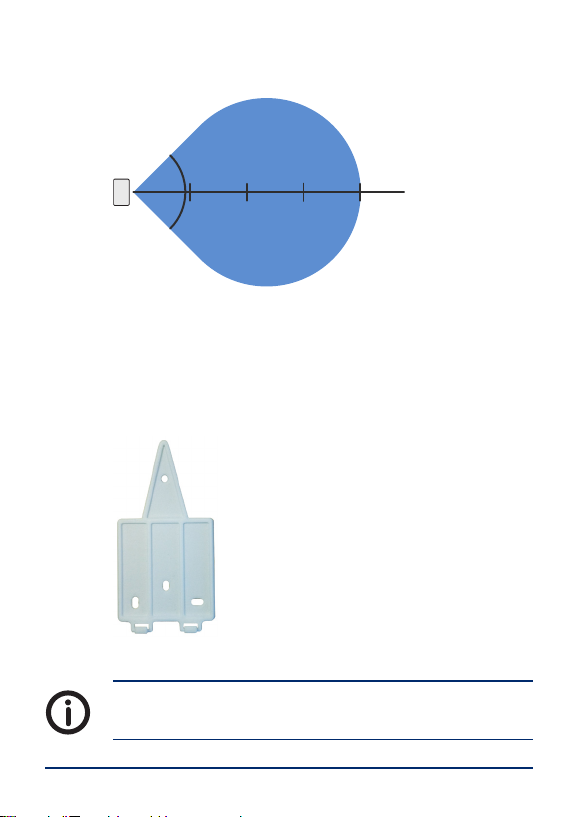

Picture 7. Approximate horizontal detection area.
4.4 Mounting bracket
The mounting bracket is normally used when PIR II
is used as a Door alarm to place the unit on a door
blade, see „6 IDA (Intelligent Door Alarm)“.
Picture 8. Mounting bracket.
The screws must be 3.5- 3.7 mm wide and at least 30
mm long and the head must not exceed 2 mm in height.
