Legacy Phantom Manuel utilisateur

Owners Manual For The

Phantom

Loudspeaker System

Registration

Owners Record 3

The Cabinetry Our Commitment 4

Setup

Unpacking Your Speakers 5

Speaker Installation 6-9

Hooking Up Cables 10-12

Amplification 13-15

Technology

Specifications 16

Table of Contents

Page

The serial number is located on the rear of the unit. Record this

number in the space provided below. Refer to this when calling your

dealer regarding this product.

Model: Phantom

Serial No: _________________________

Date of purchase: ___________________

Thank you for selecting a Legacy Loudspeaker System. These hand-

crafted instruments will provide you with many years of listening en-

joyment.

Owners Record

Handcrafted

Beneath the surface of Phantom’s elegant exterior lies rigid MDF

construction. Interlocking joinery maximizes the strength of the cabinet

parts. Polyester fiberfill is selected for internal damping. A sharp rap on

the enclosure will leave you with little more than bruised knuckles.

Each cabinet is impeccably finished on all exposed surfaces with select

veneers. The exquisite finish is hand-rubbed several times to assure a

patina at home with the most elegant decor.

Our Commitment

A great deal of forethought, love and satisfaction is instilled in each piece

of Legacy workmanship. We take pride in getting to know many of our

customers on a first name basis.

Your purchase of this product is backed by the renowned “Legacy

Satisfaction Guarantee”.

The Cabinetry / Our Commitment

Your new speaker system has been very carefully packaged to insure

that it travels to you safely. Each speaker is protected by a double-

wall outer carton with heavy V-board corner protectors. Molded foam

end caps are used to protect the elegant cabinetry, and a plastic liner

is provided as waterproofing. Please save this packing for future

transportation. If cartons become damaged or misplaced, new ones

can be purchased from Legacy Audio.

Unpacking Your peakers

Precautions

If you have any doubts about your ability to properly install on-wall

loudspeakers, you should consider the services of a custom installer. If

you plan to install them yourself, always use high quality tools to save

time and make the installation go more smoothly. The Phantom On-Wall

Loudspeakers mount on standard 16-in center stud walls. Determine the

final location of both left and right speakers before drilling any holes

since changes to one speaker may affect the other either aesthetically or

acoustically. Look for pipes, wiring or any other conflicting material that

might be damaged before beginning the installation.

peaker Installation

- There are two options when mounting

the Phantom Loudspeaker. The bracket

can be mounted either vertically on one

stud or horizontally on two 16-inch center

studs.

- Place the provided screws in the

appropriate holes based on how you wish

to mount your speakers. Please see

figure 1.

peaker Installation

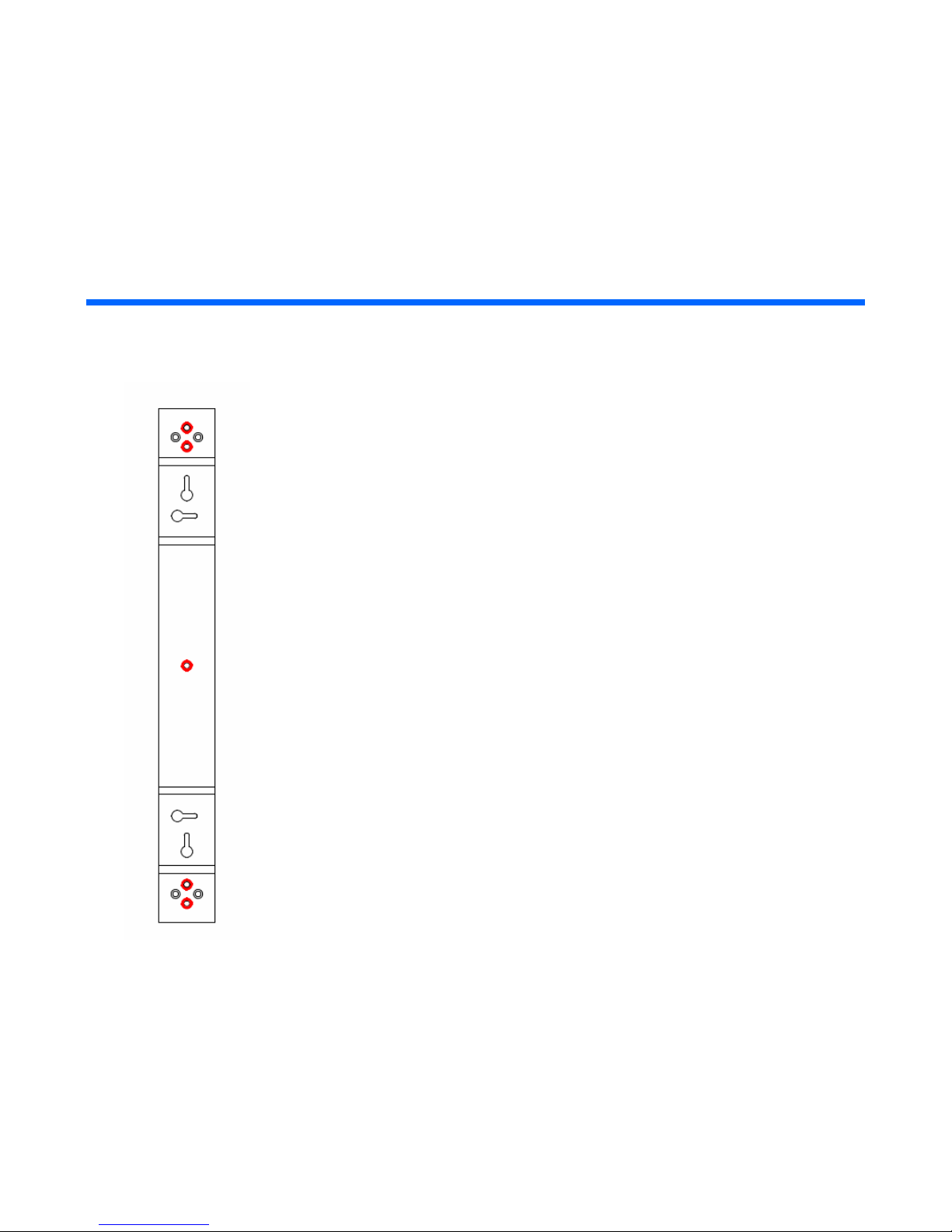

Vertical Mounting

- Find the center of one stud and mount the

provided bracket using the provided screws. Place

screws in the holes highlighted in red in figure 2.

- Lift the cabinet and slide the screws on the back of the

cabinet into the keyholes. This may take two people to

accomplish this task.

peaker Installation

Figure 2

Horizontal Mounting

- Find the center of the two studs and mount the provided bracket using

the provided screws. Place screws in the holes highlighted in red in figure 3.

- Lift the cabinet and place the screws on the back of the cabinet into the

keyholes. Slide the cabinet to lock it into place. This may take two people

to accomplish this task.

peaker Installation

Figure 3

Before you purchase loudspeaker wire, check local building codes to

make sure that the wire is rated to comply with applicable local

safety codes such as UL or CL-2. Use only stranded wire no thinner

than AWG 16. For runs longer than 100 feet, we recommend mini-

mum of AWG 14. When pulling wire, take care not to pull the wire

too fast to prevent stretching the wire or scorching the insulation

from friction. Leave 2 to 3 feet of excess loudspeaker wire at both

ends; it is easier to trim off excess wire than to splice additional wire.

When securing the wire inside the walls, be careful not to pierce the

insulation with nails or staples.

Hooking Up Cables
