LD1051379 – LEDBOX
IR BT Led Controller-CCT
Adopts the advanced micro control unit, it is used for controlling constant voltage CW+WW LED lamps.
For instance, point source of light, flexible light strip and so on; Belong to low-voltage DC power input and
output with four interfaces, including V+ is the common positive interfaces, the other two for the negative
interface. Meanwhile, you can turn on/off, adjust brightness/color-temperature for different lighting effects
through infrared 14keys remote control.
Product Features
Designed for CW+WW constant voltage LED lights, Working voltage DC12-24V.
Three channels output, Max. load current: 2CH*2A; Max. load power: 48W/12V; 96W/24V.
Adopts IR 14keys remote control with fashion appearance, distance up to 10 meters in the open air.
Memory function, each time power-on reserve the mode which stop in the last power-down;
7 modes in total, including 3 static colors and 4 dynamic changes.
The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is
adjustable, 100 levels in total.
Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
Warranty of this product is one year, exclude the artificial situation of damaged or overload working.
1Page of 5
Technical Parameters
Controller:
Working temperature
-20-60 ℃
Supply voltage
DC12V-24V
Static power consumption
<1W
Connecting mode
common anode
Grayscale
256 levels
Speed stage
100 grade
External dimension
L61*W35*H22 mm
Packing size
L150*W65*H40mm
Net weight
90g
Gross weight
110g
Output
2 channels
Max. Output current
2A*2CH
Mode
7
Remote distance
Up to 10M
Max. Output power
12V:48W, 24V:96W
Memory function
Support
Remote control:
Interface Specifications
Power input interface:
Adopt conventional power transpose as a DC power input interface. Infrared receiver:
Load output interface:
Working temperature
-15
℃~ 60℃
Supply voltage
DC3V
（
CR2032battery
）
Static current
<3uA
Working current
<20mA
Net weight
50g
Carrier frequency
38.0KHZ±0.76KHZ
External dimension
L138*W40*H10 mm
Remote distance
10M
2Page of 5
Direction for use
Connect the load wire at first, followed by the power wire; Please ensure short circuit can not
occur between wires before turning on the power；
Operation: to ensure that there is no barrier between the remote controller and the receiver.
The functions of buttons are shown as below:
Name
Description
ON
Turn on
OFF
Turn off
Brightness +
The brightness will add 1 level after each time press. Long-press can get fast adjusting.
Brightness -
The brightness will reduce 1 level after each time press. Long-press can get fast adjusting.
CW balance key
Balance to cool white. Long-press can get fast adjusting.
WW balance key
Balance to warm white. Long-press can get fast adjusting.
Mode
Hot key for 3 CCT full-light: 100% CW, 100% WW, 100%CW+100%WW, and 4 dynamic modes.
Night light
Press the button go to night light mode
（
night light Setting
：
Under night light mode, press “Set
button” and hold on for 10 seconds will go into the night light setting, press the left button to down
the brightness, press the right button to up the brightness. Adjustable range: 1%-10%.
）
Speed +
Add the speed of dynamic mode. Long-press can get fast adjusting.
Speed -
Reduce the speed of dynamic mode. Long-press can get fast adjusting.
Delay off
The light will be delay off in 30 seconds.
3Page of 5

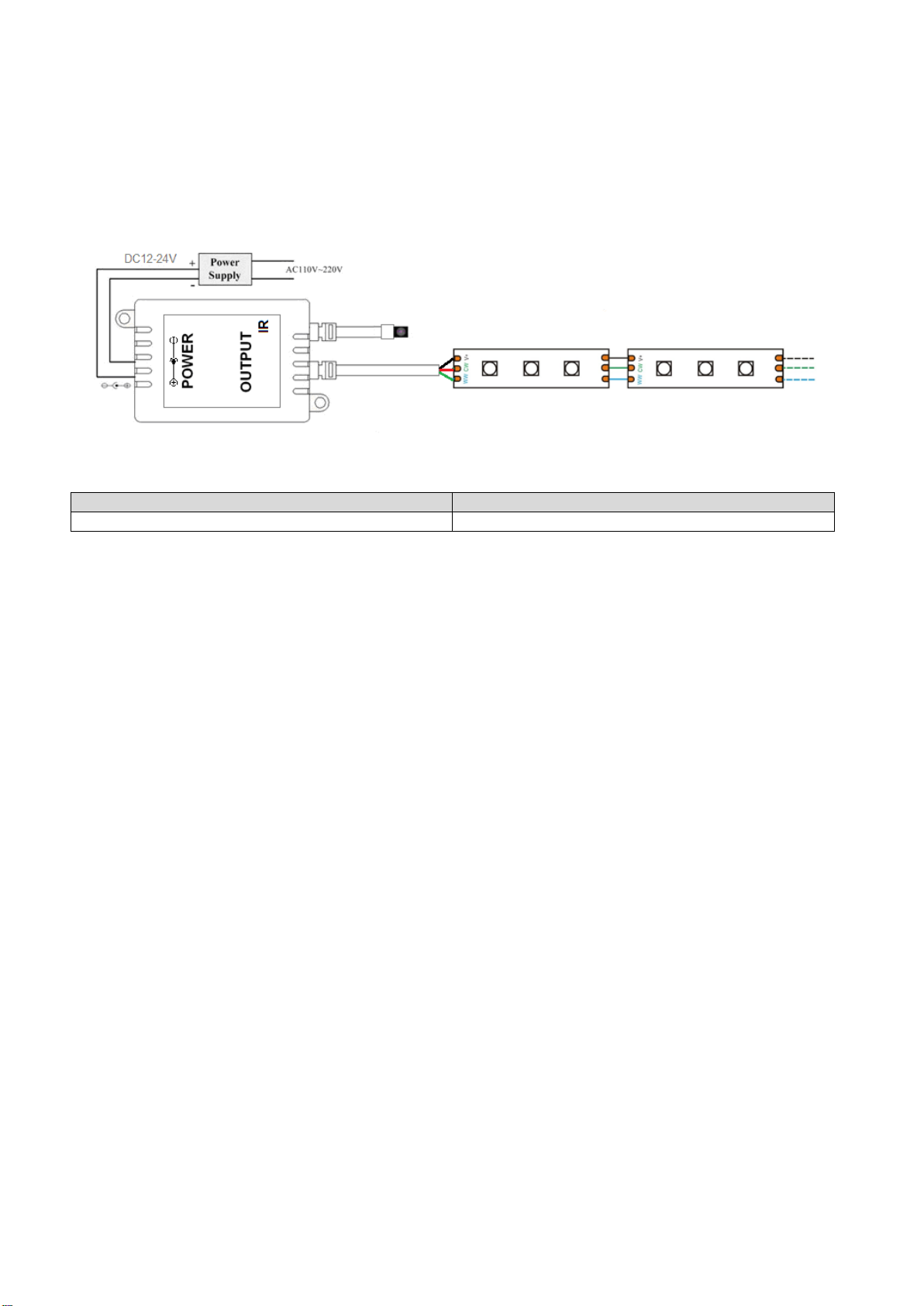

Typical Applications
Application Circuit 1:
Product information for placing order
Product name
Item number
IR BT remote LED Controller-CCT
HX-IRBT001-CCT
4Page of 5
